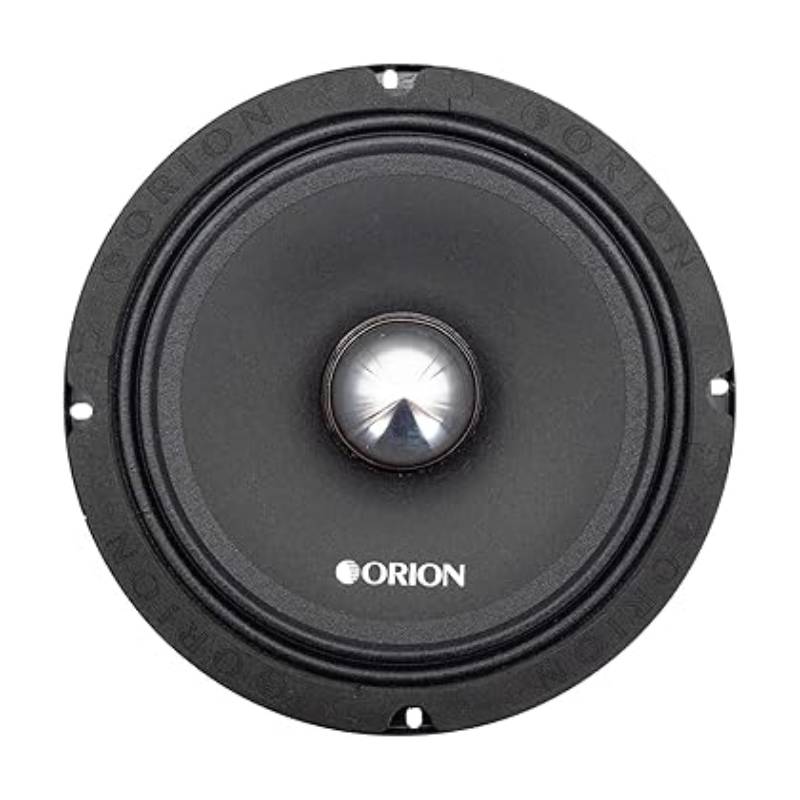

Orion XSM654SL XTR Series 6.5" 1200W Peak Power Handling at 4-Ohms, Slim Ultra Efficient Midrange Car Speaker (Pair)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

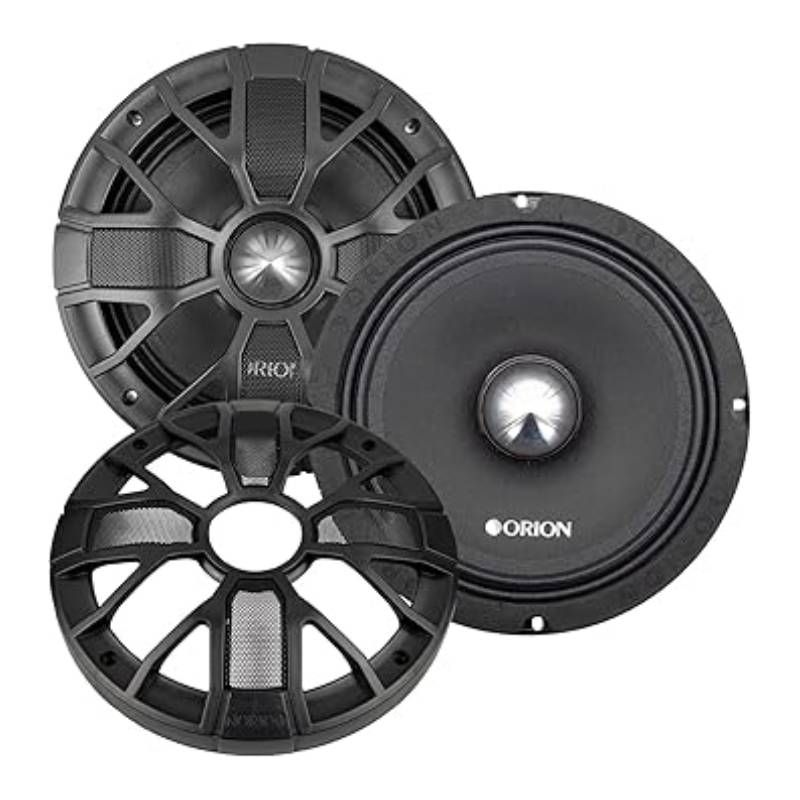

- • (2) 6.5" Slim Ultra Midrange Speaker
- • Owner's Manual
Unleash Precision with Pure Power
Experience powerful, distortion-free sound with the ORION XTR Series Midrange Speaker, built for precision and performance. Its advanced bullet phase plug enhances clarity and cooling, delivering smooth, high-quality audio even at maximum volume. Crafted with a slim, heavy-duty steel frame, it ensures lasting durability and superior sound stability for any setup.
Power That Performs Under Pressure
Experience unbeatable performance with speakers built to handle extreme power while staying cool under pressure. Enjoy lasting protection and style with durable grills that safeguard your speakers and enhance your setup’s look. Delivering 300W RMS and 1200W peak power, these speakers produce bold, dynamic sound that fills every drive with energy.
Crafted for Clarity and Durability
Experience rich, detailed sound that captures every nuance of your music with a wide frequency range from 120 Hz to 20 kHz. Built for strength and precision, the non-pressed paper cone and treated cloth surround ensure long-lasting performance. Enjoy accurate, lifelike audio that enhances every drive with clarity and depth.
Frequently Asked Questions (FAQ)
- • Why Does the XSM654SL Seem Underpowered When Connected to My Factory Radio?
One customer specifically noted that the speakers were not good without an amplifier. Because the XSM654SL is designed for high-power applications, a factory head unit may not provide enough output to make full use of its capabilities.
- • Why Am I Not Getting Much Deep Bass From These 6.5-Inch Speakers?
The XSM654SL is a midrange speaker with a listed response starting at 120 Hz, so it is not intended to replace a dedicated subwoofer. Online product feedback also identifies limited bass depth as a potential drawback.
- • What Could Cause the Speaker to Trigger Protection During Heavy Playback?
One customer reported that even a small musical hit caused a protection mechanism to trigger and also mentioned overheating. Excessive amplifier output, clipping, poor gain settings, or inadequate installation conditions should be checked if similar behavior occurs.
- • Why Are My XSM654SL Speakers Getting Hot During Extended Use?
The XSM654SL is built for high-power operation, but sustained high output can increase heat around the voice coil and amplifier. Verify that the amplifier is properly matched and that the speakers are not being driven with a clipped signal.
- • Can These Slim Speakers Really Fit Where a Standard 6.5-Inch Speaker Won't?
The shallow design provides approximately 2.6 inches of mounting depth, making the XSM654SL suitable for tighter installations. However, the 6.3-inch cutout diameter and 6.69-inch overall diameter should still be checked against the vehicle's available mounting area.
- • Why Does My XSM654SL Sound Extremely Loud Compared With My Old Speakers?
With a listed 97.2 dB sensitivity, the XSM654SL can produce substantial output from relatively modest amplifier power. A noticeable increase in volume is therefore possible when replacing less-efficient factory or aftermarket speakers.
- • What Should I Check If the Speakers Sound Harsh at High Volume?
Start with amplifier gain, crossover settings, source quality, and speaker polarity. Pushing the system beyond its clean operating range can introduce distortion even when the speaker itself has a high power-handling specification.
- • Why Does My Installation Have More Vibration Than Expected?
A slim speaker still needs a rigid mounting surface. Loose screws, an inadequately supported adapter, door-panel movement, or gaps around the speaker can introduce unwanted vibration and resonance.
- • Is the XSM654SL Suitable for a Full-Range Sound System by Itself?
It can cover a broad 120 Hz–20 kHz range, but its midrange-focused design means system integration matters. Adding a dedicated subwoofer for low bass and appropriate high-frequency components can produce a more complete overall frequency balance.
- • Why Do Some Owners Say These Speakers Sound Amazing While Others Mention Problems?
Some verified buyers describe the speakers as excellent with an amplifier, while another reported overheating and protection issues; other listings also show positive feedback for sound quality and value. Differences in amplifier power, installation, tuning, and expectations can contribute to these contrasting experiences.
- Diameter : 6.5 Inch
- Sensitivity : 97.2 dB
- Impedance : 4 Ohm
- Frequency Response : 120-20000 Hz
- Peak Power Handling : 1200 Watts
- Top Mount Depth : 2.6 Inches
- RMS Power Handling : 300 Watts
Features:
- 4-Ohm Midrange Speaker: Designed for accurate sound and seamless integration into a variety of audio systems.
- Bullet Phase Plug: Improves sound clarity and cooling, ensuring distortion-free audio even at high volumes.
- Slim Heavy-Gauged Stamped Steel Frame: Delivers exceptional strength and rigidity in a compact design, minimizing vibrations and resonance for improved sound clarity and lasting durability in demanding applications.
- High-Temperature Coating: Enhances heat resistance, protecting the speaker components during extended use at high power levels, ensuring consistent performance and longevity in demanding environments.

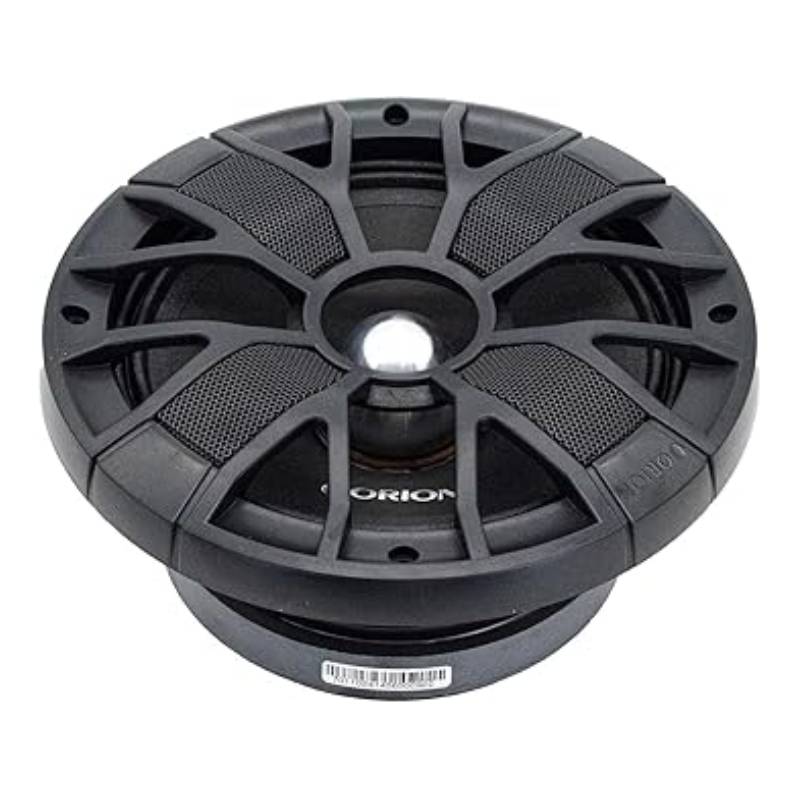

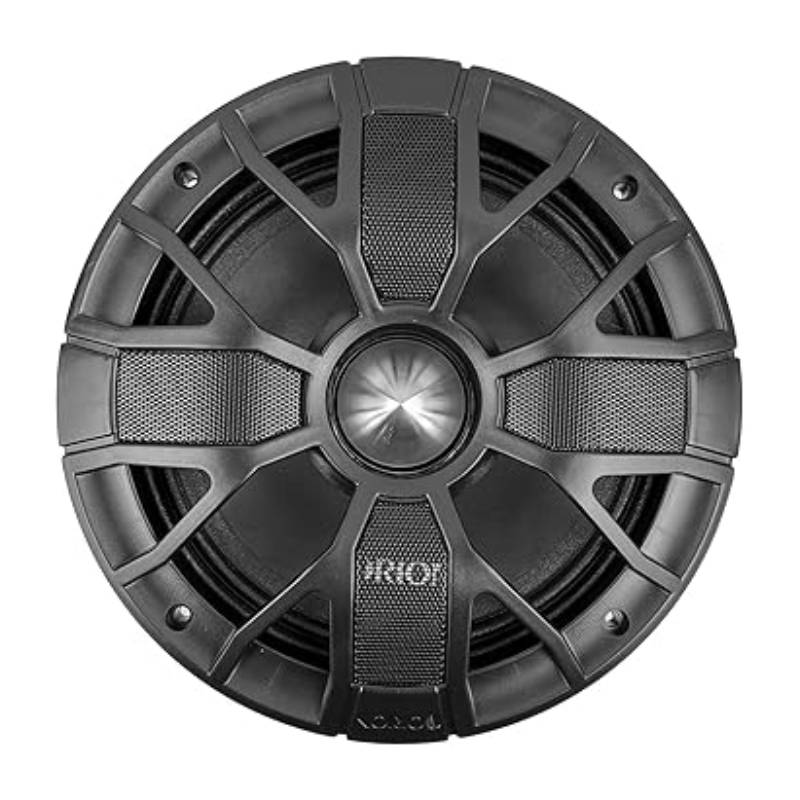

- Grills Included for Added Protection: Comes with durable, stylish grills that not only protect the speaker from damage but also enhance the overall aesthetic, while ensuring optimal sound performance in any setup.
- High Power Handling: 300 Watts RMS and 1200 Watts peak power for dynamic, powerful sound performance.
- Durable Construction: Built with a non-pressed paper cone and a treated cloth accordion surround for enhanced durability and accurate sound reproduction.
- Wide Frequency Range: From 120 Hz to 20 kHz, capturing detailed midrange frequencies for a rich audio experience.
Specifications:
- Speaker Size: 6.5 (Inches)
- Voice Coil Configuration: 2 ohm
- Power Handling (Peak): 1200 Watts
- Power Handling (RMS): 300 Watts
- Sensitivity: 97.2 dB
- Frequency Response: 120 Hz - 20 kHz
- Voice Coil Diameter: 1.5" (Inches)
- Speaker Quantity 2 Speakers
- Material: Heavy Gauges Stamped Steel
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 33 Oz. Ferrite
- Grilles Included: Yes
- Mounting Depth: 66mm / 2.6 (Inches)
- Overall Depth: 70mm / 2.76 (Inches)
- Cutout Diameter: 160mm / 6.3 (Inches)
- Overall Diameter: 170mm / 6.69 (Inches)
- UPC: 818550014558
- Weight: 5.84
