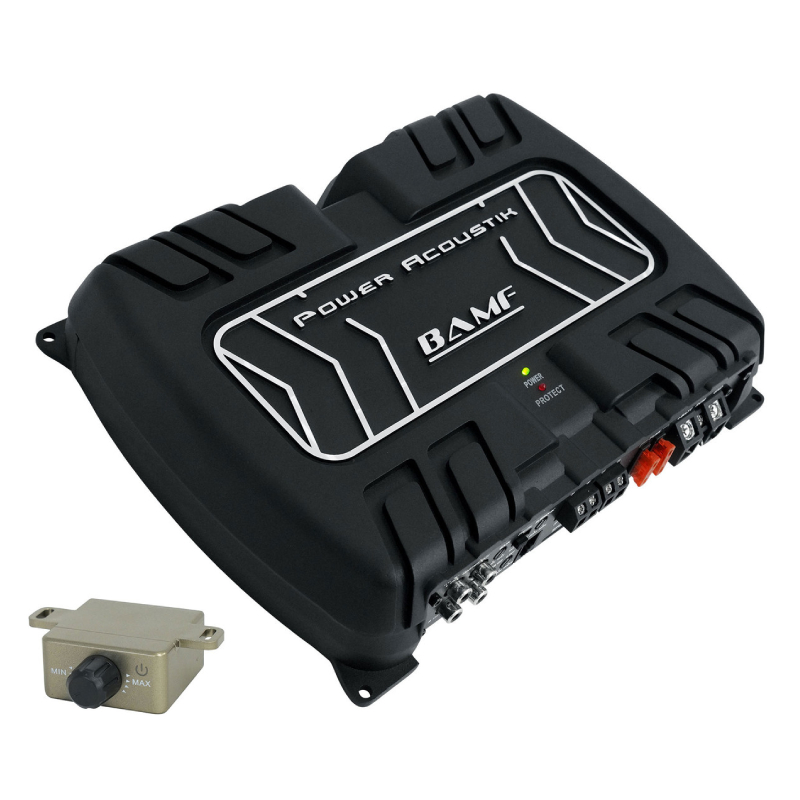

Power Acoustik BAMF1-3000D

BAMF1-3000D
BAMF Series Class D 1-Ohm Stable Strappable Monoblock Amplifier 3000W Peak Power
$156.64

FREE Shipping in US 48!

SOLD OUT

What other people bought after viewing this product.

Power Acoustik Banner

Power Acoustik

BAMF1-3000D

BAMF series amplifiers are the latest and greatest in full range class D technology. Previously considered only for subwoofer amplifiers, class D topology proves itself a contender for full range sound. Class D full range advantages start with stable high power capability in small compact, install-me-anywhere footprint. 90%+ efficient power supplies and optimized output devices mean less heat build-up and fatigue after extended playtime. Primarily SMD circuit boards using low tolerance parts keeps unwanted harmonic distortion at bay. Available configurations include 4ch, 5ch, and high power monoblock.

Power Acoustik BAMF1-3000D

Features:

  • Die-Cast Aluminum Alloy Heatsink for Optimum Dissipation
  • 2-ohm Stereo & 4-ohm Bridged Full Range Operation
  • 1-ohm Stable Monoblock Operation for MAX Power
  • Bridge 2 Monoblocks Together for Double Power!
  • MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
  • Military Grade SMT PCB Maintains Dynamic Performance
  • Direct Short, Thermal, & Overload Circuits Protect Amplifier

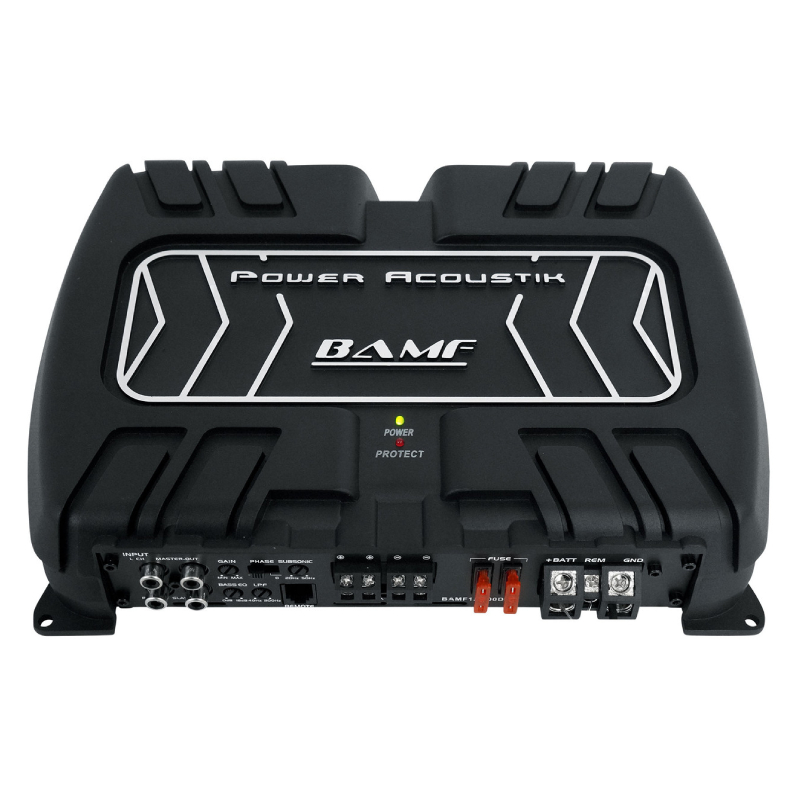

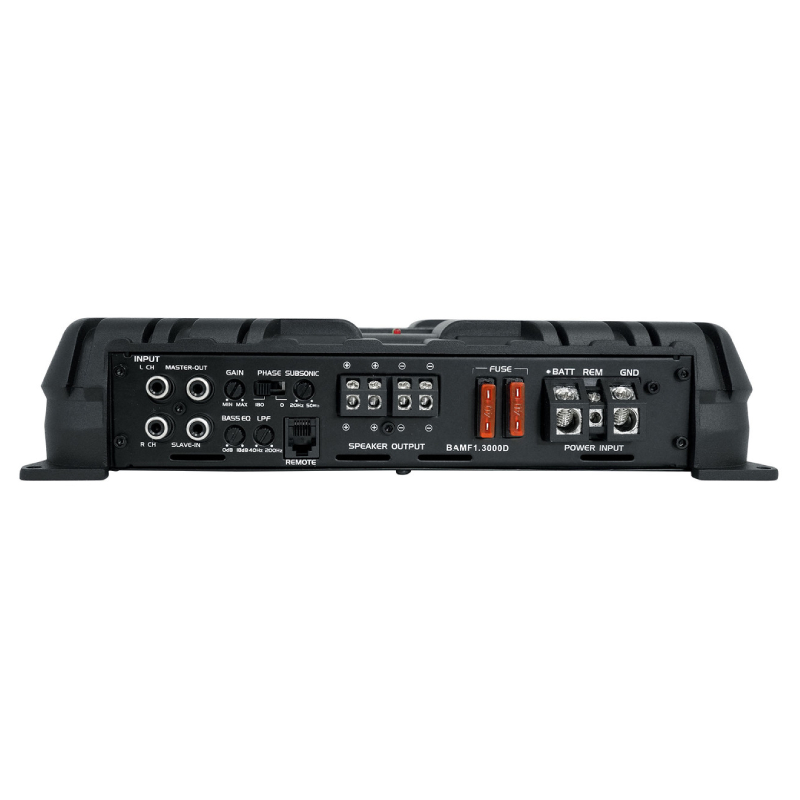

  • Easy DIY Install Single Sided Terminals & Controls
  • Angled Wire Terminals Secure Wire Connections
  • Chassis Integrated Aluminum Mounting Points
  • Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
  • 200mV-6V Low Level RCA Inputs
  • 4g Power Wire & 8g Speaker Wire Outputs
  • 12dB Bass Boost Increases Low Octave Harmonics
  • 1800 Phase Shift Improves Low Octave Dynamics

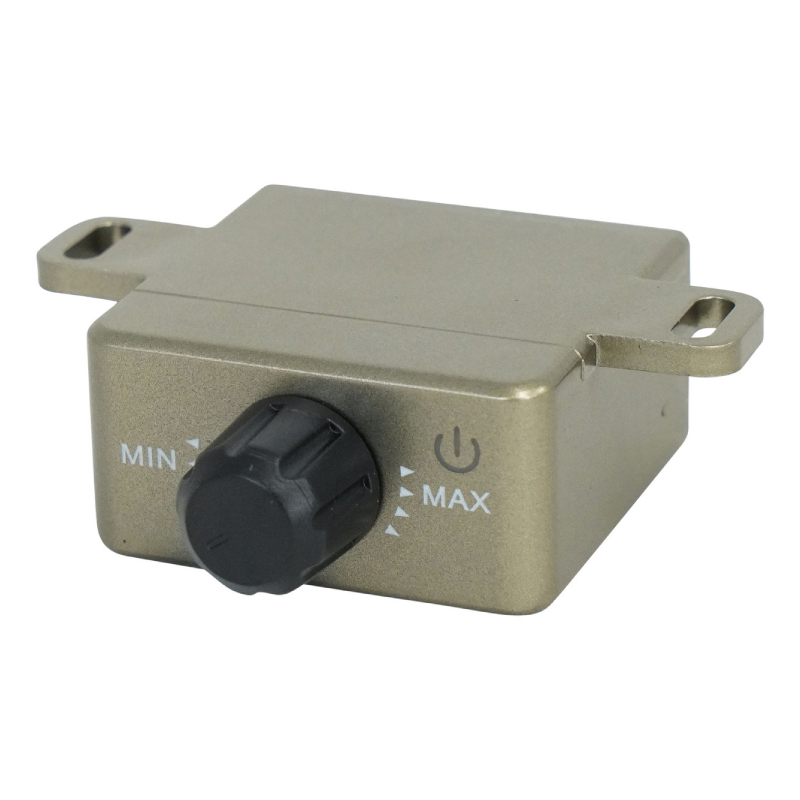

  • Dash Mount Gain Control Module Included
  • MAX Power: 3,000 Watts
  • RMS @ 1Ω, 14.4V: 1 x 1,500 (1Ω))
  • RMS @ 2Ω, 14.4V: 1 x 1,000
  • RMS @ 4Ω, 14.4V: 1 x 700


Product Highlights:

  • Power Acoustik BAMF Series BAMF1-3000D
  • Class-D 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
  • 4 ohms: 700 watts x 1 chan.
  • 2 ohms: 1000 watts x 1 chan.
  • 1 ohm: 1500 watts x 1 chan.
  • Total power output: 3000 watts
  • 4 gauge power and ground wiring is recommended for installation
  • Variable low-pass filter: 40 - 200 Hz, 24 dB/octave
  • Subsonic filter: 20 - 50 Hz , 24 dB/octave
  • Variable Bass Boost: 0 to +18 dB bass boost
  • Phase Switch: 0° to 180°
  • Pulse Width Modulated MOSFET power supply with Audiophile Grade IRTM Transistors

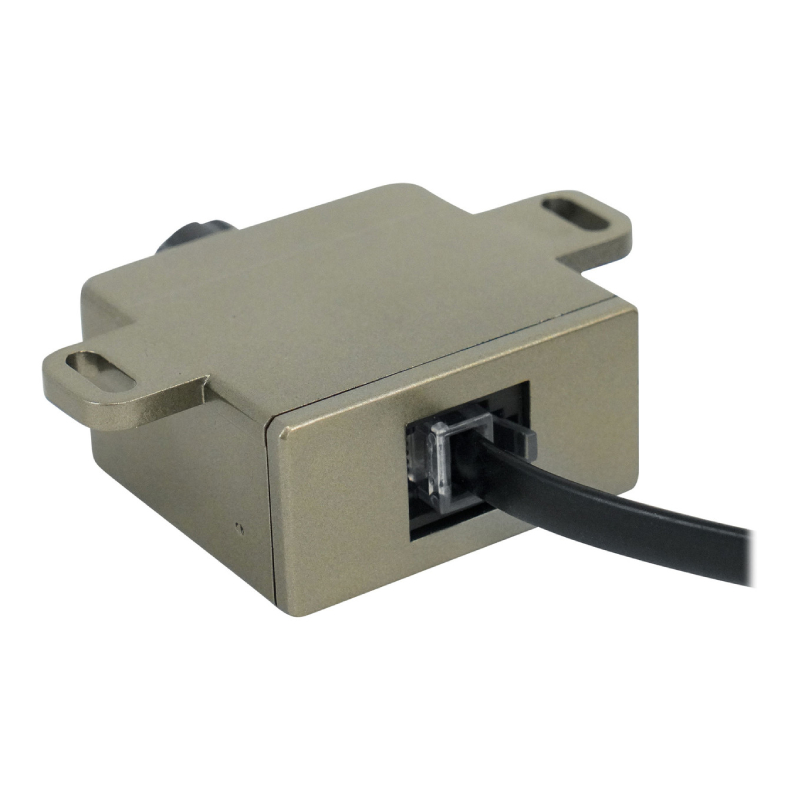

  • Wired remote bass level control included

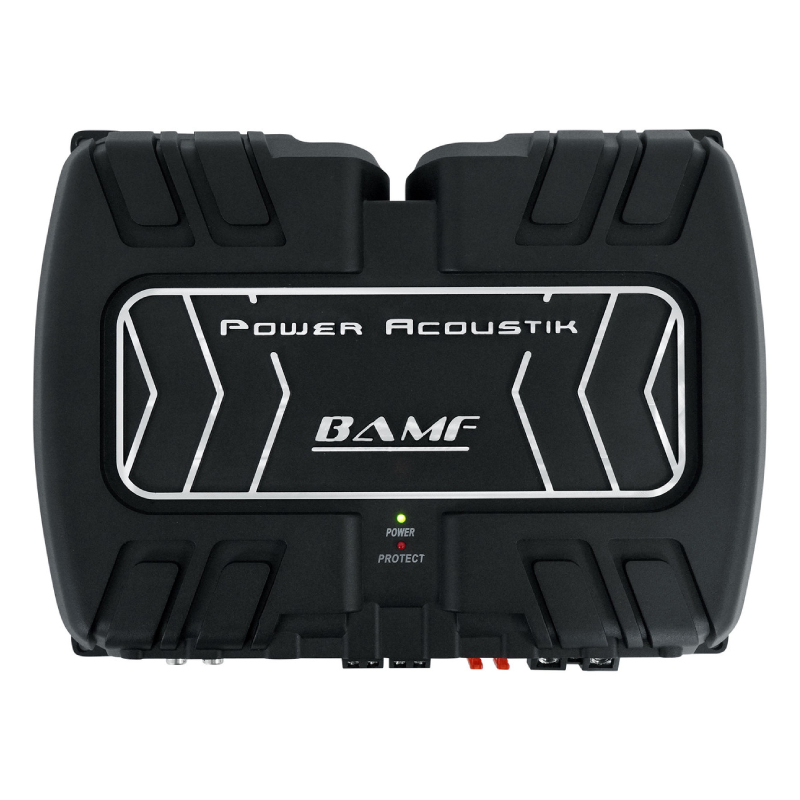

  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Angled Wire Terminals for Secure Wire Connections
  • Die-Cast Aluminum Alloy Heatsink for Optimum Dissipation

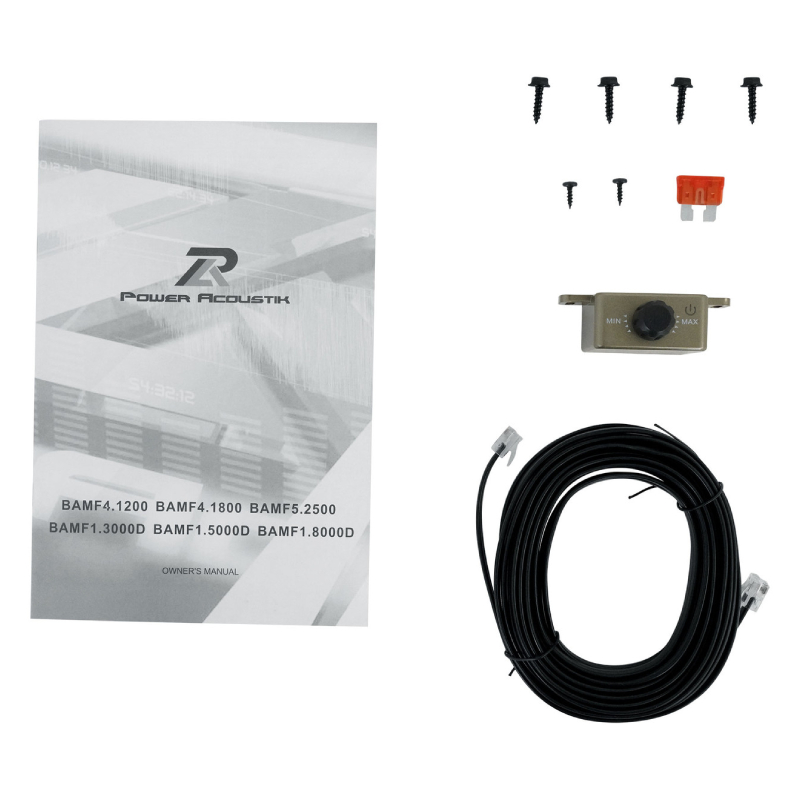

Includes:

  • BAMF Series Class D 1-Channel mono-block amplifier
  • Strap-able allows you to bridge 2 of amps together
  • Limited frequency response dedicated high-power subwoofer amplifier
  • Pulse Width Modulated MOSFET power supply with Audiophile Grade IRTM Transistors
  • Manual
  • UPC: 709483052734
  • Weight: 9
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
