AudioControl DM-810
Item# 46236 / Condition:  Brand New    Review this product

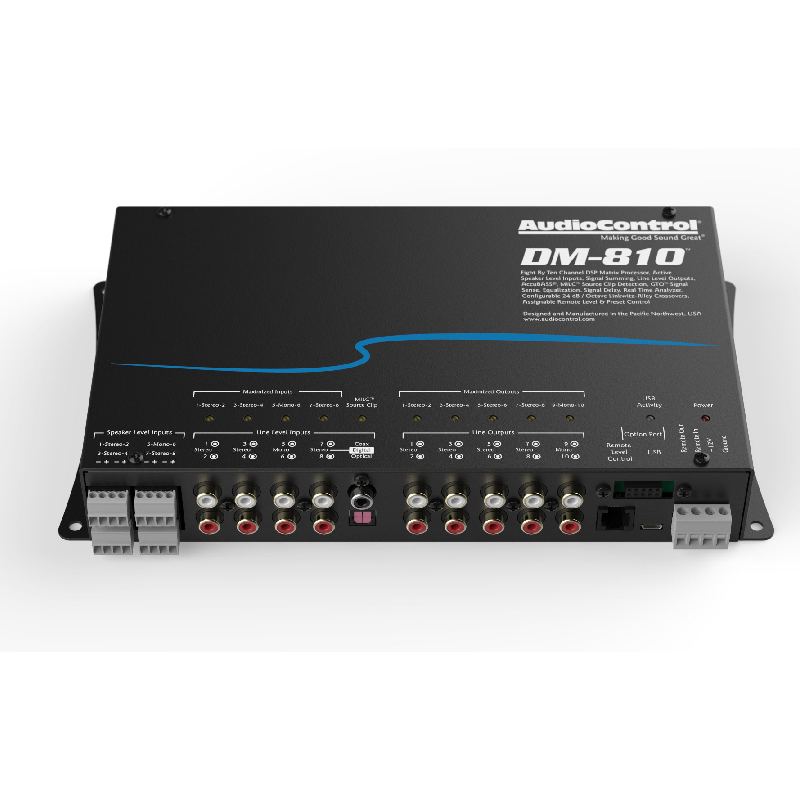

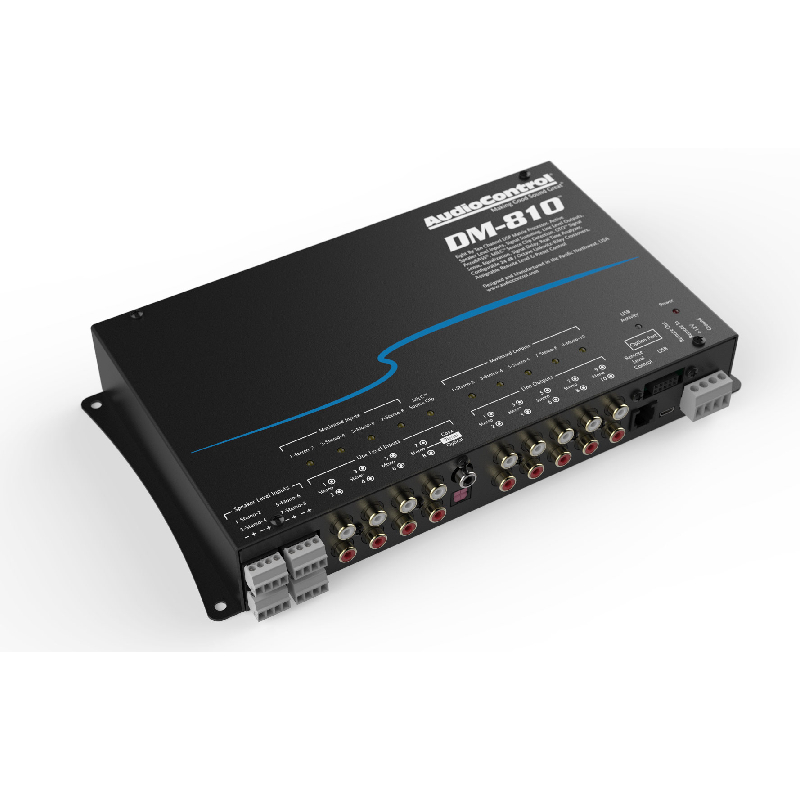

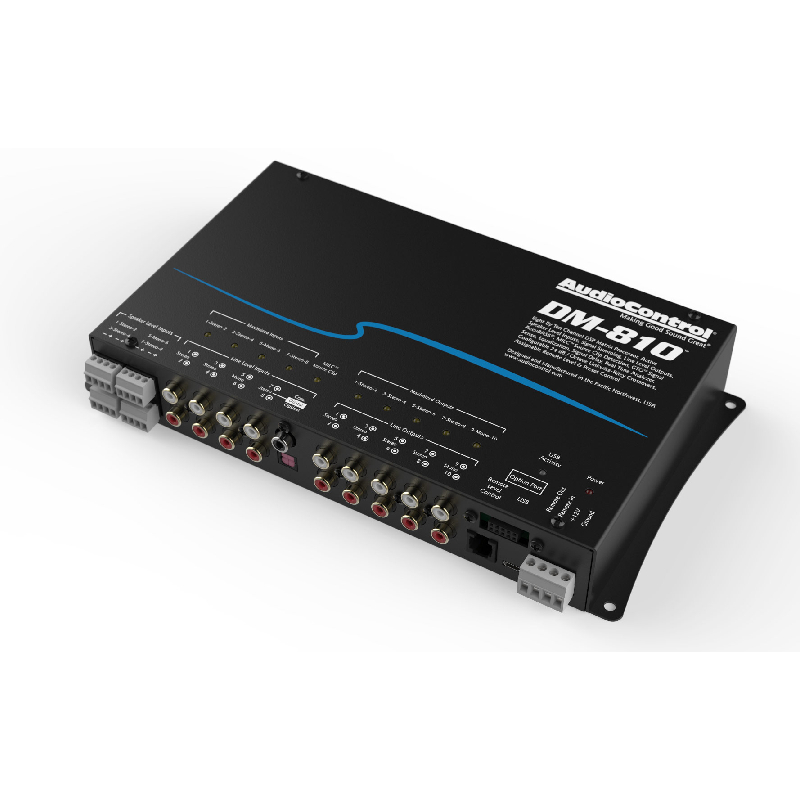

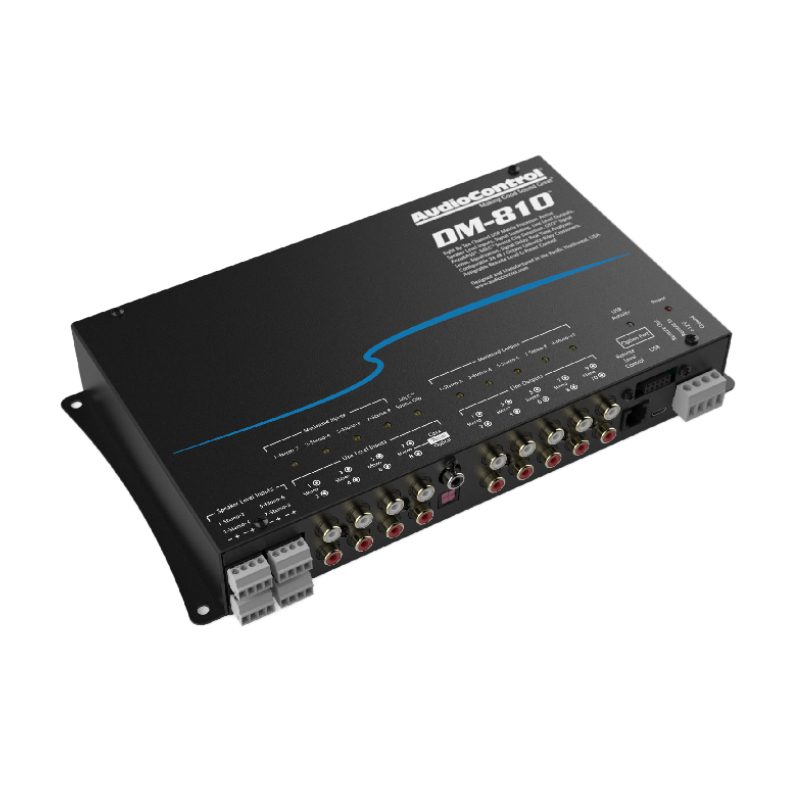

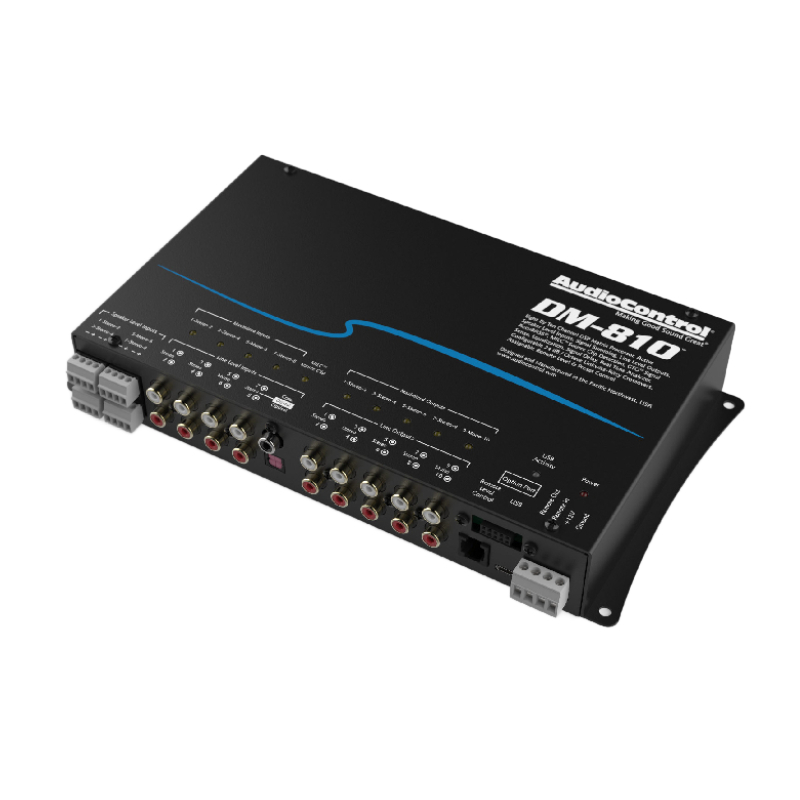

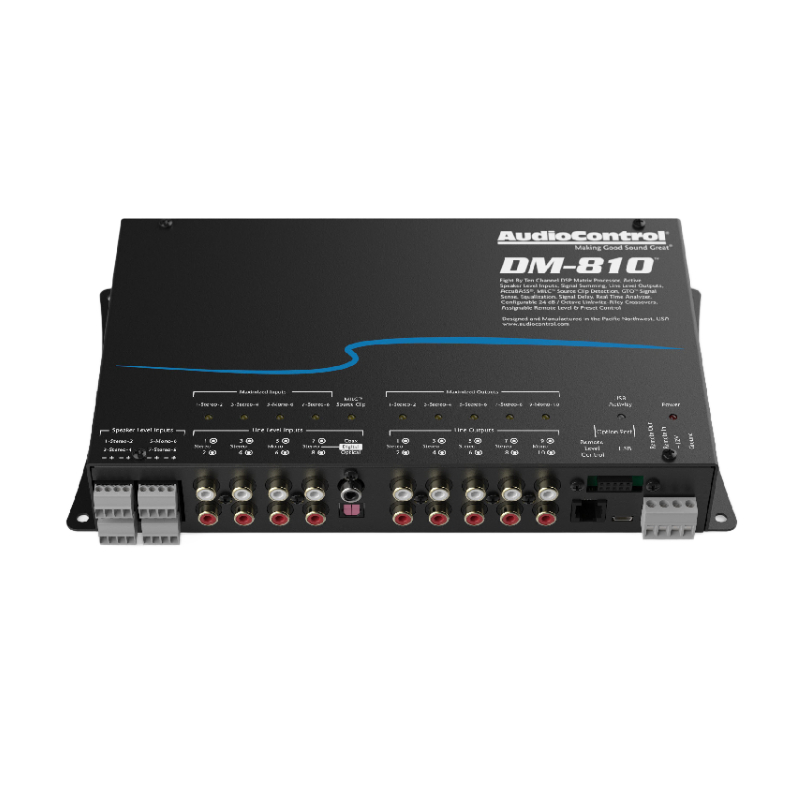

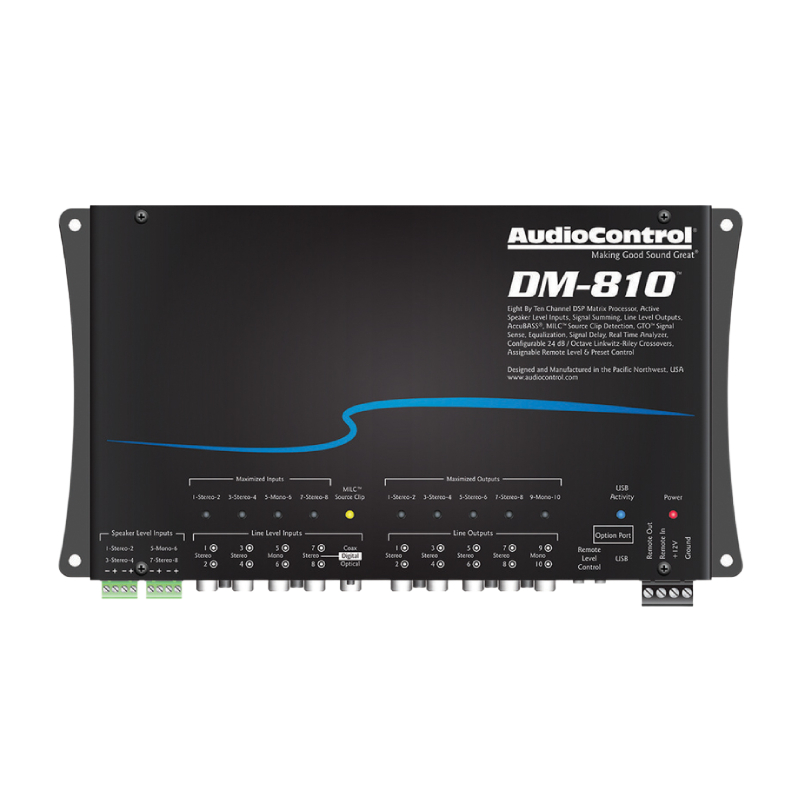

AudioControl DM-810

Eight by Ten Channel Matrix DSP Processor

FREE Shipping in US 48!

Save $192.00 | Reg. Price $789.99 In Stock
Add Extended Warranty

Related Video:


What's Included:

  • Power and Speaker Connectors
  • DM-810
  • Manual

Product Highlights:

  • GTOTM signal sense
  • Equalizaion
  • Conigurable 24 dB/Octave Linkwitz-Riley Crossovers
  • Acive speaker level inputs
  • Eight channels In
  • Signal summing
  • MILCTM source clip detecion
  • Ten channels cut
  • Matrix DSP Processing
  • Line level inputs and outputs
  • Digital inputs
  • AccuBASS
  • Signal Delay
  • Real ime analyzer
  • Optional ACR-3 Assignable Remote Level & Preset Control

The DM-810 features a premium 8 input 10 output dsp matrix processor with Signal Delay, Signal Summing, MILC source clip detection GTO signal sense and AccuBASS. The Signal Processor includes a Real time analyzer for maximum performance. Input and Output RT featured in the Signal Processor provides precise tuning. The product also comes with a 30 band equalizer. The Signal Delay featured in the unit provides acoustical alignment between right and left channels as well as subwoofer channels. It features the AccuBASS with variable threshold and gain. The AccuBASS processing corrects roll-off bass. It includes GTO turn-on circuit with remote out. Output level controls are also available. It also includes the MILC clip detection circuit. With the MILC clip detection circuit the amplifier is looking to detect any clipping. Speaker level inputs with GTO Signal Sensing come included with the signal processor. Also included are the 24 dB / Octave Linkwitz-Riley Selectable Crossover. Audio Control's AccuBASS Bass Compensation circuit adjusts the distortion that occurs at high volume levels. The DM-810 is capable of internally summing together multiple (4 or 6) input channels from it’s original source unit into 2 channels. An Optional ACR-3 Assignable Remote Level & Preset Control is available. The DM-810 includes Power connectors and Manual. Eight Preamp Input Channels are built into the processor. The DM-810 has 10 Preamp Outputs Channels. The DM-810 has an input impedance of 20k Ohms for the Preamp and 7k Ohms for the Speaker-level. It has a Maximum Output Level of 10 Vrms. Also the Output Impedance is 150 Ohms. It has a current draw of 350mA. The Total Harmonic Distortion is 0.01%. The Frequency Response registers 20 Hz - 24 kHz. The recommended Fuse Rating is 2A. The dimensions are as follows: 10.5”W x 5.7”D x 1.6”H. It has a weight of 3 lbs.

Power Supply: High Headroom PWM Switching
12 VDC Remote In 12 VDC Remote Out (always active when unit is on)
Crossover Type: 12 and 24 dB/octave Linkwitz-Riley
Dimensions: 10.5W x 5.7D x 1.6H
Output Impedance: 150 Ohm
Current Draw: 350mA
Preamp Outputs Channels: 10
Maximum Output Level: 10 Vrms
Digital Inputs: 1 x Toslink and Coax
Recommended Fuse Rating: 2A
Preamp Input Channels: 8
Input Impedance Preamp / Speaker-level: 20 kOhm / 7 kOhm
Total Harmonic Distortion: 0.01%
Frequency Response: 20 Hz to 24 kHz
Crossover Frequency: variable
Weight: 3.0lbs (1.4kg)
  • UPC: 855814005969
  • Weight: 5.01
*Warranty: 1 Year warranty.
1 Year warranty from implies that repairs must be returned to, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
