8 Channel Advanced Digital Sound Processor
We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 1 - DSP68 8 Channel Digital Sound Processor
- • 1 - Owner’s Manual
- • 1 - High Level Input Terminal
- • 1 - Power Terminal
- • 1 - USB Tuning Cable
- • 1 - Mounting Hardware

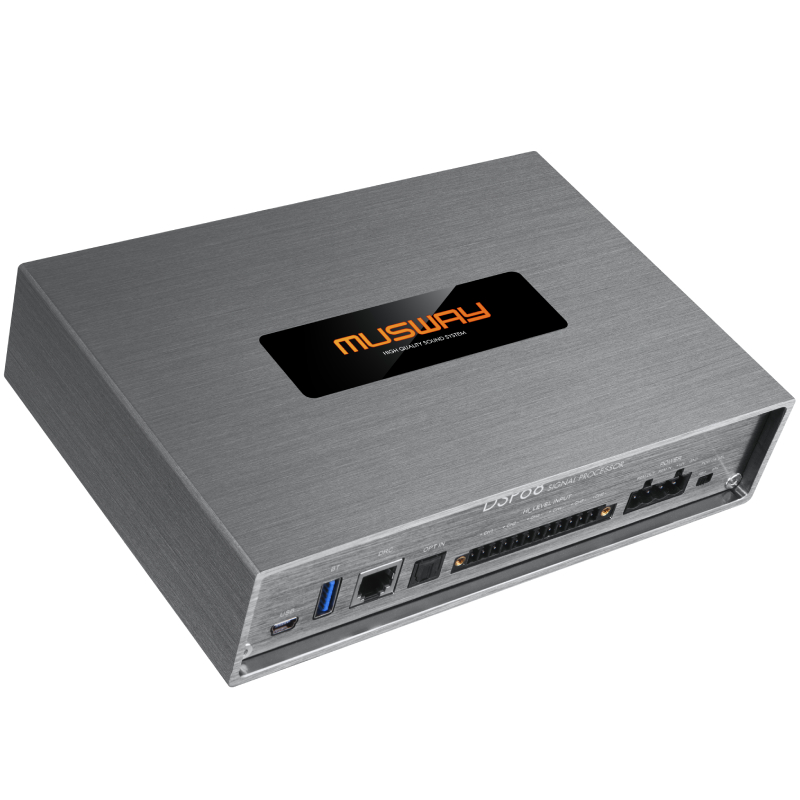

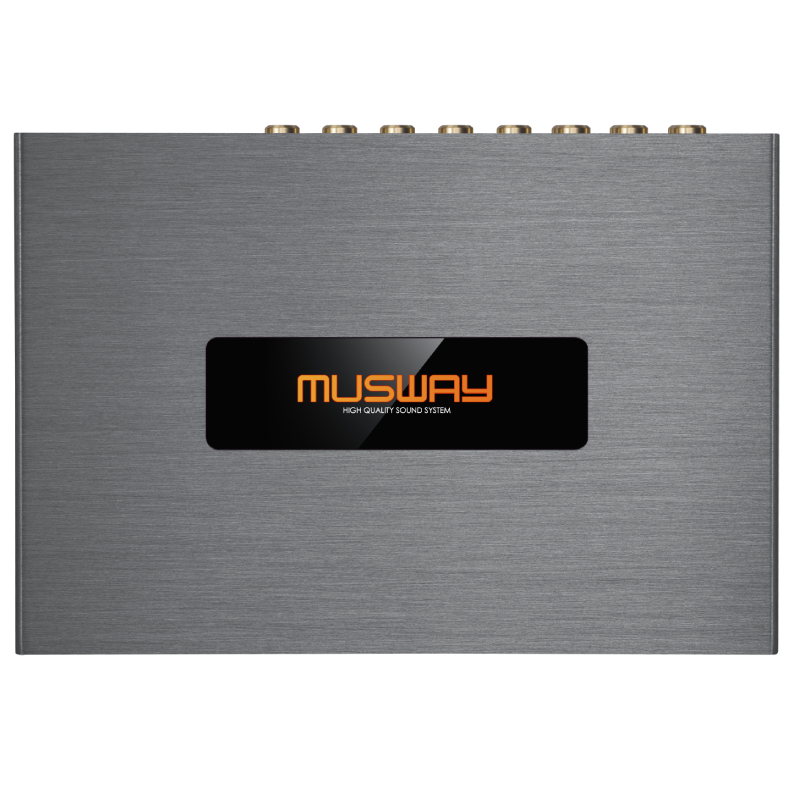

DSP68 Great sound and features
The stand-alone DSP68 DSP Processor represents the technical prowess of Musway in its purest form. If great sound and features at an amazing price are what you are seeking, you will find it with the DSP68. It utilizes Burr-Brown converters with an Analog Devices DSP processor. The award winning DSP68 features 8 channels of DSP processing.
Product Highlights:
- • EPS (Intelligent High-Level Input-Error Protection System)
- • Start-Stop Ready

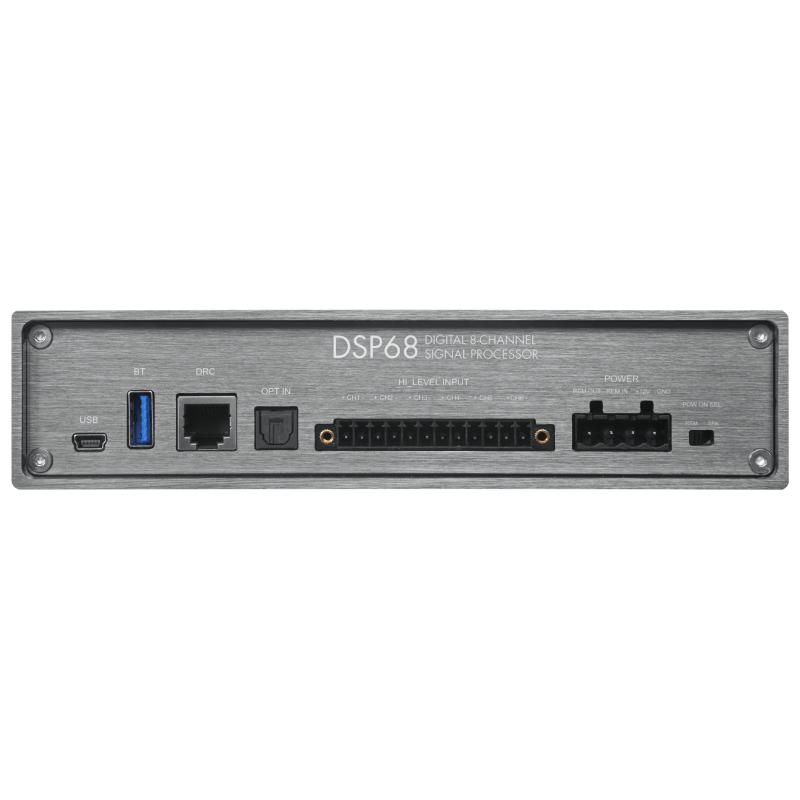

- • Inputs: 6 Hi-Level Inputs, 6 Low-Level Inputs (RCA) Aux x 2, Optical x 1

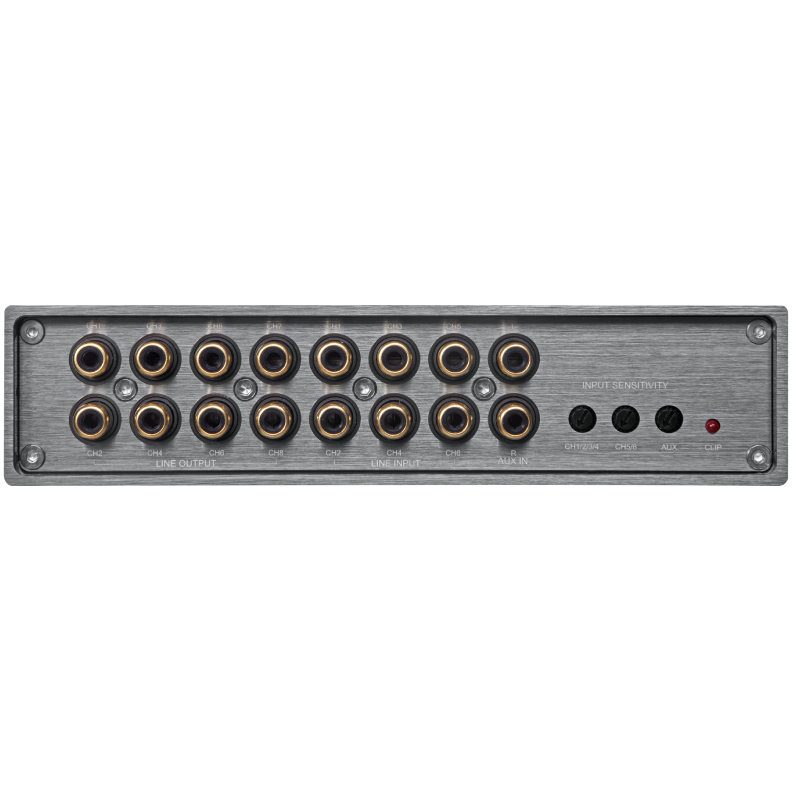

- • Outputs: Low-Level Pre-Outputs x 8 (Configurable via DSP) up to 6.5 Volts RMS
- • Burr-Brown Converters with Analog Devices Processor, 32-Bit Digital Input/Output up to 192 kHz Sample Rate
- • Separate User Controllable Input Sensitivity (Ch. 1-4, Ch. 5-6 Aux)
- • Clipping LED’s
- • With the 3 Optional USB Bluetooth Dongles you can Stream audio (BTS), Stream aptX HD Hi Res audio (BTS HD), and can stream audio and have AppControl for DSP Tuning from your Smartphone or Tablet (BTA2)
- • Also Available is the Optional DRC1 Digital Remote Control with OLED Display that puts the Control of your Audio System at your Fingertips
Optional Accessories
BTA2
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming and APP Tuning
For Use on the M4+, M6, D8, M12, DSP68 and TUNE12
Dimensions (H x L x W) 0.4” x 2.4” x 1.4”
BTS-HD
aptX HD USB Bluetooth Dongle for Hi-Res Audio Streaming
For use with TUNE12, DSP68, M6v3, M4+v3, M12.
BTS
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming
For Use on the M4, M4+, M6, D8, and DSP68
Dimensions (H x L x W) 0.4” x 2.4” x 1.4”

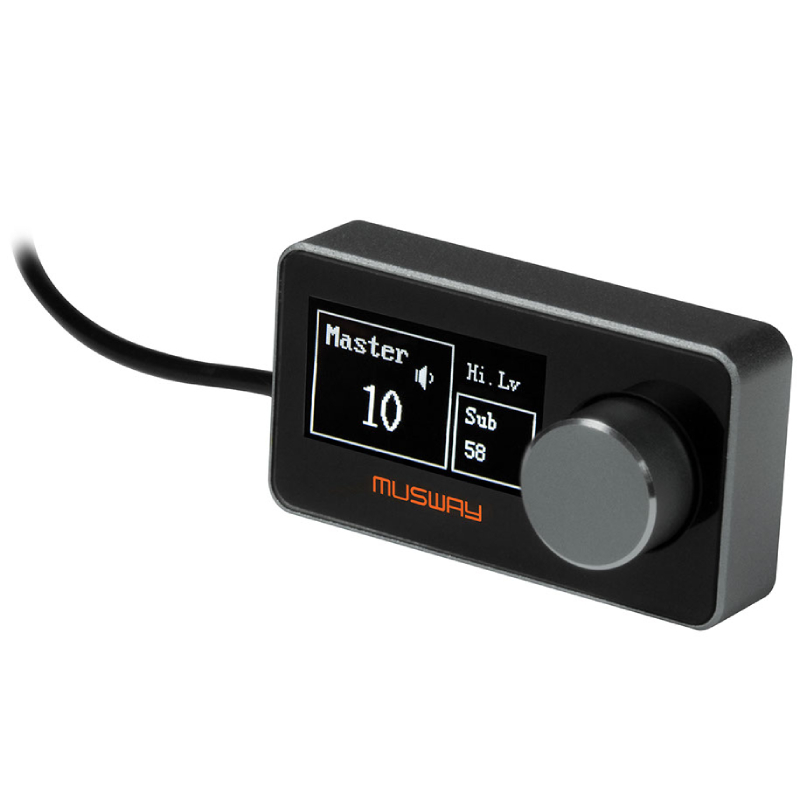

DRC1
Digital Remote Control
Adjustable Master Volume and Subwoofer Level
Signal Source Selector: High Level, Bluetooth, Auxiliary or Optical
Selectable Mute . Set Channel Pair for Subwoofer Level
For Use on the M4+, M6, D8 and DSP68
Dimensions (H x L x W) 0.5” x 2.3” x 1.3”
Product Highlights:
- EPS (Intelligent High-Level Input-Error Protection System)
- Start-Stop Ready
- Inputs: 6 Hi-Level Inputs, 6 Low-Level Inputs (RCA) Aux x 2, Optical x 1
- Outputs: Low-Level Pre-Outputs x 8 (Configurable via DSP) up to 6.5 Volts RMS
- Burr-Brown Converters with Analog Devices Processor, 32-Bit Digital Input/Output up to 192 kHz Sample Rate
- Separate User Controllable Input Sensitivity (Ch. 1-4, Ch. 5-6 Aux)
- Clipping LED’s
- With the 3 Optional USB Bluetooth Dongles you can Stream audio (BTS), Stream aptX HD Hi Res audio (BTS HD), and can stream audio and have AppControl for DSP Tuning from your Smartphone or Tablet (BTA2)
- Also Available is the Optional DRC1 Digital Remote Control with OLED Display that puts the Control of your Audio System at your Fingertips
Specifications:
- Distortion - THD (1 kHz @ 1VrmsPower): 0.05%
- Bandwidth (-3 dB, 6 V RMS, 4Ohms): 15 Hz - 22 kHz
- S/N ratio @(A weighted): 95 dB A
- Output Voltage: 6.5V
- Input sensitivity:
- 3V -21V RMS (High-level);
- 1V - 5 V RMS(Low-level, Aux)
- Input impedance: 13 (High-level): 47 kOhms (Low-level)
- Operating Voltage: DC 8 -15V
- Dimensions: (H x L x W) 1.6” x 7.1” x 4.9”
- UPC: 6972502090053
- Weight: 2
