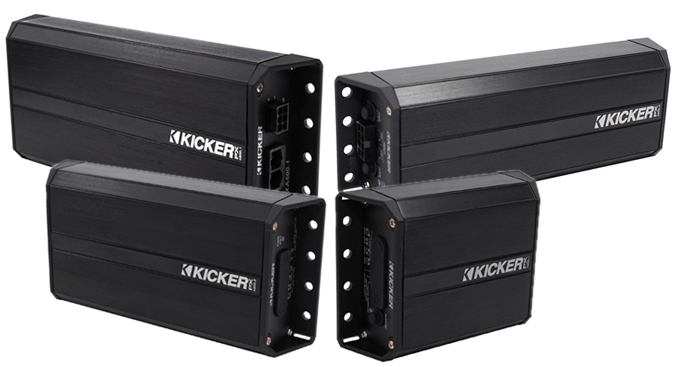

PX Amplifiers are specially designed to deliver tremendous power in a tiny, weatherproof footprint – without taxing your charging system.

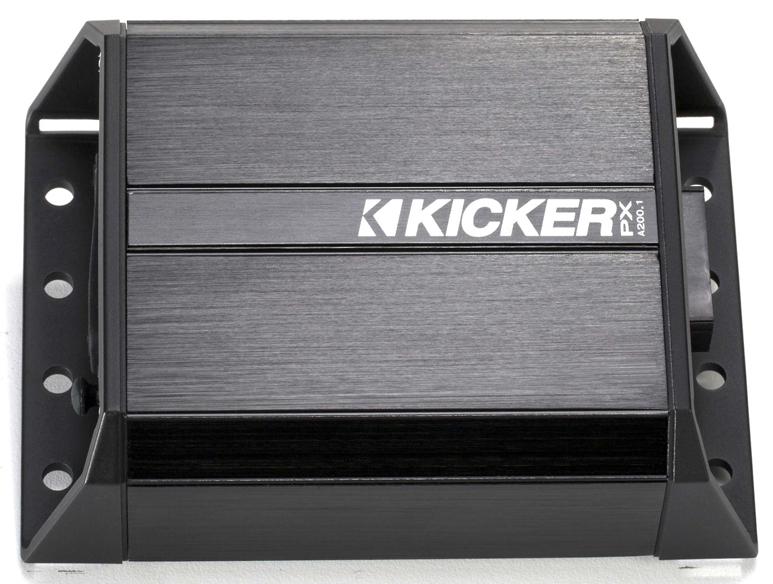

Whether it's in a car, motorcycle, or any vehicle with a small charging system - you want an amp tough enough to thrive no matter where the ride takes you. A weatherproof wiring harness, moisture-resistant circuit board and aluminum casing.

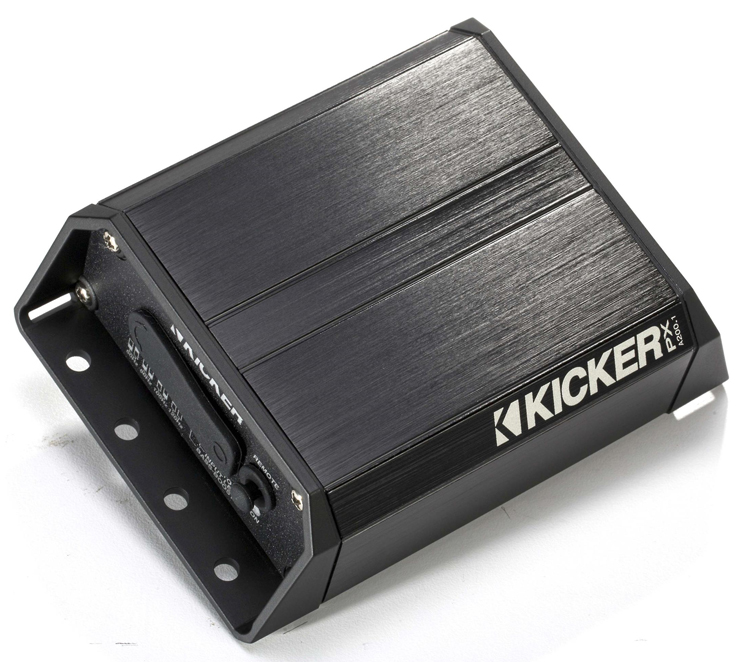

With auto turn-on options, built-in crossovers and flexible input styles, KICKER® amps give you the custom sound you need.
With as much as 500 watts of power, the only thing small about these amps is their footprint. Made to fit nearly anywhere, these miniature power plants start at under five inches in total width.

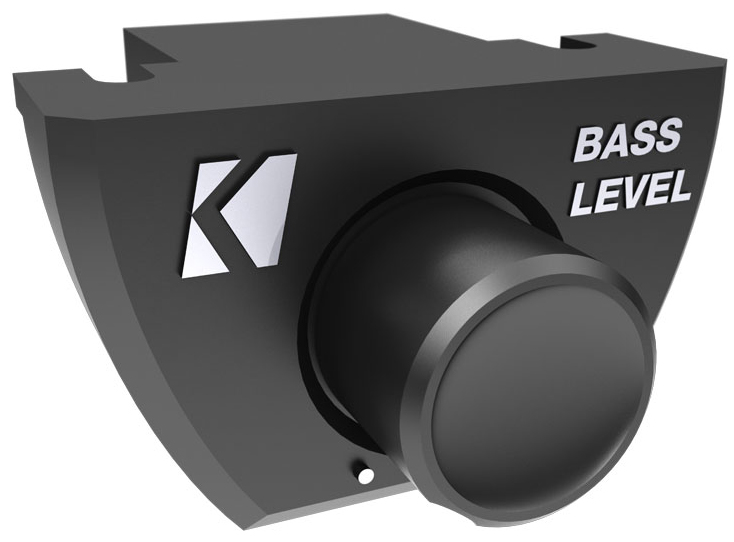

Your mono PX-Series amplifier is compatible with the CXARC remote control. Use it to customize your bass on the fly with just a turn of a knob!
PX Amplifiers are specially designed to deliver tremendous power in a tiny, weatherproof footprint – without taxing your charging system.

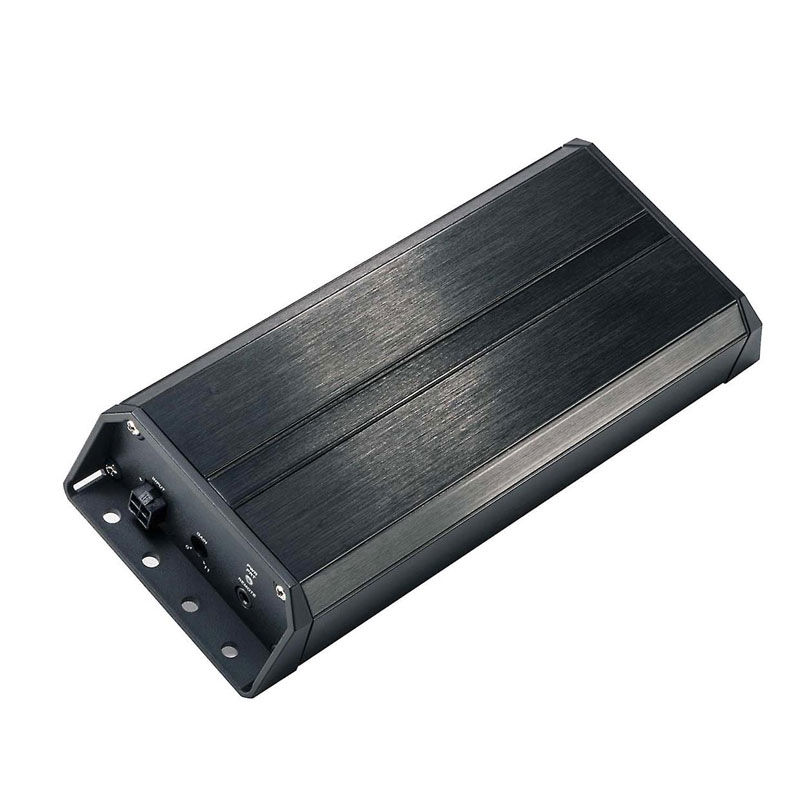

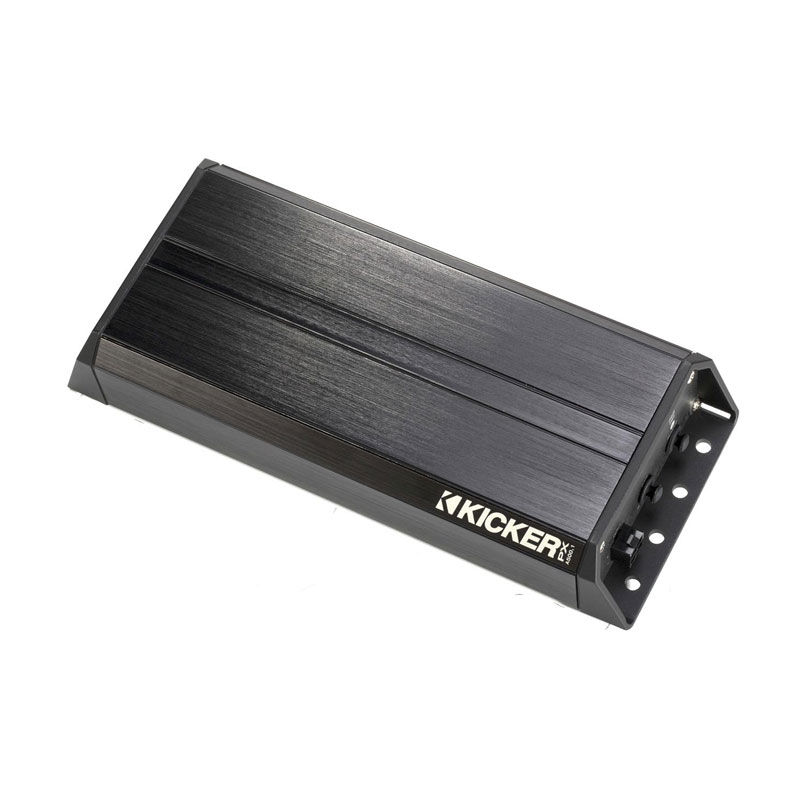

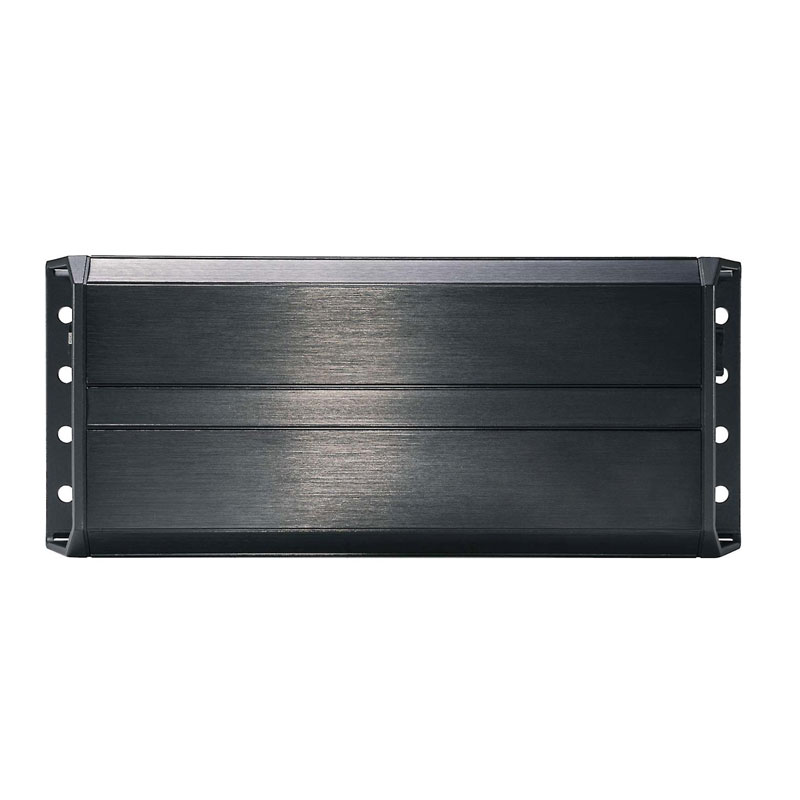

The PXA500.1 Mono Amplifier is purpose-built for anyone who needs big power with a tiny footprint. Perfect for motorcycles, side-by-sides, ATV’s and more, this weatherproof amp delivers huge power wherever you go no need to feel restricted.

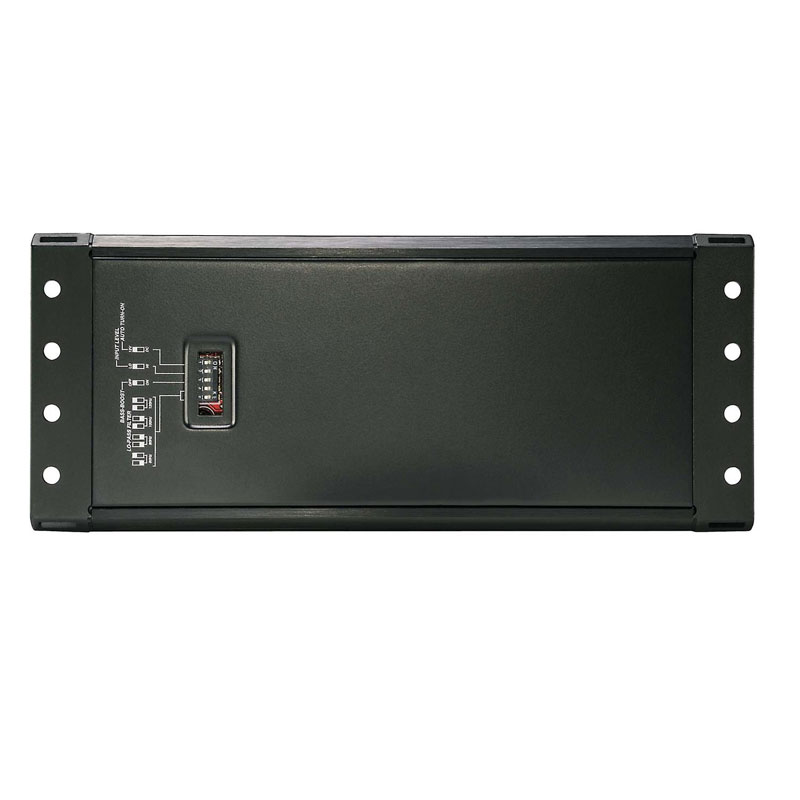

A 24dB selectable crossover with 24dB subsonic filter, made to craft your sound to exacting standards. A wide range of input levels make this amp easy to hook up with a factory radio or aftermarket.
To control your bass on the go, connect the optional CXRC remote for easy control of your sound.
Amp has 250 watts RMS x 1 at 2 ohms, Fuse Rating of 40. 500 watts Peak Power. This PXA amplifier delivers as much as 500 wats into one channel.
See below for more details.
| Specifications | |
|---|---|
| High-Pass Crossover Frequency | N/A |
| Low-Pass Slope (dB/octave) | 24 dB/oct |
| Best Frequency Response | 25-120 Hz |
| Depth (inches) | 3-1/2 |
| Amplifier Class | N/A |
| Power at 2 Ohms (Watts x Channels) | 500 x 1 |
| Height (inches) | 1-9/16 |
| Bridged Power (Watts x Channels) | N/A |
| Width (inches) | 8-1/4 |
| Fan Cooled | No |
| Fuse Rating | 40 |
| Minimum Impedance Bridged | N/A |
| High-Pass Slope (dB/octave) | N/A |
| Low-Pass Crossover Frequency | 60, 80, 100, 120Hz |
| Minimum Impedance Unbridged | 2 |
| RMS Power Output (Watts x Channels) | 250 x 1 |
| THD at Rated RMS Power | 1% |
| Peak Power Output (Watts x Channels) | N/A |
| Signal to Noise Ratio | 95 dB |
| Input Voltage | N/A |
| Bass Boost | 0, +6 dB |
| Bass Boost Frequency | 40 Hz |
| Speaker Level Inputs | Harness (cut RCAs) |
| Preamp Outputs | No |
