 Item# 46904 / Condition:  Brand New


two 10W1v3-4 10" Stealthbox® for 2007-2013 Chevrolet / GMC Extended Wheelbase SUV’s & Cadillac Escalade ESV with Power Liftgate and Light Cashmere interior Review this product

FREE Shipping in US 48!

Regular Price:$1,249.99
Savings Of:$350.00
Add Extended Warranty
In Stock
Order Now, Pay Later with affirm financing logo
  • Authorized Dealer
  • comments
  • email
  • Facebook
  • Twitter
  • Print
affirm financing small logo
affirm financing extra small logo

What's Included:

  • Owner's Manual
  • Two JL Audio 10W1v3-4 Subwoofer

Product Highlights:

  • Color Match Grade: Fair
  • Ebony: JL Audio SB-GM-ESCESV/10W1vESV3/DG
  • For 2007-Up Chevrolet / GMC Extended Wheelbase SUV’s & Cadillac Escalade ESV with Power Liftgate and Light Cashmere interior
  • DMA-optimized motor design
  • Rubber surround
  • Sealed enclosure
  • Matching Amplifier: JL Audio XD600/1v2
  • Elevated frame cooling enhances power and sound quality
  • Will not fit regular wheelbase Chevrolet & GMC SUV's
  • Power Handling:RMS: 600 watts total / 300 watts each
  • Patented "floating cone attach method" technology
  • Engineered Lead-Wire System
  • Steel mesh grilles included
  • Stealthbox® Installs on the driver side rear window ledge
  • Light Titanium: JL Audio SB-GM-ESCESV/10W1v3/GA
  • Insert Molded Suspension / Coil / Terminal Sub-Assembly
  • Two JL Audio 10W1v3-4 Subwoofer
  • Recommended power range: 150 - 600 watts RMS
  • Wired to a 2 ohm load
  • Injection molded, mica-filled polypropylene cone
  • Vented Reinforcement Collar
  • Xmax: 11.0 mm
  • Sensitivity: 84.2 dB
  • Side-firing design
  • Will not fit models without Power Liftgate option
  • Binding post terminals for secure and sturdy connection and installation
  • OEM Color: Light Cashmere
  • Also available in the following OEM Colors:
  • Dark Titanium: JL Audio SB-GM-ESCESV/10W1v3/GA2

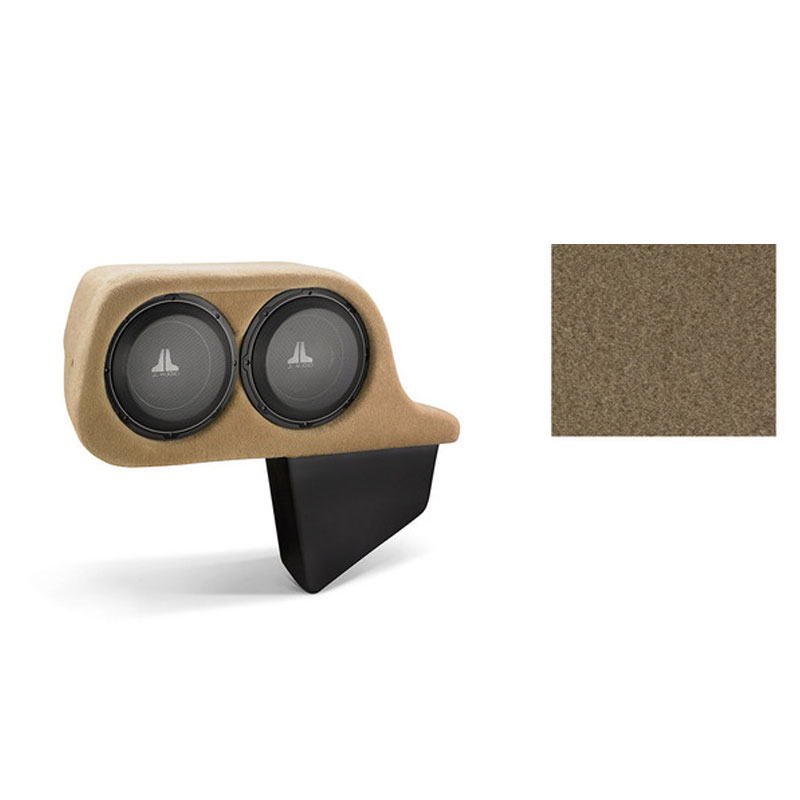

The centerpiece of any serious audio upgrade is an outstanding subwoofer system. For GM's big SUV's, we now offer this powerful solution that fits all versions, including the luxurious Denali and Escalade models. Featuring a potent pair of 10-inch subwoofer drivers in a sealed enclosure, these rear-mounted Stealthbox® systems have the muscle to fill that big space with clean, powerful JL Audio bass performance.

The clever design places the enclosure off the floor so that it doesn't take up any useful cargo or people space and the enclosure is positioned so that it will not affect the driver's visibility one bit. The only thing you will be giving up is that weak factory bass performance.

Please note that specific versions are available for the regular and extended wheelbase versions of these vehicles!

The Hard Data: Contains two 10W1v3-4 in a sealed enclosure. 600 watt power handling. Wired for 2 ohm mono. Installs on the driver side rear window ledge. Steel mesh grilles are included to protect the subwoofer drivers. Will not fit regular wheelbase Chevrolet & GMC SUV's. Will not fit models without Power Liftgate option. Installation requires relocation of jack.


Frequency Response 25 - 250 Hz
Type of Enclosure Loaded
Box Style/Shape Vehicle Specific
Voice Coil(s) Single
Box Exterior Color Tan
Box Type Sealed
Final Wired Impedance 2 ohms
Subwoofer Size 10"
Subwoofer Design Round / Circle
Compatible Vehicle Make and Model Cadillac Escalade, Chevy Suburban, Chevy Tahoe, Chevy Trailblaze, GMC Sonoma, GMC Yukon
Number of Subs/Speakers 2
Box Finish Carpet
Xmax (millimeters) 11 mm
Impedance (Per Voice Coil) 4 ohms
Number of Terminals 1
RMS Power Handling 300 watts
Woofer Surround Butyl Rubber
Woofer Composition Mica Injected Polypropylene (MIPP)
Sensitivity 84.2 dB
Terminal Type Binding posts
  • UPC: 699440944762
  • Weight: 45
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
