JL Audio SB-GM-ESC/10W1v3/TN
alternate product image 1alternate product image 2alternate product image 3
 Item# 46910 / Condition:  Brand New

JL Audio SB-GM-ESC/10W1v3/TN

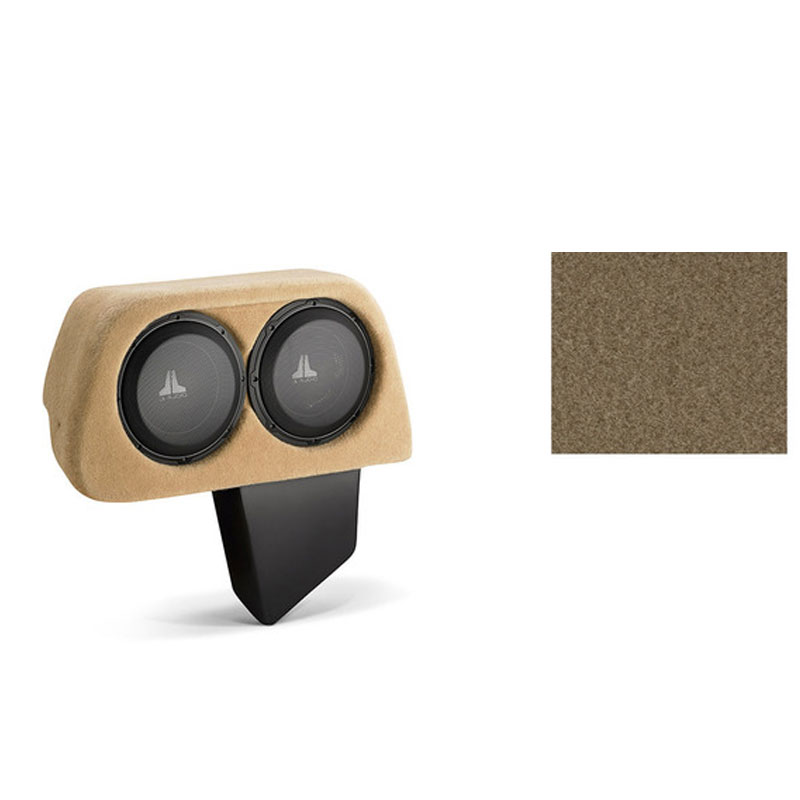

Two 10W1v3-4 10" Stealthbox® for 2007-2013 Chevrolet / GMC Regular Wheelbase SUV’s & Cadillac Escalade with Power Liftgate and Light Cashmere interior Review this product

FREE Shipping in US 48!

Regular Price:$1,249.99
Savings Of:$320.00
Add Extended Warranty
In Stock
Order Now, Pay Later with affirm financing logo
  • Authorized Dealer
  • comments
  • email
  • Facebook
  • Twitter
  • Print

affirm financing small logo
affirm financing extra small logo

What's Included:

  • Owner's Manual
  • Two JL Audio 10W1v3-4 Subwoofer

Product Highlights:

  • Sealed enclosure
  • Wired to a 2 ohm load
  • Will not fit extended wheelbase Chevrolet & GMC SUV's
  • Patented "floating cone attach method" technology
  • Stealthbox® Installs on the driver side rear window ledge
  • Engineered Lead-Wire System
  • Steel mesh grilles included
  • Xmax: 11.0 mm
  • Also available in the following OEM Colors:
  • Dark Titanium: JL Audio SB-GM-ESC/10W1v3/GA2
  • Will not fit models without Power Liftgate option
  • Light Titanium: JL Audio SB-GM-ESC/10W1v3/GA
  • Two JL Audio 10W1v3-4 Subwoofer
  • Injection molded, mica-filled polypropylene cone
  • Power Handling:RMS: 600 watts total / 300 watts each
  • Recommended power range: 150 - 600 watts RMS
  • Rubber surround
  • DMA-optimized motor design
  • Elevated frame cooling enhances power and sound quality
  • Vented Reinforcement Collar
  • Insert Molded Suspension / Coil / Terminal Sub-Assembly
  • Sensitivity: 84.2 dB
  • Matching Amplifier: JL Audio XD600/1v2
  • For 2007-Up Chevrolet / GMC Regular Wheelbase SUV's & Cadillac Escalade with Power Liftgate and Light Cashmere interior
  • Side-firing design
  • Binding post terminals for secure and sturdy connection and installation
  • OEM Color: Light Cashmere
  • Color Match Grade: Fair
  • Ebony: JL Audio SB-GM-ESC/10W1v3/DG

The centerpiece of any serious audio upgrade is an outstanding subwoofer system. For GM's big SUV's, we now offer this powerful solution that fits all versions, including the luxurious Denali and Escalade models. Featuring a potent pair of 10-inch subwoofer drivers in a sealed enclosure, these rear-mounted Stealthbox® systems have the muscle to fill that big space with clean, powerful JL Audio bass performance.

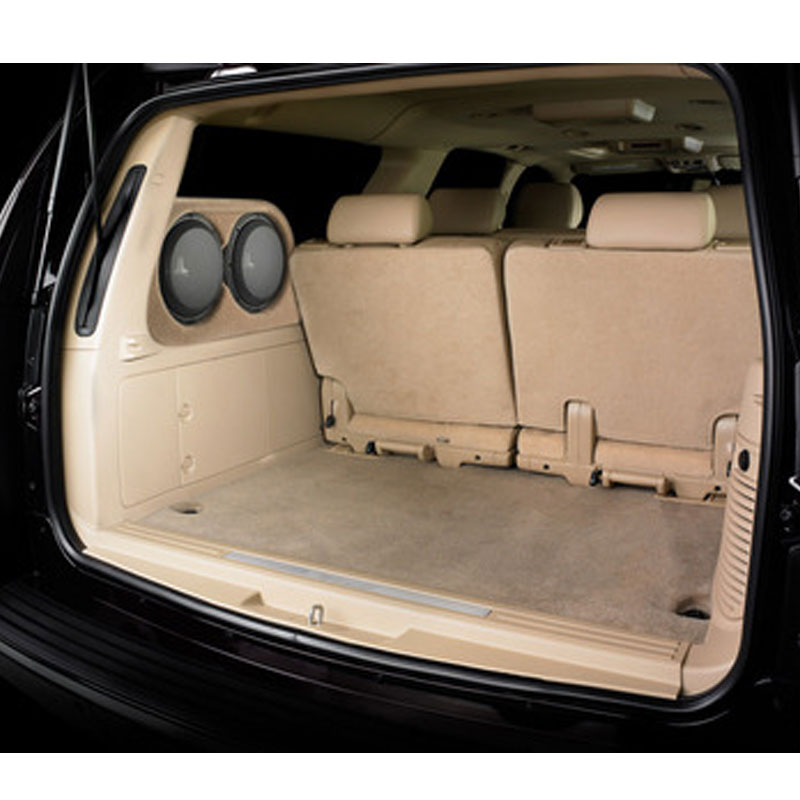

The clever design places the enclosure off the floor so that it doesn't take up any useful cargo or people space and the enclosure is positioned so that it will not affect the driver's visibility one bit. The only thing you will be giving up is that weak factory bass performance.

Please note that specific versions are available for the regular and extended wheelbase versions of these vehicles!

The Hard Data: Contains two 10W1v3-4 in a sealed enclosure. 600 watt power handling. Wired for 2 ohm mono. Installs on the driver side rear window ledge. Steel mesh grilles are included to protect the subwoofer drivers. Will not fit extended wheelbase Chevrolet & GMC SUV's. Will not fit models without Power Liftgate option. Installation requires relocation of jack.


Xmax (millimeters) 11 mm
Final Wired Impedance 2 ohms
Voice Coil(s) Single
Woofer Surround Butyl Rubber
Box Finish Carpet
Number of Subs/Speakers 2
Woofer Composition Mica Injected Polypropylene (MIPP)
Impedance (Per Voice Coil) 4 ohms
Compatible Vehicle Make and Model Cadillac Escalade, Chevy Suburban, Chevy Tahoe, Chevy Trailblazer, GMC Sonoma, GMC Yukon
Frequency Response 25 - 250 Hz
Box Style/Shape Vehicle Specific
Subwoofer Design Round / Circle
RMS Power Handling 300 watts
Sensitivity 84.2 dB
Subwoofer Size 10"
Number of Terminals 1
Terminal Type Binding posts
Box Exterior Color Tan
Type of Enclosure Loaded
Box Type Sealed
  • UPC: 699440944830
  • Weight: 42
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
