Acoustically damped, UV-resistant polypropylene cone
The 11" (279mm) woofer cone is engineered to deliver fast and tight, deep bass with low distortion and unwanted second and third order anomalies.
High-Sensitivity Design
Club speakers' efficiency produce plenty of sound from the power they're fed, making them ideal for any application, even when they're driven by relatively low-powered factory stereos.
- Diameter : 3.5 Inch
- Sensitivity : 89 dB
- Impedance : 3 Ohm
- Frequency Response : 90-20000 Hz
- RMS Power Range : N/A Watts
- Peak Power Handling : 60 Watts
- Design : 2 Way
- Top Mount Depth : 1 7/19 Inches
- Bottom Mount Depth : N/A Inches
- Woofer Composition : Polypropylene
- Tweeter Composition : PEI (Polyetherimide)
Specifications |
Maximum RMS Wattage |
20 |
Tweeter Design |
Balanced Dome |
Cutout Diameter or Length (inches) |
3 |
Sensitivity (1W at 1 meter) |
86.5 |
Peak Power Handling (Watts) |
60 |
Frequency Response |
90 - 20k Hz |
Impedance (Ohms) |
3 |
Top-mount Depth (Inches) |
1 7/16 |
Speaker Size |
3 1/2 |
Design |
2-way |
Tweeter Composition |
PEI |
Woofer Composition |
Polypropylene |
Woofer Surround |
Rubber |
Sensitivity at 2.83 volts |
89 |
Minimum RMS Wattage |
--- |
Bottom-mount Depth (Inches) |
N/A |
Product Highlights:
- grilles not included
- frequency response: 90-20,000 Hz
- 3-1/2" 2-way speakers (pair)
- handles up to 20 watts RMS (60 watts peak power)
- edge-driven PEI balanced dome tweeter
- polypropylene Plus One™ woofer cone
- impedance: 3 ohms
- sensitivity: 86.5 dB
- top-mount depth: 1-7/16"
What's Included:
- Two 270 microfarad capacitors
- 2 JBL window stickers
- Template on box

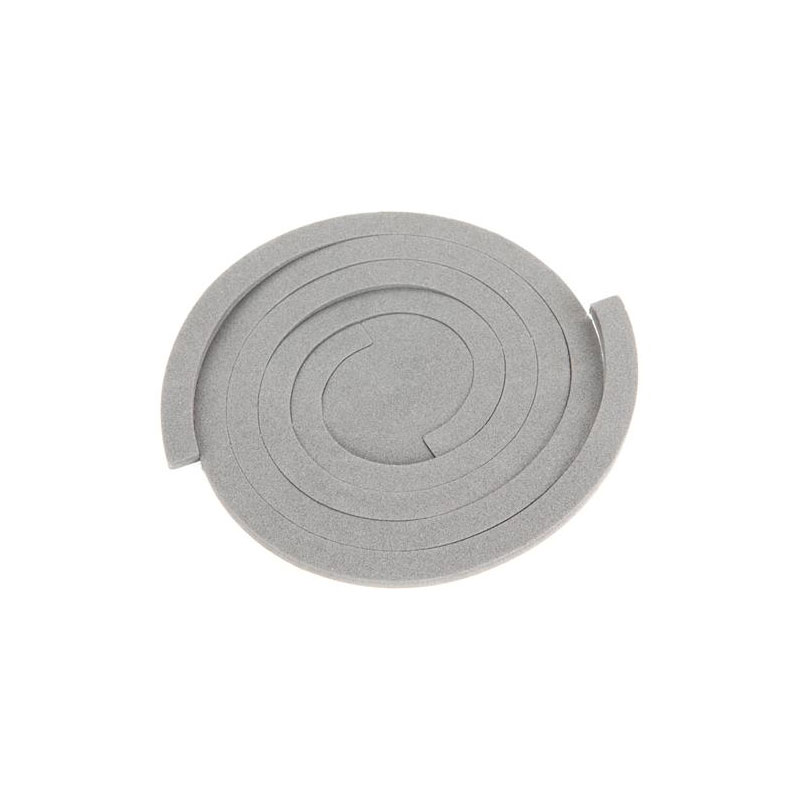

- 2 Adhesive backed foam gasket strips

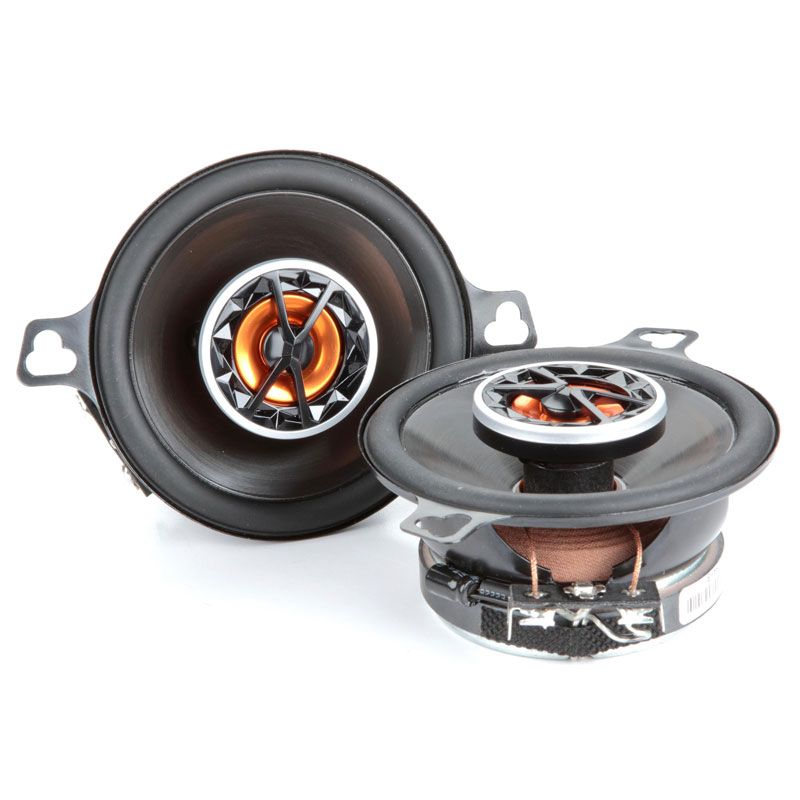

- Two 2-way speakers
JBL Club 3020 Owner's Manual
- UPC: 050036328388
- Weight: 5
