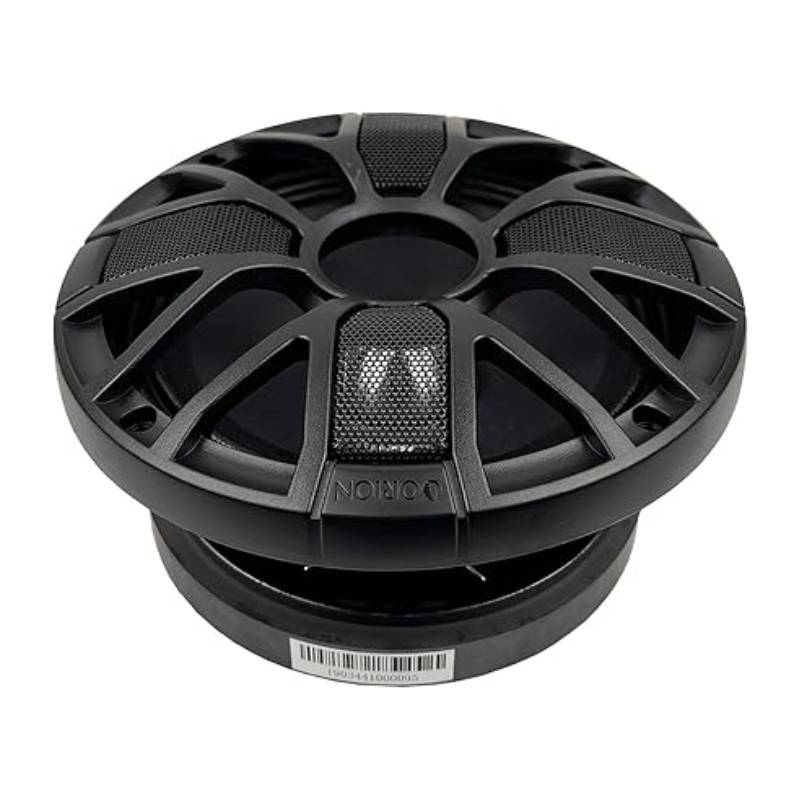

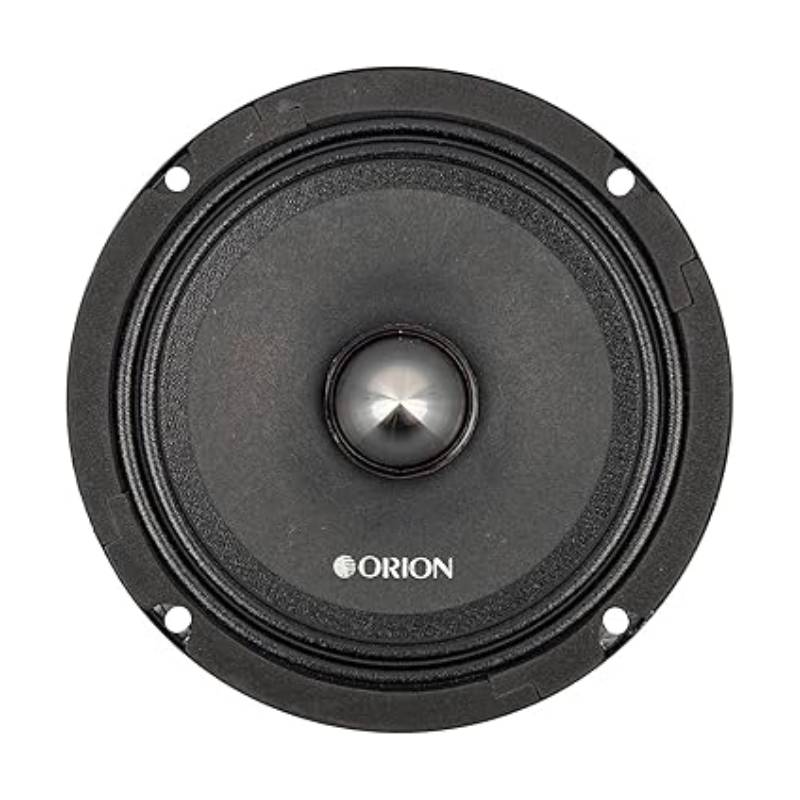

Orion XSM804SL XTR Series 8" 1400W Peak Power Handling at 4-Ohms, Slim Ultra Efficient Midrange Speakers (Pair)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 8" Slim Ultra Midrange Speaker
- • Owner's Manual
Engineered for Power and Precision
Experience pure, powerful sound with the ORION XTR Series 8" Midrange Speakers, engineered for precision and clarity. Enjoy distortion-free audio at any volume with the advanced bullet phase plug that enhances both cooling and performance. Crafted with a slim, heavy-duty steel frame, these speakers deliver lasting durability and flawless sound in any setup.
Power. Protection. Pure Performance.
Experience unmatched reliability with a high-temperature coating that ensures peak performance even during long, high-power sessions. Protect your speakers in style with durable, sleek grills that enhance both appearance and performance. With 350W RMS and 1400W peak power, these speakers deliver bold, dynamic sound that transforms every drive into an audio adventure.
Crafted for Clarity and Power
Experience rich, detailed sound that brings your music to life with exceptional midrange clarity. Built to last, the non-pressed paper cone and treated cloth surround ensure durability and precise sound reproduction. Enjoy a wide frequency range from 80 Hz to 20 kHz for a full, immersive listening experience.
Frequently Asked Questions (FAQ)
- • Why Did My XSM804SL Lose Output After Being Played Hard?
One verified buyer reported that a pair burned out shortly after purchase when subjected to their audio system. This highlights the importance of matching amplifier power and gain settings to the speaker's continuous rating rather than relying only on the advertised peak figure.
- • Why Does My XSM804SL Have Less Bass Than I Expected?
A reviewer criticized the bass performance and felt the speaker did not provide the low-end response they expected. The XSM804SL is primarily an 8-inch midrange driver with an 80 Hz–20 kHz specified range, so enclosure design, crossover settings, and system configuration can strongly affect perceived bass.
- • Will the XSM804SL Really Fit in a Shallow Speaker Location?
Yes, its slim construction is specifically intended for restricted mounting areas. Orion lists an approximately 3.35-inch mounting depth, and one buyer specifically reported that the speakers fit well in a shallow box.
- • Why Does My XSM804SL Sound Thin When Used Without a Subwoofer?
The XSM804SL is designed as a midrange speaker rather than a dedicated subwoofer. Expecting deep sub-bass from it can lead to disappointing results; using appropriate crossover points can help keep the driver focused on the frequencies it is designed to reproduce.
- • Can Excessive Amplifier Power Damage the XSM804SL?
Yes. Although Orion advertises 1,400W peak power, the official product page specifies 350W RMS. One online reviewer reported an early burnout under heavy system use, making proper gain adjustment and continuous-power matching especially important.
- • Why Does My XSM804SL Produce Harsh Sound at High Volume?
If the speaker becomes harsh when pushed, check amplifier clipping, gain, EQ boosts, and crossover settings. The XSM804SL has a high 98 dB sensitivity, so it can produce substantial output without requiring extreme amplifier power.
- • Why Is the XSM804SL Vibrating More Than Expected After Installation?
The speaker uses a stamped-steel frame and paper cone, and improper mounting can allow unwanted vibration or resonance. Make sure the mounting surface is rigid and the speaker is securely fastened before assuming the driver itself is defective.
- • Does the XSM804SL Need a High-Pass Filter?
Using a high-pass filter can be useful when the XSM804SL is operating as a dedicated midrange driver. Since Orion specifies its response from approximately 80 Hz, filtering excessive low-frequency energy can reduce unnecessary excursion and leave the deeper bass to a dedicated subwoofer.
- • Why Does My XSM804SL Sound Different From My Older Orion Speakers?
Different driver designs can produce noticeably different tonal characteristics. The XSM804SL uses a bullet phase plug, non-pressed paper cone, treated cloth accordion surround, and 2-inch voice coil, so replacing another Orion model with it may require retuning the crossover and EQ.
- • Can the XSM804SL Handle Long High-Volume Sessions?
The speaker incorporates a high-temperature coating and a phase plug designed to assist voice-coil cooling, and Orion rates it at 350W RMS. However, sustained operation at high output still depends on clean amplifier power, appropriate crossover settings, and proper gain adjustment.
- Diameter : 8 Inch
- Maximum Power : 1200 Watts
- Sensitivity : 98 dB
- Impedance : 4 Ohm
- Frequency Response : 80-20000 Hz
- RMS Power Range : 600 Watts
- Peak Power Handling : 1400 Watts
- Top Mount Depth : 3.35 Inches
- RMS Power Handling : 50 Watts
Features:
- 4-Ohm Midrange Speaker: Designed for accurate sound and seamless integration into a variety of audio systems.
- Bullet Phase Plug: Improves sound clarity and cooling, ensuring distortion-free audio even at high volumes.
- Slim Heavy-Gauged Stamped Steel Frame: Delivers exceptional strength and rigidity in a compact design, minimizing vibrations and resonance for improved sound clarity and lasting durability in demanding applications.
- High-Temperature Coating: Enhances heat resistance, protecting the speaker components during extended use at high power levels, ensuring consistent performance and longevity in demanding environments.

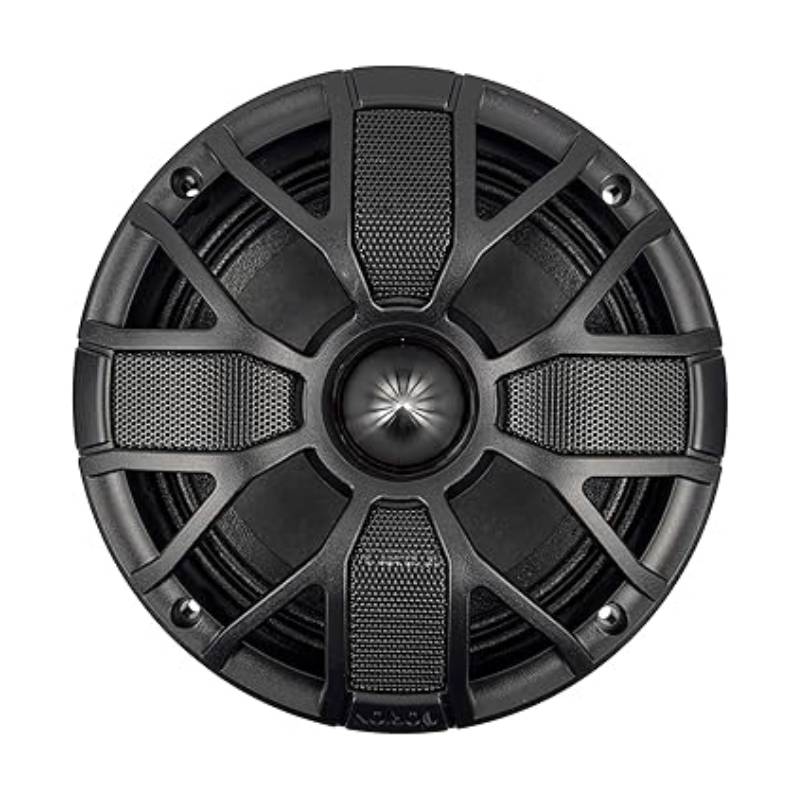

- Grills Included for Added Protection: Comes with durable, stylish grills that not only protect the speaker from damage but also enhance the overall aesthetic, while ensuring optimal sound performance in any setup.
- High Power Handling: 350 Watts RMS and 1400 Watts peak power for dynamic, powerful sound performance.
- Durable Construction: Built with a non-pressed paper cone and a treated cloth accordion surround for enhanced durability and accurate sound reproduction.
- Wide Frequency Range: From 80 Hz to 20 kHz, capturing detailed midrange frequencies for a rich audio experience.
Specifications:
- Speaker Size: 8 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 1400 Watts
- Power Handling (RMS): 350 Watts
- Sensitivity: 98 dB
- Frequency Response: 80 Hz - 20 kHz
- Voice Coil Diameter: 2" (Inches)
- Speaker Quantity 2 Speakers
- Material: Heavy Gauges Stamped Steel
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 110 Oz. Ferrite
- Grilles Included: Yes
- Mounting Depth: 85mm / 3.35 (Inches)
- Overall Depth: 90mm / 3.54 (Inches)
- Cutout Diameter: 202mm / 7.95 (Inches)
- Overall Diameter: 212mm / 8.35 (Inches)
- UPC: 818550014565
- Weight: 20
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
