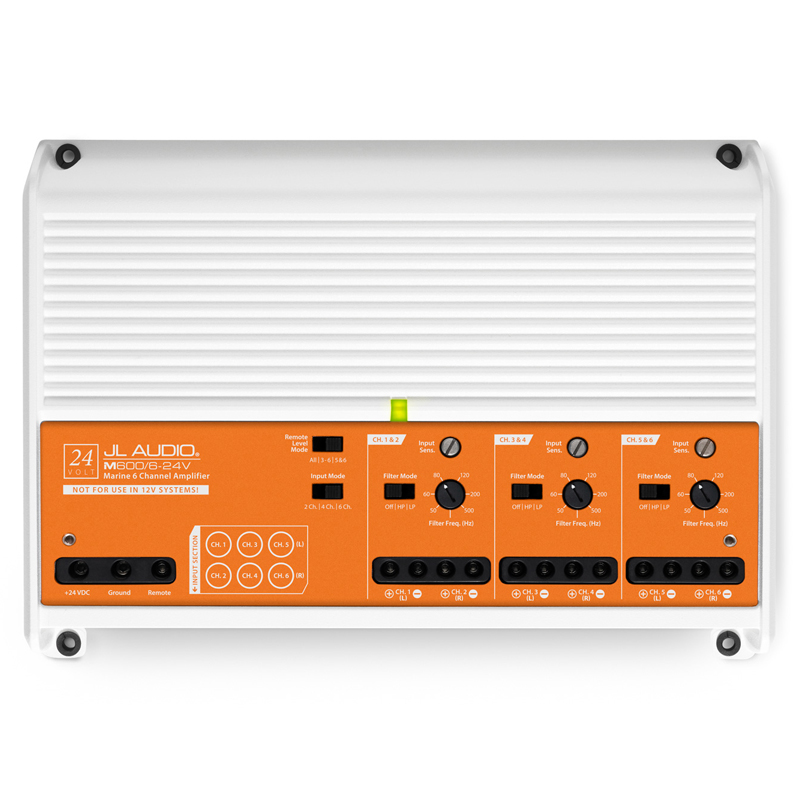

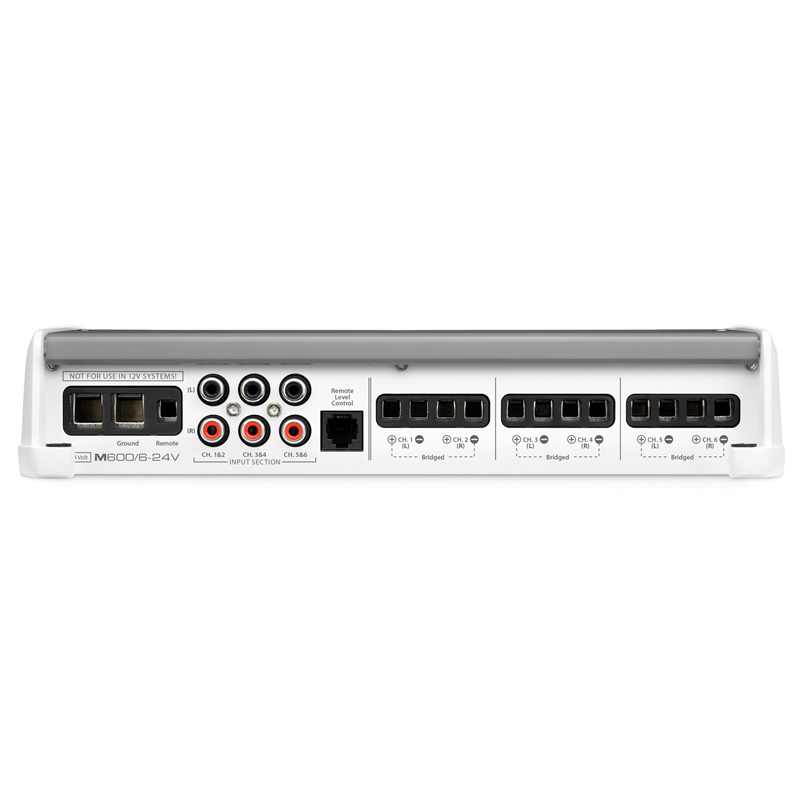

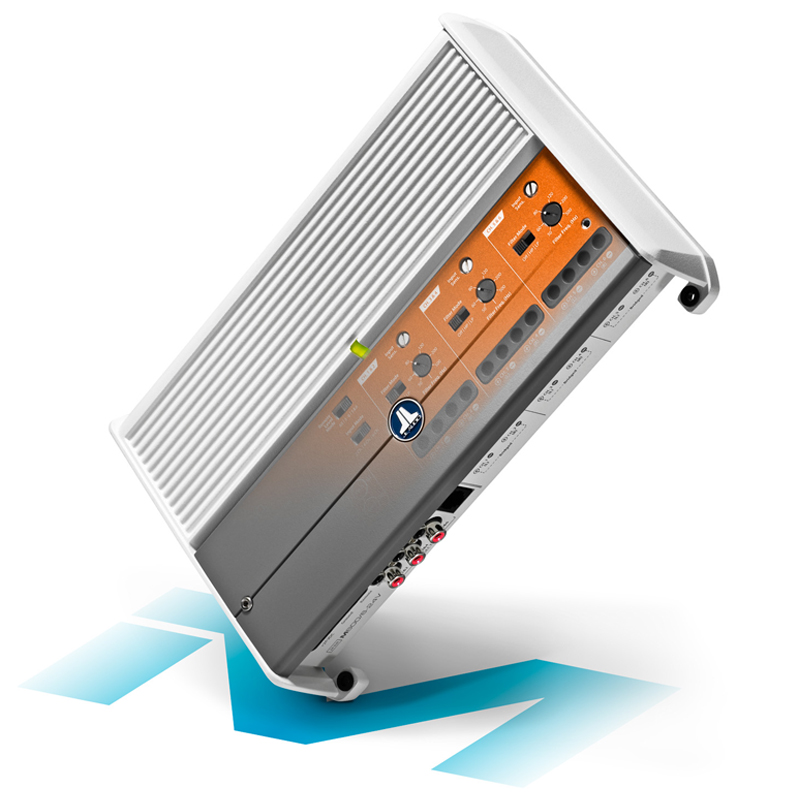

JL Audio M600/6-24V 600 W 6 Ch. Class D Full-Range Marine Amplifier for 24V Systems
This incredibly flexible amplifier packs a serious full-range punch, and delivers a staggering 100 watts to each of its six channels into 2 Ω (28.8V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is JL Audio's NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.
With the M600/6-24V, you have lots of great options. Use it as a six-channel satellite amplifier with 75 W x 4 @ 4 Ω, or bridge four of its channels to create a staggered power four-channel amplifier with 200W x 2 @ 4 Ω to one pair of satellites and 75 W x 2 @ 4 Ω to a secondary pair of satellites. You can also drive two subwoofers with 200 W each, plus a pair of satellites with 75W x 2. The M600/6-24V includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an HD-RLC remote level control (sold separately), you have the ability to control the level of two, four or all six of the amplifier's channel levels from a remote location.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 V may result in damage to the product and will void the warranty.
Low Frequency Response : 50-500 Hz
High Frequency Response : 50-500 Hz
Number of Channels : 6
Frequency Response : 12-22000 Hz
RMS Power Output : 75x6 Watts
Channel Separation : Yes
Amplifier Class : D
Fuse Rating : 30 A
Rated Continuous (RMS) Power @ 28.8 V
@ 4 ohms: 75 W RMS x 6
@ 2 ohms: 100 W RMS x 6
Bridged @ 4 ohms: 200 W RMS x 3
Rated Continuous (RMS) Power @ 25 V
@ 4 ohms: 60 W RMS x 6
@ 2 ohms: 90 W RMS x 6
Bridged @ 4 ohms: 180 W RMS x 3
Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power: >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W: >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 ohms: >150 / 50 Hz
Damping Factor @ 2 ohms: >75 / 50 Hz
THD+N @ Rated Power: <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: 100 mV - 4 V RMS
