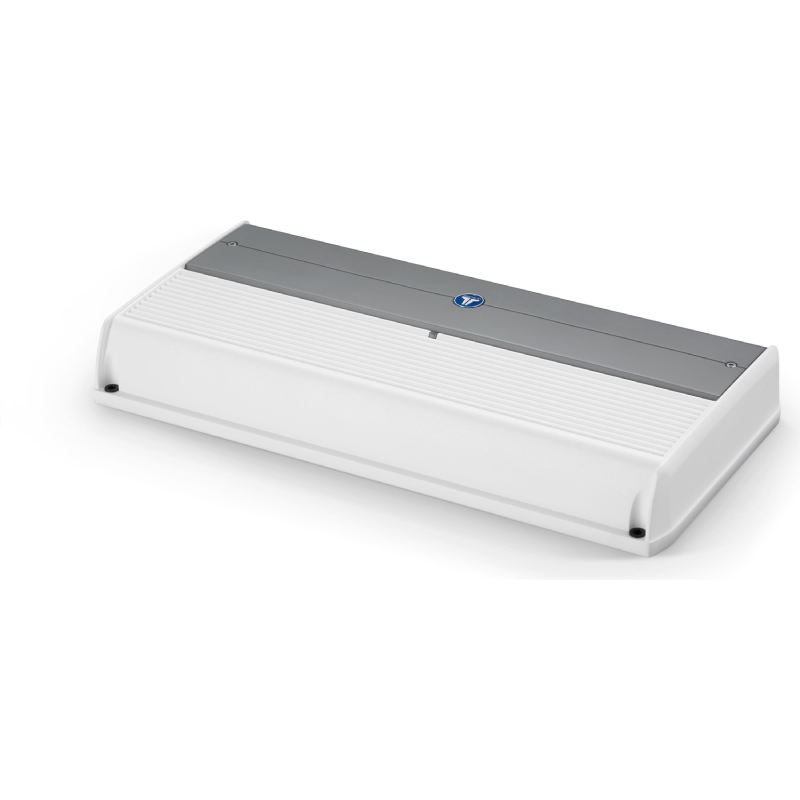

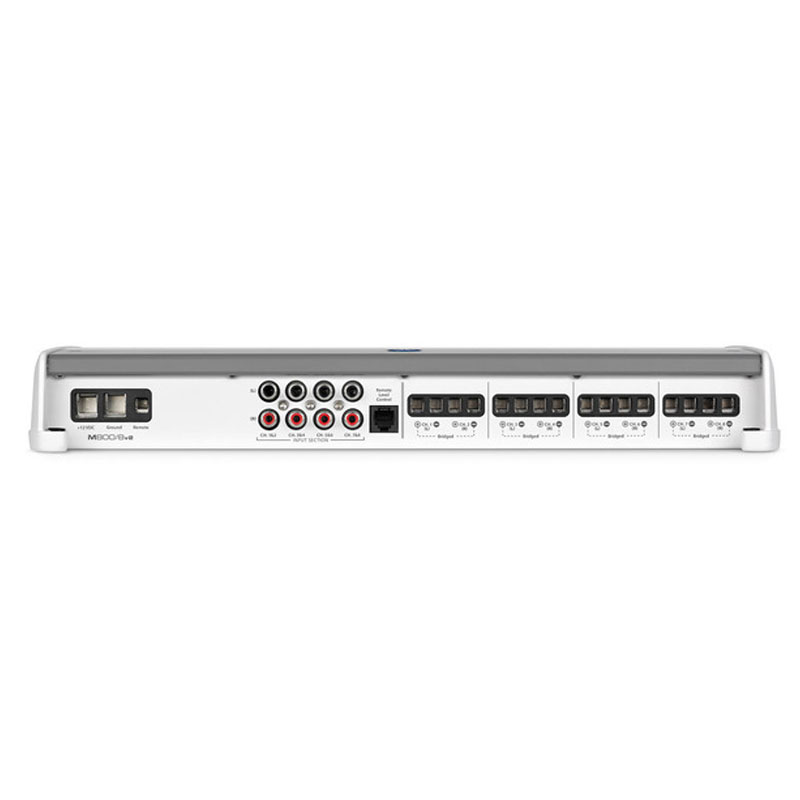

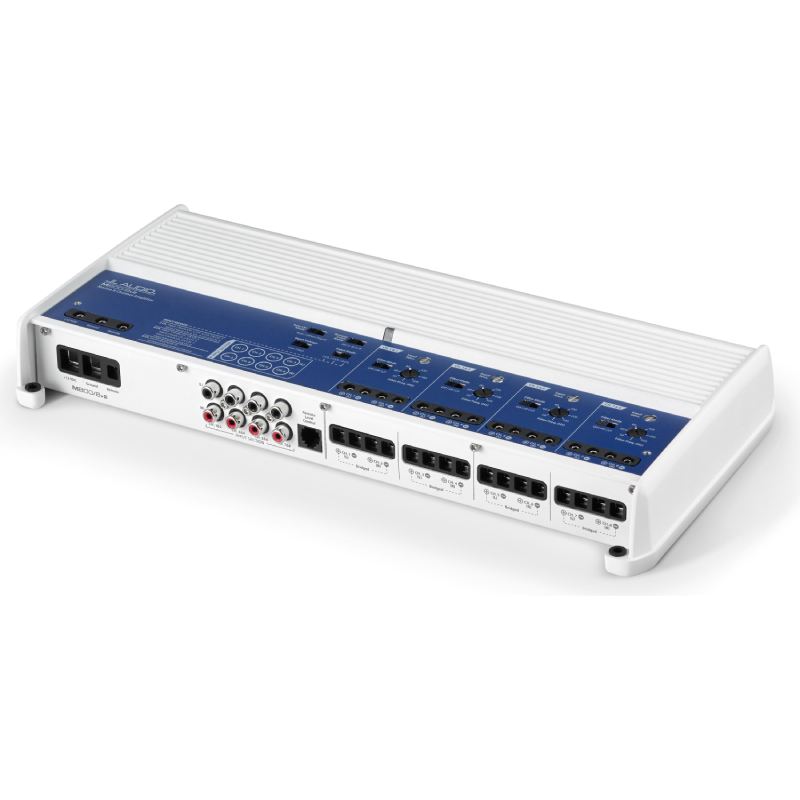

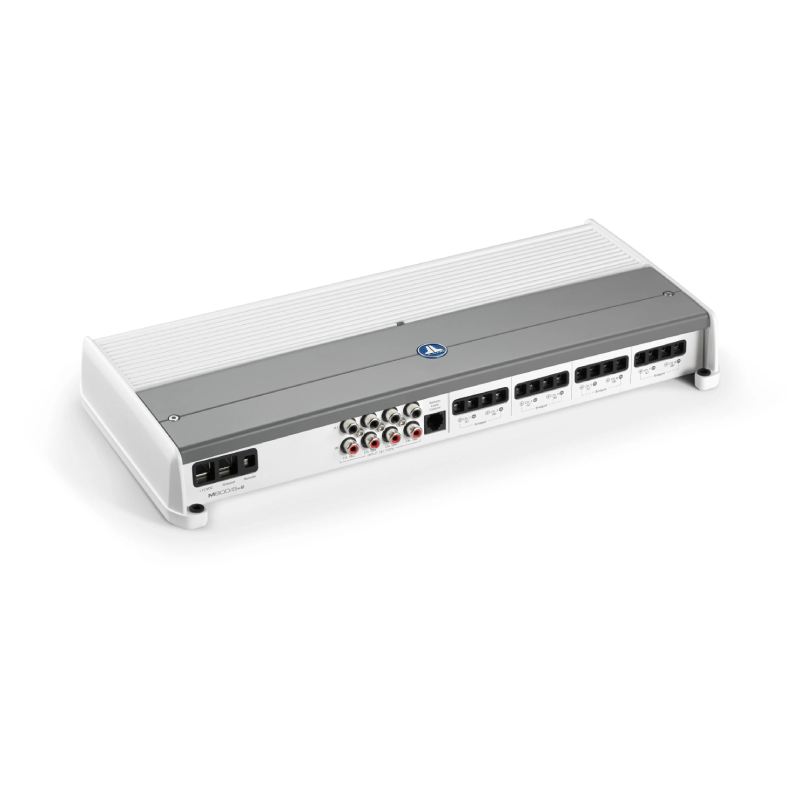

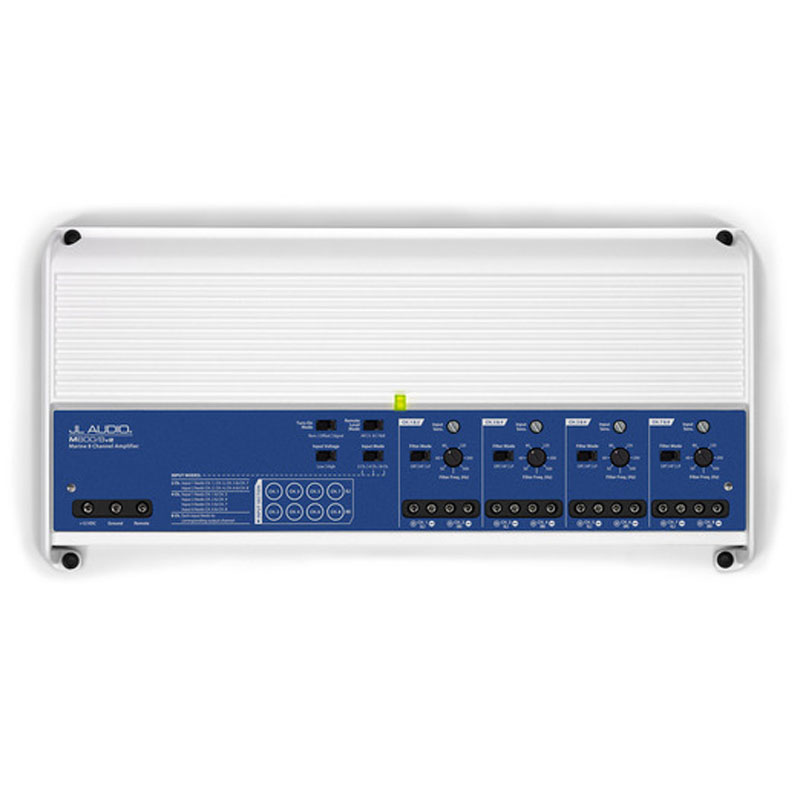

JL Audio M800/8v2 800 W 8 Ch. Class D Full-Range Marine Amplifier
This incredibly flexible amplifier packs a serious full-range punch and delivers a staggering 100 watts to each of its eight channels into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is JL Audio's NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.
The M800/8v2 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. The M800/8v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), you have the ability to control the level of two, four, or all eight of the amplifier's channel levels from the driver's seat.
Use it in one of many useful configurations:
Eight-channel Satellite Amp: drive four pairs of speakers with 75 W x 8
Six-Channel System Amp: drive front and rear satellites with 75 W x 4 @ 4Ω, plus two 4Ω subwoofers with 200 W each
Staggered Six-Channel Satellite Amp: drive two speakers with 200 W x 2 @ 4Ω, plus four 4Ω speakers with 75 W each
Big Four-Channel Satellite Amp: bridge to produce 200W x 4 @ 4Ω
Four-Channel System Amp: drive left and right speakers with 200W x 2 @ 4Ω, plus two 4Ω subwoofers with 200W each
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Maximum Power : 800 Watts
Low Frequency response : 12 Hz
High Frequency Response : 22000 Hz
Number of Channels : 8
Frequency Response : 12-22000 Hz
RMS Power Output : 200 Watts
Amplifier Class : D
Fuse Rating : 80 A
Unregulated MOSFET switching type
Gasketed covered controls and stainless steel hardware
4 gauge OFC power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 7.09"W x 14.73"L x 2.05"H
Total Harmonic Distortion (THD): <1.0% @ 2 O per channel
Input Voltage Range (Selectable): Low level: 200 mV - 2 V RMS / High level: 800 mV - 8 V RMS
Damping Factory @ 4ohms: 150 / 50 Hz
Selectable turn-on modes: +12V remote turn-on lead (preferred method) / DC Offset-Sensing: detects a very small DC signal (high level signals) / Signal sensing: detects presence of a full-range audio signal

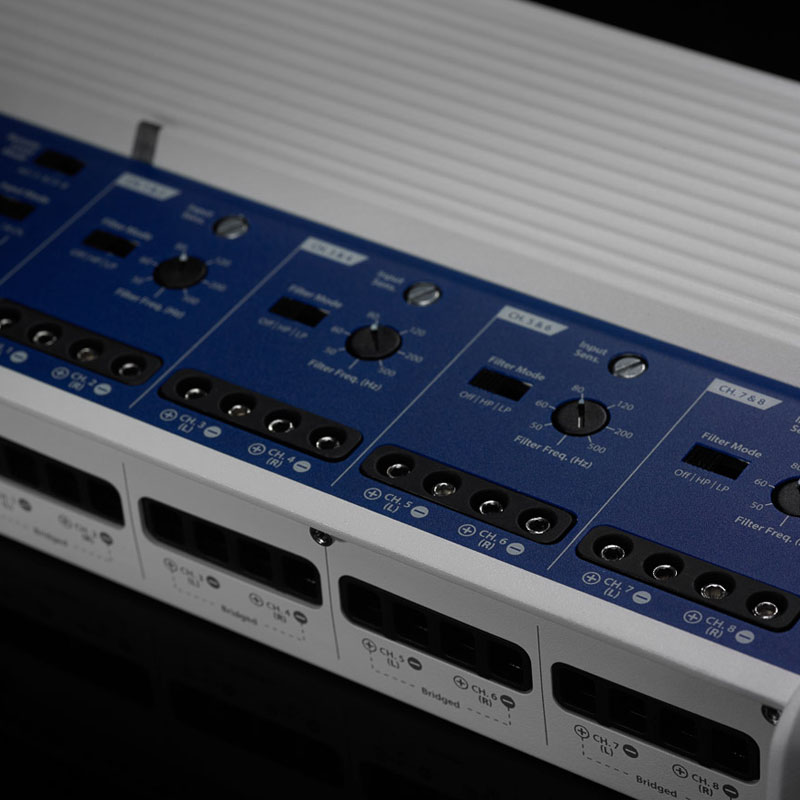

Selectable Filter Modes: Off / HP / LP
LED power (green) and protect (red) indicators
Frequency Response: 12 - 22,000 Hz
NexD™ ultra-high-speed switching design
8 or 4 channel operation
White and gray powder-coat finish
Total power output: 800 watts RMS
8-Channel Class D Marine Full-Range Amplifier
RMS Power Rating @ 14.4 V: 4 ohms: 75 watts x 8 chan. / 2 ohms: 100 watts x 8 chan. / Bridged, 4 ohms: 200 watts x 4 chan.
RMS Power Rating @ 12.5 V: 4 ohms: 60 watts x 8 chan. / 2 ohms: 90 watts x 8 chan. / Bridged, 4 ohms: 180 watts x 4 chan.
Dual-Range Differential Balanced Input Section: RCA inputs accept Speaker-Level Inputs or Line-Level signals (JL Audio XD-CLRAIC2-SW required for speaker level, sold separately)
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Wired remote level control available, sold separately: JL Audio HD-RLC: Presents the ability to control 2 , 4 , or All Channels
Recommended Inline-Fuse Rating (not included): 80 A x 1 (AFS, AGU or MaxiFuse™)
Authorized Internet Dealer
Warranty: 2 Years Manufacturer warranty.
