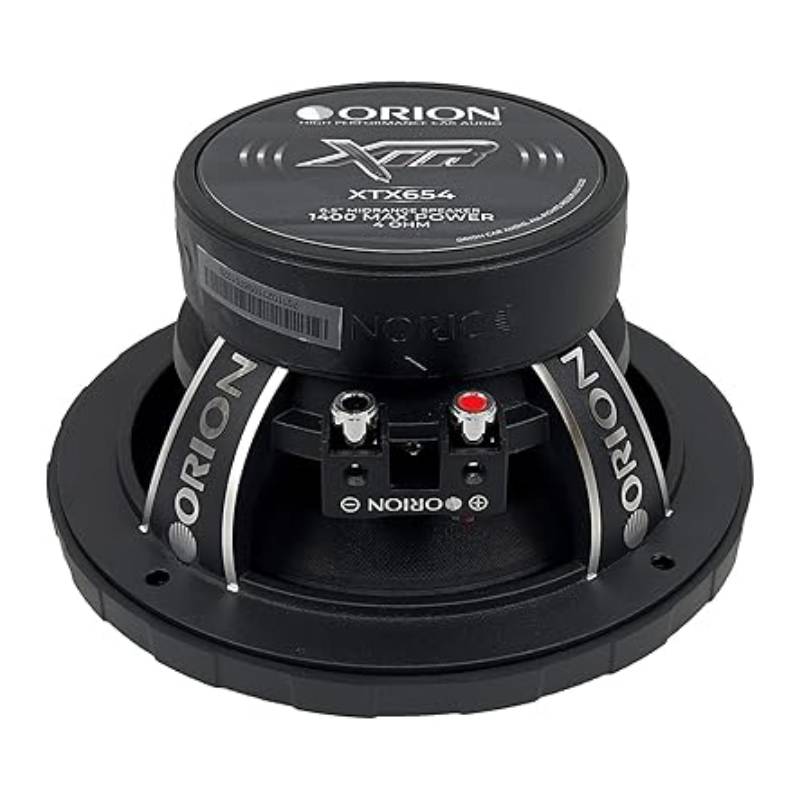

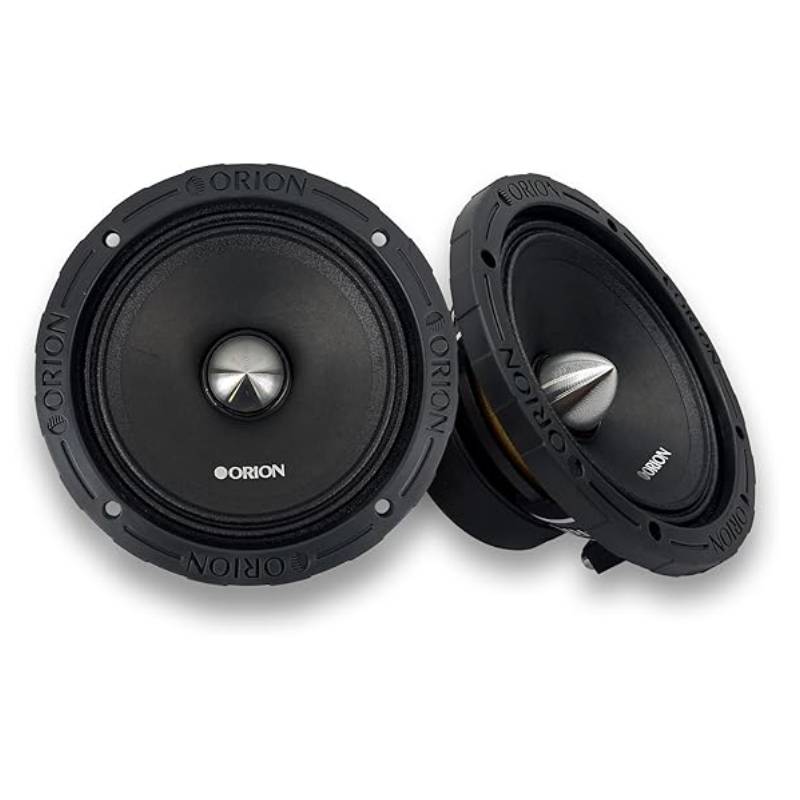

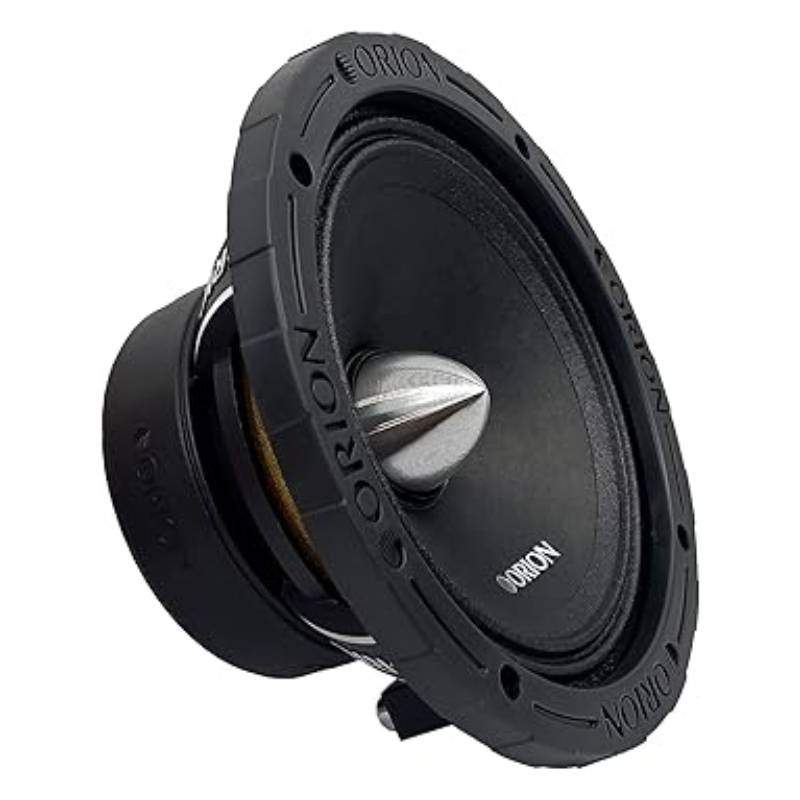

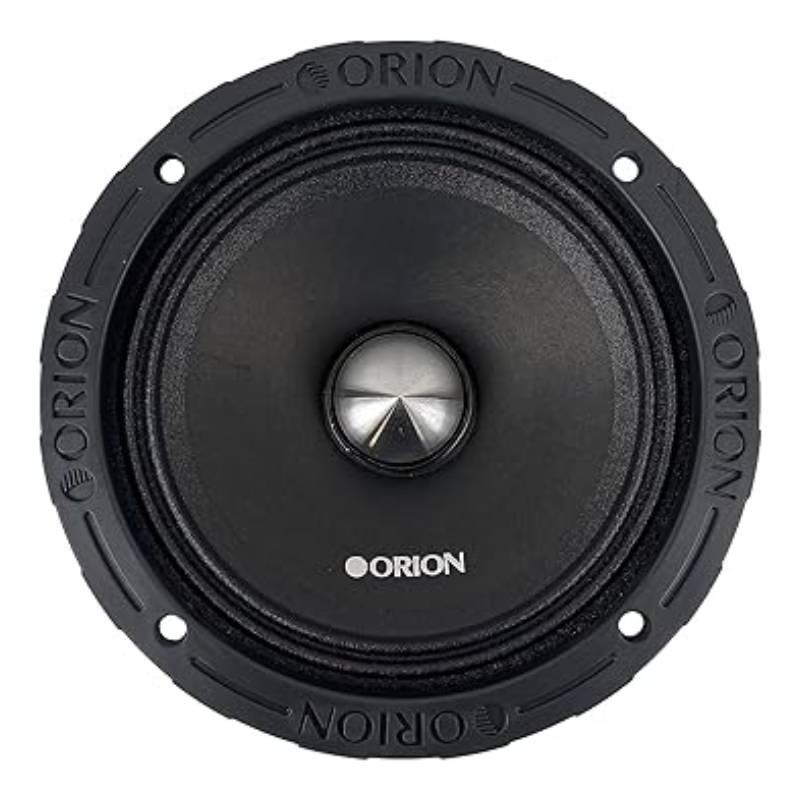

Orion XTX654 XTR Series 6.5" 1400W Peak Power Handling at 4-Ohms, Aluminum Bullet Midrange Speakers (Pair)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 6.5" Aluminum Bullet Midrange Car Speakers
- • Owner's Manual
Precision Sound. Built for Power.
Experience precise, high-quality sound with the ORION XTR Series Midrange Speaker, engineered for accuracy and smooth integration. Enjoy distortion-free performance even at maximum volume, thanks to the advanced bullet phase plug design. Built with a durable cast basket, these speakers deliver superior stability, reduced resonance, and long-lasting reliability.
Powerful Sound. Reliable Connections.
Experience explosive, high-impact sound with 350W RMS and 1400W peak power that fills every space with clarity. Enjoy worry-free, long-lasting connections with nickel-plated push-down terminals designed to resist corrosion. Built for performance and reliability, these speakers deliver consistent, powerful audio every time you play.
Clarity and Durability in Sound
Enjoy rich, detailed audio with a wide frequency range from 140 Hz to 12 kHz that brings every song to life. Built to last, the non-pressed paper cone and treated cloth surround ensure durability and precise sound reproduction. Experience accurate, immersive midrange performance that elevates your music and enhances every listening session.
Frequently Asked Questions (FAQ)
- • Why Are My XTX654 Speakers Too Deep for My Vehicle Doors?
One customer reported that the XTX654 was too deep for their Corvette doors, while another said the speakers were too deep and too large for the adapters in a Lincoln MKX. Check mounting depth and surrounding clearance before installation.
- • Why Does the XTX654 Hit the Window When the Door Glass Moves?
A Silverado owner reported needing to use the included foam as a spacer because the window could contact the speaker. Verify clearance between the speaker, spacer, mounting surface, and moving window mechanism before final installation.
- • Why Do My XTX654 Speakers Not Fit the Factory Adapter Ring?
One buyer reported that the speakers were too large around to fit the adapter plates they had purchased. Even though the XTX654 is a 6.5-inch speaker, its overall basket and mounting dimensions can matter just as much as the nominal speaker size.
- • Why Does the XTX654 Need an Amplifier to Reach Its Full Potential?
Customer reports consistently describe the XTX654 as becoming very loud when paired with an aftermarket amplifier. Its published specification is 350W RMS at 4 ohms, so matching the amplifier to the speaker's RMS requirements is important for getting the intended performance.
- • Why Does My XTX654 Sound Clear but Still Lack Deep Bass?
The XTX654 is a midrange driver rather than a dedicated subwoofer. Its listed frequency range begins around 140 Hz, so users looking for very low bass will generally need a properly integrated subwoofer.
- • Why Do the XTX654 High Frequencies Sound Too Sharp at High Volume?
The speaker uses a bullet-style design and is intended for strong output through the midrange and upper frequencies. If the top end becomes aggressive, amplifier gain, crossover points, and EQ settings should be checked rather than simply increasing the volume further.
- • Why Does My XTX654 Produce Distorted Sound When I Turn It Up?
Orion's troubleshooting information identifies excessive volume, amplifier clipping, incorrect gain settings, or speaker damage as possible causes of distortion. Lowering the gain and checking amplifier clipping can help distinguish a tuning problem from a damaged driver.
- • Why Is One XTX654 Quieter Than the Other Speaker?
Uneven output can result from loose wiring, incorrect connections, impedance differences, amplifier channel problems, or a damaged speaker. Swapping the left and right speaker connections can help determine whether the issue follows the speaker or the amplifier channel.
- • Why Did My XTX654 Arrive Damaged Even Though the Other Speaker Was Fine?
One recent customer review reported receiving one damaged speaker while still praising the performance of the pair. Inspect both drivers, baskets, cones, terminals, and surrounds immediately after delivery so any shipping-related damage can be documented promptly.
- • Why Does My XTX654 Sound Weak After Installing It in the Factory Location?
A weak or inconsistent result can come from insufficient amplifier power, poor connections, or impedance mismatch rather than the speaker itself. Orion's troubleshooting guidance specifically recommends checking wiring, impedance matching, and amplifier output when the speaker does not perform as expected.
- Diameter : 6.5 Inch
- Maximum Power : 1400 Watts
- Sensitivity : 97 dB
- Impedance : 4 Ohm
- Frequency Response : 140-12000 Hz
- Peak Power Handling : 1400 Watts
- Top Mount Depth : 2.96 Inches
- RMS Power Handling : 350 Watts
Features:
- 4-Ohm Midrange Speaker: Designed for accurate sound and seamless integration into a variety of audio systems.
- Bullet Phase Plug: Improves sound clarity and cooling, ensuring distortion-free audio even at high volumes.
- Cast Basket: Provides structural integrity, reduces resonance, and ensures long-lasting durability for consistent performance.
- Nickel-Plated Push Down Terminals: Ensures secure and corrosion-resistant connections for enhanced reliability.
- High Power Handling: 350 Watts RMS and 1400 Watts peak power for dynamic, powerful sound performance.
- Durable Construction: Built with a non-pressed paper cone and a treated cloth accordion surround for enhanced durability and accurate sound reproduction.
- Wide Frequency Range: From 140 Hz to 12 kHz, capturing detailed midrange frequencies for a rich audio experience.
Specifications:
- Speaker Size: 6.5 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 1400 Watts
- Power Handling (RMS): 350 Watts
- Sensitivity: 97 dB
- Frequency Response: 140 kHz - 12 kHz
- Voice Coil Diameter: 1.5" (Inches)
- Speaker Quantity: 2 Speakers
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 20 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 75.2mm / 2.96 (Inches)
- Overall Depth: 84mm / 3.31 (Inches)
- Cutout Diameter: 146mm / 5.75 (Inches)
- Overall Diameter: 178mm / 7 (Inches)
- UPC: 818550010987
- Weight: 8.56
