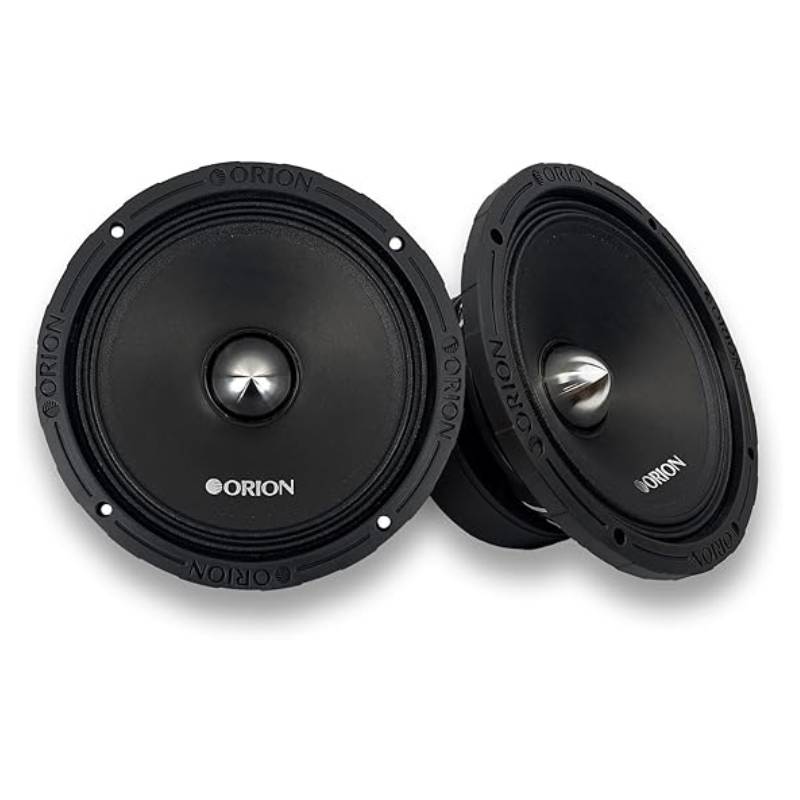

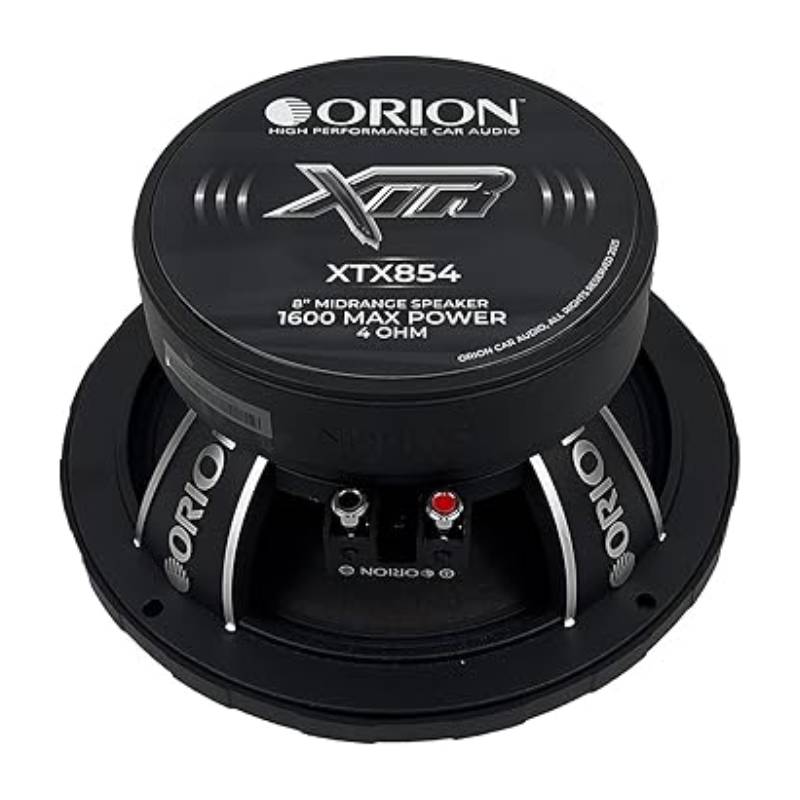

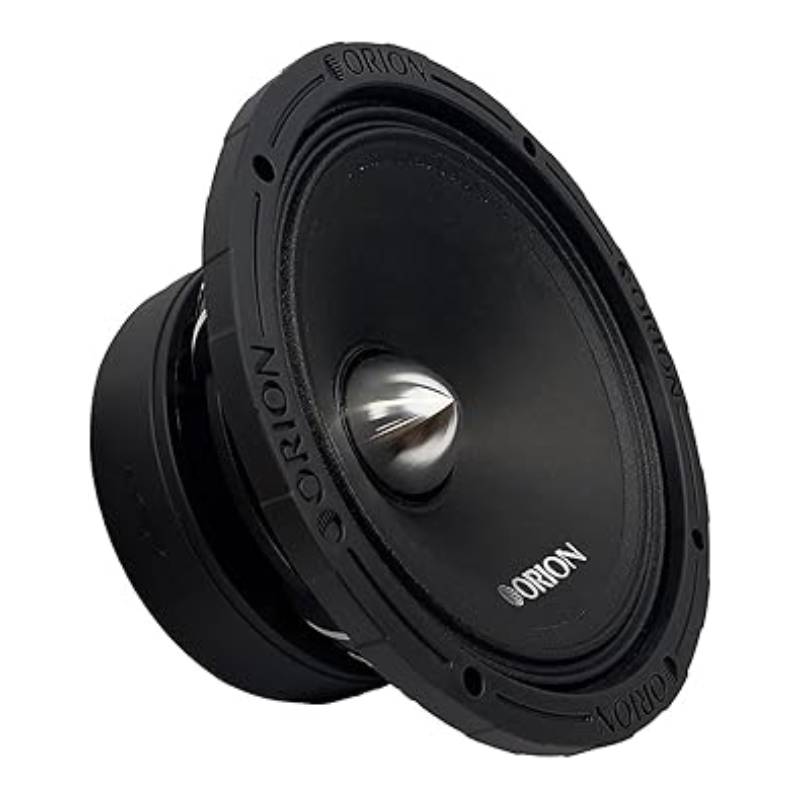

Orion XTX854 XTR Series 8" 1600W Peak Power Handling at 4-Ohms, Aluminum Midrange Car Speakers (Pair)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 8" Aluminum Midrange Car Speakers
- • Owner's Manual
Crisp Sound. Maximum Clarity.
Experience precise, high-fidelity sound with the ORION XTR Series 8" Midrange Speakers, engineered for seamless integration. The bullet phase plug enhances clarity and cooling, delivering smooth, distortion-free audio even at high volumes. Enjoy powerful, detailed mids that bring every track to life with stunning accuracy and richness.
Durable. Reliable. High-Performance.
Experience stable, high-quality sound with a sturdy cast basket that minimizes resonance and enhances structural integrity. Rely on nickel-plated push-down terminals for secure, corrosion-resistant connections that ensure long-lasting performance. Built for durability and consistency, these speakers deliver exceptional audio reliability every time you listen.
Dynamic Power. Rich Clarity.
Feel the power of your music with 400W RMS and 1600W peak power, delivering dynamic, high-impact sound. Built to last, the non-pressed paper cone and treated cloth surround ensure precise and durable audio performance. With a wide frequency range from 130 Hz to 12 kHz, enjoy rich, detailed midrange tones that bring every song to life.
Frequently Asked Questions (FAQ)
- • Why Does My Orion XTX854 Lose Vocal Clarity at High Volume?
If vocals become less defined when the volume is raised, users should check amplifier gain, signal clipping, crossover configuration, and speaker wiring rather than assuming the driver itself is defective.
- • Why Does My XTX854 Sound Weak When Paired With a Subwoofer?
The XTX854 is a midrange driver with a published response beginning around 130 Hz, so improper crossover overlap or excessive low-frequency content can make the transition between the midrange and subwoofer sound unbalanced.
- • Why Is One Orion XTX854 Louder Than the Other?
Unequal output can result from incorrect polarity, different amplifier-channel levels, balance or fader settings, loose terminals, or differences in the speaker wiring. Correct polarity is specifically identified as an important troubleshooting point for uneven sound.
- • Why Does My XTX854 Start Distorting Before I Reach Maximum Volume?
Distortion can occur when amplifier gain is set too aggressively, the amplifier clips, or the speaker receives an inappropriate signal. Troubleshooting guidance recommends reducing the source/amplifier level and checking gain and wiring when distortion appears.
- • Can the Orion XTX854 Fit in a Tight 8-Inch Speaker Location?
The XTX854 has a 184 mm cutout diameter, 215 mm overall diameter, and 91 mm mounting depth, so users should measure the mounting area and rear clearance before installation.
- • Why Does My XTX854 Have Almost No Low-End Bass?
The XTX854 is designed as a midrange speaker rather than a dedicated subwoofer, with a stated frequency range of 130 Hz–12 kHz. Users expecting deep sub-bass should configure a separate low-frequency driver and appropriate crossover.
- • Why Does My Orion XTX854 Rattle After Installing It in a Custom Panel?
A rattle can come from loose mounting hardware, panel vibration, an improperly secured terminal, or surrounding trim. Checking the installation before diagnosing the speaker itself can help isolate the source.
- • Why Does My XTX854 Sound Different When I Reverse the Speaker Polarity?
Reversing polarity on one speaker can create phase cancellation between multiple drivers, which may result in weaker or uneven sound. Checking positive and negative connections on every XTX854 is an important installation step.
- • Why Does My XTX854 Get Harsh When I Push the System Hard?
A harsh sound at high output can be related to amplifier clipping, excessive gain, unsuitable crossover settings, or the speaker being driven beyond its intended operating conditions. The XTX854's high sensitivity and 400W RMS rating make proper amplifier setup especially important.
- • Why Did My XTX854 Stop Producing Sound After Working Normally?
If an XTX854 suddenly becomes silent, users should inspect the speaker terminals, amplifier channel, speaker cable, and source signal before assuming an internal failure. Online product feedback includes both reports of strong performance at loud volume and isolated complaints about sound quality/support, so individual experiences can vary.
- Diameter : 8 Inch
- Maximum Power : 1600 Watts
- Sensitivity : 98.5 dB
- Impedance : 4 Ohm
- Frequency Response : 130-12000 Hz
- Peak Power Handling : 1600 Watts
- Top Mount Depth : 3.58 Inches
- RMS Power Handling : 400 Watts
Features:
- 4-Ohm Midrange Speaker: Designed for accurate sound and seamless integration into a variety of audio systems.

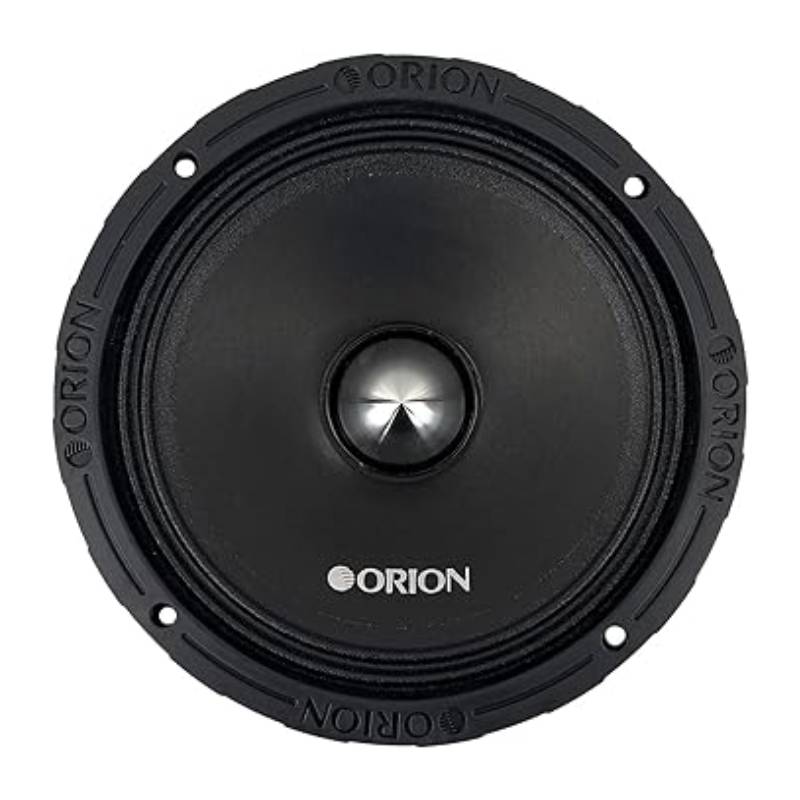

- Bullet Phase Plug: Improves sound clarity and cooling, ensuring distortion-free audio even at high volumes.
- Cast Basket: Provides structural integrity, reduces resonance, and ensures long-lasting durability for consistent performance.

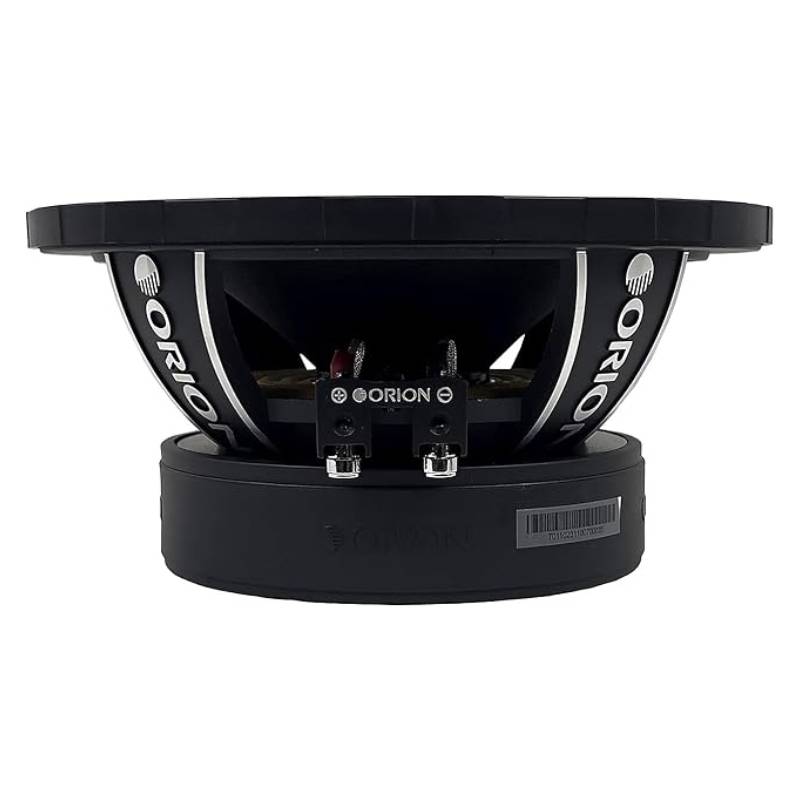

- Nickel-Plated Push Down Terminals: Ensures secure and corrosion-resistant connections for enhanced reliability.
- High Power Handling: 400 Watts RMS and 1600 Watts peak power for dynamic, powerful sound performance.
- Durable Construction: Built with a non-pressed paper cone and a treated cloth accordion surround for enhanced durability and accurate sound reproduction.
- Wide Frequency Range: From 130 Hz to 12 kHz, capturing detailed midrange frequencies for a rich audio experience.
Specifications:
- Speaker Size: 8 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 1600 Watts
- Power Handling (RMS): 400 Watts
- Sensitivity: 98.5 dB
- Frequency Response: 130 Hz - 12 kHz
- Voice Coil Diameter: 2" (Inches)
- Speaker Quantity2 Speakers
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: 88 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 91mm / 3.58 (Inches)
- Overall Depth: 100.5mm / 3.96 (Inches)
- Cutout Diameter: 184mm / 7.24 (Inches)
- Overall Diameter: 215mm / 8.46 (Inches)
- UPC: 818550011007
- Weight: 18
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
