PRE-AMP CIRCUITRY Low Noise PreAmplifier Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process
INPUTS Low voltage RCA Inputs Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path
HI LEVEL INPUTS Yes, small connecting adapter Easily tie into OEM audio systems that do not offer RCA output. Molex connector is included
OPERATION MODE 3 Stereo, Bridged Mono or Stereo/Bridged Mono Simultaneously
CROSSOVER / SIGNAL SHAPING Electronic Internal 12dB crossovers networks allow for audiophile control of equalization circuits
EQUALIZER Electronic Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier
CLASS / TOPOLOGY Class A/B High sound quality circuit that allows amplifier to develop high levels of power with minimal distortion
OUTPUT DEVICES TECHNOLOGY Pro- Fi™ Pro- Fi™ High Speed MOSFET’s components maximize power efficiency while improving sound quality and minimizing distortion
HEAT SINK Sound Shield™ Sound Shield™ Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool while shielding music from distortions that can be caused by heat
POWER SUPPLY PWM Power Supply High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system
OUTPUT CONNECTIONS Nickel Plated Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion
CONNECTIONS TYPE Screw Down Connectors Easy access for hand tool allowing a quick and secure connection
SIGNAL PASS THROUGH No
DIAGNOSTICS LED System Protection Circuitry Monitor overload and speaker short protection with lighted indicators on the amplifier end panel
Maximum Power : 2500 Watts
Low Frequency Response : 50-250 Hz
High Frequency Response : 120-3000 Hz
Number of Channels : 2
Frequency Response : 20-20000 Hz
Built In Crossovers : Yes
RMS Power Output : 1250x2 Watts
Channel Separation : Yes
Amplifier Class : A/B
Fuse Rating : 40 A

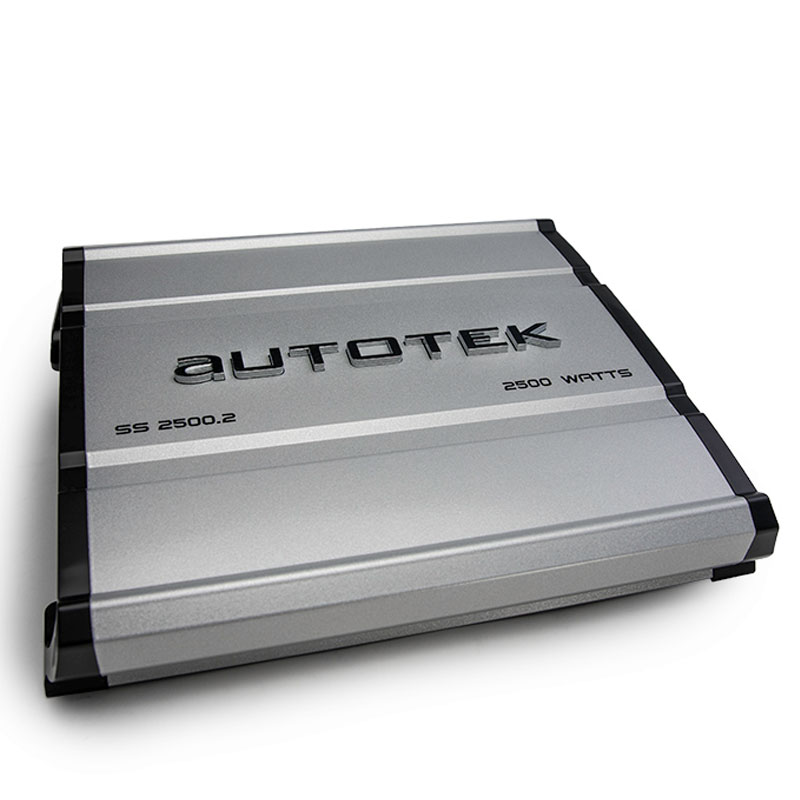

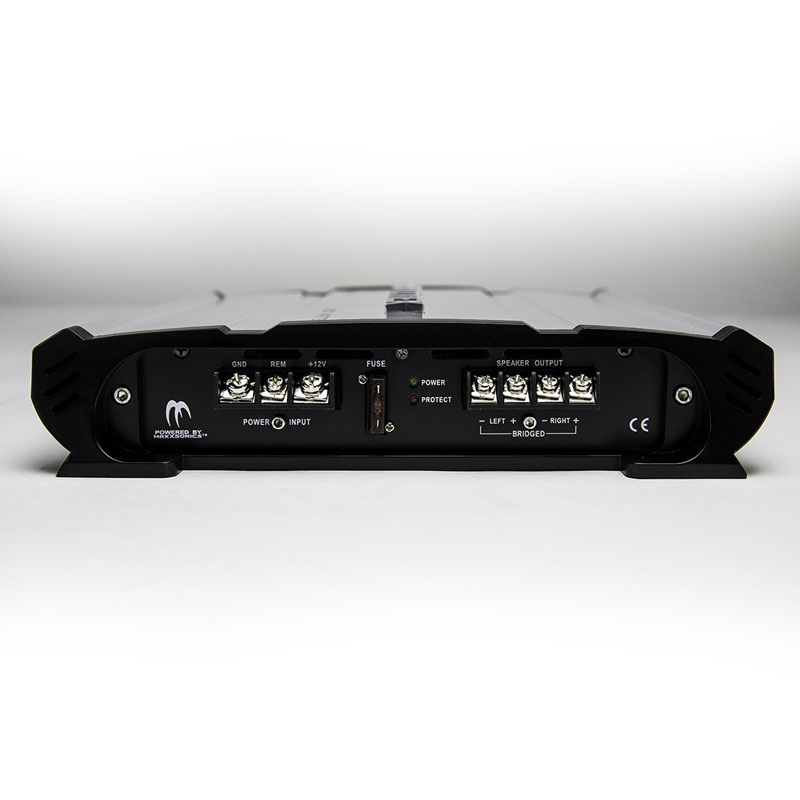

Class-A/B Full Range 2-Ohm Stable 2-Channel Amplifier
Peak Power Rating:
4 ohms: 625 watts x 2 chan.
2 ohms: 1250 watts x 2 chan.
Bridged, 4 ohms: 2500 watts x 1 chan.
Total power output: 2500 watts
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Soft start turn-on
2 or Mono channel operation
Speaker-level (high-level) inputs
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Variable Bass Boost Switch: 0, +6, +12 dB bass boost at 45 Hz
Remote level knob included
Fuse Rating: 40 A x 1
