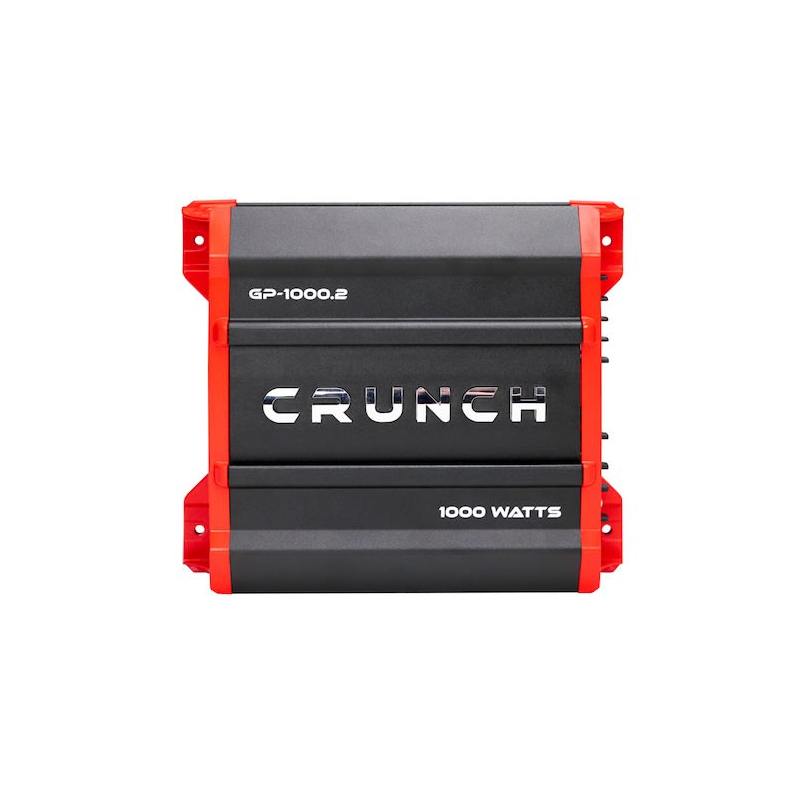

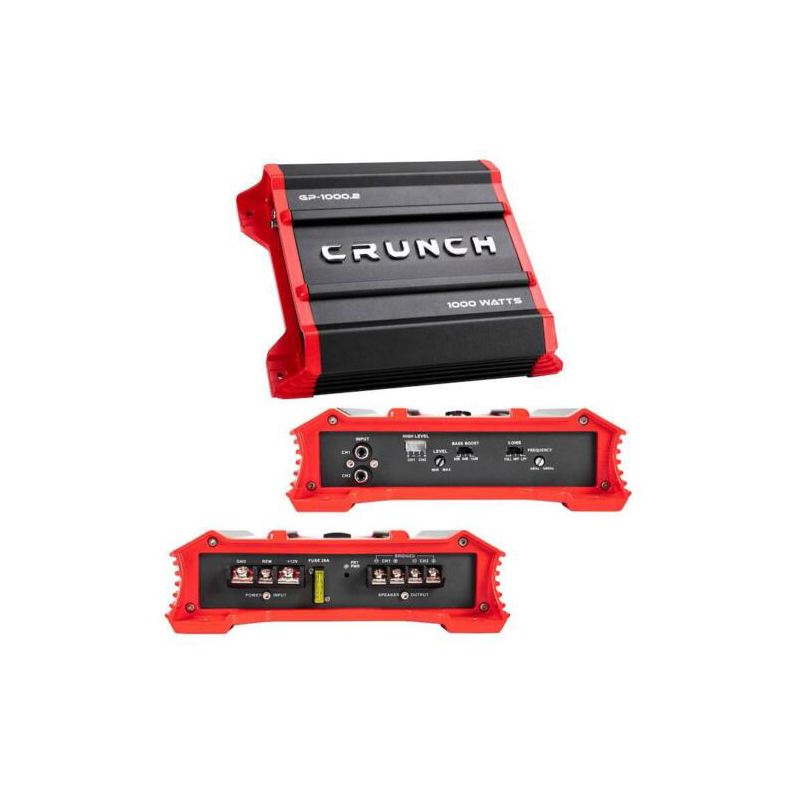

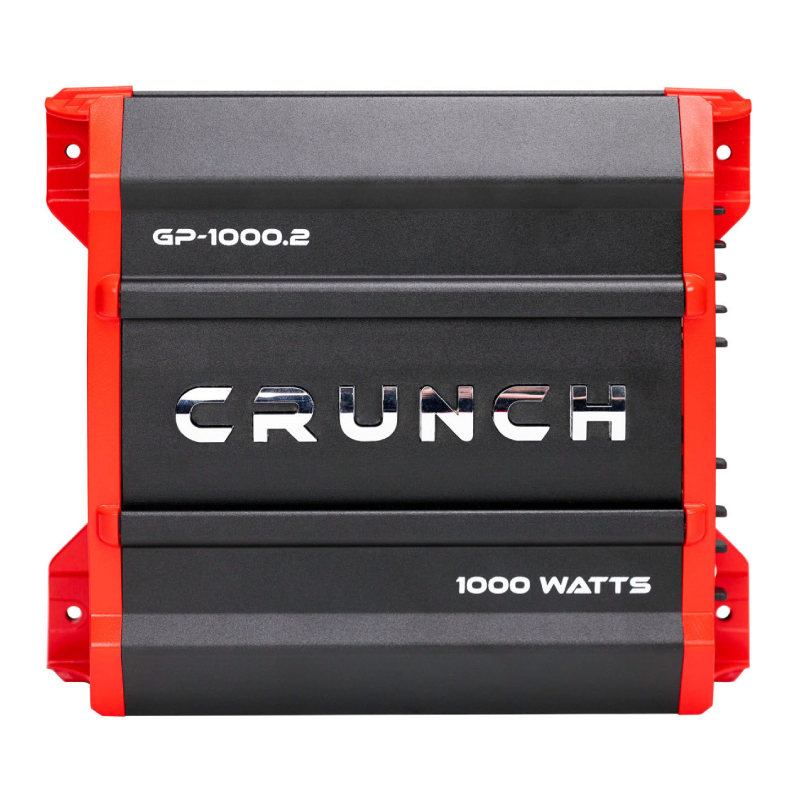

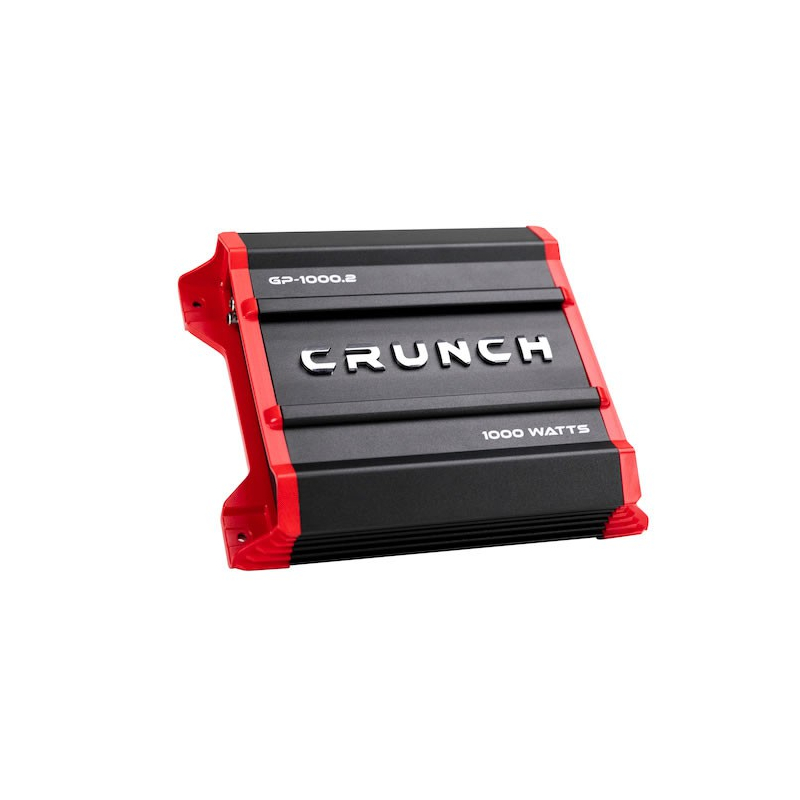

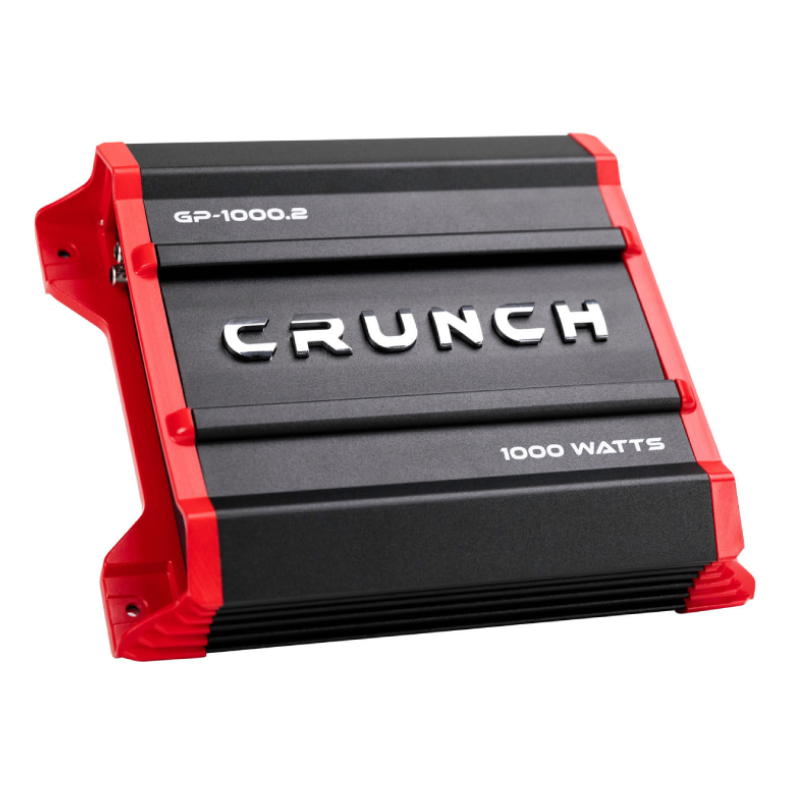

Crunch Ground Pounder with QTD Technology delivers 1000 watts to subwoofers and includes built-in electronic crossovers.
TYPE: Two Channel Car Audio Amplifier.
CATEGORY: Ground Pounder
CLASS: Class A/B
TOTAL CHANNELS: 2
FREQUENCY RESPONSE: 10Hz-22kHz
POWER : 1000 watts
Maximum Power : 1000 Watts
Low Frequency Response : 40-400 Hz
High Frequency Response : 40-400 Hz
Number of Channels : 2
Frequency Response : 10-22000 Hz
Built In Crossovers : Yes
RMS Power Output : 500x2 Watts
Amplifier Class : A/B
Fuse Rating : 20x1 A

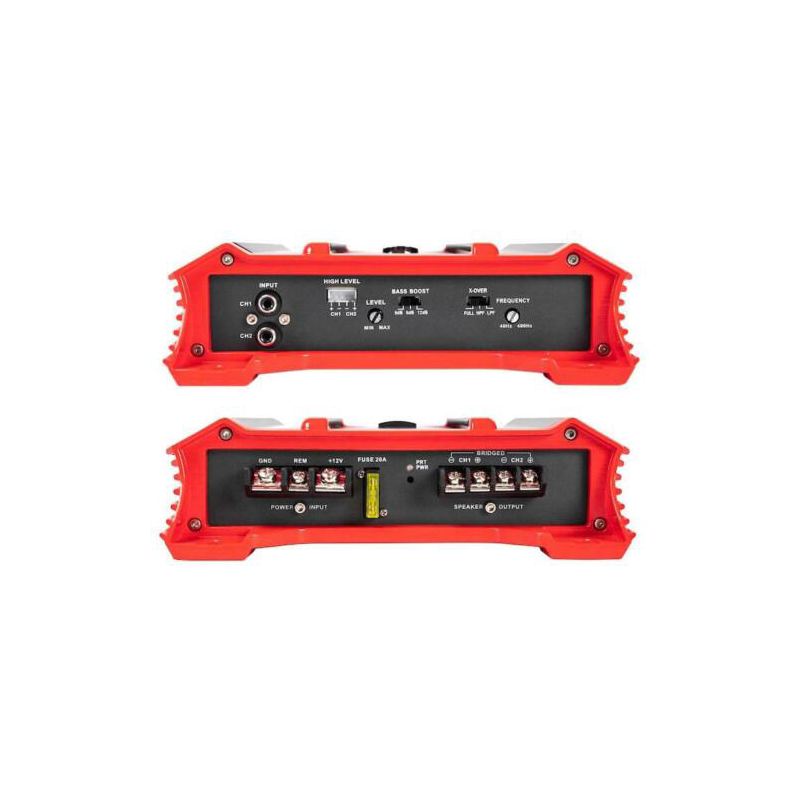

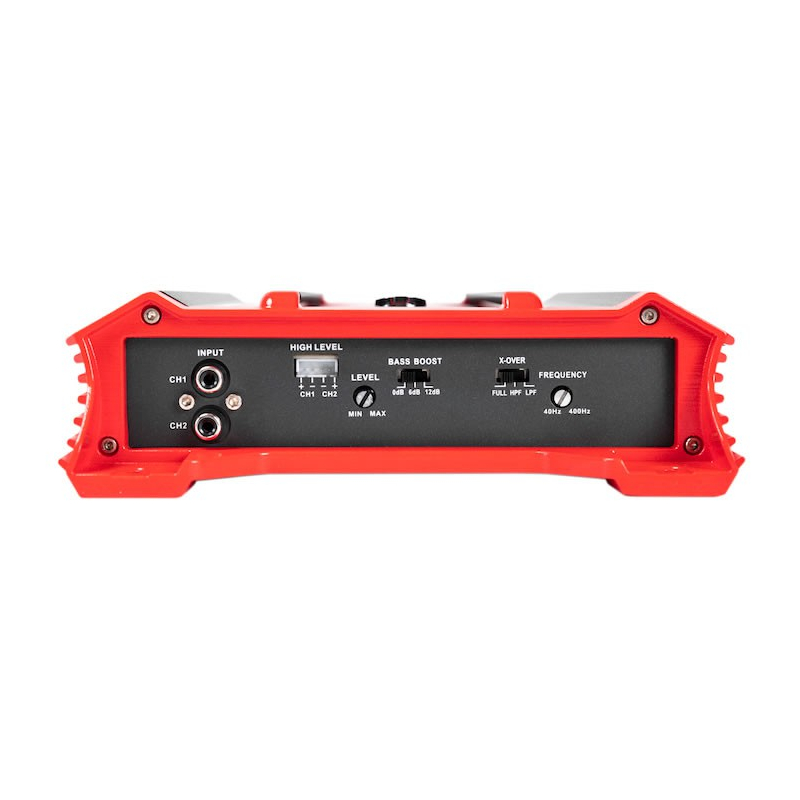

Low Noise Preamplifier Circuit: Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.
RCA Inputs: Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.
High Level Inputs: Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
Operation Mode: Stereo, Bridged Mono or Stereo/Bridged Mono Simultaneously
Crossover Type: Variable Electronic 12dB Per Octave
Class / Topology: Class A/B: High sound quality circuit that allows POWER DRIVE to develop high levels of power with minimal distortion.
Output Device Technology: Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion.
Heat Sink: QTD Technology Aluminum: Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening.
Power Supply: High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system.

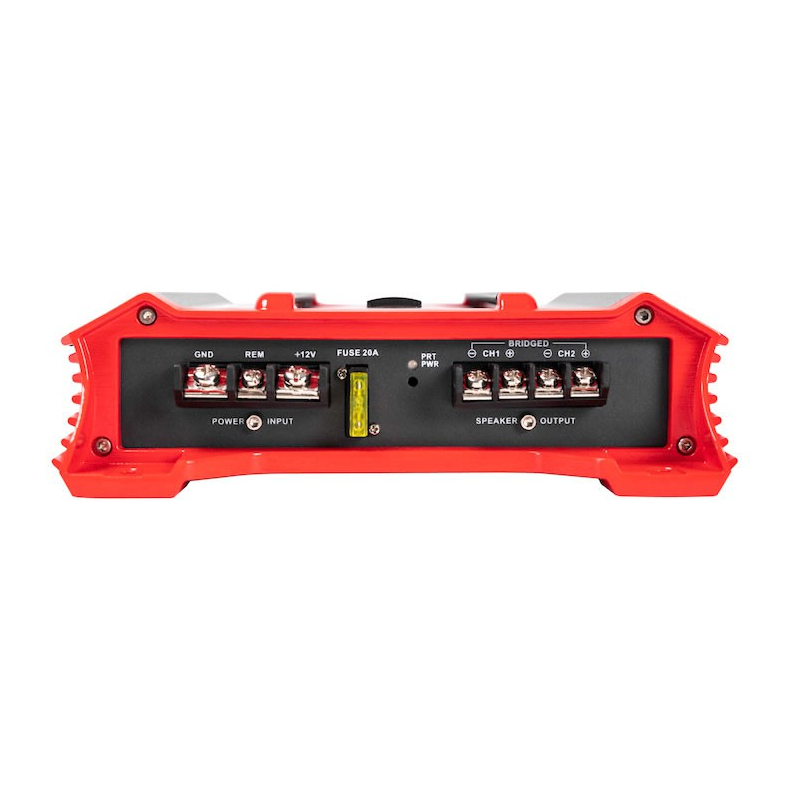

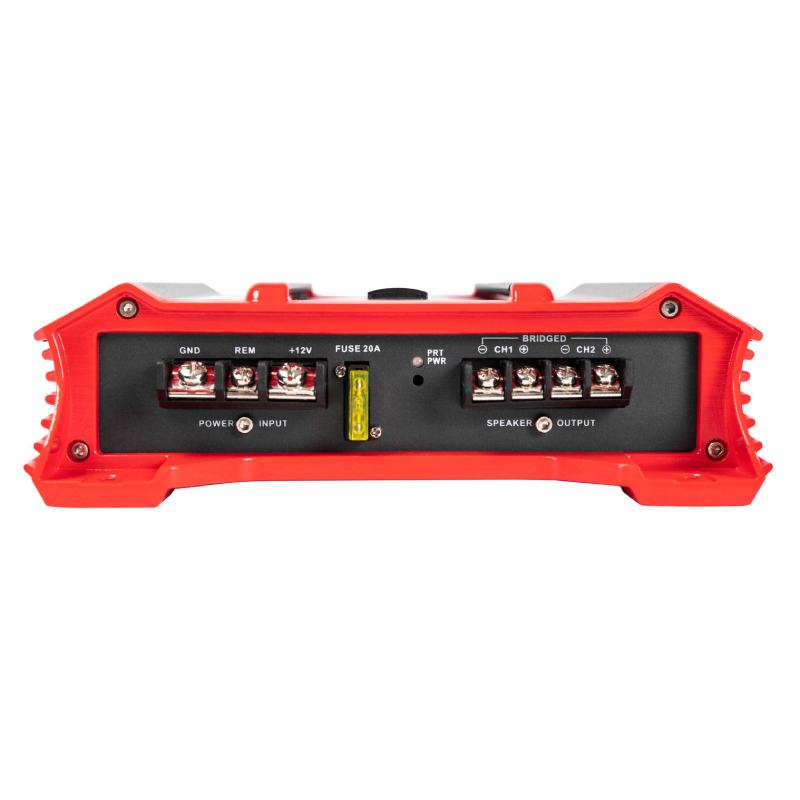

Output Connections: Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion.
Connection Type: Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection.
LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with lighted indicators on the amplifier end panel.
Low Noise Preamplifier Circuit
Weight: 5.65 lbs
Dimensions: 8 × 8 × 2.375 in
Series: GROUND POUNDER
Model Replaced: PD-800.2
Compatible Vehicles: Universal
Amp Class: Class A/B
Amp Total Channels: 2
Amp Max Power (watts): 1000
Amp Power @ 2 Ohms (ch x watts): 2 x 500
Amp Power @ 4 Ohms (ch x watts): 2 x 250
Amp Mono Bridged @ 4 Ohms (ch x watts): 1 x 1000
Amp Crossover: Variable Electronic 12dB Per Octave
Amp Tone Control / Parametric EQ: Built-in Bass Control
Amp Bass Boost: Switchable: 0/+6/+12dB
Amp Variable Voltage: 0.2-9V
Amp Frequency Response: 10Hz-22kHz
Amp Speaker Level Audio Inputs: Yes
Amp Power Terminal 12v/GND: 4 AWG
Amp Speaker Terminal Wire Gauge: 12 AWG
Amp Fusing: 20A
