Many new cars equipped with premium amplified systems are nearly impossible to replace and very difficult to upgrade the audio performance. The XR600-6DSP when combined with an iDatalink Maestro AR can use a true stereo signal from the existing OEM stereo and translate all the CAN-Bus communication of the original radio to the XR600-6DSP. Integrates with many Ford, Chrysler and Jeep premium systems with more cars to follow.
Onlinecarstereo has been a long time authorized dealer of Kenwood products and we make sure you get your products on time. We source our supplies straight from the manufacturer / dealer so you can be sure you're getting an authentic and original Kenwood product.
- Maximum Power : 1200 Watts
- Number of Channels : 6
- Frequency Response : 20-50000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- RMS Power Range : 600 Watts
- Amplifier Class : D
- Fuse Rating : 60 A
| Model Name |
XR600-6DSP |
| Nominal Impedance |
2 ohms |
| Power Handling |
1200 watts peak |
| 75Watts RMS x [ch] (4 Ohms, 20-20kHz, ≤1.00% THD) |
| 100Watts RMS x [ch] (2 Ohms, 1kHz, ≤1.00% THD) |
| 200Watts RMS x [ch/2] (Bridged 4 Ohms, 1kHz, ≤1.00% THD) |
|
Bridged
|

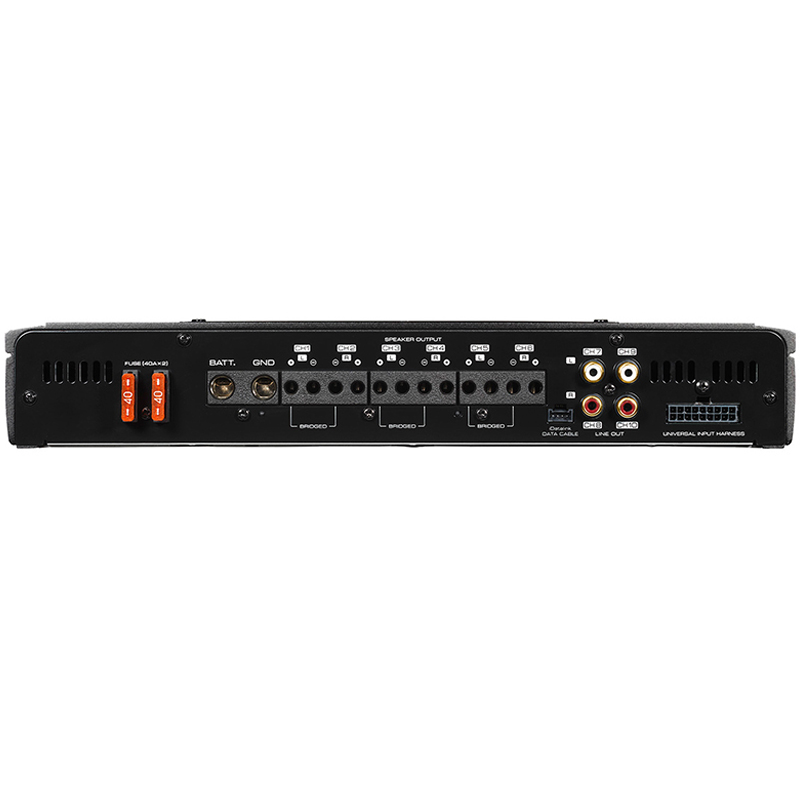

Bridged connection available CH1 & CH2, CH3 & CH4, CH5 & CH6 |
| Audio Section |
Input Sensitivity |
2.0[V] - 4.0[V]
|
| Specifications |
Frequency Response |
20Hz-50kHz (+0dB, -3dB)
|
| Signtal to Noise Ratio |
95dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Input Impedance |
10k ohm |
| Speaker Impedance |
Bridged connection 4Ω to 8Ω allowable |
| General |
Dimensions (WxHxD) |
320 [mm] x 51 [mm] x 169 [mm]
12-5/8 inch x 2 inch x 6-5/8 inch |
| Operating Voltage |
14.4V(11-16V allowable) |
| Current Consumption |
60 [A] |
| Key Features |
CTA-2006 Compliant |
| Terminal Cover |
| Cooling Fan |

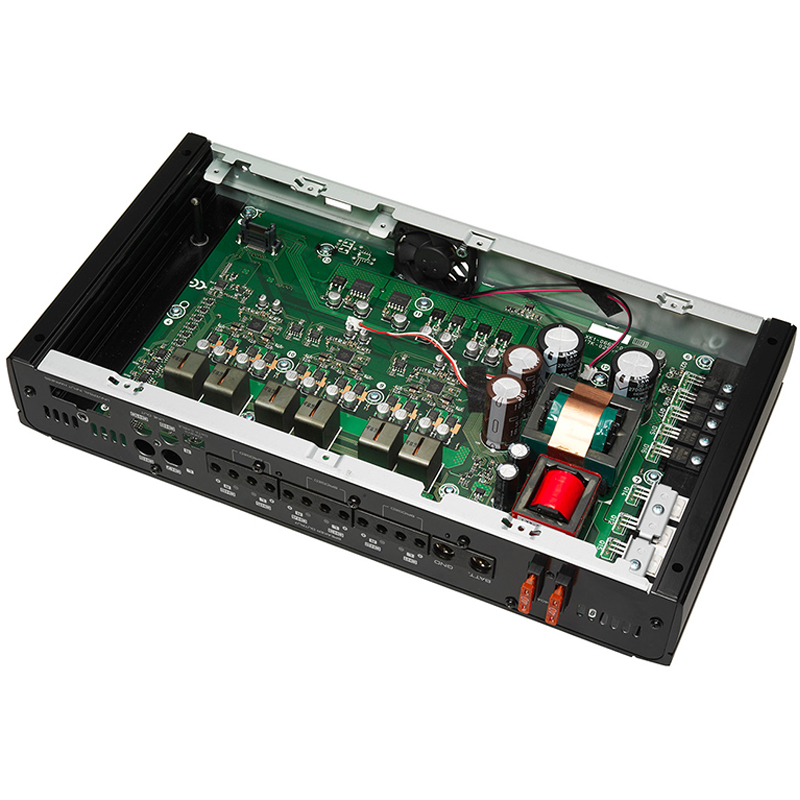

| Power MOS-FET Switching Power Supply |
| Extruded Aluminum Heat Sink Design |

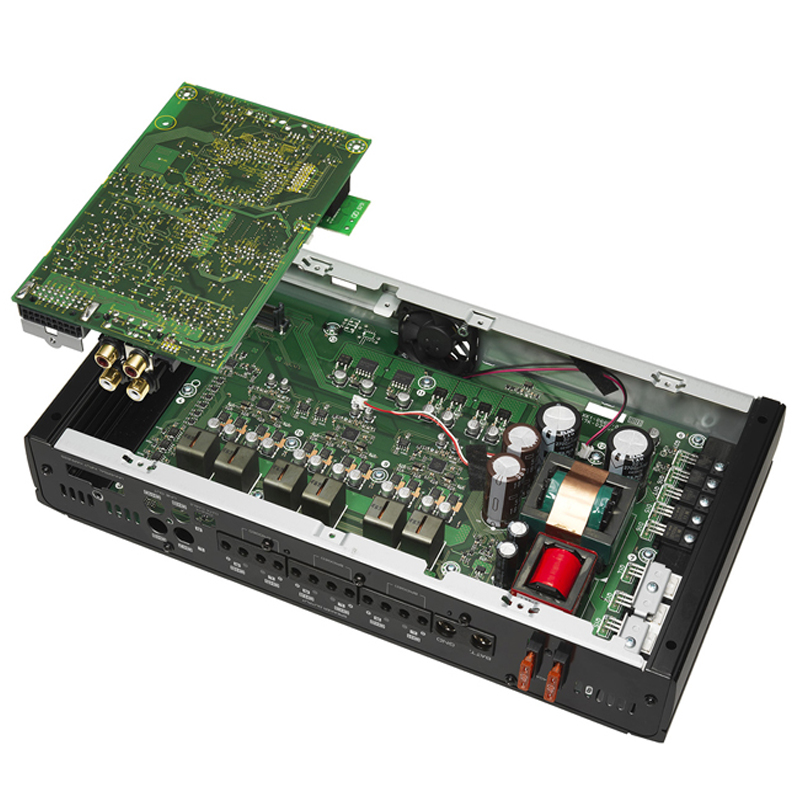

| Digital Signal Processor Function |
|
DSP Setting Apprication (iOS/Andorid)
|
- UPC: 0019048218889
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
