Kicker Q-Class 41L7152 L7 Series 15" 1200W RMS (2400W Peak Power Handling) 2 Ohm Dual Voice Coil Car Subwoofer
We are a Kicker Q-Class authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • One 15" Square dual 2-ohm voice coil woofer
- • Kicker logo
- • 4 Hardware covers
- • Template
- • Owner's manual (English/ Spanish/ German/ French)
Excellent Car Subwoofer
Unique and powerful, the Kicker Q-Class 41L7152 is an excellent car subwoofer when it comes to producing massive and clean bass output. With its unique square shape, it gives the subwoofer a larger surface area, resulting in improved airflow and better bass production.
SoloKon Cone and Santoprene Rubber Surround
The Kicker Q-Class 41L7152 subwoofer comes with a SoloKon cone and a Santoprene rubber surround to ensure an accurate low-frequency performance, even if used for extended periods at high volume levels. It also comes with Kicker's famous Blue Lace spider for a better excursion. These high-quality materials used allow the subwoofer to take a beating without a sweat.
Kicker's UniPlate

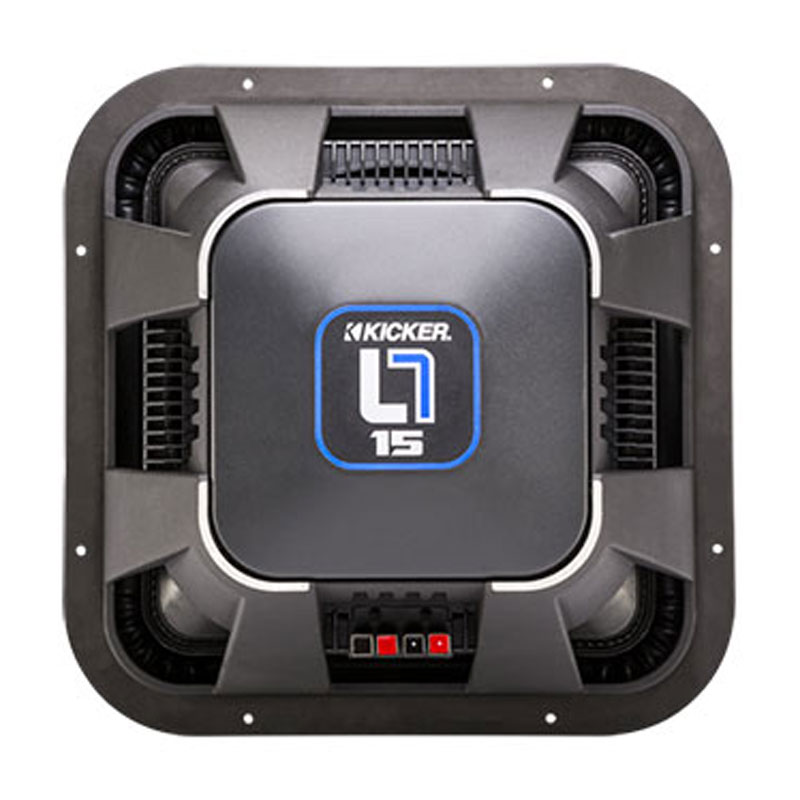

With Kicker's Uniplate, the Kicker Q-Class 41L7152 allows the heat build-up to dissipate quickly away from the subwoofer's motor. Its cast aluminum basket also comes with large vents for a better thermal management system. Its voice coils are resistant to high temperatures, as well, so you won't have any problems concerning overheating issues.
Power Handling
This 15-inch Kicker Q-Class 41L7152 subwoofer can deliver a power output of 1,200 Watts RMS and can reach up to 2,400 Watts of peak power at 2 ohms. It has a sensitivity rate of 88.6 dB and a frequency response of 18 up to 100Hz, which means that the subwoofer can produce a deep and extensive low-frequency performance and won't have any problem going loud.
- Diameter : 15 Inch
- Sensitivity : 88.6 dB
- Impedance : 2 Ohm
- Frequency Response : 18-100 Hz
- Peak Power Handling : 2400 Watts
- Design : 1 Way
- Top Mount Depth : 9-3/8 Inches
- Shallow Mount : No
- Number of Voice Coils : Dual
- RMS Power Handling : 1200 Watts
Specifications:
- Rated Impedance [Ω]: 2
- Fs [Hz]: 26.3
- Sensitivity [1W, 1m]: 88.6
- Qts: 0.539
- Qms: 11.868
- Qes: 0.565
- Re [Ω]: 7
- Vas [ft³, L]: 5.263, 149.048
- Continuous Power Handling [Watts RMS]: 1200
- Outer Frame Dimension [in, cm]: 15-5/8, 39.6
- Mounting Depth [in, cm]: 9 3/8, 23.9
- Mounting Cutout [in, cm]: 13-3/4, 34.9
- Frequency Response [Hz]: 18 - 100
Sealed Enclosure Specs:
- Minimum Sealed Volume ft3 (L): 1.75 (49.56)
- Minimum Sealed Power Handling: 1200W RMS
- Maximum Sealed Volume ft3 (L): 6 (169.9)
- Maximum Sealed Power Handling: 1200W RMS
Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF:
- Box Volume [ft³, L]: 1.75 (49.56)
- Panel A [in, cm]: 16.5x16.5, 42x42
- Panel B [in, cm]: 16.5x13.5, 42x34.3
- Panel C [in, cm]: 15X13.5, 38.1X34.3
Vented Compact:
- Box Volume, ft³ (L) + port displacement: 3.0 (85)
- Port Opening Size, in x in (cm x cm): 2.5x16.25 (6.4x41)
- Port Length, in (cm): 19.5 (50)
- Power Handling, RMS: 1200
Vented SQ:
- Box Volume, ft³ (L) + port displacement: 6.0 (170)
- Port Opening Size, in x in (cm x cm): 3.5x16.25 (8.9x41)
- Port Length, in (cm): 13.75 (35)
- Power Handling, RMS: 1200
- UPC: 713034069799
- Weight: 45
