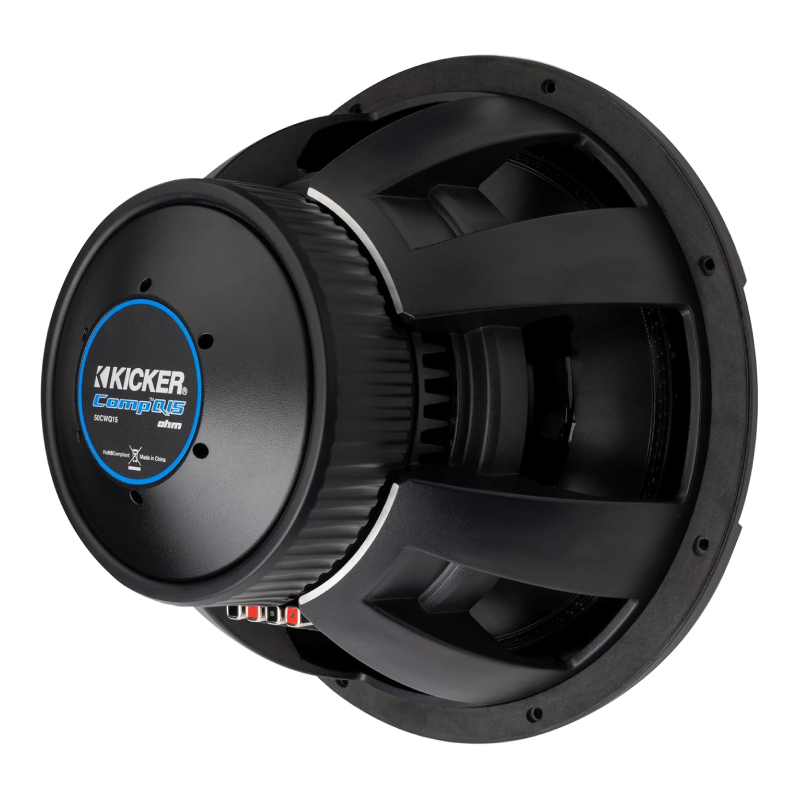

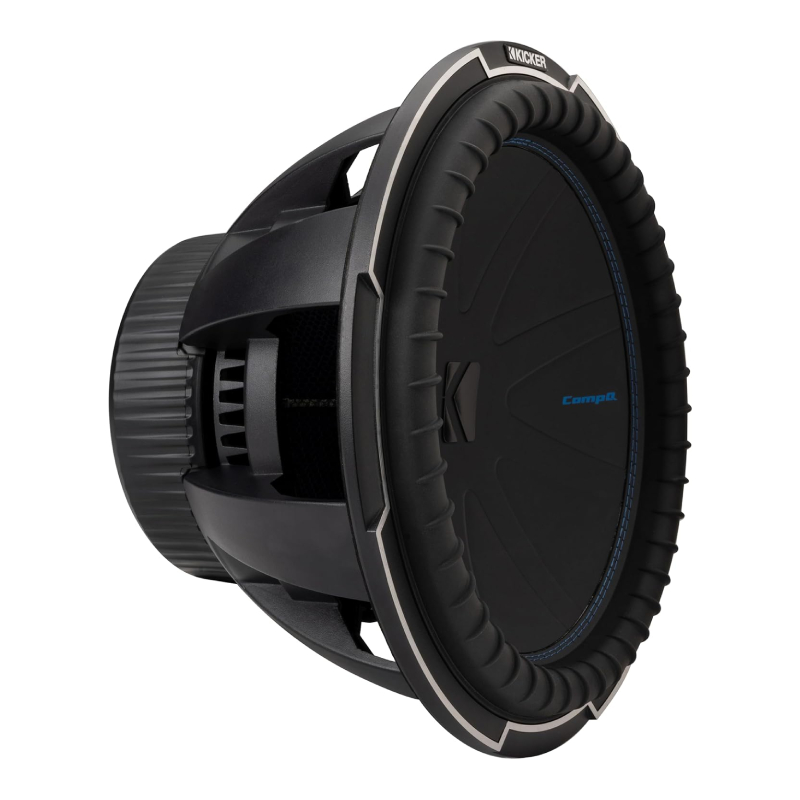

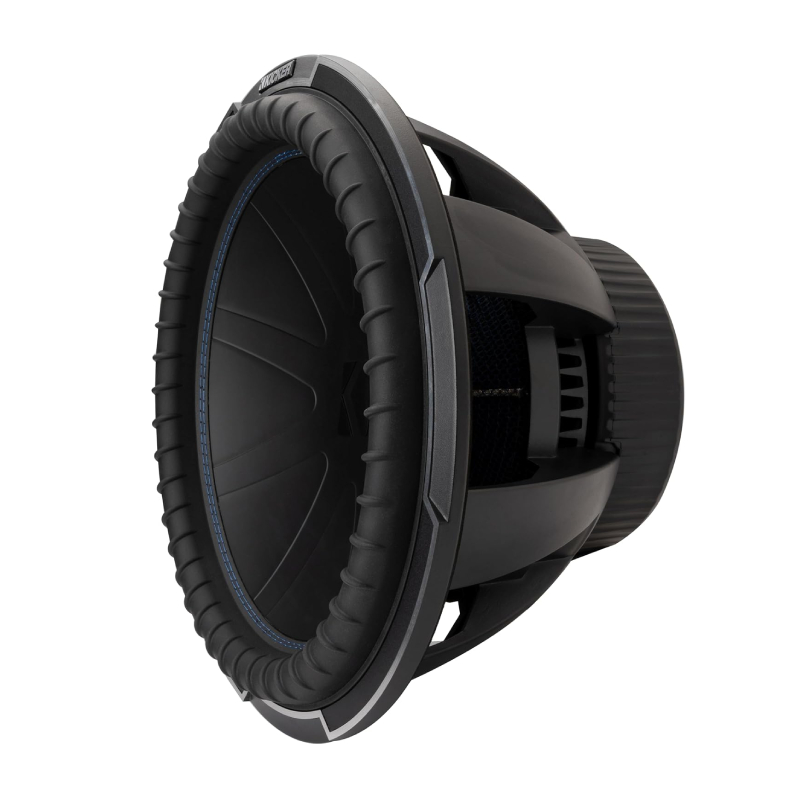

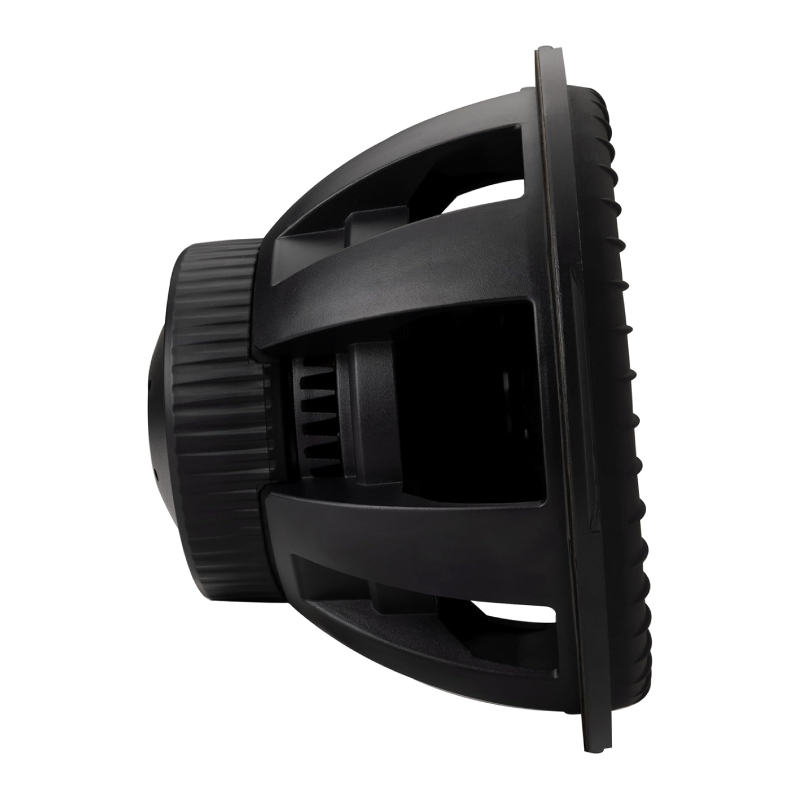

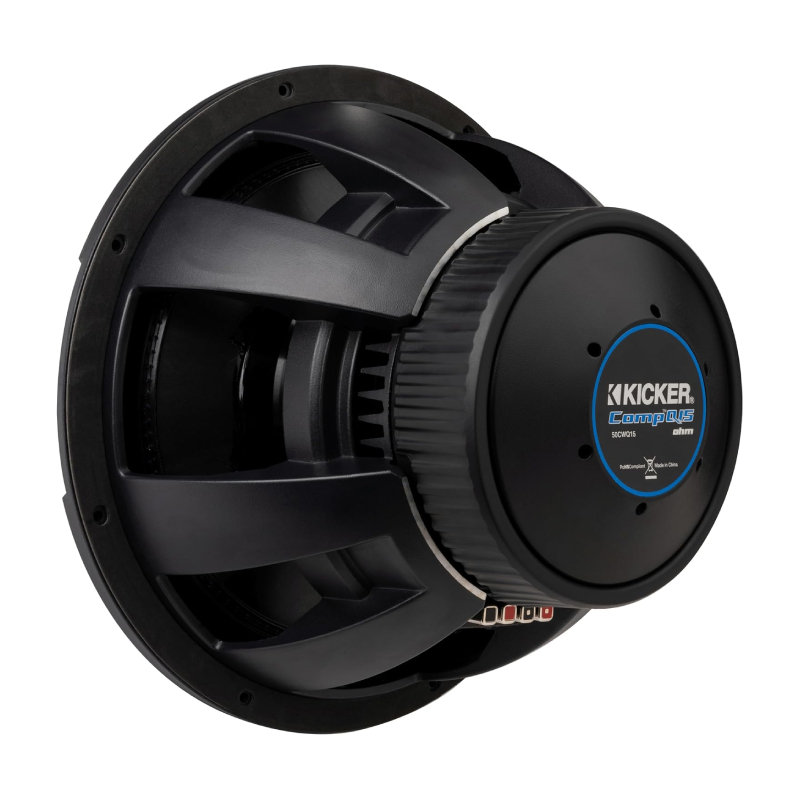

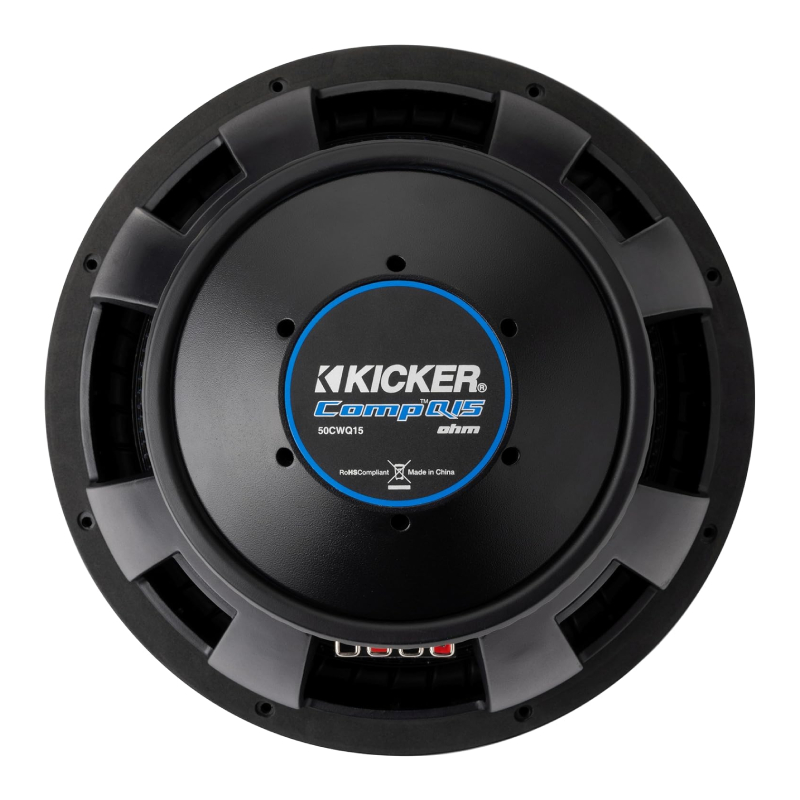

Kicker 51CWQ152 CompQ Series 15" 1200W RMS (2400W Peak Power Handling) 2 Ohms Dual, Dual Voice Coil Component Car Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 15" CompQ Series Dual Voice Coil Component Car Subwoofer
- • Adhesive backed foam gasket
- • (4) Hardware covers
- • Information sheet
- • (2) Kicker decals
- • Kicker logo badge
- • Template
- • Owner's Manual
Why Choose Kicker 51CWQ152 Component Car Subwoofer?
Enhanced Durability and Performance
Experience unparalleled audio performance with KICKER's reengineered best round woofer, meticulously crafted to elevate your car audio system to new heights. This state-of-the-art woofer is designed to deliver exceptional sound quality and durability, setting a new standard in the industry.
Enhanced Power Handling and Ultra-Rigid SoloKon Cone Technology
Experience unparalleled performance with enhanced power handling capability and the utilization of ultra-rigid SoloKon™ cone technology, crafted seamlessly as a single piece with 360-degree back bracing for maximum stability.
Harnessing Forced-Air Cooling Technology
Incorporating Forced-Air Cooling technology, these speakers are meticulously crafted to endure rigorous conditions and prolonged usage, offering optimized heat dissipation and ensuring consistent performance for extended listening sessions, thus enhancing durability and longevity.
Frequently Asked Questions (FAQ)
- • Why does it sound weak even with a powerful amplifier?
Check that the enclosure matches the recommended internal volume and tuning specifications. Incorrect amplifier settings or reversed speaker polarity can also reduce bass output.
- • Can I use this in a sealed enclosure instead of a ported box?
Yes. It is compatible with both sealed and ported enclosures when they are built to the recommended specifications for optimal performance.
- • Why does my amplifier keep going into protection mode?
This is often caused by an incorrect final impedance, loose wiring, or a short circuit. Verify all connections and make sure the amplifier is stable at the connected load.
- • Can I wire multiple subwoofers to a single mono amplifier?
Yes. Be sure to calculate the final impedance before wiring multiple subwoofers together to avoid damaging the amplifier.
- • Why does the bass become distorted when I increase the volume?
Distortion usually indicates amplifier clipping, excessive gain, or insufficient electrical power. Reducing the gain and properly tuning the crossover often improves sound quality.
- • Does it require a break-in period?
Yes. Playing music at moderate volume for several hours allows the suspension to loosen and helps the subwoofer achieve its intended performance.
- • Why do I hear a rattling noise instead of clean bass?
The noise is commonly caused by loose enclosure hardware, interior trim panels, or a vibrating license plate. Inspect the installation carefully before assuming the subwoofer is defective.
- • Can I use an amplifier with a higher RMS rating than the subwoofer?
Yes. A properly tuned amplifier with clean output is generally safer than an underpowered amplifier that is driven into clipping.
- • Why does the cone move but produce almost no sound?
This can happen if the low-pass crossover is set incorrectly or if the voice coil wiring is not connected properly. Double-check the wiring configuration and amplifier settings.
- • Will it work with a factory car stereo?
Yes, but it requires an external amplifier because factory radios cannot directly power a high-performance subwoofer. Some factory systems also need a line output converter to provide the correct audio signal.
- Diameter : 15 Inch
- Sensitivity : 88 dB
- Impedance : 2 Ohm
- Frequency Response : 18–100 Hz
- Peak Power Handling : 2400 Watts
- Top Mount Depth : 8.93 Inches
- Shallow Mount : No Inch
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 1.5-6.0 Cubic ft.
- Suggested Ported Box Volume : 3.0-6.0 Cubic ft.
- Mounting Depth : 8.9375 Inches
- RMS Power Handling : 1200 Watts
Features:
- Dual 2-Ohm Voice Coils: Offers flexible wiring options for a variety of amplifier setups.
- Ribbed Santoprene Surrounds: Ensures smooth cone movement and consistent bass under high power.
- BlueLace™ Progressive-Roll Spider: Maintains linear cone response for precise low-end accuracy at any volume.
- SoloKon Injection-Molded Cone: Provides strong, distortion-free bass for clean sound.
- Sealed or Ported Enclosure Compatibility: Works perfectly in both enclosure types for custom installations.
- High Power Handling: Supports 600–1200 W RMS for extreme bass performance.
- Enhanced Thermal Management: Handles heat efficiently to maintain reliable operation under heavy use.
Specifications:
- Woofer Size: 15" (38 cm)
- Impedance: 2 Ohm (DVC)
- Recommended Amplifier Power (RMS): 600–1200 W
- Frequency Response: 18–100 Hz
- Sensitivity (1W/1m): 88 dB
- Xmax: 23.7 mm
- Mounting Depth: 8-15/16" (22.6 cm)
- Mounting Diameter: 13-7/8" (35.2 cm)
- Sealed Enclosure Volumes:
- Min: 1.5 cu. ft. (42.5 L)
- Max: 6.0 cu. ft. (170 L)
- Panel Dimensions for Minimum Sealed Box (3/4" MDF):
- Panel A: 16.5" x 16.5" (41.9 x 41.9 cm)
- Panel B: 16.5" x 11.5" (41.9 x 29.2 cm)
- Panel C: 15" x 11.5" (38.1 x 29.2 cm)
- Min: 3.0 cu. ft. (85 L)
- Max: 6.0 cu. ft. (170 L)
- UPC: 713034090076
- Weight: 36.5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
