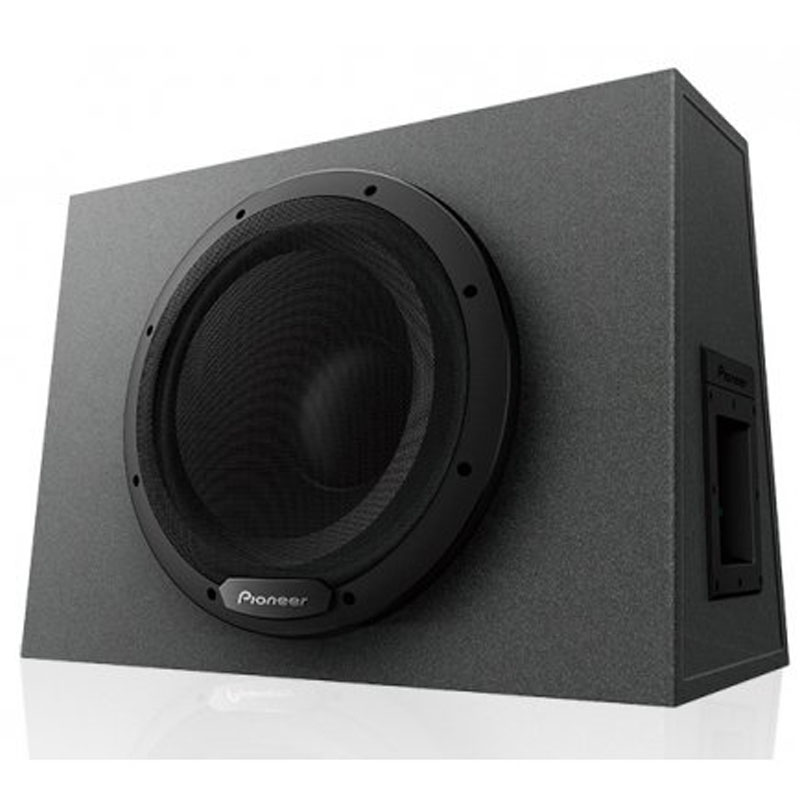

Pioneer TS-WX1210A Active Series 12" 1300W Peak Power Handling Sealed Enclosed Car Subwoofer w/ 350W RMS Class D Built-In Amplifier
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • TS-WX1210A Sealed Active Subwoofer
- • (2) Mounting Brackets
- • (8) (M5 x 25mm) screws

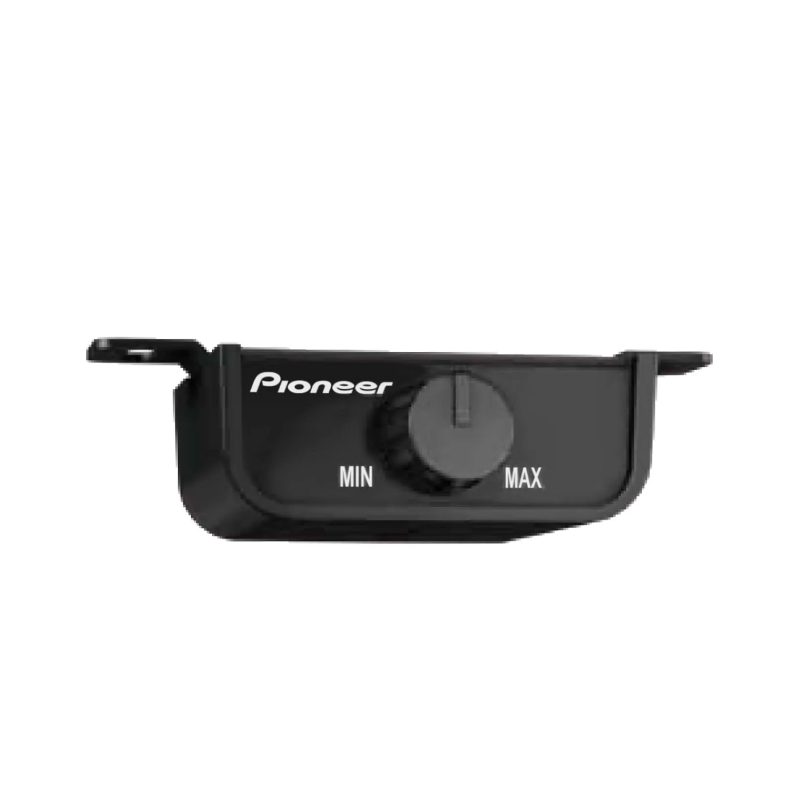

- • (1) Wired Remote Bass Controller Knob
- • (1) Power Terminal Connector
- • (1) 20A ATO fuse in holder (installed on power wire)
- • Installation Manual
- • Warranty Sheet
- •Owner's Manual
Why Choose Pioneer TS-WX1210A Powered Subwoofer?
Massive Bass in a Compact Package
Upgrade your ride with the Pioneer TS-WX1210A 12-inch Powered Subwoofer, designed to bring deep, punching bass to your car audio. Pushing up to 1300W Peak Power (350W RMS) with a high 114 dB sensitivity, its tough cellulose fiber cone and heavy ferrite magnet deliver low frequencies down to 20 Hz that you can truly feel.
Built-In Amp & Custom Bass Control
No separate amplifier needed—this subwoofer features a built-in 150W RMS amp for effortless setup. Easily dial in your ideal sound with the variable Bass Boost (0 to +12 dB), and connect effortlessly to either factory or aftermarket radios using the versatile RCA and speaker-level inputs.
Durable Design Built to Last

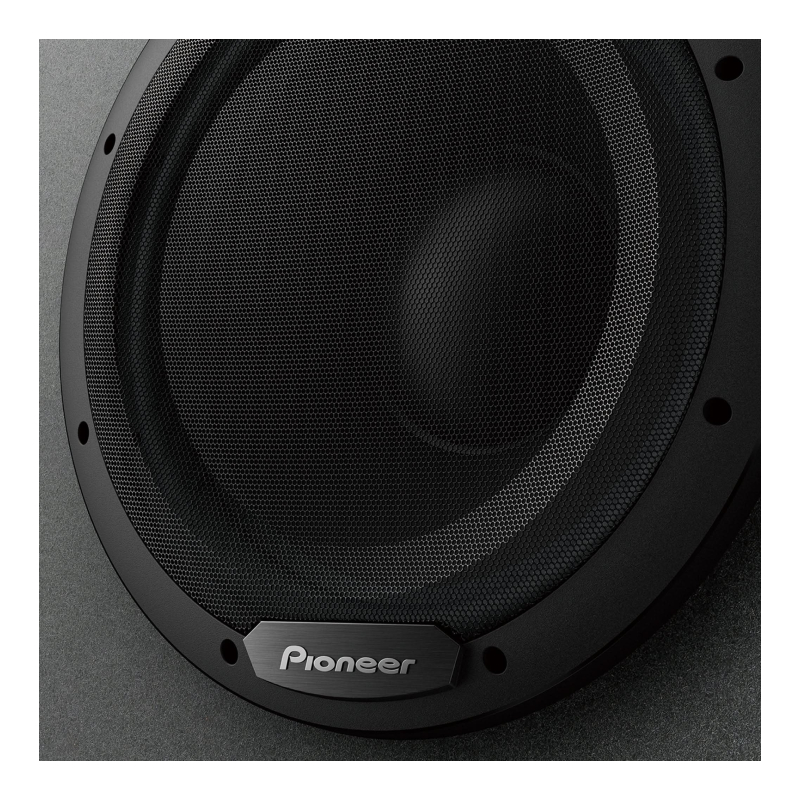

Engineered for real-world driving, it features a fully covered steel mesh grille to protect the speaker from trunk cargo. Backed by a 1-year warranty and durable rolled urethane surround, it delivers reliable, high-performance bass that completely transforms your daily drive.
Frequently Asked Questions (FAQ)
- • Why isn't the powered subwoofer turning on after installation?
Check the battery fuse, ground connection, and remote turn-on wire to ensure they are connected properly. A loose power cable or blown fuse is one of the most common installation issues.
- • Why is the bass much weaker than I expected?
Incorrect gain, crossover, or phase settings can significantly reduce bass output. Fine-tuning these controls and verifying the audio source settings usually improves performance.
- • Can I connect this to a factory stereo?
Yes. It can typically be connected using high-level speaker inputs if your factory radio does not have RCA preamp outputs.
- • Why does the subwoofer go into protection mode?
Protection mode may activate because of overheating, low battery voltage, or wiring problems. Inspect the power connections and allow the amplifier sufficient ventilation during operation.
- • Why do I hear a humming or whining noise through the subwoofer?
Electrical interference or a poor ground connection is usually responsible for unwanted noise. Check the grounding point and keep signal cables separated from power cables whenever possible.
- • Why does the bass sound distorted at higher volumes?
Too much gain or bass boost can cause the built-in amplifier to clip. Reduce the gain setting and adjust the bass controls gradually for cleaner output.
- • Can I mount the enclosure vertically instead of laying it flat?
Follow the installation recommendations provided by the manufacturer for safe mounting. A secure installation helps prevent movement and maintains consistent performance.
- • Why does the bass disappear when I switch music sources?
Different streaming apps and audio sources often use different sound processing and output levels. Check the equalizer settings on both the receiver and the playback device.
- • How can I make the bass blend better with my door speakers?
Adjust the low-pass crossover, gain, and phase controls until the bass transitions smoothly with the rest of your speakers. Proper tuning creates fuller sound without overwhelming the midrange.
- Diameter : 12 Inch
- Maximum Power : 1300 Watts
- Frequency Response : 20-125 Hz
Features:
- 1,300 Watts Max Power. (350 Watts Nom.)
- Built-In 350 Watts Output Class-D Amplifier
- Variable Bass Boost (0 to +12 dB, 40Hz to 100Hz)
- Wired Remote Bass Control & Gain Control at Side Panel
Specifications:
- System Type: Powered
- Sensitivity (1W/1m): 114 dB
- Frequency Range: 20 Hz to 125 Hz
- Warranty: 1 Year
- Continuous Power handling (RMS) - Watts: 350 Watts
- Maximum Peak Power Handling - Watts: 1300 Watts
- Speaker Grill: Fully Covered Steel Mesh Grille
- Bass Boost Frequency: 40Hz to 100Hz
- Bass Boost Level: 0 to +12 dB
- Built-In Amp: Yes
- Amp Max Power Output: 300 Watts
- Amp RMS Output: 150 Watts
- Input Level (@ Gain Max) RCA: 100mV+100mV/22kOhm
- Input Level (@ Gain Max) Speaker Line: 2V+3V/5kOhm
- Power Source: DS 14.4 V
- Amp Max Current Consumption: 13 A
- Amp Grounding: Negative
- Shape: Round
- Size: 12"
- Cone Material: Cellulose fiber
- Center Cap Material: PP
- Surround Material: Urethane
- Surround Type: Rolled
- Basket Material: Stamped Metal
- Magnet Material: Ferrite
- Magnet Weight: 33.5 oz
- Voice Coil Type: Single Voice
- Voice Coil Bobbin: Polyimide
- Voice Coil Wire: Copper
- Damper: Aramid
- Gasket: ABS
- UPC: 884938379823
- Weight: 27
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
