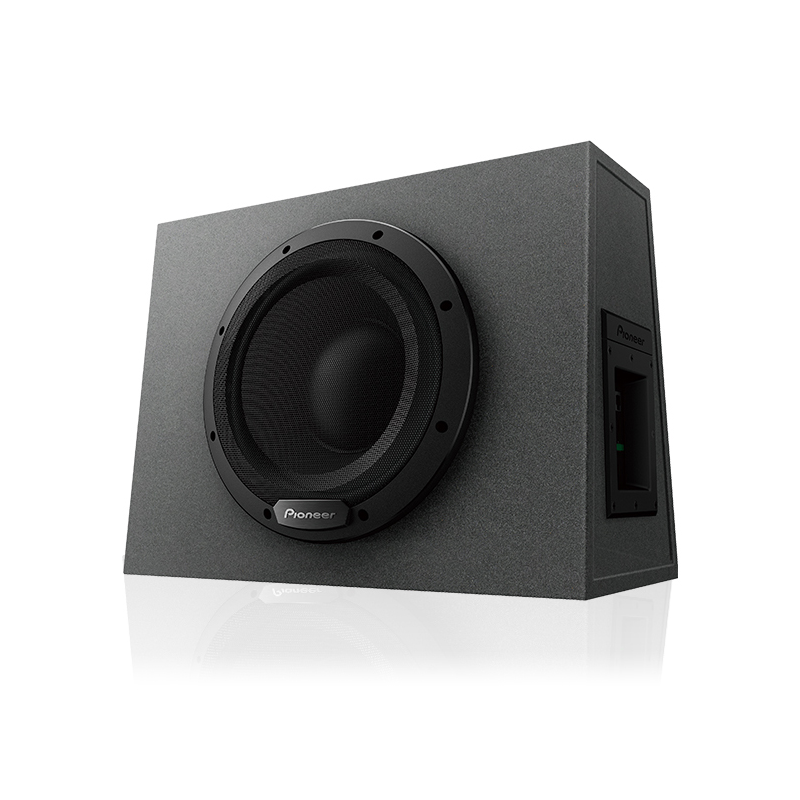

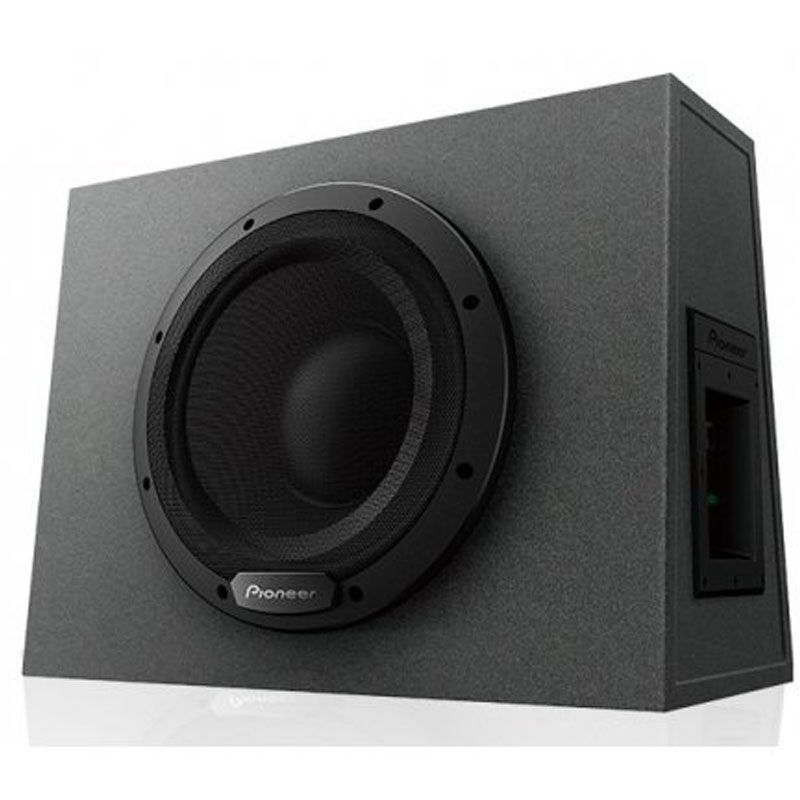

Pioneer TS-WX1010A 10" 300W RMS (1100W Peak Power Handling) Powered Subwoofer
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Powered Subwoofer
- • Installation Manual
- • Owner's Manual
Why Choose Pioneer TS-WX1010A Powered Subwoofer?
Big Bass, Small Footprint
Packing 1,100 Watts Max Power (300W Nominal) into a lightweight 10 lb frame, this setup uses a durable cellulose fiber cone and urethane surround to hit deep lows down to 20Hz with an impressive 112 dB sensitivity. You get room-shaking, hard-hitting bass that breathes new life into every track without taking over your entire trunk
Plug-and-Play Power & Total Control
Equipped with an efficient built-in 300W Class-D amplifier, this sub eliminates the hassle of mounting external amps. Fine-tuning your sound is effortless using the side-panel gain adjustments or the Variable Bass Boost (0 to +12 dB) to dial in the perfect punch for any genre. Best of all, the included wired remote puts instant bass control right at your fingertips, making it a fast, professional upgrade for any car audio enthusiast.
Frequently Asked Questions (FAQ)
- • Why won't it turn on after I finished the installation?
Check the inline fuse, battery connection, ground wire, and remote turn-on lead to make sure everything is wired correctly. A missing remote signal or blown fuse is one of the most common reasons the amplifier stays off.
- • Why is the bass output much lower than I expected?
Low bass is often caused by incorrect gain, crossover, or phase settings rather than the subwoofer itself. Proper tuning and verifying your head unit's subwoofer settings can greatly improve performance.
- • Can I connect this to a factory radio without RCA outputs?
Yes. The built-in high-level speaker inputs allow it to work with many factory audio systems that don't provide RCA preamp outputs.
- • Why does the amplifier enter protection mode while I'm listening to music?
Protection mode can be triggered by overheating, low voltage, or a wiring problem. Check the power and ground connections, and make sure the unit has adequate airflow.
- • Why do I hear a humming or whining noise through the subwoofer?
This is usually caused by poor grounding or electrical interference from the vehicle. Improving the ground connection and separating signal cables from power wires can reduce unwanted noise.
- • Why does the bass disappear when I play music over Bluetooth?
Different streaming services and Bluetooth devices may use different audio processing or EQ settings. Check your phone's audio settings and compare them with other music sources.
- • Can I install the enclosure under a seat?
Yes, provided there is enough clearance for ventilation and the enclosure can be mounted securely. Avoid blocking the amplifier's cooling area to prevent overheating.
- • Why does the bass sound boomy instead of clean?
Too much bass boost or an improperly adjusted low-pass crossover can make the bass sound muddy. Reducing the gain and fine-tuning the crossover usually results in tighter, cleaner bass.
- • Why does it shut off when the volume gets too high?
The amplifier may be drawing more current than the electrical system can provide or activating its protection circuit. Inspect the power wiring, battery voltage, and amplifier settings to identify the cause.
- • How can I blend the bass better with my door speakers?
Adjust the gain, low-pass crossover, and phase controls until the bass integrates smoothly with the rest of your audio system. Proper tuning creates fuller sound without overpowering the vocals or midrange.
- Diameter : 10 Inch
- Maximum Power : 1100 Watts
- Sensitivity : 112 dB
- Frequency Response : 20-125 Hz
- Peak Power Handling : 1100 Watts
- Number Of Subwoofers : 1
- Enclosure Type : Sealed
- Amplified : Yes
- RMS Power Handling : 300 Watts
Features:
- 1,100 Watts Max Power. (300 Watts Nom.)
- Built-In 300 Watts Output Class-D Amplifier
- Variable Bass Boost (0 to +12 dB, 40Hz to 100Hz)

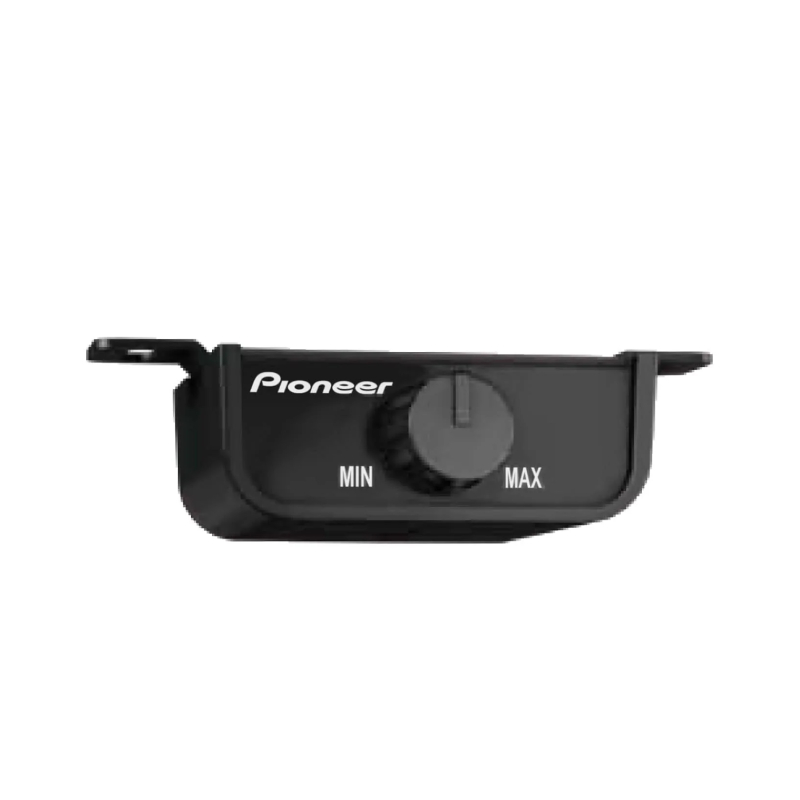

- Wired Remote Bass Control & Gain Control at Side Panel
Specifications:
- Size: 10" Cone
- Max. Music Power (Nominal): 1100 W (300 W)
- Cone Composition: Cellulose Fiber
- Surround Composition: Urethane
- Frequency Response: 20Hz to 125Hz
- Sensitivity (IN CAR, INPUT: 1W): 112 dB
- Approximate Weight: 10 lbs
- UPC: 884938379670
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
