We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• (1) 10" Dual 2-ohm voice coil woofer
• (1)Trim ring
• (6) 1-1/8" Screws
• (1) Adhesive backed foam gasket
• (1) Owner's Manual
High-quality Car Subwoofer

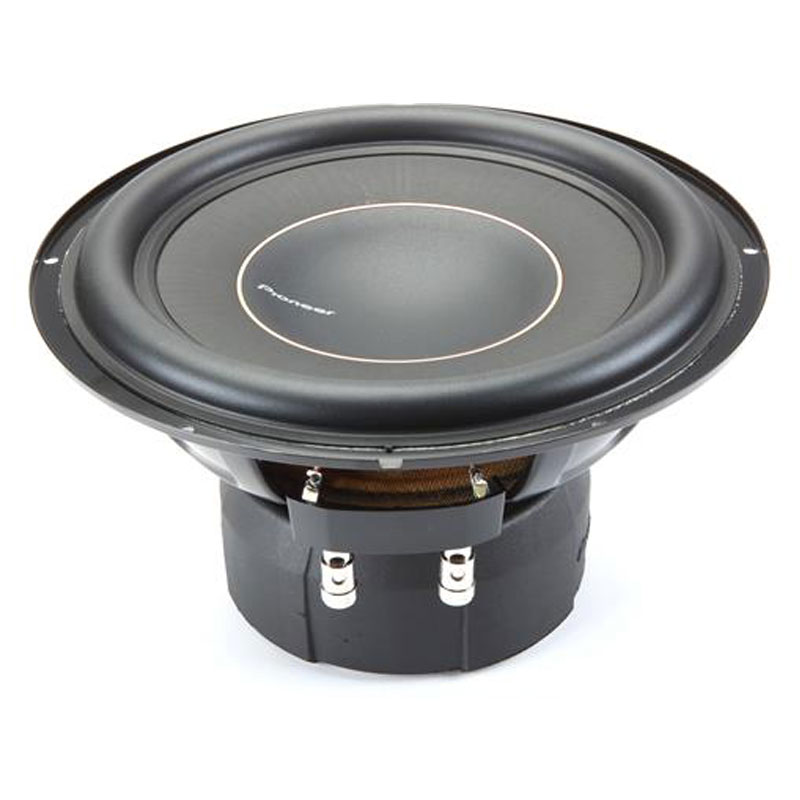

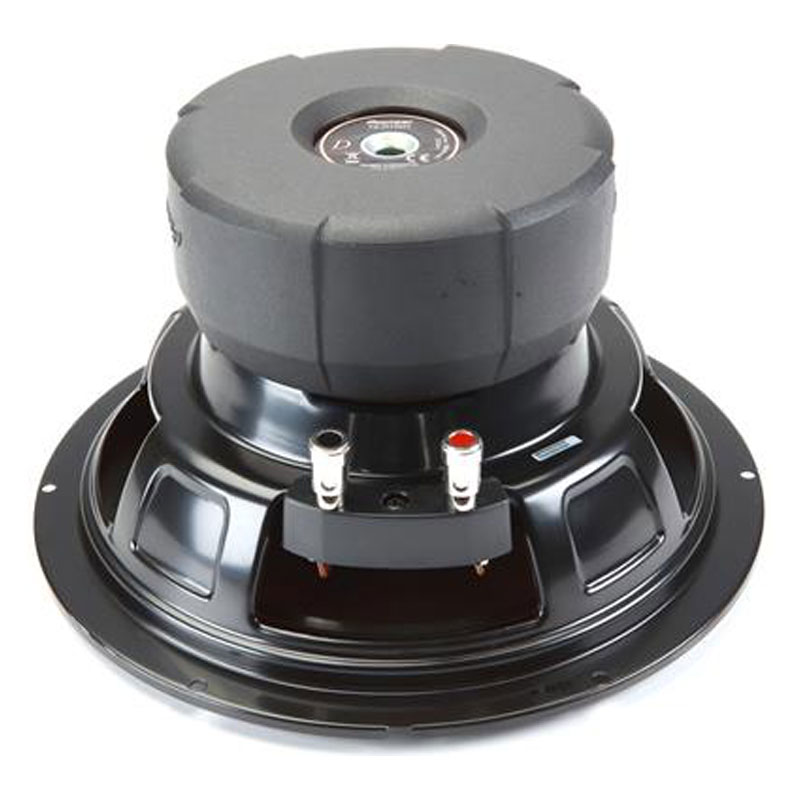

The Pioneer TS-D10D2 is a high-quality car subwoofer that combines powerful performance and precise sound reproduction. Designed with advanced technology and durable components, this subwoofer delivers deep, impactful bass that enhances your audio experience. Featuring a 10-inch size, the TS-D10D2 is compact yet capable of handling up to 1500 watts of maximum power.
Ensuring Accurate Cone Movement
It utilizes a dual 2-ohm voice coil configuration, allowing for versatile wiring options and impedance settings to match your amplifier setup. The subwoofer's cone is made from an aramid fiber interlaced injection molded polypropylene, ensuring accurate cone movement for improved bass response. It is designed to withstand high power levels without distortion, delivering clean and tight bass notes. With its shallow mounting depth, the TS-D10D2 is suitable for installation in a variety of vehicles, even those with limited space.
Both Sealed and Ported Enclosures
It is designed to work well in both sealed and ported enclosures, providing flexibility in creating the ideal sound setup for your car audio system. The Pioneer TS-D10D2 subwoofer is a solid choice for car audio enthusiasts seeking powerful bass and precise sound reproduction. Whether you enjoy music genres that emphasize low frequencies or simply want to add depth to your audio system, this subwoofer delivers impressive performance and brings your favorite songs to life.
Diameter : 10 Inch
Sensitivity : 74 dB
Impedance : 2 Ohm
Frequency Response : 20-6600 Hz
Peak Power Handling : 1500 Watts
Top Mount Depth : 5-1/2 Inches
Shallow Mount : No
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 0.7 Cubic ft.
Suggested Ported Box Volume : 0.7 Cubic ft.
RMS Power Handling : 600 Watts
Free Air : Yes
Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
Butyl Rubber Surround for Strength and Linearity During High Excursion
Oversized 56.4 oz Double Stacked Magnet and Vented Pole Yoke for Increased Power Handling
System Type: Component Subwoofer
Sensitivity (1W/1m): 74dB
Frequency Range: 20 Hz to 6.6 kHz
CTA-2031 Compliant: Yes
Warranty: 1 Year
Continuous Power handling (RMS) - Watts: 500 Watts
Maximum Peak Power Handling - Watts: 1500 Watts
Nominal Impedance - OHM: 2 DVC
Cone Material: IMPP - Aramid Fiber
Center Cap Material: ABS
Surround Material: Rubber
Surround Type: Rolled
Basket Material: Stamped Metal
Magnet Material: Ferrite
Magnet Weight: 57.8 oz
Voice Coil Type: Dual Voice
Voice Coil Bobbin: Aluminium
Voice Coil Wire: Copper
Wire Terminals: Push Type
Unit Size (Dimensions): 10-1/2"
Mounting Depth: 5-1/2"
Cut Out Dimensions: 9"
Equivalent Compliance (VAS) [L]: 20.9
Free Air Resonance (Fs) [Hz]: 40
Total Speaker "Q" (Qts): 0.7
Linear Excursion (Xmax) [mm]: 9.8
Recommended Sealed Box Volume [L]: 19.8
Port Box Volume [L]: 19.8
Port Length: 5"
Port Diameter: 2"
