We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• 12" Dual 4-ohm voice coil woofer Trim ring
• (1) 10" Subwoofer
• (1) Trim ring
• (6) 1-1/8" Screws
• (1) Adhesive backed foam gasket
• (1) Enclosure recommendations printed on the box
• (1) Owner's Manual
Easily Upgrade to High Performance
Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

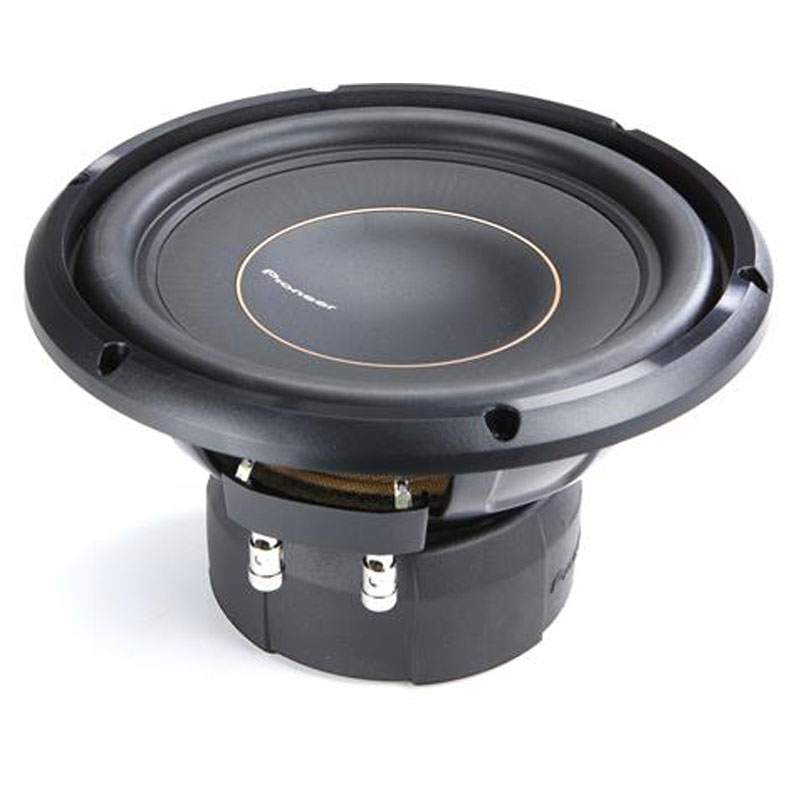

Reinforced Cone Structure
Utilizing MICA-injected molded resin, the subwoofer features a strong cone structure that guarantees durability, facilitating accurate bass playback. Our selection of compact subwoofers offers flexible installation options for different vehicles, integrating multiple inventive patent-pending features to achieve significant bass performance similar to larger alternatives, all within a condensed design suitable for positioning beneath seats or behind them, depending on vehicle specs. With a shallow mounting depth of only 3-3/8", these subwoofers provide a space-efficient solution, offering less than half the typical depth of comparable models.
Diameter : 10 Inch
Low Frequency Response : 20 Hz
High Frequency Response : 6600 Hz
Sensitivity : 76 dB
Frequency Response : 20-6600 Hz
Peak Power Handling : 1500 Watts
Top Mount Depth : 5-1/2 Inches
Shallow Mount : No
Suggested Sealed Box Volume : 0.7 Cubic ft.
Suggested Ported Box Volume : 0.7 Cubic ft.
RMS Power Handling : 500 Watts
Free Air : Yes
Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
Butyl Rubber Surround for Strength and Linearity During High Excursion

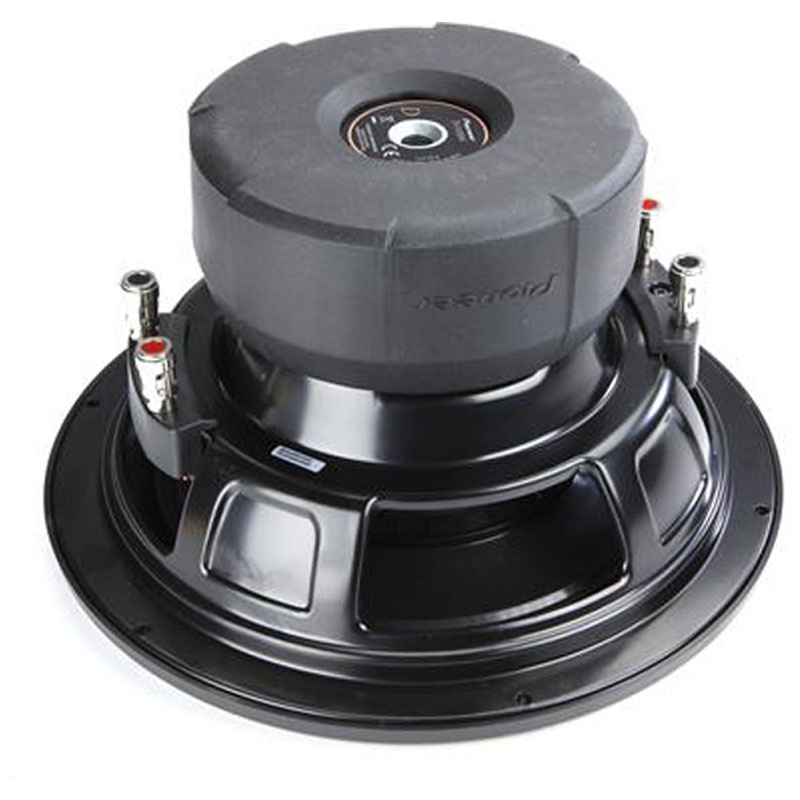

Oversized 56.4 oz Double Stacked Magnet and Vented Pole Yoke for Increased Power Handling
System Type: Component Subwoofer
Sensitivity (1W/1m): 76dB
Frequency Range: 20 Hz to 6.6 kHz
CTA-2031 Compliant: Yes
Warranty: 1 Year
Continuous Power Handling (RMS) - Watts: 500 Watts
Maximum Peak Power Handling - Watts: 1500 Watts
Nominal Impedance - OHM: 4 DVC
Cone Material: IMPP - Aramid Fiber
Center Cap Material: ABS
Surround Material: Rubber
Surround Type: Rolled
Basket Material: Stamped Metal
Magnet Material: Ferrite
Magnet Weight: 57.8 oz
Voice Coil Type: Dual Voice
Voice Coil Bobbin: Aluminum
Voice Coil Wire: Copper
Wire Terminals: Push Type
Unit Size (Dimensions): 10-1/2"
Mounting Depth: 5-1/2"
Cut Out Dimensions: 9"
Equivalent Compliance (VAS) [L]: 22.3
Free Air Resonance (Fs) [Hz]: 41
Total Speaker "Q" (Qts): 0.77
Linear Excursion (Xmax) [mm]: 10.8
Recommended Sealed Box Volume [L]: 19.8
Port Box Volume [L]: 19.8
Port Length: 5"
Port Diameter: 2"
