Dual Phone Connection
Allows two phones to be connected for hands-free operation at any time. Easily switch between both phones for incoming call. Also includes wide-band hands-free profile ver.1.6 for high quality clear calling.
Kenwood Music Mix
Up to 5 Bluetooth devices can be connected to the receiver for BT Audio at the same time. Allows you to take turns streaming music with your friends and family.
Pandora and Spotify Ready
Ability to control Pandora and Spotify from your iPhone via USB/Bluetooth or from your Android via Bluetooth to enjoy millions of songs you like.
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Remote Control : Yes
- Built-in EQ : Yes
- DIN : 2
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Front USB Input : 1
- Color : BLACK
- Apple CarPlay : No
- Android Auto : No
Key Features:
- Equipped with the Intuitive KENWOOD Music Mix
- Dual Phone Connection
- KENWOOD Remote App Ready
- Android Rapid Charge
- MP3/WMA/AAC/WAV/FLAC Files Playback
- Wireless Music Browsing
- Equipped with 2 USB Ports
- Spotify Ready
Features:
Product Overview
- Pandora/Spotify Ready so You Can Stream Your Favorite Songs from Your Smartphone
Ability to control Pandora and Spotify from your iPhone via USB/Bluetooth or from your Android via Bluetooth to enjoy millions of songs you like.
- Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the head unit at the same time and you can enjoy audio streaming just by switching the devices with your friends or family.

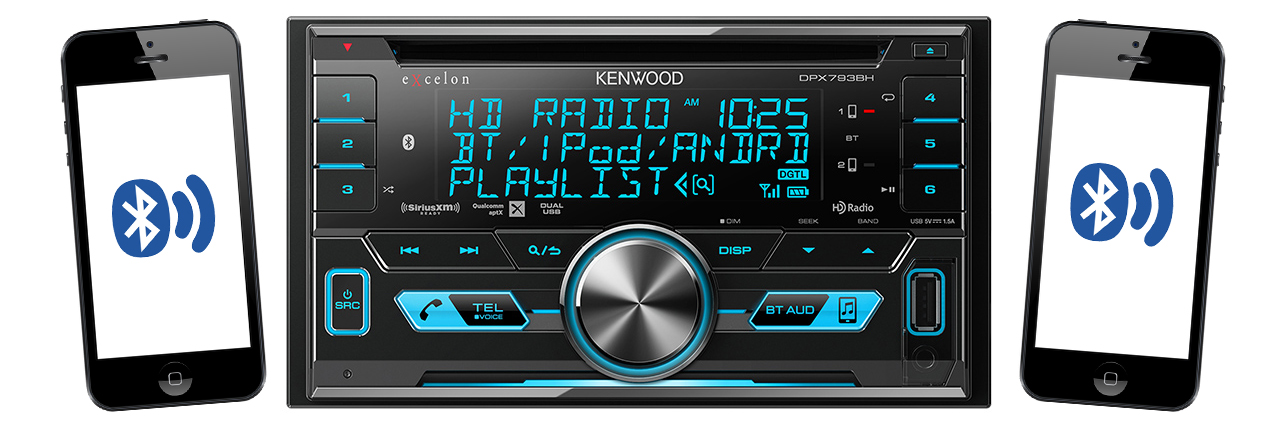

- Dual Phone Connection Allows You to Operate up to Two Phones Hands-Free
Allows two phones to be connected for hands-free operation at any time. Easily switch between both phones for incoming call. Also includes wide-band hands-free profile ver.1.6 for high quality clear calling.
- Operate the Receiver from Your Smartphone with the KENWOOD Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
- Equipped with Dual USB Ports
Play your music from one USB port and use te other to charge your device, or charge both at the same time.
- Match Your Mood with Variable Color Illumination
Bright variable color LED's can be adjusted to match any color dash lighting.
- Playable in Various Audio File Formats
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC. Also plays DSD (Direct Stream Digital) format les with a broader reproduction frequency band for life-like high-resolution sound reproduction. DSD playback up to 11.2 MHz ensures the very highest sound quality, with both the outstanding clarity of digital sound, coupled with the characteristic smoothness of analog sound sources.
- Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
- Wireless Music Browsing (AVRCP 1.5)
Search and select songs from your music collection through a Bluetooth® connection.
- Android Rapid Charge
Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.
General
- Large LCD Panel and Four Backlight LEDs
- Direct Key for Phone and BT Audio for Easy Operation
- Variable Color Illumination
Audio
- Maximum Output Power: 50W x 4
- Front AUX & USB Interface
- 3 Preout (5.0V)
- Sound Excellence DSP (13 Band EQ / Digital Time Alignment / Drive EQ / Space Enhancer / Bass Boost / Loudness / Built-in LPF/HPF)
USB
- USB Interface x 2
- MP3, WMA, AAC, WAV, FLAC Playback
- iPod/iPhone / Direct Connection with Optional cable*1
- Android Music Playback
- Android Rapid Charge
- Spotify / Pandora / iHeart Radio App Ready
Tuner
- Built-in HD Radio
- Sirius XM Ready
- FM/AM 24 Station Presets (18FM, 6AM)
- RBDS with Radio Text
CD
- MP3, WMA, AAC Playback
- 0-bit Mute
- CD-R/CD-RW Compatible
- Random/Repeat Play
External Media Control
- Bluetooth Built-in (Hands-Free Profile / A2DP/ AVRCP1.5 / Aptx)
- Dual Phone Connection
- Wireless Music Browsing
- Spotify / Pandora / iHeart Radio App Ready
- Rear Wired BT Microphone included
- Remote App for Android, iOS via Bluetooth
- OEM Remote Interface
Specifications:
FM
- Frequency Range: 87.9MHz - 107.9MHz
- Frequency step: 200kHz
- Usable Sensitivity: 8.2dBf
- S/N:30dB Dev 22.5kHz: (0.71μV/75Ω)
- Quieting Sensitivity: 17.2dBf
- DIN S/N 46dB Dev 40kHz: (2.0μV/75Ω)
- Frequency Response: 30Hz-15kHz
- S/N: 64dB(MONO)
- Stereo Separation: 40dB(1kHz)
Digital FM
- Frequency Range: 87.9MHz - 107.9MHz
- Frequency step: 200kHz
- Frequency Response: 20Hz-20kHz
- S/N: 75dB(STEREO)
AM
- Frequency Range: 530kHz - 1700kHz
- Frequency step: 10kHz
- Usable sensitivity: 29dBμ (28.2μv)
Digital AM
- Frequency Range: 530kHz - 1700kHz
- Frequency step: 10kHz
- Frequency Response: 40Hz-15kHz
- S/N: 70dB(STEREO)
CD
- Laser Diode: GaAlAs
- Digital Filter(D/A): 8 Times OverSampling
- Spindle Speed: 500~200rpm(CLV)
- Wow & Flutter: Below Measurable Limit
- Frequency Response: 20-20kHz(±1dB)
- Total Harmonic Distortion: 0.01%(1kHz)
- S/N Ratio (dB): 110dB(1kHz)
- Dynamic Range: 90dB
- Channel Separation: 85dB
- MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
- WMA Decode: Compliant with WINDOWS MEDIA AUDIO
- AAC Decode: AAC-LC ".aac" files
- WAV Decode: -
USB I/F
- USB: USB 1.1 / 2.0 full speed
- File System: FAT12 / 16 / 32
- Maximum Supply current: DC5V(DC logo) 1.5A
- MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
- WMA Decode: Compliant with Windows Media Audio
- AAC Decode: AAC-LC ".aac" files
- WAV Decode: Linear-PCM
- FLAC Decode: FLAC file (Up to 96kHz/24bit)
- Preout Level(mV)/Load-Unbalanced: 5000mV/10kΩ(CD)
- Preout Impedance(Ω): ?600Ω
- Speaker Impedance(Ω): 4-8Ω
AUX Input
- Frequency Response: 20Hz~20KHz ±3dB
- Input Maximum Voltage: 1000mV
- Input Impedance: 30KΩ
AMP
- Maximum Power: 50wx4
- Full Bandwidth Power (at less than 1%THD): 22wx4
TONE
- Band1: 62.5Hz ±9dB
- Band2: 100Hz ±9dB
- Band3: 160Hz ±9dB
- Band4: 250Hz ±9dB
- Band5: 400Hz ±9dB
- Band6: 630Hz ±9dB
- Band7: 1kHz ±9dB
- Band8: 1.6kHz ±9dB
- Band9: 2.5kHz ±9dB
- Band10: 4kHz ±9dB
- Band11: 6.3kHz ±9dB
- Band12: 10kHz ±9dB
- Band13: 16kHz ±9dB
Bluetooth
- Version: Bluetooth 3.0
- Frequency Range: 2.402-2.480GHz
- Output Power: +4dBm(MAX)?0dBm(AVE)Power Class 2
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Profile:
- HFP(Hands Free Profile)
- SPP(Serial Port Profile)
- PBAP(Phonebook Access Profile)
- A2DP(Advanced Audio Distribution Profile)
- AVRCP(Audio/Video Remote Control Profile)
GENE
- Operating voltage: 14.4v (10.5~16v allowable)
- Maximum Current Consumption: 10A
- Operational Temperature Range: -10°C to +60°C
Approximate Dimension:
- Height: 4-3/8"
- Depth: 6-1/4"
- Width: 7-3/16"
- UPC: 019048221612
- Weight: 3.6
