Crunch PZ-1020.4

PZ-1020.4
1000 Watts Max Power Powerzone Series 2-ohm Stable 4-Channel Class-A/B Car Amplifier
$92.99

FREE Shipping in US 48!

Save $43.00 | Reg. Price $135.99
SOLD OUT

What other people bought after viewing this product.

Crunch Banner

Crunch PZ-1020.4

POWERZONE four channel amplifier highlighted with bright Crunch red heatsink elements feature high level inputs utilizing SPEED-FET output devices and QTD Technology produces 1000 watts of power in a four channel application.

Crunch PZ-1020.4

General Features:

  • TYPE: 4-Channel Car Audio Amp
  • CATEGORY: Powerzone
  • CLASS: Class A/B
  • TOTAL CHANNELS: 4
  • FREQUENCY RESPONSE: 10Hz-45kHz
  • POWER : 1000 watts
  • FUSING: 15Ax2
Crunch PZ-1020.4


Features & Benefits

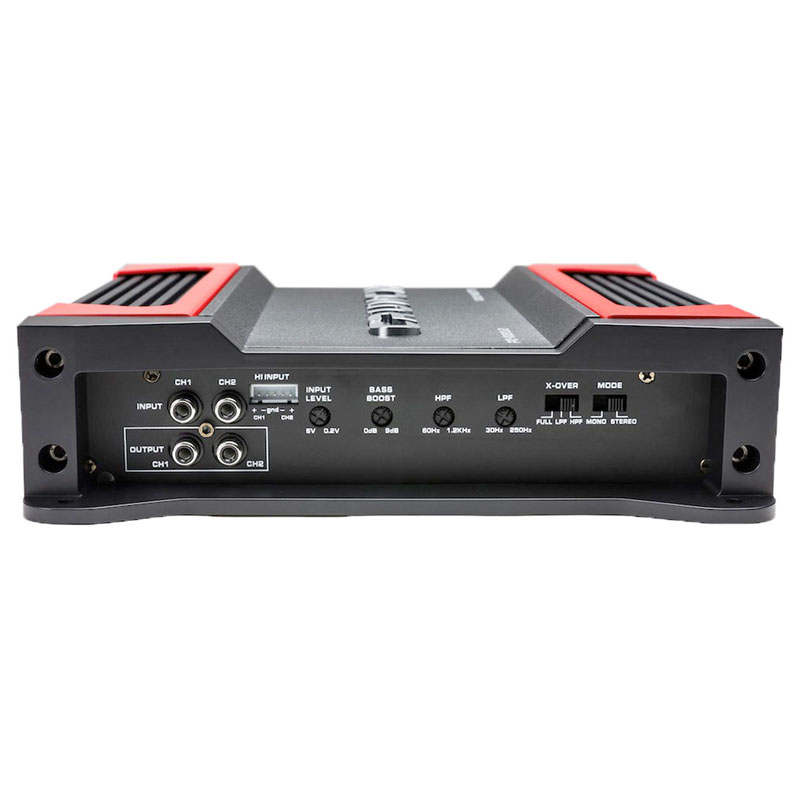

  • Hi Level Inputs
    High level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included
  • Operation Mode
    4 channel operation mode allows either stereo or mono bridged operation
  • Crossover Type
    Variable electronic crossovers allow for complete control of the sound
  • Electronic Equalizer
    Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
    Check specifications for specific frequencies for this amplifier
  • Class / Topology
    Class A/B high sound quality circuit that allows amplifier to develop high levels of power with minimal distortion
  • Output Device Technology
    Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion
  • Heat Sink
    QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions
  • Power Supply
    Rugged MOSFET Pulse Width Modulation power supply
    Allows amplifier to product efficient power without taxing the vehicle electrical system

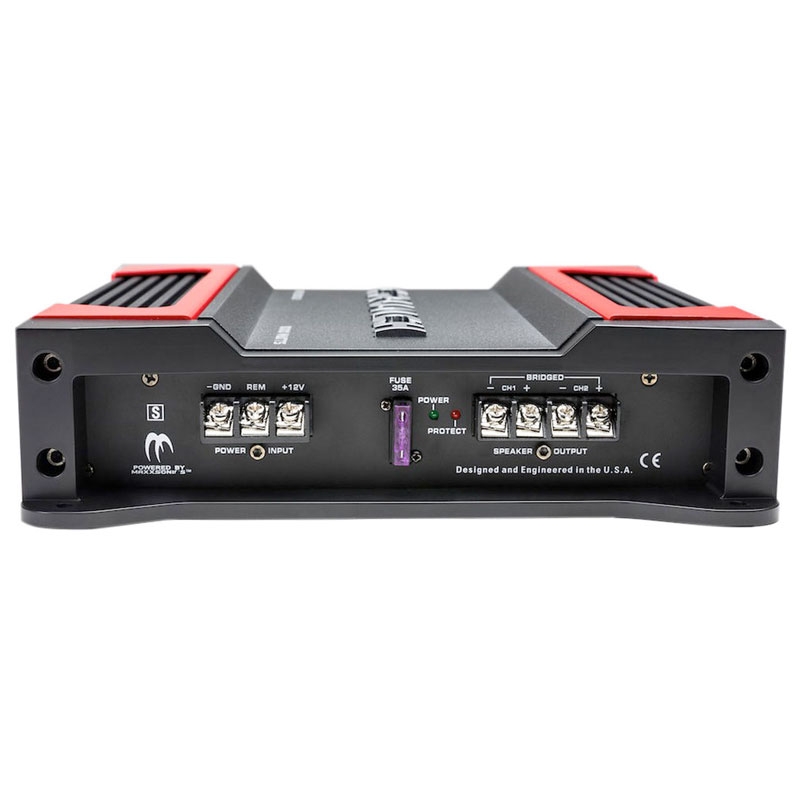

  • Output Connections
    Nickel-plated brass connectionwith hex set screw terminals allow for secure connection and resist erosion
  • Connection Type
    Secure connection for all power, ground and speaker connections.
  • Full-Range RCA Outputs for Signal Pass Through
    Daisy chain multiple amplifier to eliminate additional signal cables from the source unit
  • LED System Protection Circuitry Diagnostics
    Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel

Specifications

  • Class
    Class A/B
  • Variable Voltage
    6V - 0.2V
  • Signal to Noise
    >90dB
  • Frequency Response
    10Hz-45KHz
  • Crossover
    VeraCross
    Switchable
    FULL / HPF
  • Variable High Pass Crossover 12dB per Octave
    CH3 & CH4
    Switchable
    HPF/LPF/FULL
    HPF
    60Hz - 1.2kHz
  • Variable Low Pass Crossover 12dB per Octave
    CH1 & CH2
    LPF 60Hz - 1.2kHz
    CH3 & CH4
    Switchable
    HPF/LPF/FULL
    LPF
    30Hz - 250Hz
  • Bass Boost
    Switchable
    12 / 6 / 0dB
  • Power @ 1 Ohm
    N/A
  • Power @ 2 Ohms
    4 x 250 Watts
  • Power @ 4 Ohms
    4 x 125 Watts
  • Mono Bridged @ 4 Ohms
    2 x 500 Watts
  • Total Channels
    4
  • Audio Inputs
    RCA
  • Audio Outputs
    Full Range
    RCA
  • Speaker Terminal Wire Gauge
    Spade Connector
    Recommended
  • Fusing
    15Ax2
  • Total Harmonic Distortion (THD)
    <0.05%
  • UPC: 806576227762
  • Weight: 9
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
