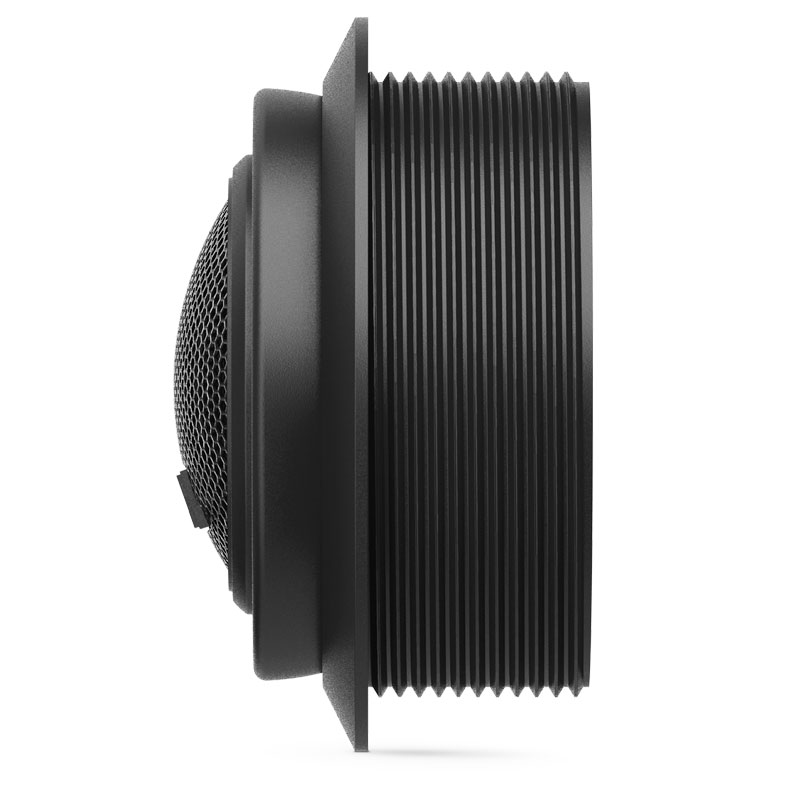

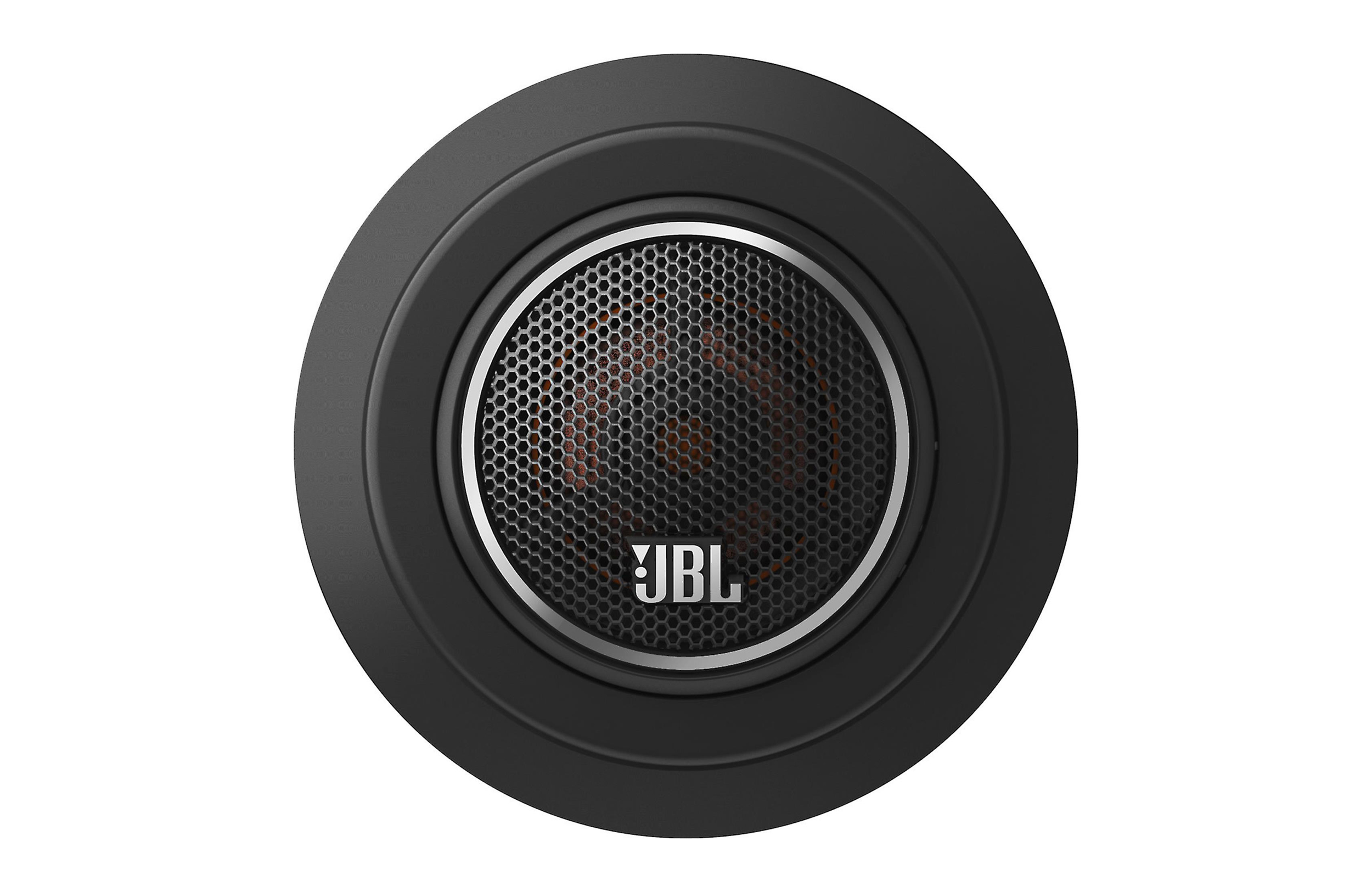

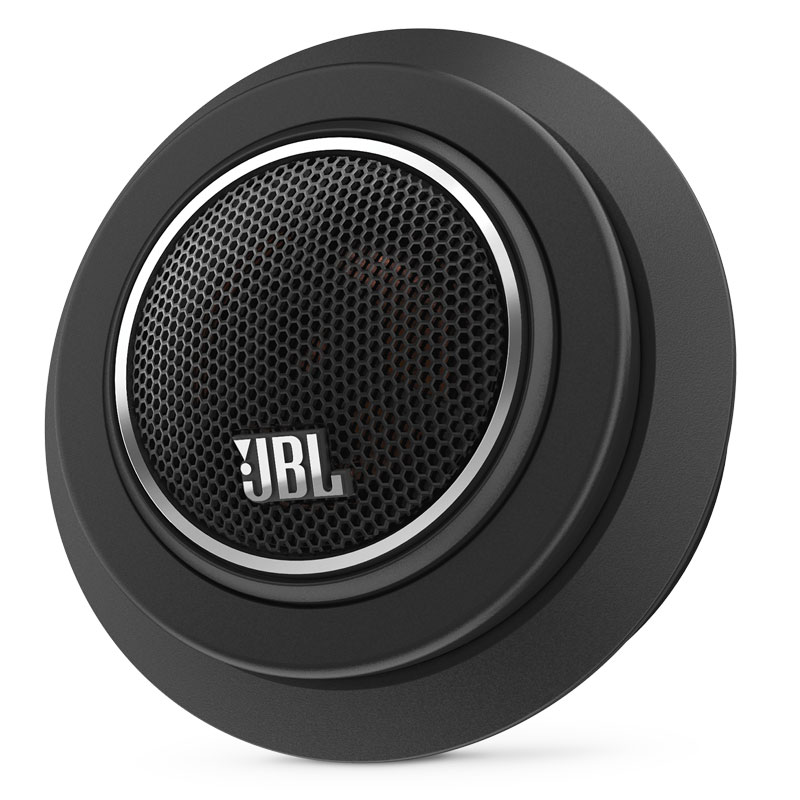

JBL STADIUM GTO750T 3/4" 100W RMS Surface/Angle/Flush Mount Edge-Driven Dome Tweeter
We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•2 Tweeters (each has attached 6" speaker leads)
•2 Flush-mount housings
•2 Threaded flush-mount adapters
•2 Plastic locking nuts
•2 Surface-mount housings
•2 Starfish mounts
•Two M4x10mm Machine screws
•Six 1/2" Flat head screws
•2 JBL logos
Impressive Specifications and Advanced Features
The JBL STADIUM GTO750T is a high-performance 3/4" tweeter with exceptional audio quality and clarity. With its impressive specifications and advanced features, this tweeter is an excellent choice for enhancing the high-frequency response in your car's audio system. The STADIUM GTO750T features a PEI polymer dome, which ensures accurate and detailed high-frequency reproduction.
Helps Minimize Distortion
This dome-design helps minimize distortion and provides a wide sound dispersion for an immersive listening experience. With a peak power handling capability of up to 135 watts, this tweeter can handle high power levels, allowing for dynamic and impactful sound reproduction. It is built with high-quality materials to withstand the demands of the automotive environment.
Built-in Crossover Network
The tweeter includes a built-in crossover network, which ensures proper frequency distribution and prevents damage from low frequencies. This feature simplifies the installation process and ensures optimized sound quality. The JBL STADIUM GTO750T is designed to provide excellent performance, durability, and versatility. Its compact size allows for easy installation in various locations in your vehicle, while its sleek design adds a touch of style to your car's interior.
Diameter : .75 Inch
Sensitivity : 93 dB
Frequency Response : 2000-25000 Hz
Peak Power Handling : 300 Watts
RMS Power Handling : 100 Watts
Surface Mount: Surface mounting the tweeters involves screwing the surface-mount cup to the mounting location, then inserting and locking the tweeter into the cup.
Flush Mount: Once a cutout is made, the tweeter is installed in the flush-mount adapter, then into the flush mount housing and inserted into the hole. The large plastic locking nut is threaded onto the housing (from behind the mounting surface) to hold the assembly securely in place. When flush mounted, the tweeters may be angled for optimum imaging.
Bottom Mount: Once the Starfish bracket is trimmed, it is secured to the underside of the grille panel. The tweeter must be inserted into the bracket and locked into place before the bracket is mounted.
Surface Mount: Once the Starfish bracket is trimmed, it is screwed to the top of the mounting surface behind the grille panel. Then, the tweeter is inserted into the bracket and locked into place.
Flush Mount: There are two sets of tabs to flush mount the tweeter in the Starfish bracket, yielding different mounting dimensions. The upper tabs mount the tweeter completely below the opening and are glued in place. The lower mounting tabs are screwed in place and result in a mounting height just under 3/8 inch. Once the bracket is mounted, the tweeter is inserted into the bracket and locked into place.
Crossover Connections: The crossovers have screw terminal inputs and outputs and will accommodate bare wire or spade connectors up to 0.325" wide.
Peak: 300 watts per pair / 150 watts each
RMS: 100 watts per pair / 50 watts each
Soft dome, edge-driven tweeters
2.5 ohms impedance
13/16" Voice coil
In-line high-pass crossovers included
Surface / Angle / Flush Mountable
Frequency response: 2000 - 25000 Hz
Top-mount depth: 1/2"
