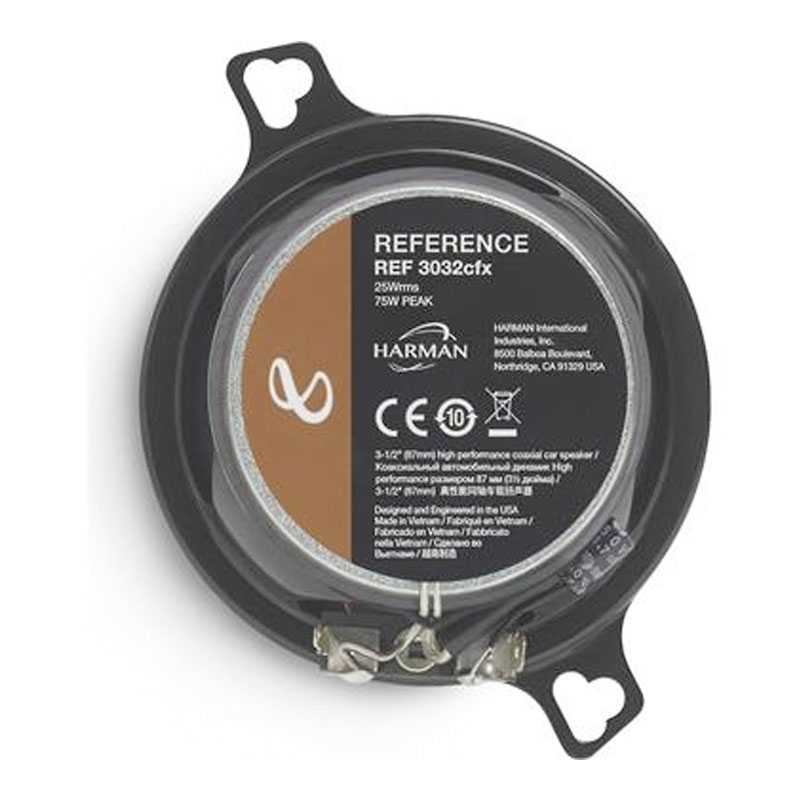

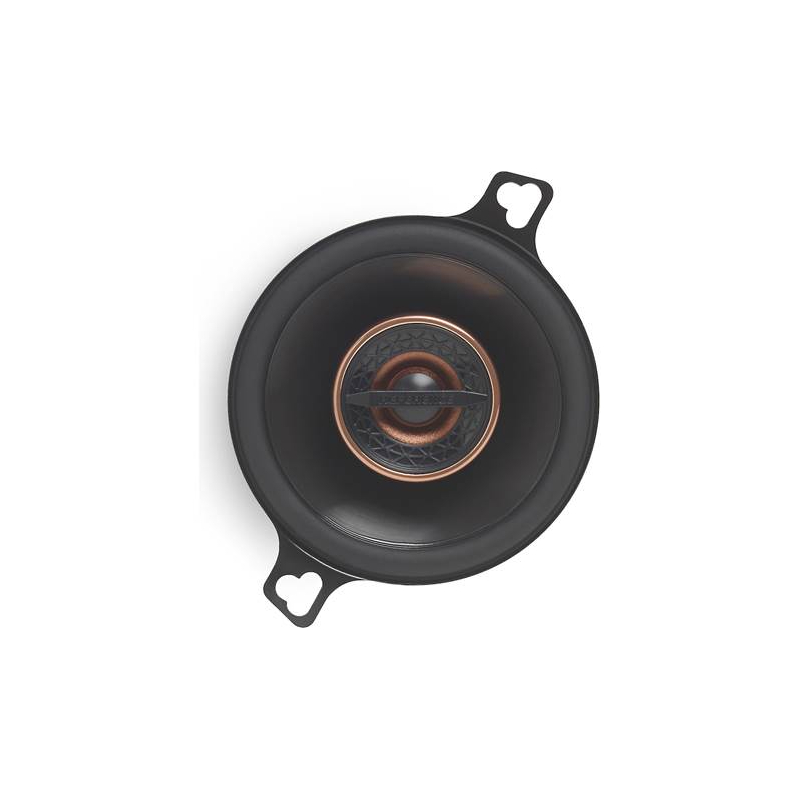

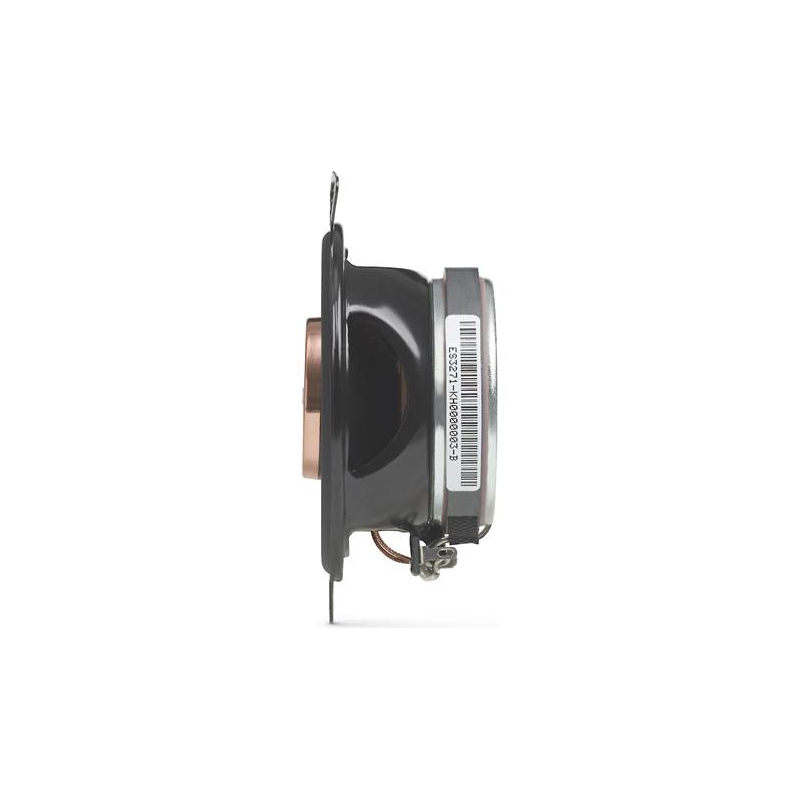

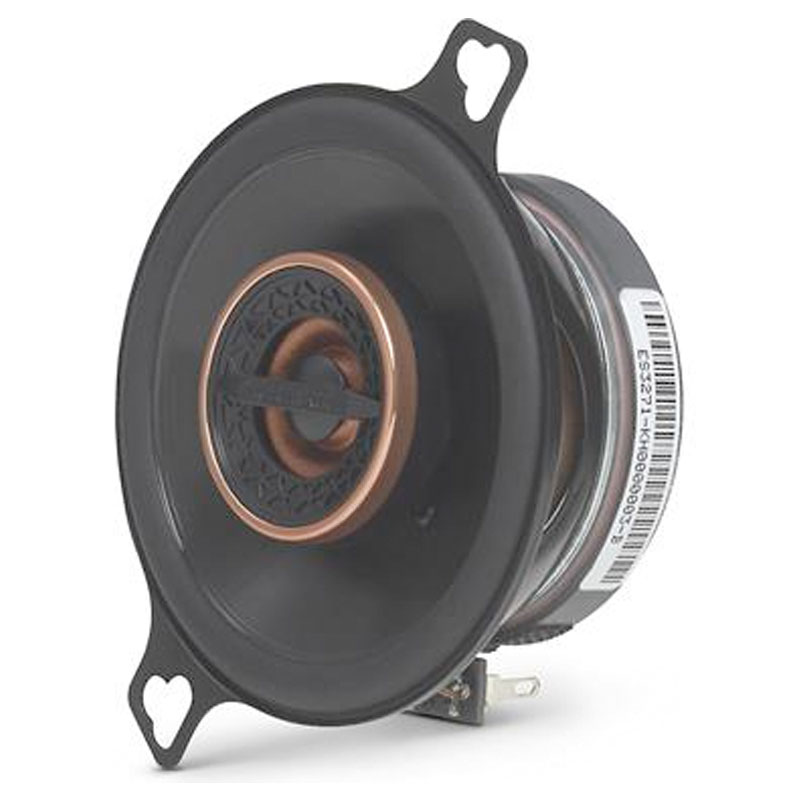

Infinity Reference REF-3032cfx Reference Series 3.5" 75W RMS (150W Peak Power Handling) 2-Way Coaxial Car Speakers
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(2) 2-way speakers
- •(2) Grilles
- •(2) Grille frames
- •(2 )Plastic mounting rings
- •(8) 1" Screws
- •(8) 1/2" Screws
- •(8) Speed clips
- •(2) Adhesive backed foam gaskets
- •Instruction manual
2-Way Car Speaker
Built to give you the famous Infinity sound that every car audiophile loves, the Reference REF-3032CFX is an excellent two-way car speaker option if you are looking to upgrade from your old car speakers. Affordable and easy to install, you won't have to break the bank just to be able to get the high-quality sound that you are longing for.
Plus One Woofer Cone
This 3.5-inch car speaker comes with the famous Plus One woofer cone and a hi-roll rubber surround, giving it a larger surface area, resulting in a louder low-frequency performance while still being accurate and with reduced noise. It also has the durability needed, so you won't have to worry about using it for extended periods, especially at high volume levels.
Textile Tweeter
It has a 0.5-inch textile tweeter with an edge-driven design, allowing it to deliver smooth and bright highs with a minimal breakup and without you having to feel fatigued after many hours of listening. You can also adjust its tweeter's output level, which is a nice feature, allowing you to set it to your liking.
Power Handling
The Infinity Reference REF-3032CFX can deliver a continuous power output of 25 Watts and a peak power of 75 Watts at 3 ohms. It has a frequency response of 85 Hz up to 21 kHz and a sensitivity rate of 91 dB, which means that it can easily go loud with minimal distortion, even if you set your' audio source's volume level very high.
- Diameter : 3.5 Inch
- Sensitivity : 91 dB
- Impedance : 3 Ohm
- Frequency Response : 85-21000 Hz
- Peak Power Handling : 150 Watts
- Design : 2 Way
- Shallow Mount : No
- RMS Power Handling : 50 Watts
Features:
- Plus One+ Woofer Cones: Each speaker uses a cone larger than other speakers of the same size. This is accomplished by using a unique basket design and hi-roll surround. The Plus One+ design offers greater bass output and an increase in efficiency.
- Tweeter: Each speaker has a balanced dome tweeter. A semi-dome tweeter has a dome placed inside a cone. Balanced dome tweeters are semi-dome tweeters with equal reproduction area given the cone and dome portions of the tweeter.
- High-Output Design: The 3Ω voice coil design compensates for the high in-line resistance of small gauge factory wiring, extracting more power from factory (or aftermarket) receivers.
- Crossover: The included 270 microfarad capacitors are 1st order high pass crossovers (6 dB/octave); the crossover point is approximately 196 Hz. One capacitor is wired in-line with the positive input of each speaker. For best results, solder speaker wire terminated with quick slides (item number 120FQS10PK, sold separately) to both ends of the capacitor, then insulate the assembly.
Specification:
- Edge-driven, textile tweeters
- Adjustable tweeter output level
- Plus One™ woofer cone architecture
- Optimized Frame Size
- Competitive pricing
- Description: 3-1/2" (87mm) coaxial car speaker
- Power Handling: 25W RMS, 75W peak
- Sensitivity (@ 2.83V): 91dB
- Frequency Response: 85Hz – 21kHz
- Impedance: 3.0 ohms
- 3 ohms impedance - get more power out of your factory stereo or amplifier!
- Top-mount Depth: 1-7/16"
- Cutout Dimensions: 3-11/16"
- Speaker Size: 3 1/2
- Design: 2-way
- Tweeter Design: Balanced Dome
- Impedance (Ohms): 3
- Tweeter Composition: Textile
- Woofer Composition: Polypropylene
- Woofer Surround: Rubber
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Sensitivity (1W at 1 meter): N/A
- Sensitivity at 2.83 volts: 91
- Frequency Response: 85 - 21k Hz
- Minimum RMS Wattage: ---
- Maximum RMS Wattage: 25
- Peak Power Handling (Watts): 75
- Top-mount Depth (Inches): 1 7/16
- Bottom-mount Depth (Inches): N/A
- Cutout Diameter or Length (inches): 3
- Mounting Height (Inches): 0.375
- UPC: 050667373375
- Weight: 2
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
