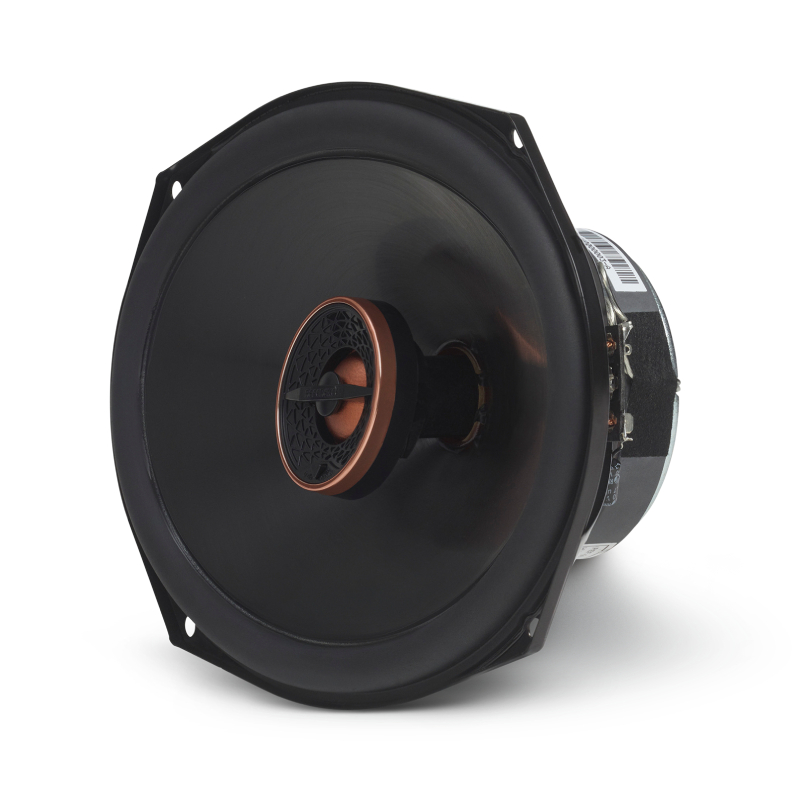

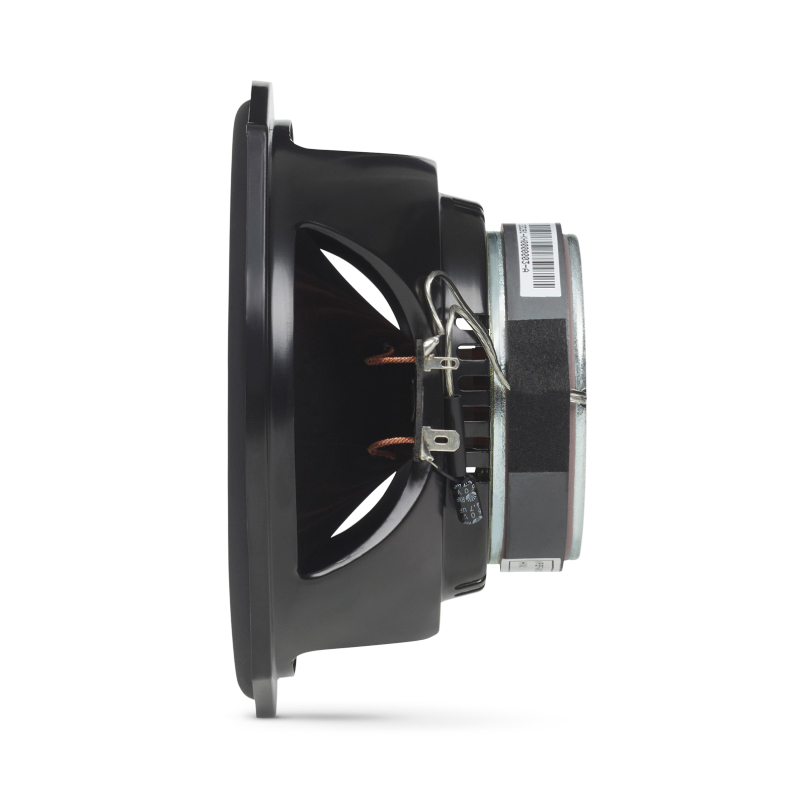

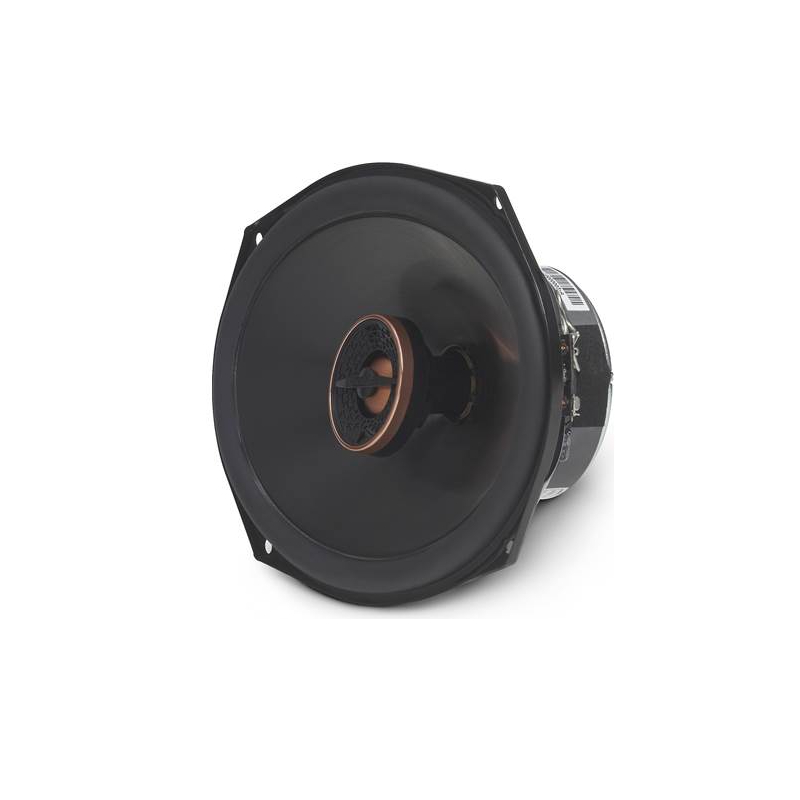

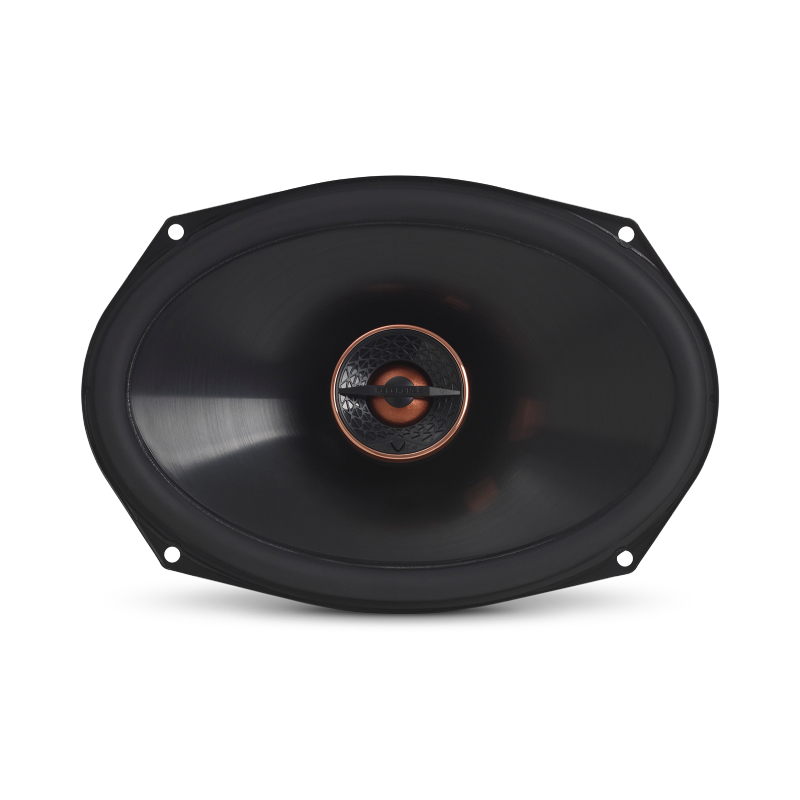

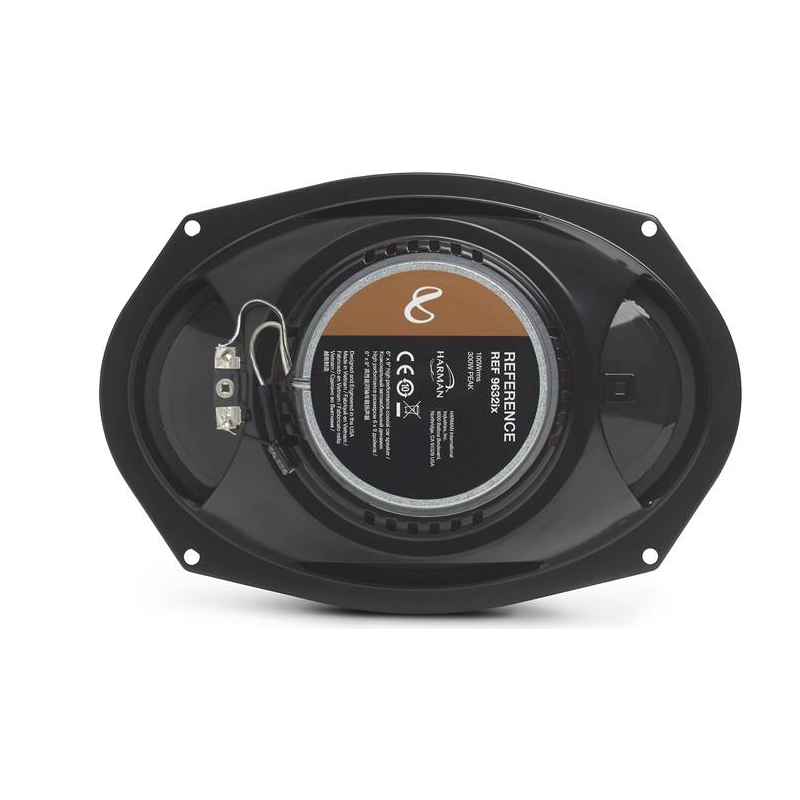

Infinity Reference REF-9632ix Reference Series 2-Way Car Speakers
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

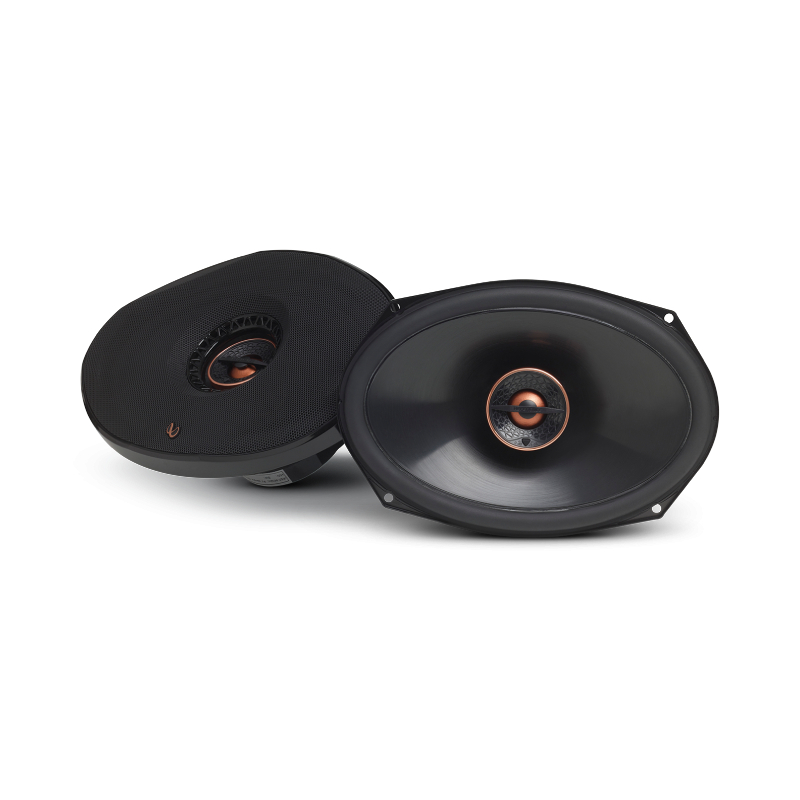

•(2) 2-way speakers

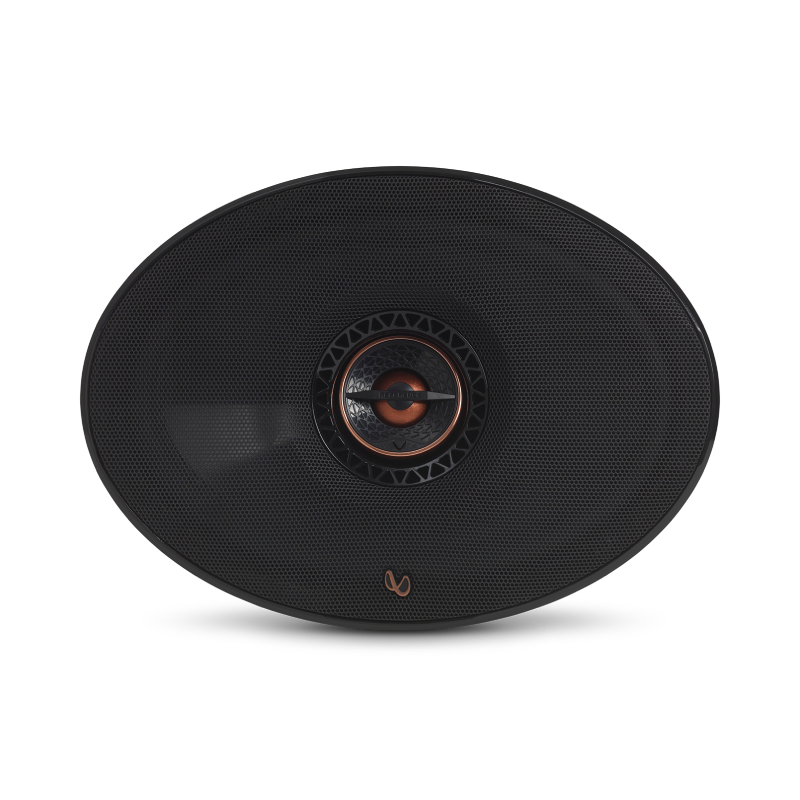

•(2) Grille frames
•(2) Bottom mount rings
•(8) 2" Screws
•(8) Speed clips
•(2) Adhesive backed foam gaskets
•Template on box
Optimized Frame Size
If you dream of replacing your car's audio system with a new one that can deliver that famous Infinity sound but is on a tight budget, the Infinity Reference REF-9632X would be a perfect choice. A step up from your vehicle's stock speakers, the REF-6532IX is designed to fit easily in all vehicles with a 6x9-inch speaker slot. The Infinity Reference REF-9632IX has the famous Plus One woofer cone, which provides a larger cone surface area, resulting in a louder but accurate low-frequency performance and the resilience to resist the adverse effects of stress that come with extended usage hours at near-maximum volume levels.
Ensures You'll Enjoy Powerful Sound Every Mile You Drive
It also has an edge-driven textile tweeter to give you smooth and clean high frequencies that you won't get tired of listening to. The Infinity Reference REF-9632IX also has an adjustable tweeter-level output to suit your preference with its high-frequency output. The Infinity Reference REF-9632IX can handle a power output of 100 Watts RMS and can reach up to 300 Watts of peak power output at 3 ohms. It also has a frequency response of 46 Hz to 20 kHz and a sensitivity rate of 94 dB at 2.83 volts, ensuring that it can deliver a loud and accurate sound with minimal distortion while giving you an extensive full-range frequency performance.
Diameter : 6x9 Inch
Sensitivity : 94 dB
Impedance : 3 Ohm
Frequency Response : 46-20000 Hz
Peak Power Handling : 300 Watts
Design : 2 Way
Shallow Mount : No
RMS Power Handling : 100 Watts
Plus One+ Woofer Cones: Each speaker uses a cone larger than other speakers of the same size. This is accomplished by using a unique basket design and hi-roll surround. The Plus One+ design offers greater bass output and an increase in efficiency.
Angled Tweeter: The tweeters are mounted at an angle (fixed), so they can be directed toward the listeners to improve imaging.
Tweeter Level Control: A switch on the front of the tweeter allows you to boost the tweeter output to +3dB, useful if the speakers are mounted low in a door where high frequencies are easily absorbed.
High-Output Design: The 3Ω voice coil design compensates for the high in-line resistance of small gauge factory wiring, extracting more power from factory (or aftermarket) receivers.
Edge-driven, textile tweeters
Adjustable tweeter output level
Plus One™ woofer cone architecture
Optimized Frame Size
Description: 6" x 9" (152mm x 230mm) coaxial car speaker
Power Handling: 100W RMS, 300W peak
Sensitivity (@ 2.83V): 94dB
Frequency Response: 46Hz – 20kHz
Impedance: 3.0 ohms
Speaker Size": 6X9
Tweeter Design: Edge-Driven Dome
Impedance (Ohms): 3
Tweeter Composition: Textile
Woofer Composition: Polypropylene
Woofer Surround: Rubber
Parts Warranty: 1 Year
Labor Warranty: 1 Year
Sensitivity (1W at 1 meter): N/A
Sensitivity at 2.83 volts: 94
Frequency Response: 46 - 20k Hz
Minimum RMS Wattage: ---
Maximum RMS Wattage: 100
Peak Power Handling (Watts): 300
Top-mount Depth (Inches): 3 1/16
Bottom-mount Depth (Inches): 3 11/16
Cutout Diameter or Length (inches): 0
Mounting Height (Inches): 0.395
