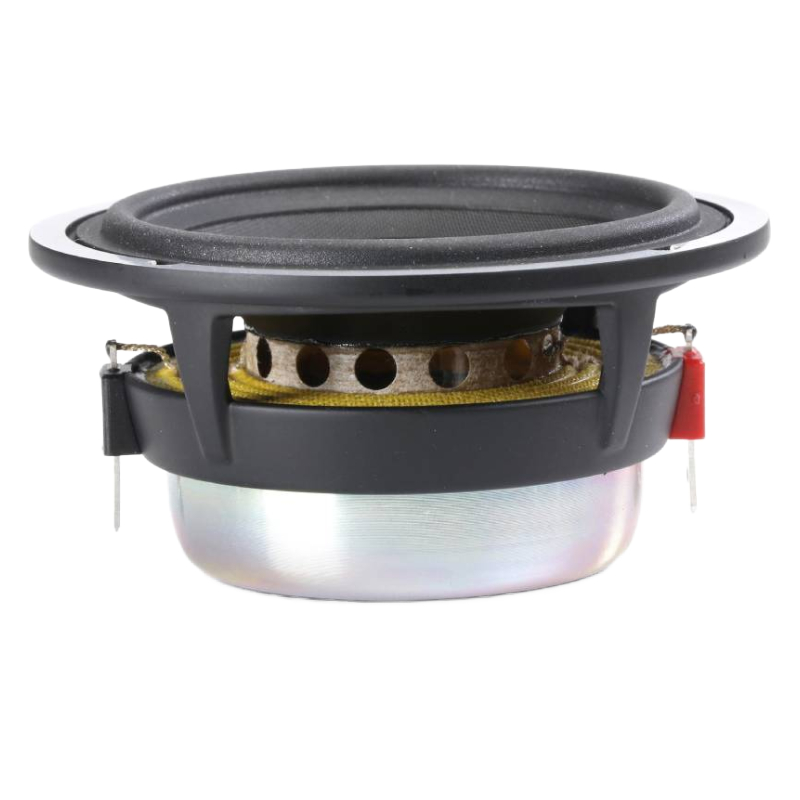

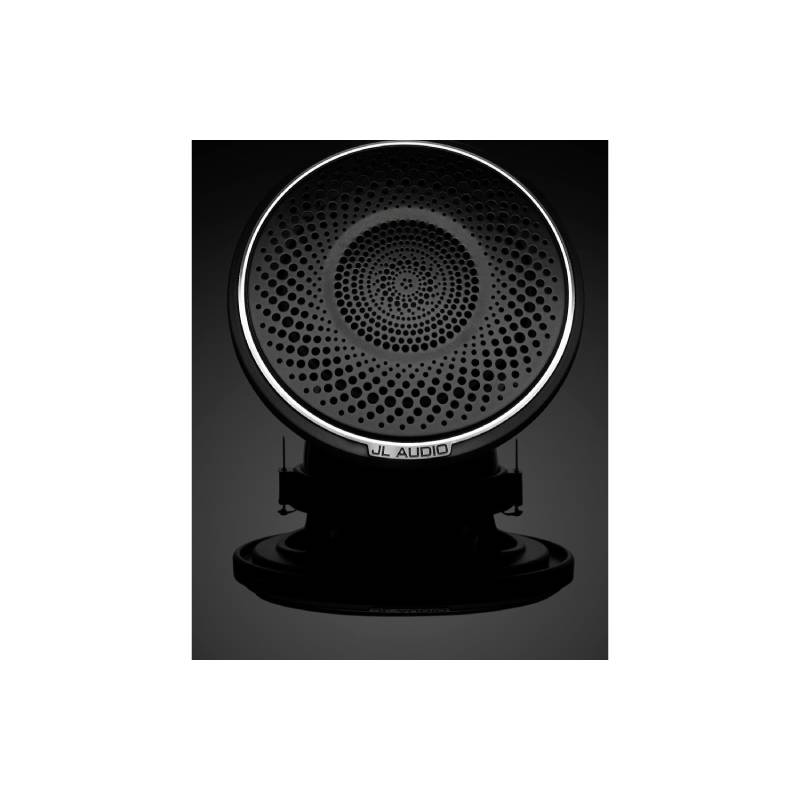

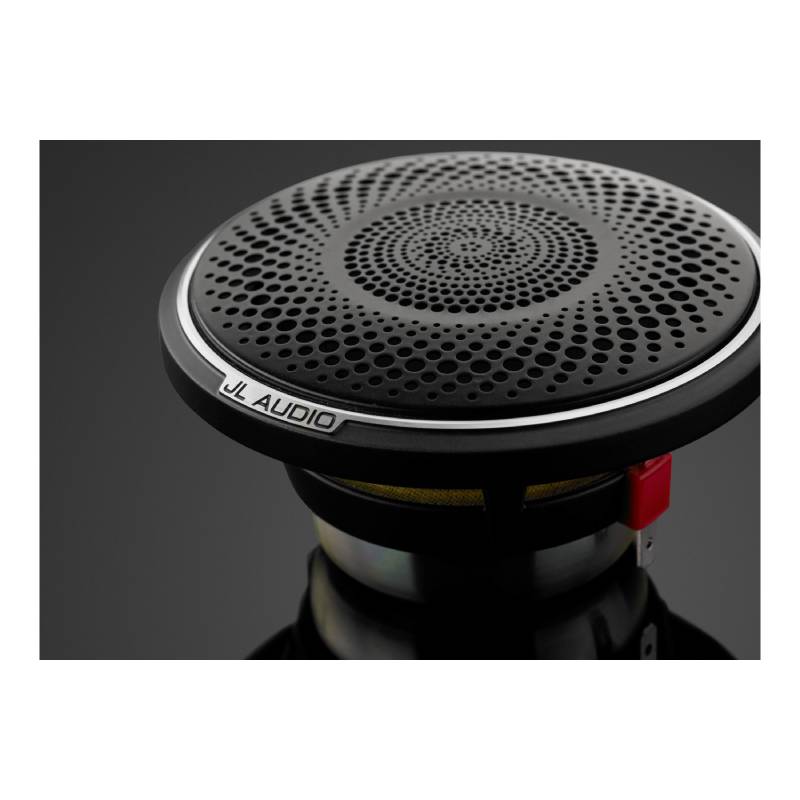

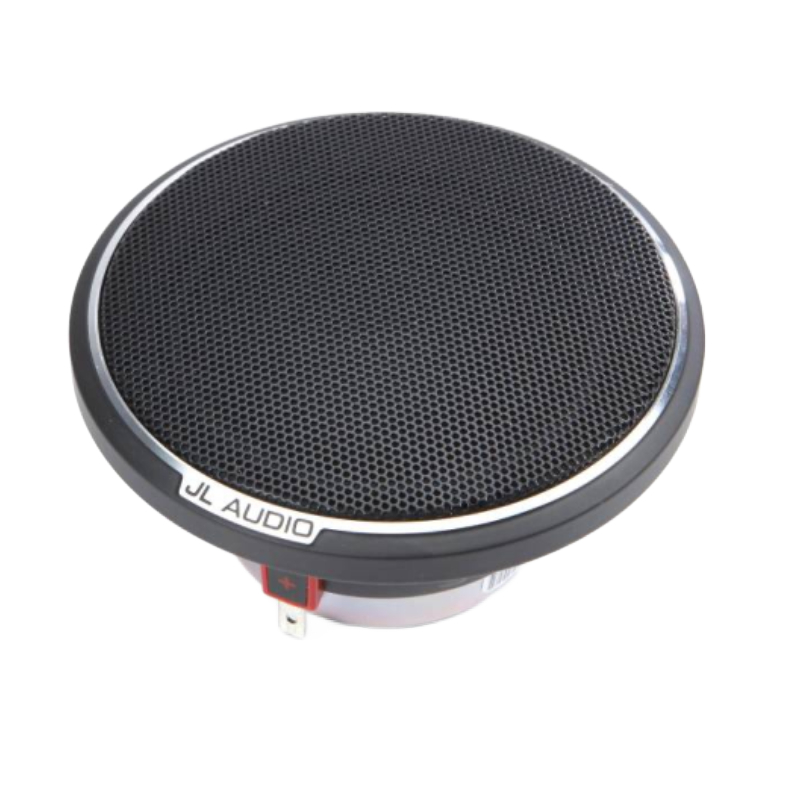

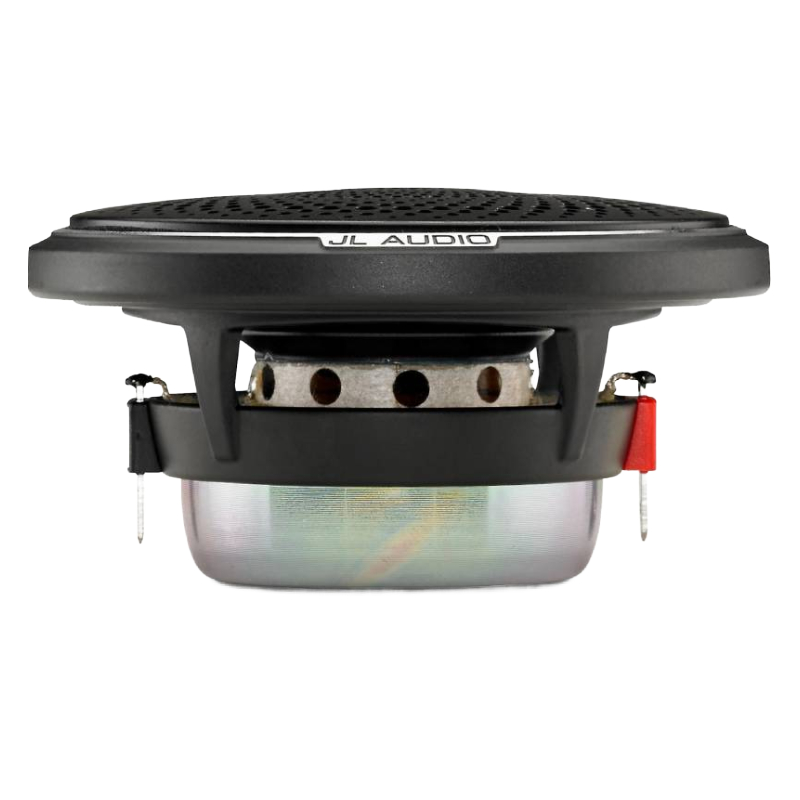

The C7-350cm component midrange is designed to operate in a 3-way system, with a woofer and tweeter. Conceived and purpose-built from the ground up, it offers exceptional transient response and outstanding linearity, resulting in unsurpassed clarity and natural mid-range reproduction. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors.
Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK® 88 or D8, or a VXi amplifier with built-in DSP, with a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.

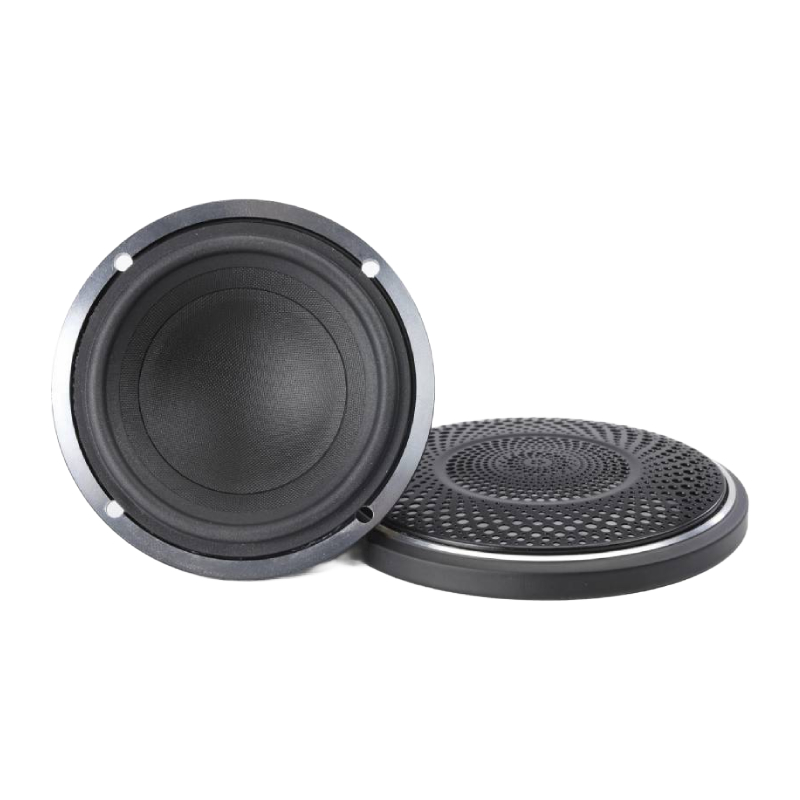

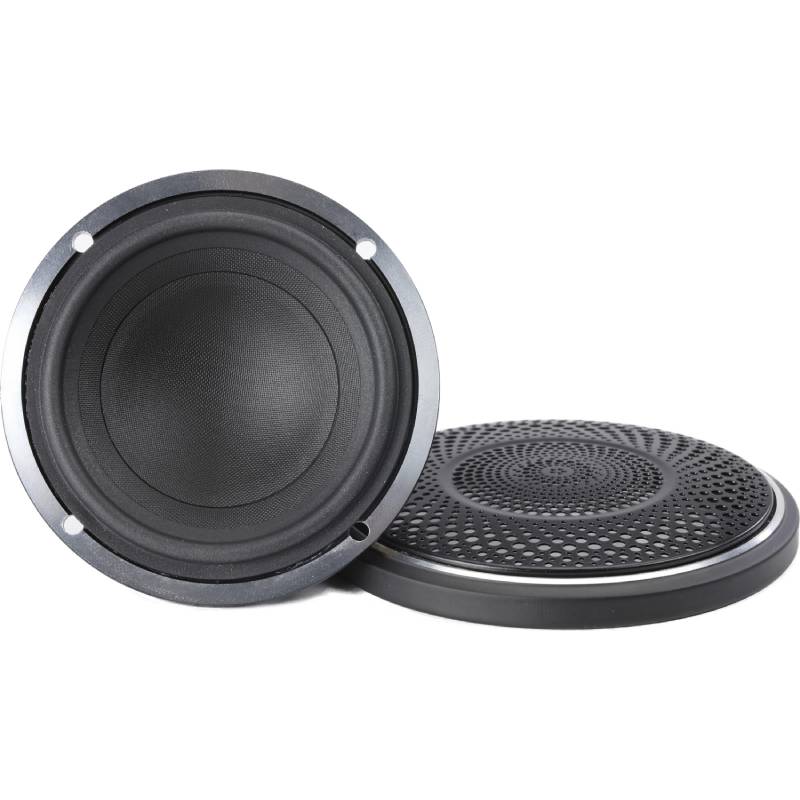

Cone and Dust Cap
Vacuum-formed, mineral-filled polypropylene material offers excellent damping and low mass. The cone body features a gentle curvilinear profile to optimize response. A concave dust cap further improves high frequency behavior.

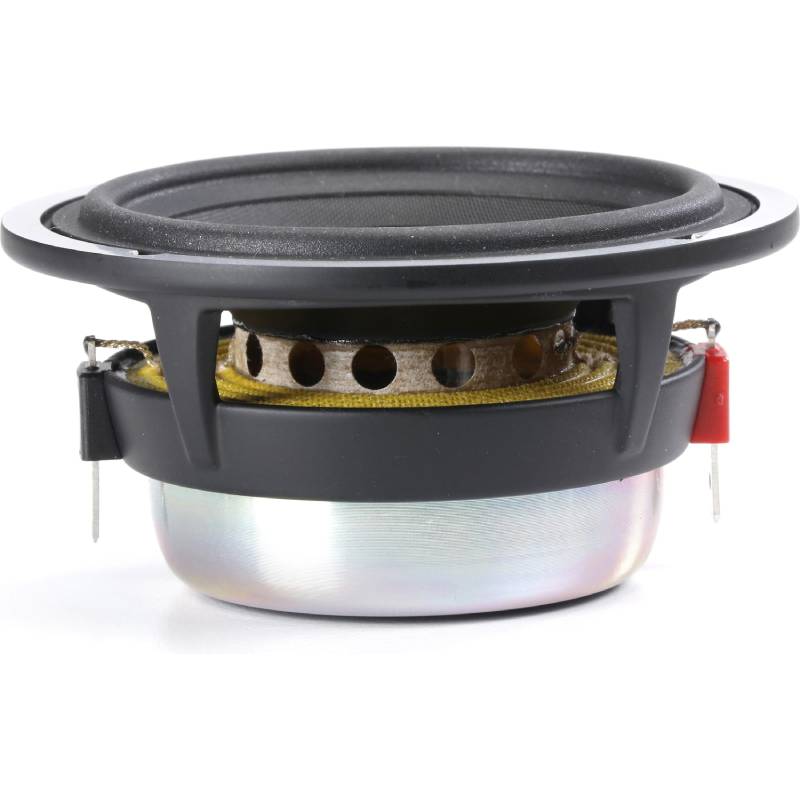

The moving assembly is suspended and damped via a linear profile spider formed from a Nomex®/polycotton blend, and a positive-roll, rubber surround. The two combine to provide optimum damping without prematurely restricting excursion.

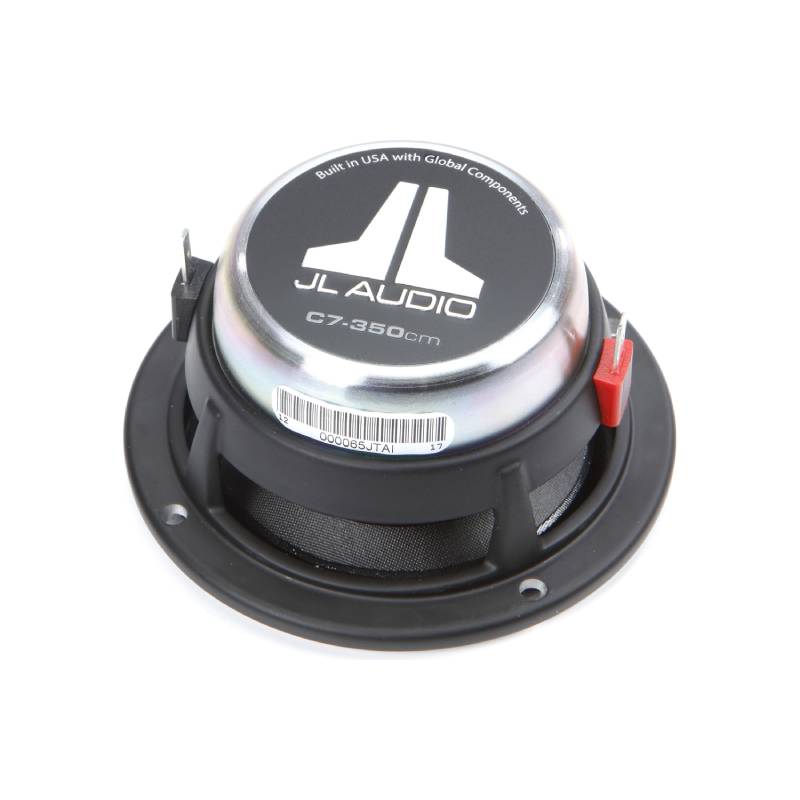

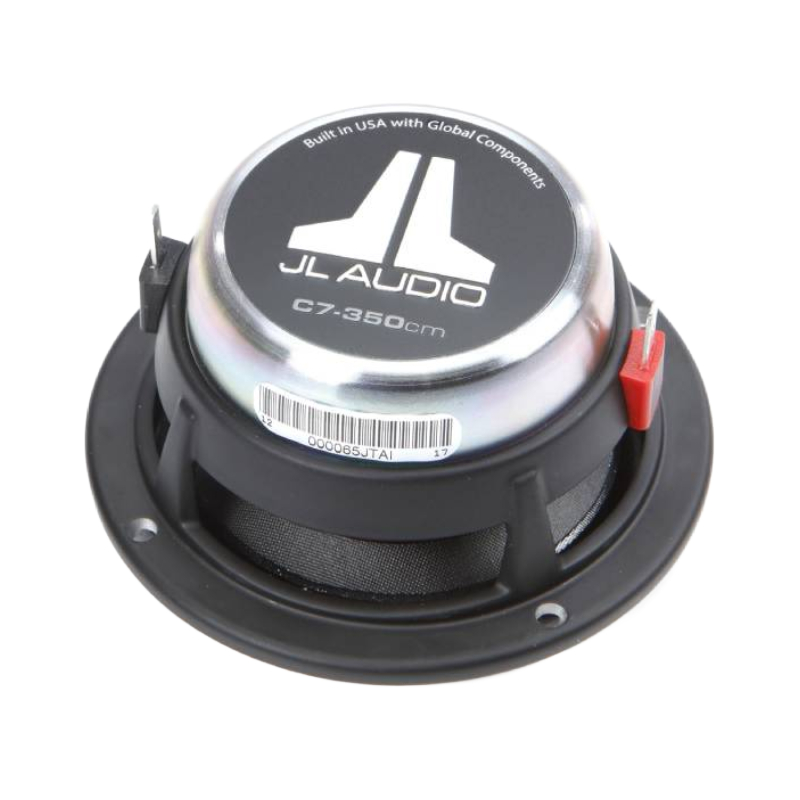

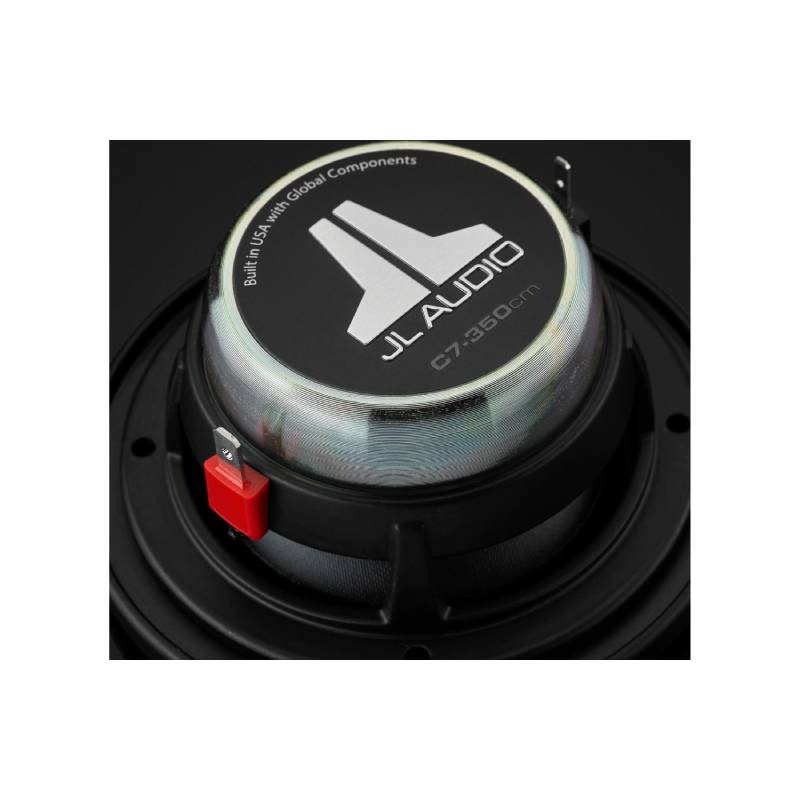

The C7-350cm employs a high-density magnetic circuit with a high-grade, neodymium magnet, and a specially machined, U-Yoke motor topology. Motor magnetics have been precisely optimized utilizing advanced FEA tools to reduce distortion and provide linear motor force throughout the driver's performance range.
A 36 mm (1.42 inch) diameter, overhung voice coil is employed, wound with copper-clad aluminum wire onto a fiberglass voice coil former. The oversized voice coil offers extended power handling capability, minimizing thermal compression and distortion at higher listening levels.
Diameter : 3.5 Inch
Maximum Power : 200 Watts
Sensitivity : 89.5 dB
Impedance : 4 Ohm
Frequency Response : 300-10000 Hz
Peak Power Handling : 200 Watts
RMS Power Handling : 100 Watts
Continuous Power Handling (RMS): 100 W
Peak Music Power: 200 W
Recommended Amplifier Power (RMS): 50 - 150 W / Ch.
Nominal Impedance: 4 Ω
Frequency Response: 300 Hz - 10 KHz ± 3 dB
Moving Mass (Mms): 4.009 g
Equivalent Compliance (Vas): 0.015 cu. ft. (0.430 liters)
Mechanical Compliance (Cms): 0.000257 m/N
Magnetic Strength (BL): 4.66 N/A
One Way Linear Excursion (Xmax): 1 mm
Effective Piston Area (Sd): 5.31 sq. in. (0.003426 sq. m)
Total Speaker “Q” (Qts): 0.541
Mechanical “Q” (Qms): 6.454
Reference Efficiency (no): 0.27%
Free Air Resonance (Fs): 156.9 Hz
86.5 dB @ 1W / 1m
92.5 dB @ 1W / 0.5m
Sensitivity: 89.5 dB @ 2.83V / 1m
Electrical “Q” (Qes): 0.59
Voice Coil Resistance (Re): 3.245 Ω
