To meet the needs of the most common applications in speaker replacement today, we’ve introduced a new 6x9-inch coaxial speaker set to offer newer domestic trucks and cars the ability to upgrade the sound quality in their vehicle. This coaxial set with its innovative technology makes it a simple solution to getting Alpine sound in many of these vehicles on the road today.
The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance. The ability to manipulate the CFRP material during the molding process is currently exclusive to Alpine and the S-Series speakers. Alpine has three patent-pending procedures in support of this innovative manufacturing process.

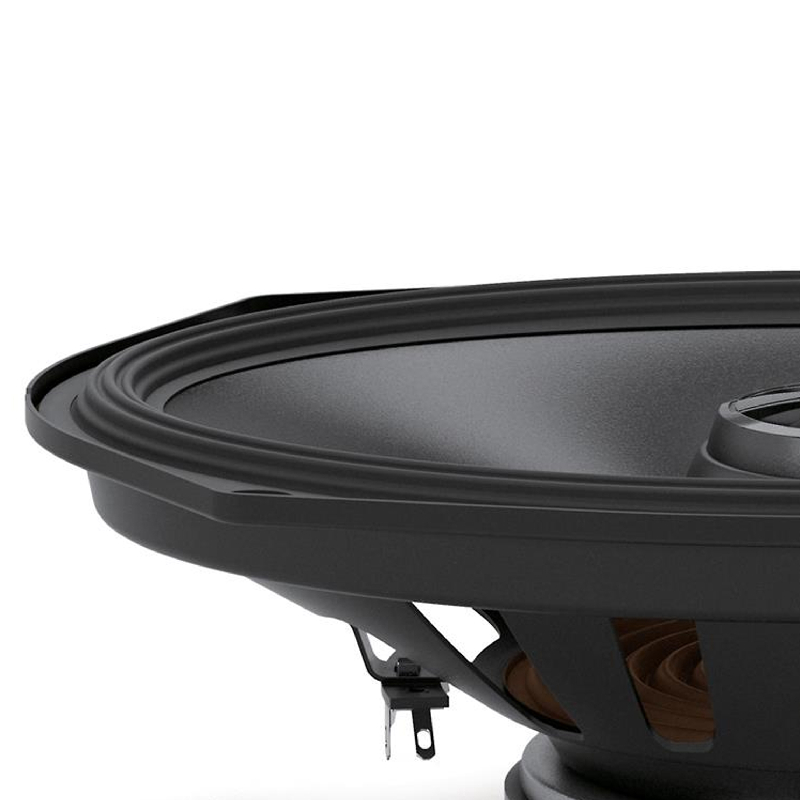

Alpine's patented H.A.M.R (High Amplitude Multi-Roll) surround is now found on the S-Series speakers. This proven technology increases excursion while maintaining accuracy and linearity. The multi-roll design allows for an even unfolding of the surround which creates incredible linearity and colorization rejection.
WIDE FREQUENCY RESPONSE

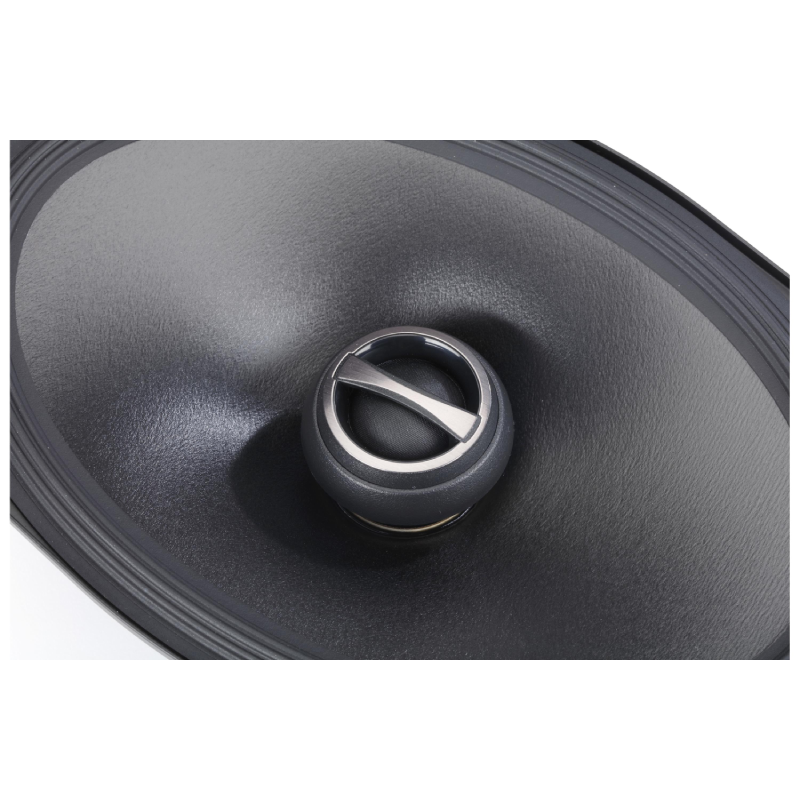

The 1-inch silk dome is perfect for recreating pleasant upper range response without creating listening fatigue in the vehicle. The soft silk material ensures wide frequency response and durability for long term playback.
PROTECT YOUR SPEAKERS
Speaker grilles are available for several of the S-Series speakers and are sold separately. The durable mesh grilles are sold in pairs and fit the following models: - 6x9" models: Compatible with the KTE-S69G Grille
Diameter : 6x9 Inch
Sensitivity : 90 dB
Impedance : 4 Ohm
Frequency Response : 65-22000 Hz
Peak Power Handling : 260 Watts
Design : 2 Way
Top Mount Depth : 3 Inches
Bottom Mount Depth : 3-3/8 Inches
RMS Power Handling : 85 Watts
S-Series speakers deliver the winning combination of incredible sound and value within the entry-level category
Larger voice coil and new CFRP (Carbon Fiber Reinforced Plastic) cone
Now with Alpine’s patented HAMR (High Amplitude Multi-Roll) Surround, allowing for large amounts of linear air movement
1-inch silk dome tweeter
Available 6x9-inch S-Series Speaker Grills (sold separately)
Peak Power Capacity: 260W
Max RMS Power Capacity: 85W
Impedance: 4 ohms
Frequency Response: 65 Hz - 22 kHz
Sensitivity: 90 dB SPL (1W @ 1m)
Recommended Amplification: Up to 85W RMS per channel
Woofer Size: 6" x 9" (16cm x 24cm)
Tweeter Size: 1" (2.5cm)
Cutout Diameter: 5 29/32" x 8-3/4" (15cm x 22.2cm)
Mounting Depth: 2-15/16" (5.8cm)
