We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• BassPro Hub Subwoofer
• Safety sheet
• Quick Start Guide (full manual online)
• Hardware for attachment to vehicle
• Wiring harness
• Remote controller with 5 meters cable
• User's Manual
Sleek Appearance and Smart Design
With durable grill fabrics, satin chrome trim and matte black finish for the enclosure case, the BassPro Micro looks as good as it sounds. You’ll probably be giving your friends a good look at what sounds so good.

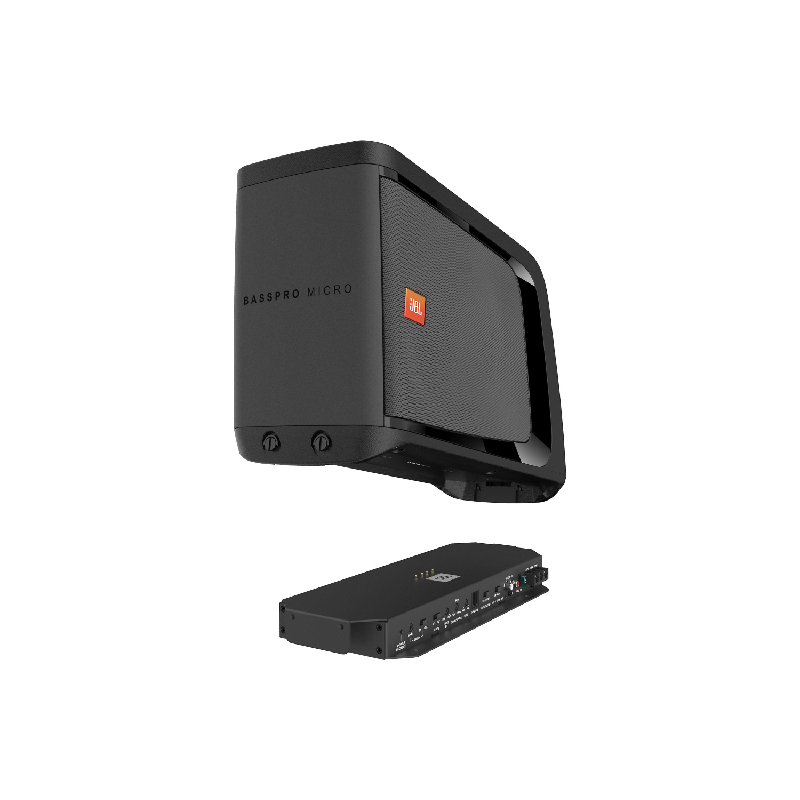

The BassPro Micro is designed to quickly unlatch via a quick release bracket and detach from the amplifier unit that serves as the permanently installed base in the vehicle. Removal of the bass enclosure provides bonus cargo room when needed.

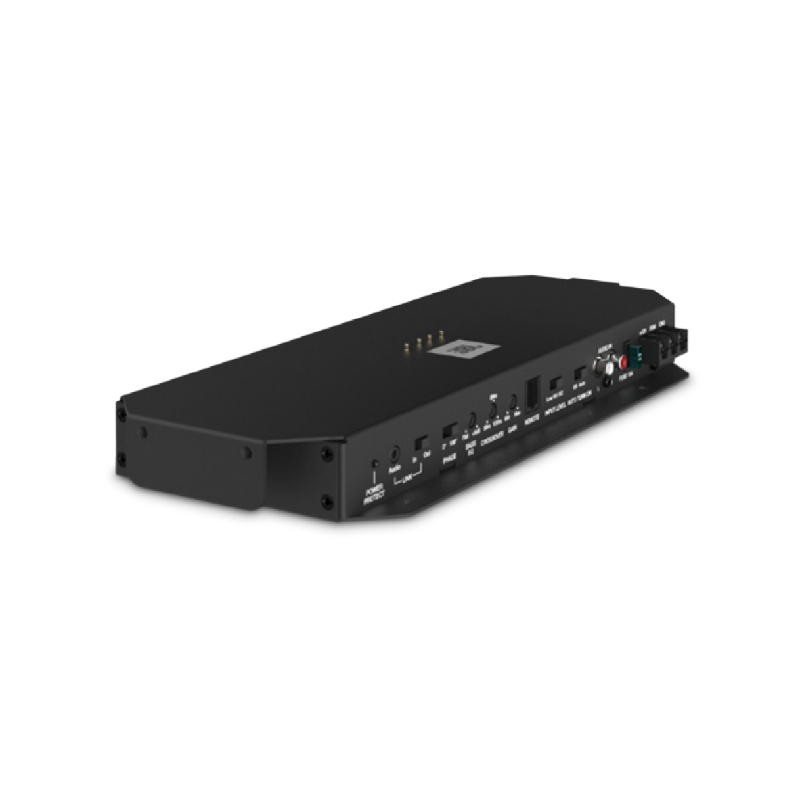

Built-in 140 watt RMS Class D amplifier
The amplifier provides matched electronics and is optimized for BassPro Micro subwoofer characteristics and enclosure acoustics. Class D operation also means the amplifier runs cooler and draws less current from the vehicle electrical system.
High- and Low-level Inputs
The BassPro Micro system is designed to be compatible with nearly every type of car audio system. It has speaker-level inputs for factory OEM systems or RCA line-level inputs for high-end aftermarket systems. BassPro Micro also has four channel high level inputs to ensure non-fading bass.
Audio Detect and Remote In
The BassPro Micro has an audio detect circuit that allows the subwoofer to turn-on and timeout to standby mode. Timeout mode is fixed at 3 minutes. (The system has a relatively slow time constant to avoid unintentional turn-on.) An automatic audio sense circuit turns the amplifier on whenever it detects an audio signal. There is a switch to disable audio sense when use of a remote turn-on wire is preferred.
Daisy Chain Connection
For an even more dramatic bass enhancement, two BassPro Micros can be daisy chained together by simply using standard 3.5 interconnects. There is no need to run additional wiring.
Input sensitivity, Crossover Frequency, Bass EQ and Phase adjustments
There is an array of controls that give you the ability to fine-tune BassPro Micro’s performance based on vehicle type, placement and taste: The input sensitivity control allows you to set maximum system signal without excessive clipping or distorted bass response. The crossover frequency control enables you to dial-in the correct frequency for your vehicle. The bass EQ control can boost your bass response by as much as 9dB. The phase switch allows you to get proper phase alignment between the subwoofer and main speakers regardless of speaker location in the vehicle. The overall result is distortion-free low-frequency response for all types of music.
Diameter : 8 Inch
Frequency Response : 35-120 Hz
RMS Power Range : 140 Watts
Amplifier Power: 200W RMS (2 ohms)
Frequency Response: 30Hz – 150Hz
Maximum Current Draw: 30A
Quiescent Current Draw: <1.2A
Crossover Frequency: 50Hz – 150Hz
Crossover Slope: 24dB/Octave
Bass Boost: 0 – 12dB
Variable @ Fix 50 Hz
Line level input sensitivity: 0.2 V – 4V
Speaker level input sensitivity: 0.5V – 10V
Dimensions (D x H): 14-3/16" x 6-1/2" (D360mm x H165mm)
