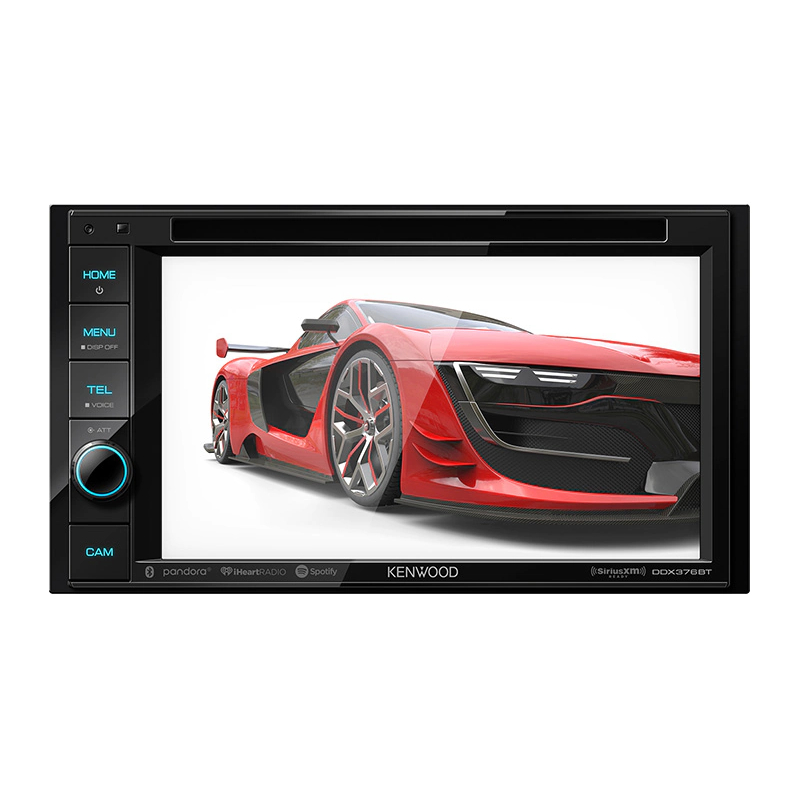

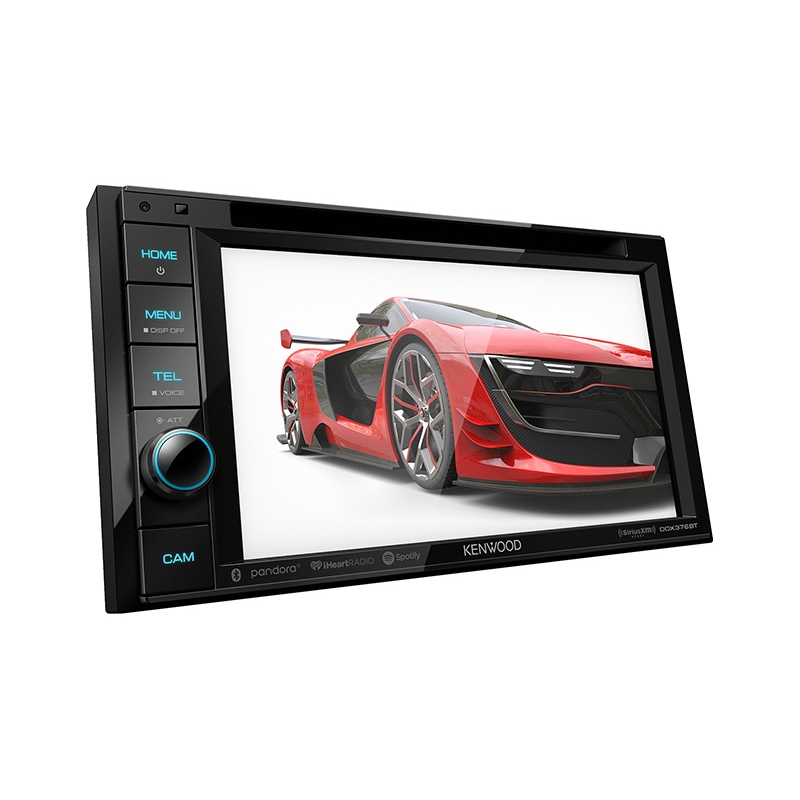

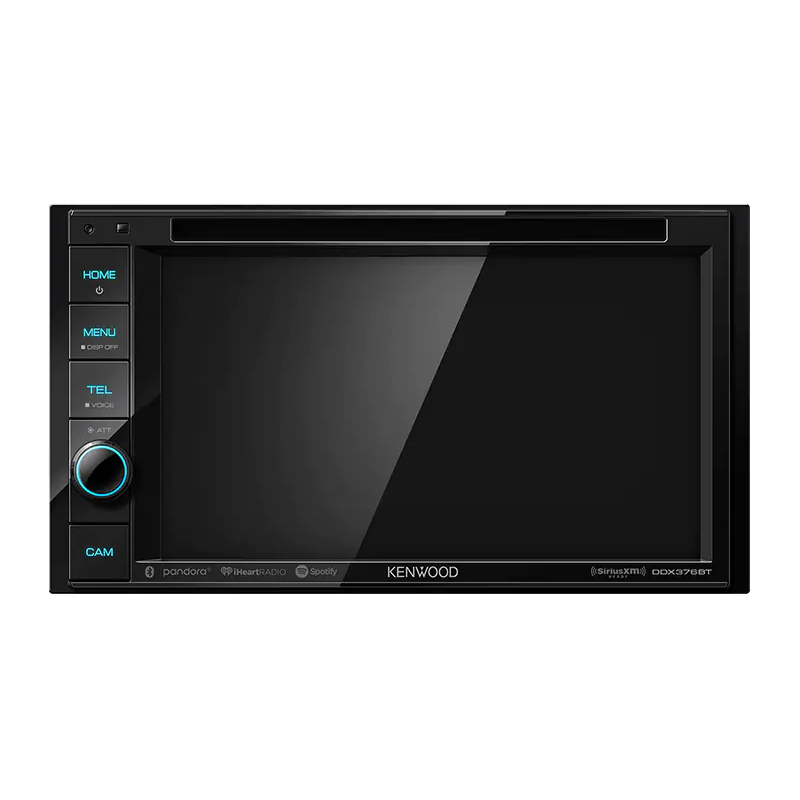

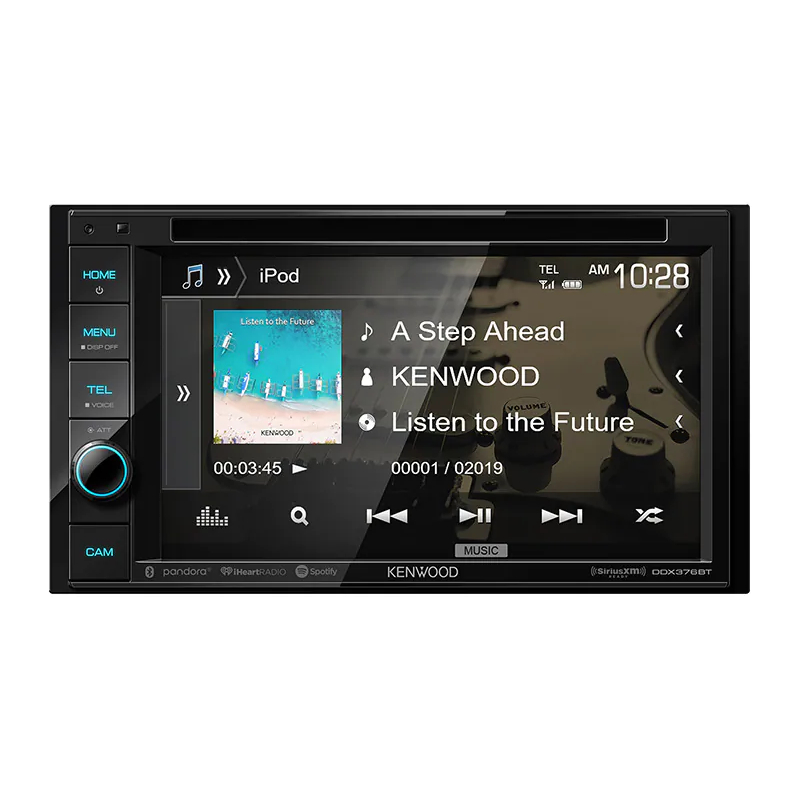

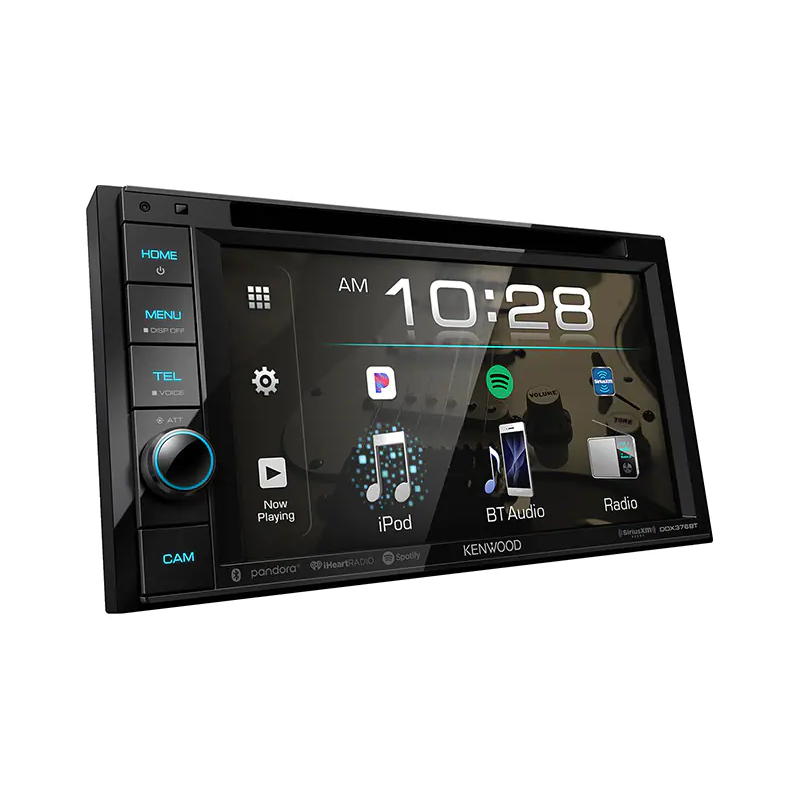

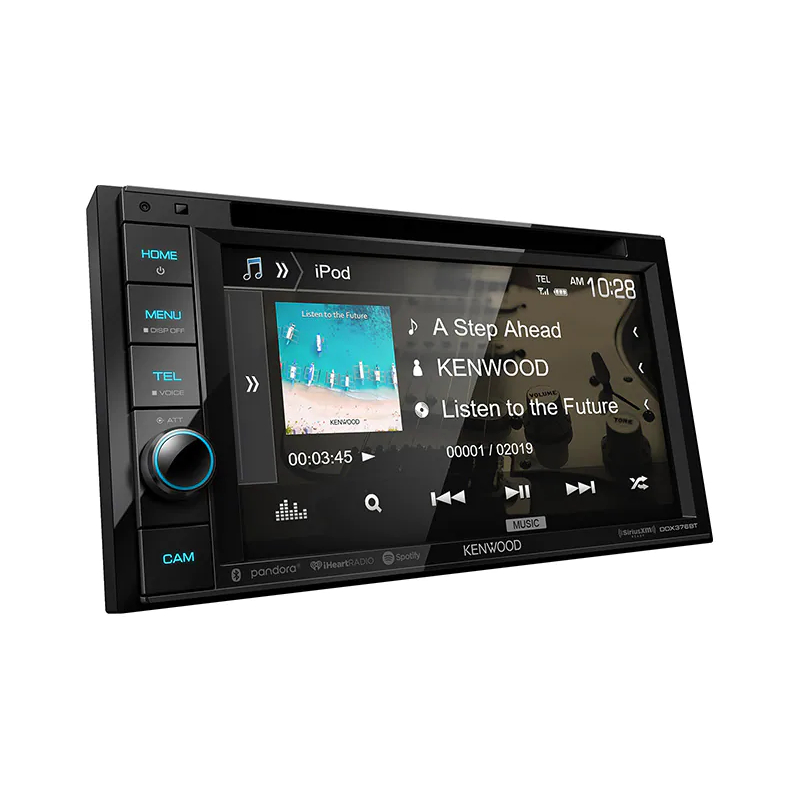

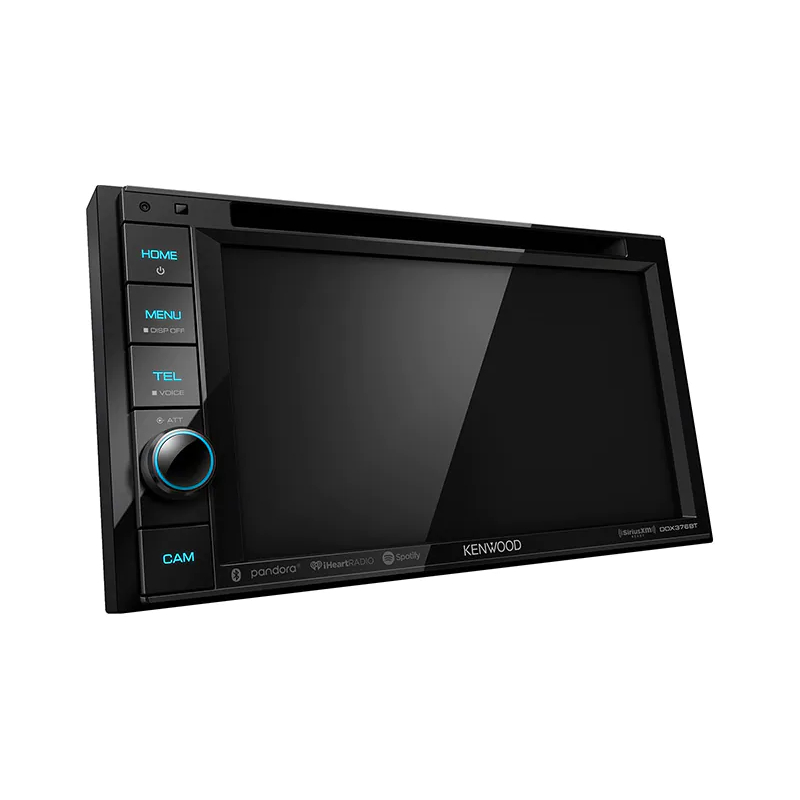

Kenwood DDX376BT 2-DIN Multimedia Receiver
iDatalink Maestro RR, Made for iPhone/iPod, Bluetooth, Pandora, Spotify, iHeartRadio, SiriusXM
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Music Application Controls
Connect your iPhone or Android device to access and control the most popular music application sources. Simply install the Spotify, Pandora and/or iHeartAuto apps on your device, then connect iPhone (USB or Bluetooth) or Android (Bluetoth only) to enjoy music playback.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Control the Receiver from your Kenwood Smartphone with the Kenwood Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android)
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Rear View Camera Input with Parking Guide Lines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Enjoy the Many Infotainment Features Available on the iDatalink Maestro RR
When an automotive Data Solutions iDatalink Maestro RR is connected to a comptaible Kenwood receiver, it provides a seamless interface with factory infotainment features such as Satellite Radio, USB Media Player, Bluetooth hands-free and music streaming. Vehicle information such as HVAC, performance information, and TPMS can also be displayed.
- Screen Size: 6.2"
- Display System: Transparent TN LCD Panel
- Drive System: TFT Active Matrix System
- Number of Pixels: 1,152,000 (800H x 480V x RGB)
- Effective Pixels: 99.99%
- Pixel Arrangement: RGB Striped Arrangement
- Back Lighting: LED
- D/A Converter: 24Bit
- Maximum Output Power: 50W x 4 (MOSFET Power IC)
- Full Bandwidth Power: 22Wx4 (at less than 1% THD)
- Preout Level (V): 4V/ 10k Ohms
- Preout Impedance: =<600 Ohms
- Speaker Impedance: 4-8 Ohms
- 13 Band Equalizer
- 2Way X'Over
- Frequency Response: 20 - 22,000 Hz
- Total Harmonic Distortion (1kHz): 0.010%
- Signal to Noise Ratio: 99dB(DVD-Video 96k)
- Dynamic Range: 99dB(DVD-Video 96k)
- DISC Format: DVD-Video//±R/RW / VIDEO-CD/CD-DA
- Sampling Frequency 44.1kHz/48kHz/96kHz
- Quantifying Bit Number: 16/20/24bit
- Audio Decoder: Linear PCM, Dolby Digital, MP3/WMA/AAC(.m4a/.aac)/WAV/FLAC
- Video Decoder: MPEG1/MPEG2/JPEG
- USB2.0 (Full Speed / High Speed)
- File System: FAT 16/32
- Maximum Power Supply Current: DC5V(DC logo)=1.5A
- Bluetooth V3.0
- Frequency: 2.402 - 2.480 GHz
- Output Power: +4dBm (MAX),0dBm (AVE) Power Class 2
- Maximum Communication Range: Line of Sight 10M / 32.8' (Approx.)
- Audio Codec: SBC/AAC
- FM/AM Radio
- Sirius XM Ready
- iPhone/iPod USB Direct Connection with Optional Cable
- Pandora / iHeart Radio / Spotify App Ready (iPhone App)
- Android Music Play Back
- Android Rapid Charge
- Dual Phone Connection
- Maximum Current Consumption: 10A
- Dimensions (W x H x D): 7-3/16" x 4-3/8" x 6-5/16"
- UPC: 0019048224668
- Weight: 4.5
