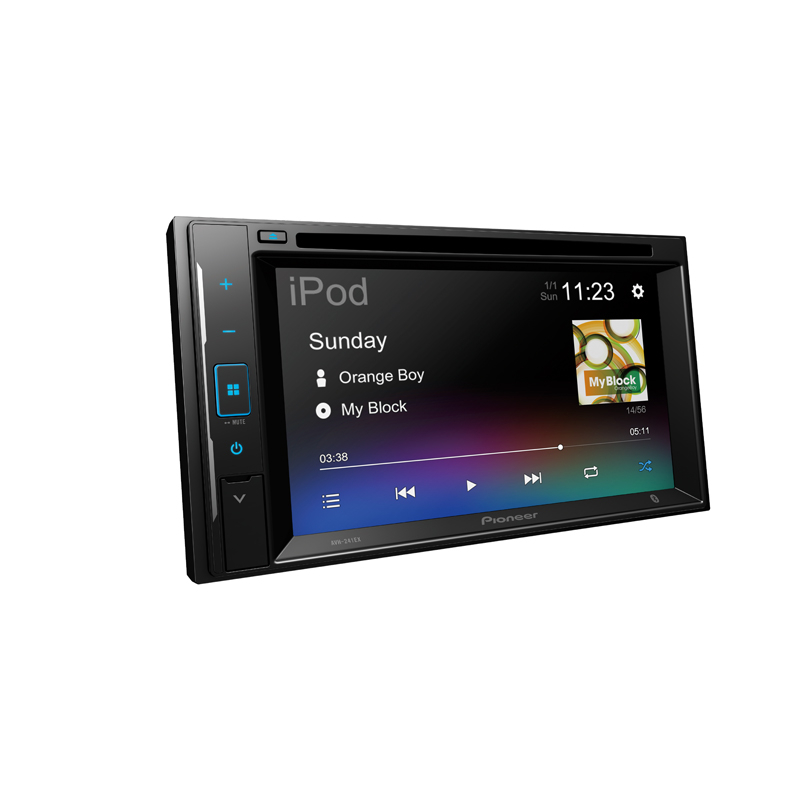

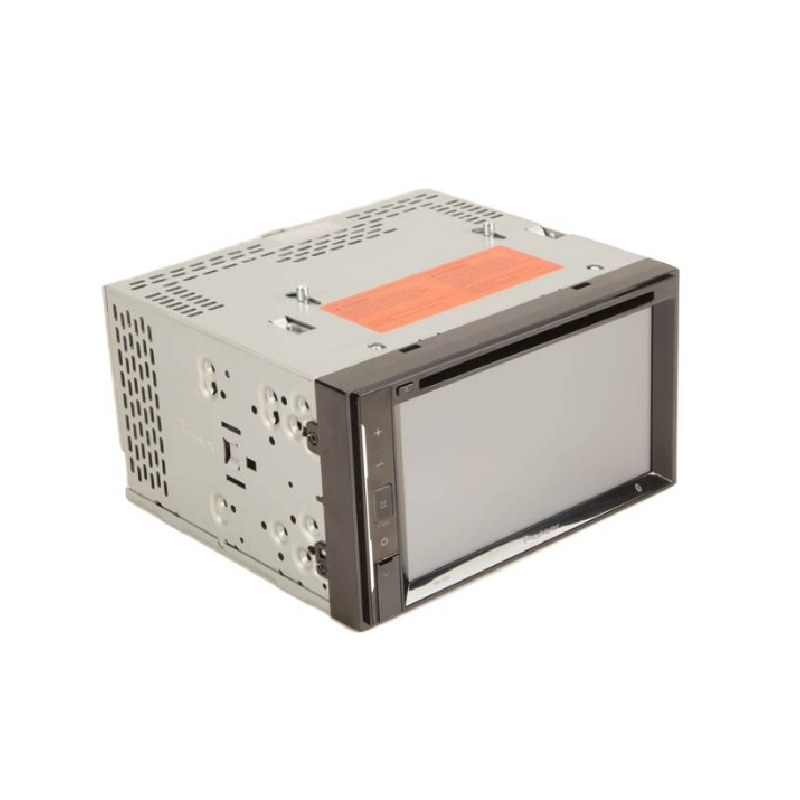

Pioneer AVH-241EX 6.2" Resistive Touchscreen 2-DIN DVD Receiver with Bluetooth®, Built-in Amazon Alexa when Paired with Pioneer Vozsis App and Back-up Camera -Ready
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

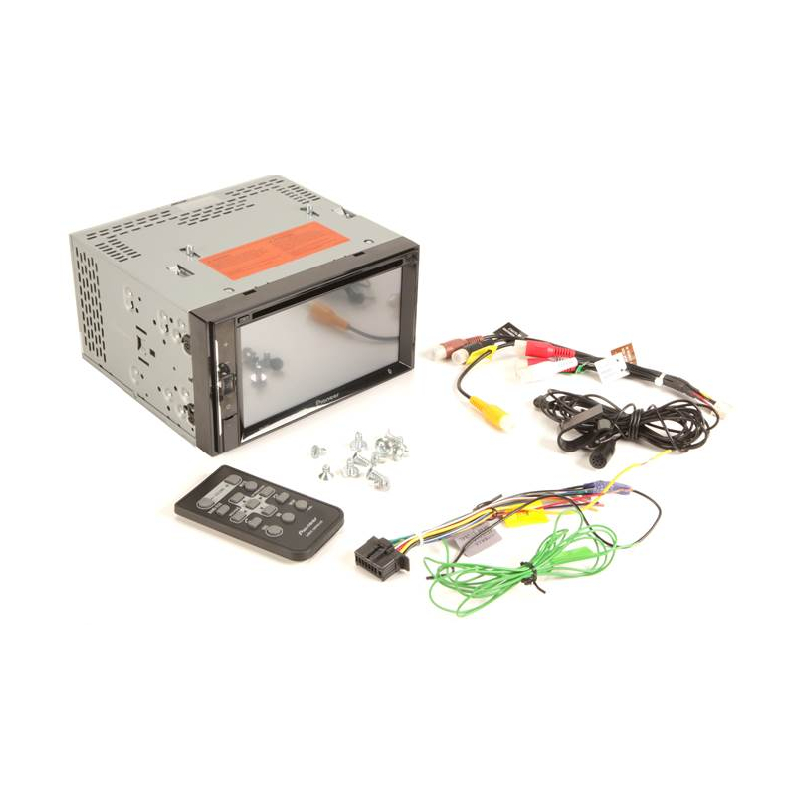

What's Inside?
- • DVD Receiver (10A Fuse)

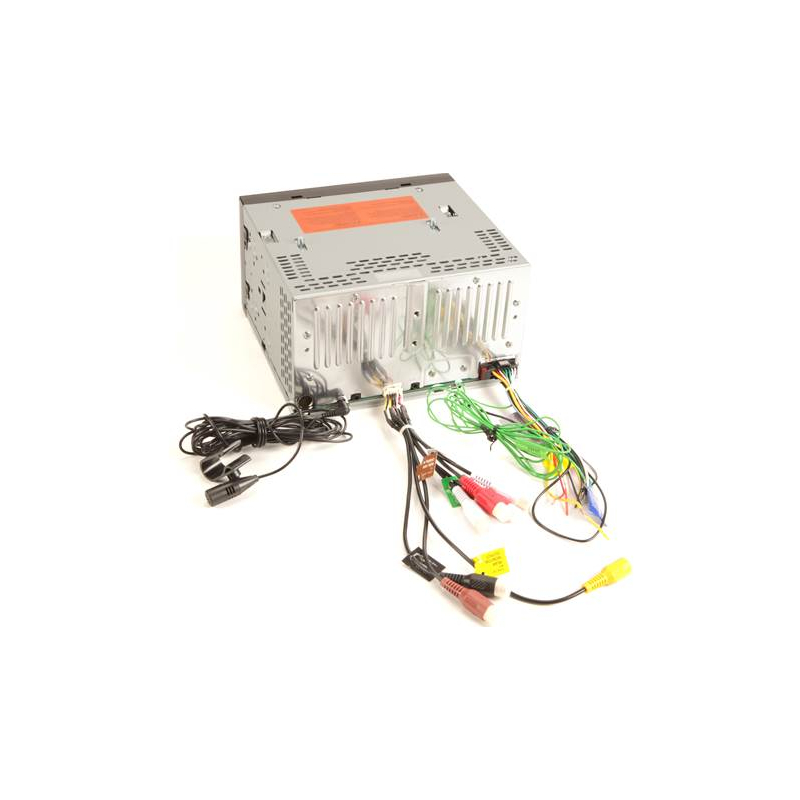

- • Wiring Harness (6.5' Parking Brake Wire)
- • Preout/AV Harness

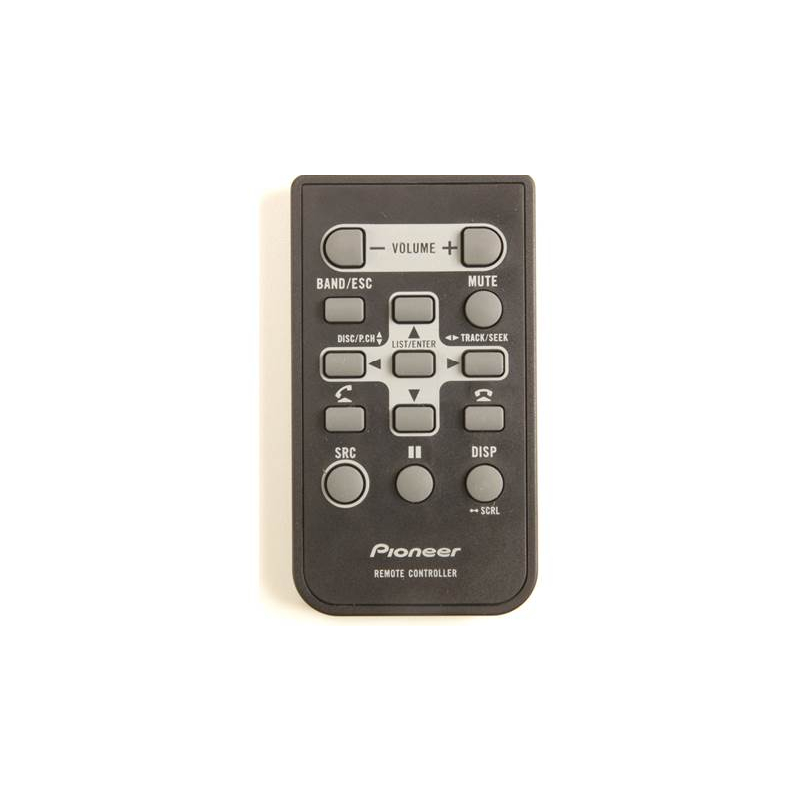

- • Remote Control (CXE9605)
- • CR2025 3V Lithium Battery (installed in remote)
- • Microphone w/ Visor-Bracket (attached 10' cable with right-angled 2.5mm connector)
- • Two-Sided Tape
- • (6) Pan-Head ISO Screws (M5 x 9mm)
- • (6) Counter-Sunk ISO Screws (M5 x 9mm)
- • Installation Manual
- • Quick Start Guide
- • Warranty Sheet
- • "CAUTION" Note
- • Owner's Manual
Why Choose Pioneer AVH-241EX Double DIN DVD Receiver?
Elevate Your In-Vehicle Experience
The AVH-241EX is a 6.2" capacitive touchscreen digital media receiver, expertly crafted to enhance your in-car entertainment and smartphone connectivity. Experience seamless features including built-in Bluetooth® for hands-free calling and audio streaming, along with audio and video playback via USB. Additionally, it offers essential safety features, such as backup camera readiness, to ensure a more secure driving experience.

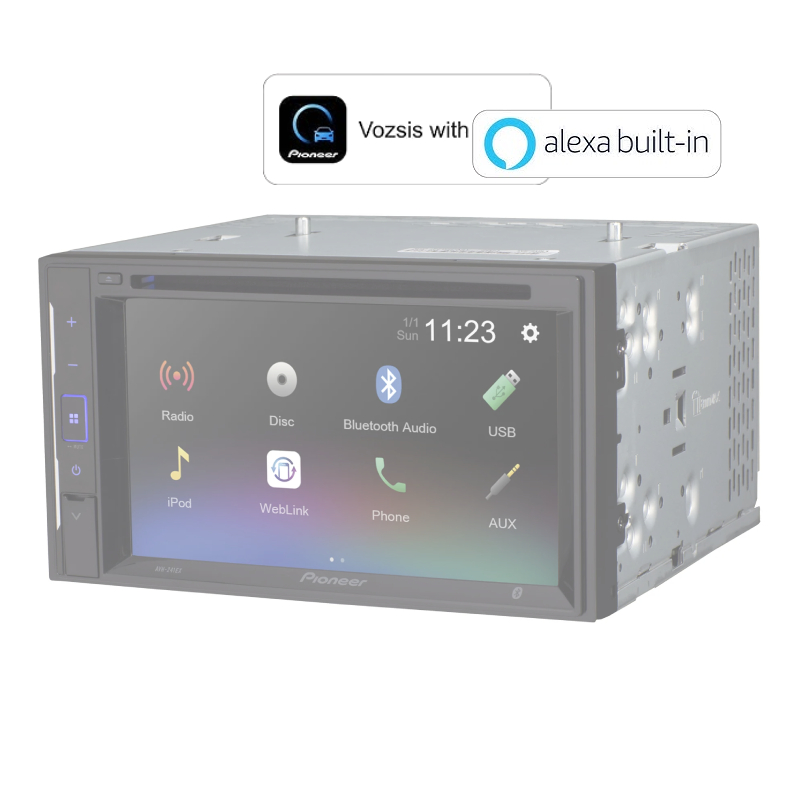

Vozsis with Amazon Alexa for Seamless In-Car Integration
Downloading Pioneer's Vozsis app from your iPhone or Android phone allows you to activate the Pioneer AVH-241EX receiver's Amazon Alexa feature, so you can use voice commands to play music, check the weather, control smart home devices, hear the news, and more. It also has a Bluetooth connectivity option allowing you to take phone calls hands-free and stream music in wireless mode.

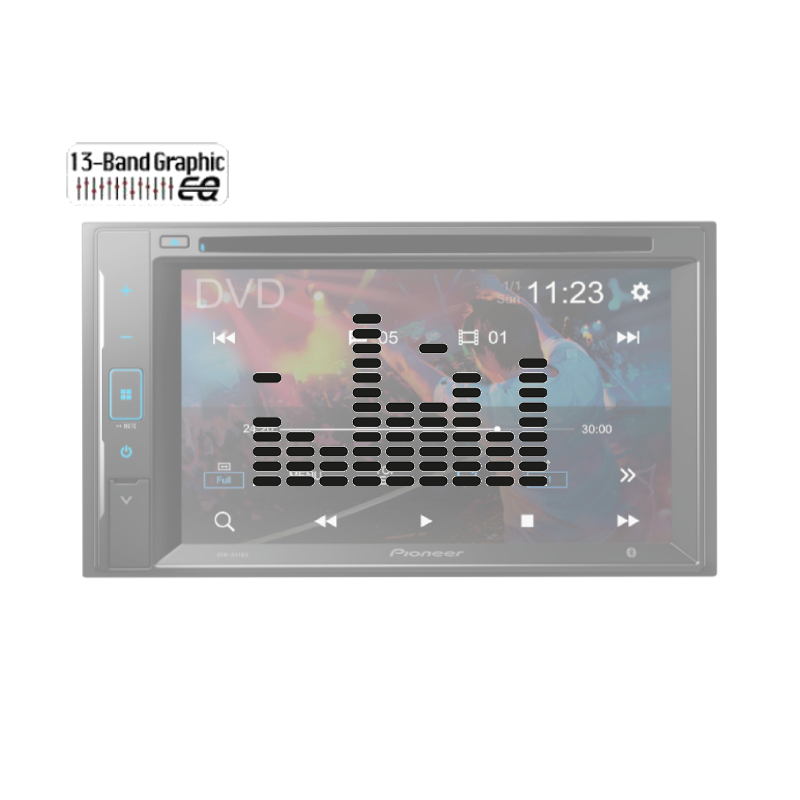

with Built-in 13-band Graphic EQ
The Pioneer AVH-241EX also comes with a tone-shaping feature with its built-in 13-band graphic EQ so that you can adjust the amplifier frequency response to your preference. It also has high and low-pass filters to filter out the unwanted frequencies that could damage your speakers and subwoofer.
Frequently Asked Questions (FAQ)
- • Why won't the touchscreen respond properly?
An unresponsive touchscreen may be caused by temporary software glitches, improper calibration, or physical damage. Restart the receiver and clean the display before performing additional troubleshooting.
- • Why won't DVDs play while I'm driving?
The receiver includes a built-in safety feature that disables video playback while the vehicle is in motion. The parking brake must be properly connected and engaged for video playback when the vehicle is parked.
- • Why isn't the backup camera displaying when I shift into reverse?
Incorrect reverse trigger wiring or disabled camera settings are the most common causes. Verify the camera wiring and enable the rear camera input in the receiver's setup menu.
- • Why is there no sound even though the display is on?
Loose speaker wiring, incorrect audio settings, or amplifier problems can prevent sound output. Check the wiring connections and verify the receiver's audio settings.
- • Can I connect my smartphone for music playback?
Yes. Compatible smartphones can be connected through the USB port or Bluetooth for music streaming and hands-free calling, depending on the phone's capabilities.
- • Why does Bluetooth disconnect or fail to pair?
Bluetooth issues are often caused by outdated phone software, stored pairing conflicts, or wireless interference. Delete the saved pairing from both devices and reconnect them.
- • Why won't the receiver remember my settings after I turn off the vehicle?
This usually happens when the constant battery wire is connected incorrectly. Verify the power wiring so the receiver always receives uninterrupted memory power.
- • Can I retain my factory steering wheel audio controls?
Yes. Most vehicles require a compatible steering wheel control interface to keep the original steering wheel buttons functioning after installation.
- • Why do my Bluetooth calls sound muffled?
Poor microphone placement, excessive cabin noise, or a weak cellular signal can reduce call quality. Position the microphone closer to the driver and away from air vents for better voice pickup.
- • Can I connect an external amplifier for better sound quality?
Yes. The receiver includes preamp outputs that allow you to add aftermarket amplifiers for increased power and improved audio performance.
- Satellite Radio Ready : No
- DIN : 2
- Preamp Voltage : 2 volts
- Display Size : 6.2 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Preamp Outputs : Front, Rear & Sub
- Rear View Camera Input : Yes
- Apple CarPlay : No
- Android Auto : No
Features:
- 6.2" WVGA Resistive Touchscreen
- Amazon Alexa Built-in when Paired with Pioneer Vozsis App
- Smartphone Compatible
- Built-in Bluetooth®
- Back-up Camera Ready
Specifications:
Digital Media Playback:
- Audio CODEC from CD/DVD/USB (WMA, MP3, WAV, AAC, FLAC)
- Video CODEC from CD/DVD/USB (AVI,DivX,Xvid,MPEG-2/4,WMV,JPEG)
Smartphone Connectivity:
- WebLink
- Amazon Alexa when Paired with Pioneer Vozsis App
- iPhone & Android smartphone compatible
- iPod interface via USB
Display:
- Screen Size/Aspect Ratio: 6.2"/16:9
- Resolution: WVGA (800 x 480)
- Touchscreen: Resistive
- LED Backlight
- Color Customization: 3 Preset Background Images, Fixed Key Color - Blue
- Dimmer Setting (ON/OFF)
- Brightness Control
Bluetooth:
- Built-in Bluetooth®
- Hands-Free Profile (HFP): Yes
- Audio/Video Remote Control Profile (AVRCP): 1.6
- Advanced Audio Distribution Profile (A2DP)
Tuner:
- Presets: 18 FM, 12 AM
- Best Station Memory (BSM)
- Local Seek Tuning
- RDS
Integration:
- Voice Control
- Siri® Eyes Free
- Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
- Pandora®: Android via Bluetooth, iPhone via Bluetooth
- Spotify: Android via Bluetooth, iPhone via Bluetooth
- WebLink®: 2.0
- Amazon Alexa: Paired with Pioneer Vozsis
- Mobile Operating System: Android, Apple iOS
Digital Media Playback:
- Audio Playback via USB: MP3 Audio, WMA Audio, AAC Audio, WAV Audio Playback (Hi-Res), FLAC Audio Playback (Hi-Res
- Audio Video Playback via USB: .3gp, .avi, .flv, .m2ts, .m4v, .mkv, .mov, .mp4, .mpg/mpeg, .mts, .ts, .wmv/.asf
- Image Display via USB: JPEG, PNG, BMP
- CD/CD-R/RW Playback: MP3, WMA, AAC, MPEG
- DVD/DVD-R/RW/DVD-Video Playback: MP3, WMA, AAC, AVI, MPEG
Audio:
- RCA Preouts: 3 Pre-Out (2V) Front & Rear & SW (monaural)
- Built-in Amplifier: MOSFET 50 W x 4
- Customizable Graphic Equalizer: 13-Band
- High-Pass Filter: Yes
- Subwoofer/Low-Pass Filter: Yes
Expandability:
- USB: Front Type-A (5V, 1.5 A)
Audio Video Inputs:
- Input 1: Backup Camera Dedicated
- Input 2: AUX (Minijack)
General:
- Detachable Face Security: Fixed
- Remote Control: Included
- Multi-Language Display: English, Chinese (Simplified), French, Spanish, Portuguese
- Warranty (must be purchased from an Authorized Pioneer Dealer): 1 Year
- 2006 CEA Compliant
- UPC: 884938479066
- Weight: 7
- Authorized Internet Dealer
