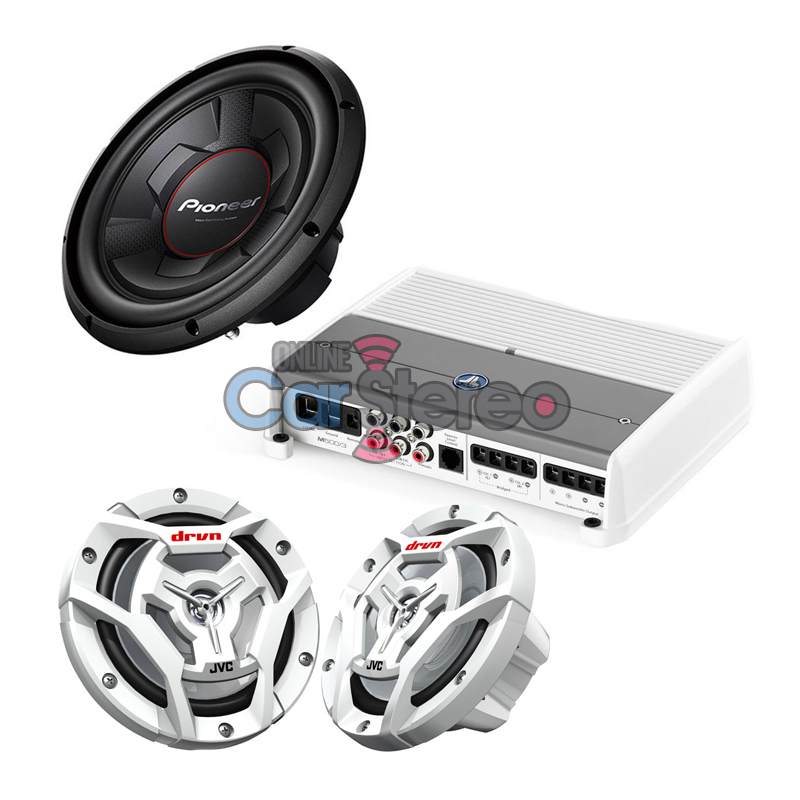

JL Audio  M500/3-TSW306R-CSDR6201MW Hot Deal

JL Audio M500/3 500W 3-Channel Class D M-Series Marine Amplifier + Pioneer TS-W306R 1300 Watts Max 12" Subwoofer with IMPP™ Cone + JVC CS-DR6201MW 150 Watts 6.5" Marine 2-way Coaxial Speakers

Item #52359

0
❮ ❯
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below
Call us at 310-526-8635 and our expert tech-support would be happy to suggest alternative products for you!
Or email at [email protected]

Huge Saving on Other items:

Other products you might be interested in:

Huge Saving on Other items:

OnlineCarStereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

JL Audio M500/3

This compact amplifier is ideal for a simple audiophile-grade, subwoofer / satellite system. With the M500/3, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300 W to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

JL Audio M500/3

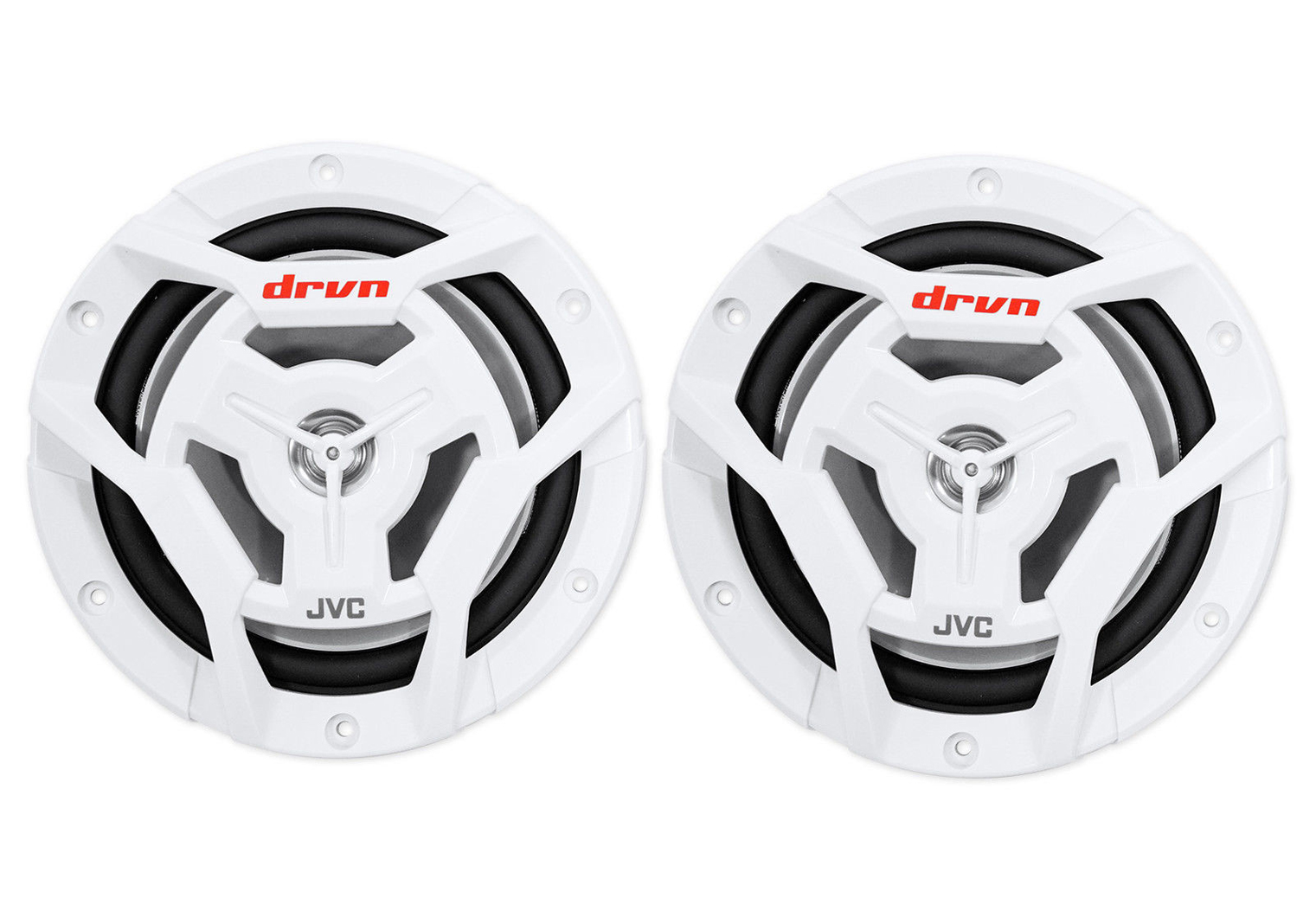

JVC CS-DR6201MW

CS-DR6201MW speakers are great for outdoors. Whether it would be for marine or powersports, CS-DR6201MW delivers! You won't need to worry about water splashes as these speakers are waterproof. Crafted with carbon mica cone woofers and rubberized cloth design, CS-DR6201MW is one of the best marine speakers out there.

JVC CS-DR6201MW


Pioneer TS-W306R

Specially designed voice coil offers higher power handling, linear movement and greater excursion for extreme bass output. The Voice Coil Cooling System (VCCS) improves durability and faithfully reproduces the sound of original sources. Cone provides increased strength and rigidity for optimized bass response.

Pioneer TS-W306R


JL Audio M500/3 Features:

  • 3-Channel Class D M-Series Marine Amplifier
  • RMS Power Rating @ 14.4V:
  • 4 ohms: 75 watts x 2 chan. + 180 watts x 1 chan.
  • 2 ohms: 100 watts x 2 chan. + 300 watts x 1 chan.
  • Bridged, 8 ohms: 150 watts x 1 chan.
  • Bridged, 4 ohms: 200 watts x 1 chan.
  • RMS Power Rating @ 12.5V:
  • 4 ohms: 60 watts x 2 chan. + 180 watts x 1 chan.
  • 2 ohms: 90 watts x 2 chan. + 300 watts x 1 chan.
  • Bridged, 8 ohms: 120 watts x 1 chan.
  • Bridged, 4 ohms: 180 watts x 1 chan.
  • Differential inputs reduce unwanted noise
  • Speaker output connections accept up to 8 AWG wire
  • +12V and Ground connections accept up to 4 AWG wire
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable High-Pass Filter (50-500 Hz, 12 dB/octave)
  • Variable Low-Pass Filter (50-500 Hz, 12 dB/octave)
  • Signal-to-Noise Ratio (Main Channels): >104 dB
  • Signal-to-Noise Ratio (Subwoofer Channel): >87 dB
  • Frequency Response (Main Channels): 12-22,000 Hz
  • Frequency Response (Subwoofer Channel): 7-500 Hz
  • Input Range: 100mV - 4V RMS
  • Damping Factor: >120 @ 4 ohm, >60 @ 2 ohm
  • THD (Total Harmonic Distortion): <1%
  • Dimensions: 10-1/4"L x 7-1/16"W x 2-1/16"H
  • Unregulated MOSFET switching type power supply
  • NexD Class D Technology reduces distortion and delivers superior efficiency
  • Remote bass level input (JL Audio HD-RLC required and sold separately)
  • Fully variable 12dB/octave filters with filter frequency selection controls
  • Two stereo pairs (RCA-Type Jacks)
  • 2-channel/Mono operation
  • Speaker-level (high-level) inputs
  • Pass-Through preamp RCA outputs to daisy chain multiple amps
  • Advanced Rollback Protection circuitry for advanced thermal and low-impedance protection

Pioneer TS-W306R Features:

  • Sensitivity 96 dB
  • Impedance 4 Ω
  • Woofer material IMPP
  • Voice Coil bobbin type: Aluminium
  • Mounting Depth 135 mm
  • Cut-out Hole 281 mm
  • Recom. Enclosure [l] 35,4
  • Recom. Enclosure [ft3] 1,25
  • Size 30 cm
  • Maximum power input 1300
  • Nominal input power 350 W
  • Frequency response 20 - 125

JVC CS-DR6201MW Features:

  • RMS Power Handling: 50 watts
  • Design: 2-way
  • Tweeter Design: Balanced Dome
  • Woofer Composition: Carbon Mica
  • Impedance (Per Voice Coil): 4 ohms
  • Top-Mount Depth: 2 7/16 inch.
  • Speaker Size: 6-1/2 inch.
  • Tweeter Composition: Poly-Ether Imide
  • Woofer Surround: Rubber
  • Peak Power Handling: 150 watts
  • Sensitivity: 87 dB
  • Frequency Response: 60 - 18400 Hz
  • UPC: 713783634156
  • Weight: 28
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
