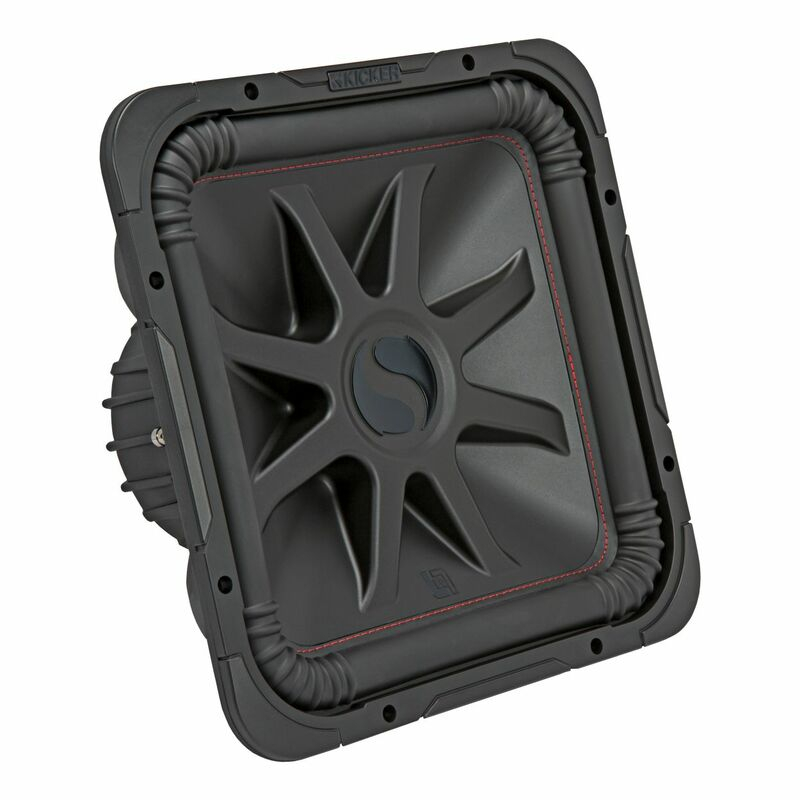

Simple Math: Square Sub = More Bass!

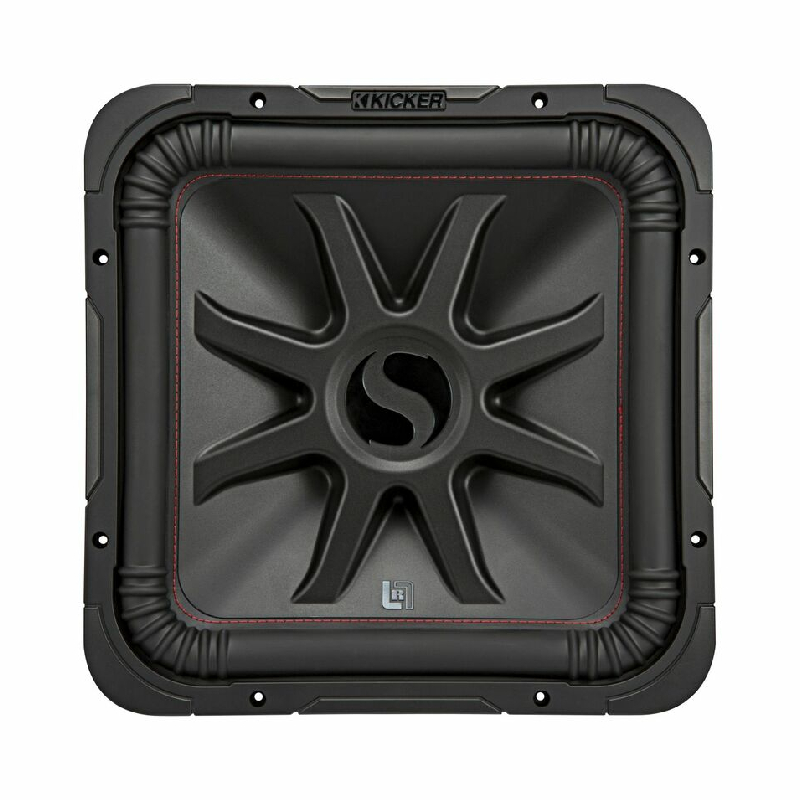

Hip to be Square
It’s simple – more cone means more air moves. KICKER’s L7R Square Sub technology gives you up to 20% more cone area than a round sub.

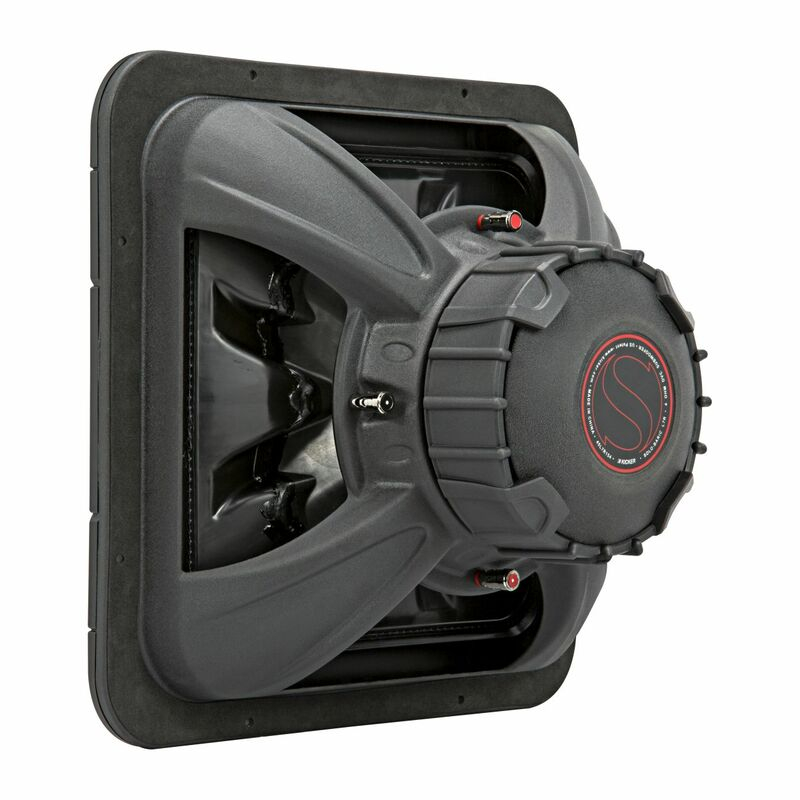

Braced for Impact
Full 360-degree back bracing keeps the entire cone strong and stable for smooth, distortion-free bass.

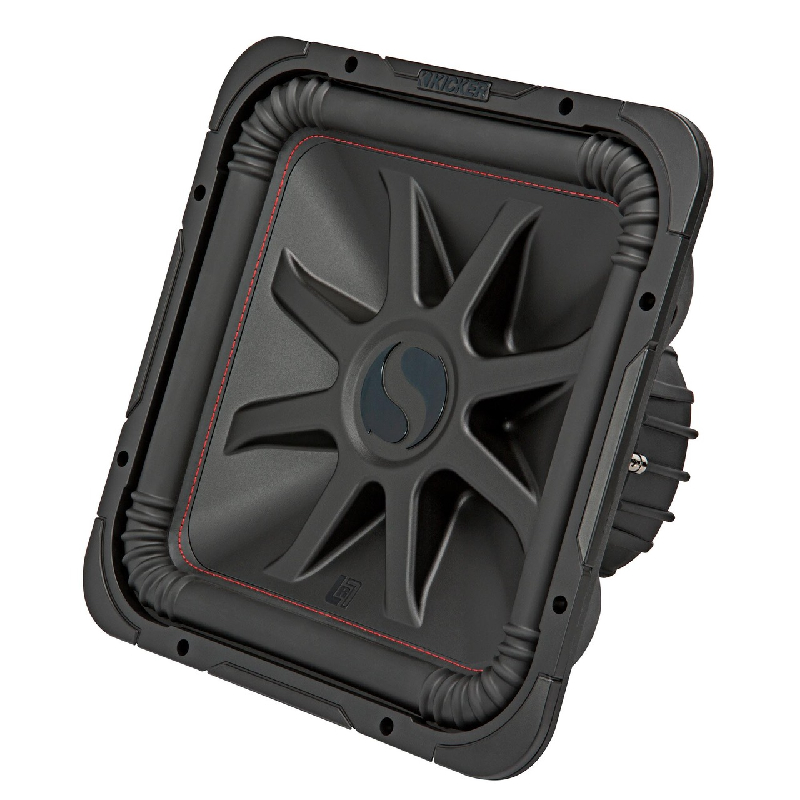

Signature Stitching
Signature red stitching binds the ribbed Santoprene® surround to the injection-molded SoloKon™ cone for added strength, even under extreme stress.

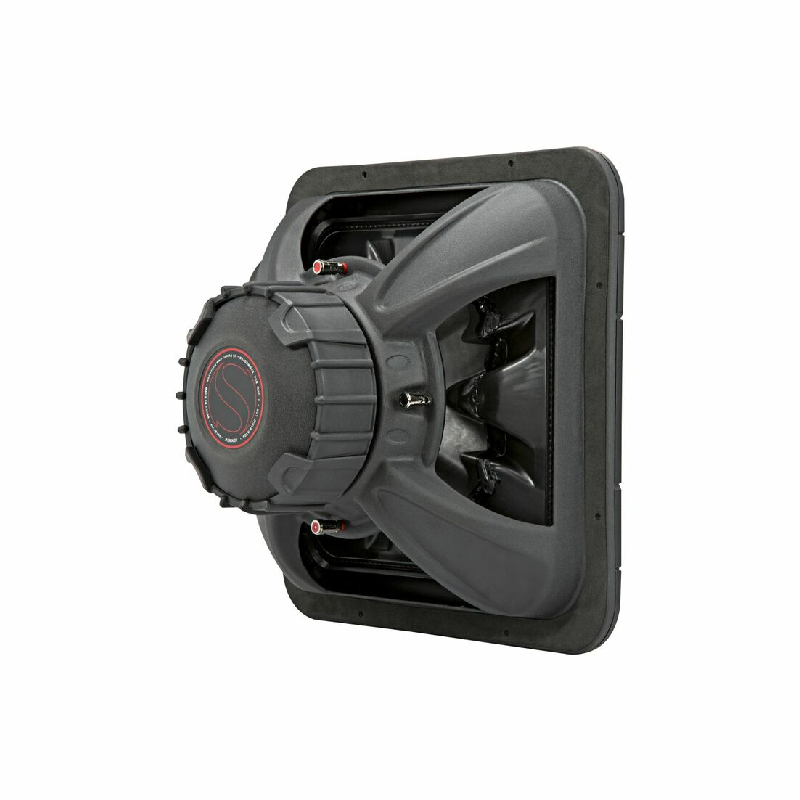

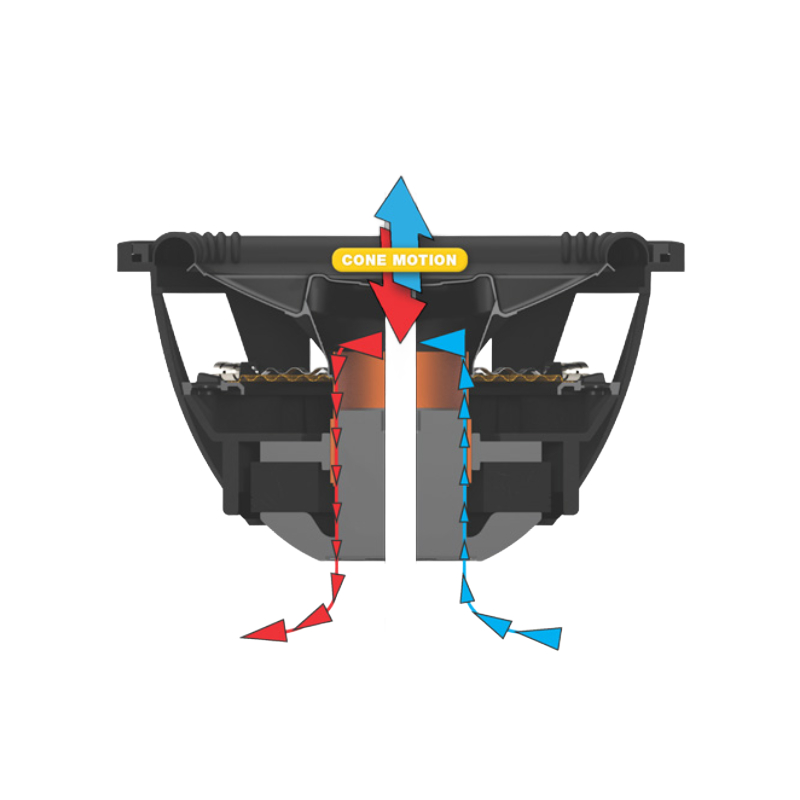

Takes the Heat

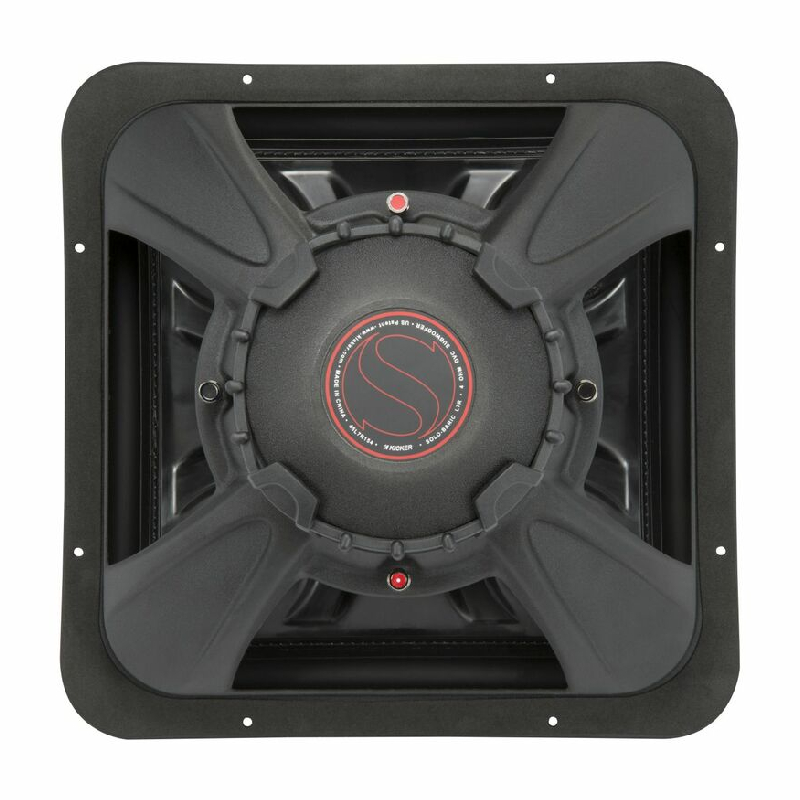

The L7R's powerful motor delivers big bass, while utilizing next-level thermal management for optimal performance. The UniPlate™ solid pole piece & backplate construction ensure the sub stays cool, even under extreme power loads.
It's Wired
Dual voice coils come standard on all L7R models, for ultimate wiring flexibility. Get the highest possible power out of your amp.
- Diameter : 15 Inch
- Maximum Power : 1800 Watts
- Low Frequency response : 20 Hz
- High Frequency Response : 100 Hz
- Sensitivity : 88.05 dB
- Impedance : 2 Ohm
- Frequency Response : 20 - 100 Hz
- RMS Power Range : 900 Watts

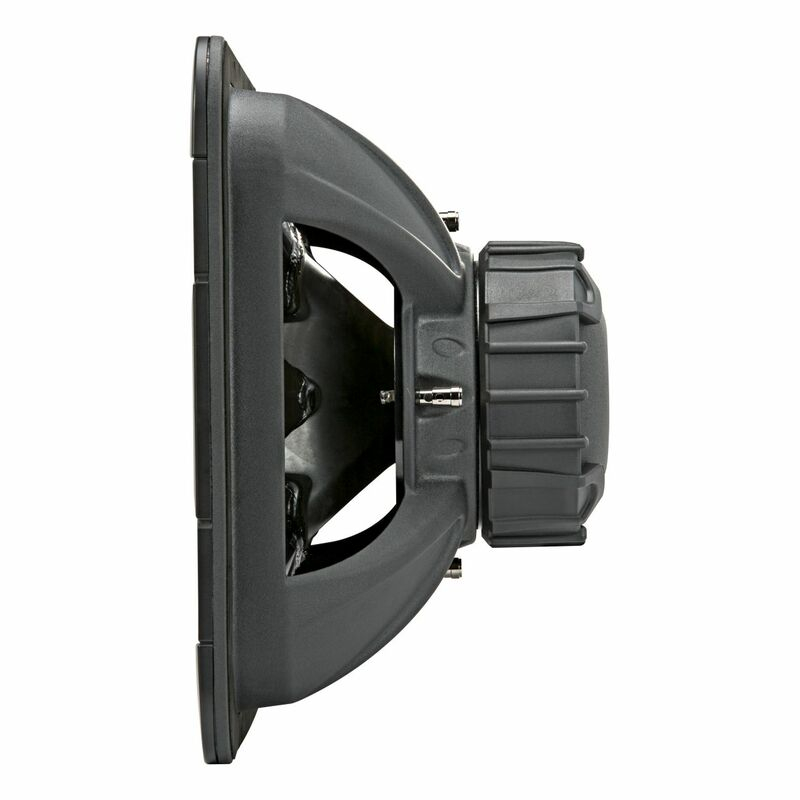

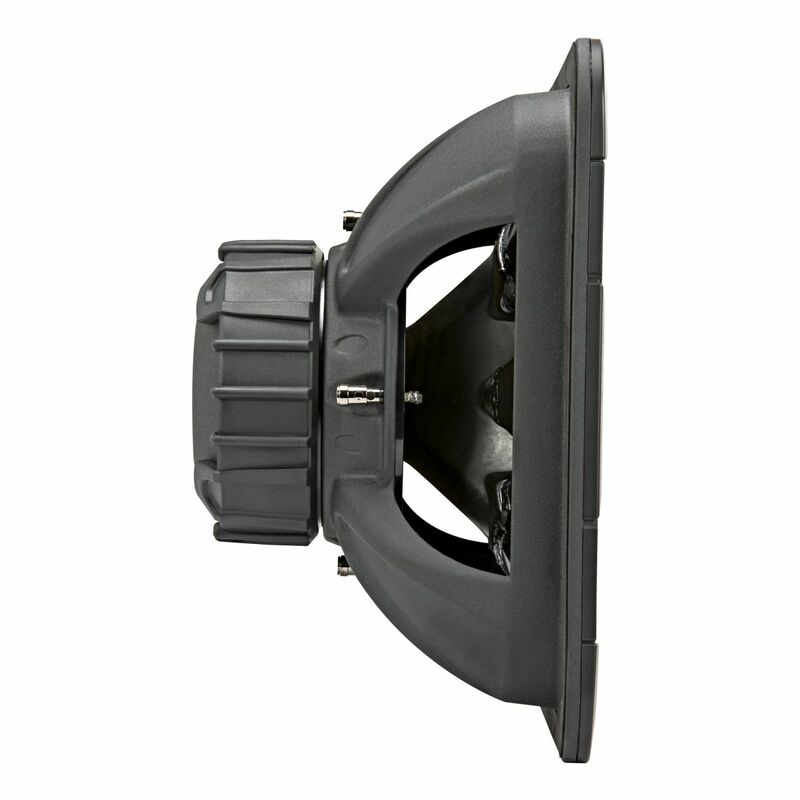

- Top Mount Depth : 8-3/8 Inches
- Number of Voice Coils : Dual
- Mounting Depth : 8-3/8 Inches
SQUARE SOLUTION
Our square subs deliver more cone area. That means we deliver more bass, yet require no more air space than a standard round sub.
Features:
- Dual two-Ohm Voice Coil
- Wrap Around Gasketing
- Patented Ribbed Corners
- Injection-Molded SoloKon™ Woofer
- 360-Degree Back Bracing
- UniPlate™ Back Plate And Pole Piece
- Bumped Back Plate
- Thick Tinsel Leads
- Large Ceramic Magnet
- Steel Basket With Spoke Design
- Nickel Plated Speaker Terminals
The L7R 10-Inch Subwoofer works best with 500 watts of recommended power in a sealed or ported enclosure. See below for more details.
Specifications:
- SIZE [in, cm]: 15, 38
- IMPEDANCE [Ohms]: 2 DVC
- POWER WATTS [peak/RMS]: 1800/900
- SENSITIVITY [dB 1w/1m]: 88.05
- MOUNTING DEPTH [in, cm]: 8 -3/8, 21.5
- MOUNTING DIAMETER [in, cm]: 13-3/4, 34.9
- MIN SEALED BOX VOL [cu. ft, L]: 1.5, 42.48
- MAX SEALED BOX VOL [cu. ft, L]: 3, 85
- MIN VENTED BOX VOL [cu. ft, L]: 3, 85
- MAX VENTED BOX VOL [cu. ft, L]: 6, 170
What's in the Box:
- UPC: 713034085737
- Weight: 33
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
