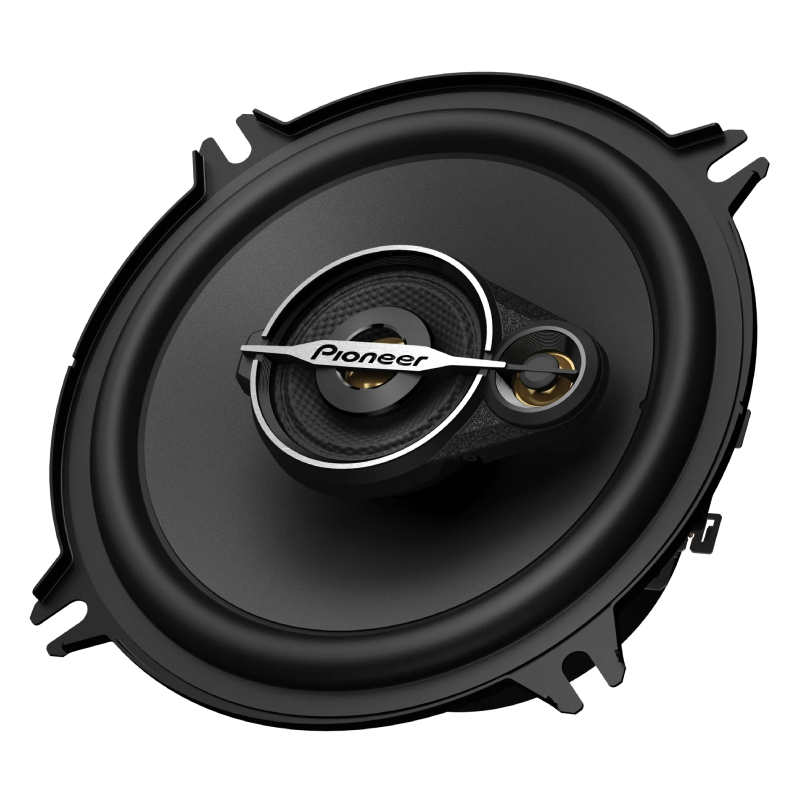

Pioneer TS-A1371F A-Series 50W RMS (300W Peak Power Handling) 4 Ohms 3-way Coaxial Speakers (Pair)
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) A-Series 50W RMS 4 Ohms 3-way Coaxial Speakers
- • Owners Manual
Why Choose Pioneer TS-A1371F Full Range Car Speaker?
Cruise with Clear Pioneer Coaxial Sound
The Pioneer TS-A1371F A-Series coaxial speakers are car audio speakers designed for in-car entertainment systems. These speakers are typically installed in the factory locations in a car, such as in the doors or rear deck. They can be an upgrade over factory-installed speakers and provide better sound quality and clarity. Keep in mind that the actual performance of these speakers also depends on factors like your car's acoustics, the quality of your head unit (stereo), and how well they are installed.
Next-Level Sound with 3-Way Speakers
It has a 3-way Coaxial speaker eans that each speaker unit consists of three different components: a woofer for low frequencies, a midrange driver for mid-range frequencies, and a tweeter for high frequencies. This setup is designed to provide a broader range of audio frequencies and improved sound quality compared to 2-way speakers.
Frequently Asked Questions (FAQ)
- • Will these work with my factory stereo?
Yes. They are compatible with most factory and aftermarket head units, although adding an external amplifier can improve overall volume and sound quality.
- • Why do the speakers sound distorted when I turn up the volume?
Distortion is usually caused by amplifier clipping, excessive bass boost, or insufficient power from the head unit. Lowering the volume or using a properly matched amplifier will produce cleaner sound.
- • Why is the bass weaker than I expected after installing them?
Weak bass is often caused by incorrect speaker polarity or gaps between the speaker and the mounting surface. Verify the wiring and ensure the speakers are securely mounted to prevent sound leakage.
- • Will these fit my factory 5-1/4-inch speaker locations?
They fit many vehicles with factory 5-1/4-inch speaker openings, but compatibility varies by make and model. Some installations may require mounting brackets or wiring harness adapters.
- • Why does one speaker cut in and out while driving?
Loose wiring, damaged speaker cables, or poor terminal connections are the most common causes. Inspect all wiring and connectors before replacing the speaker.
- • Can I connect these to an aftermarket amplifier?
Yes. A compatible amplifier provides cleaner power and helps improve clarity, volume, and overall performance.
- • Why do my door panels rattle after installing these speakers?
The increased output can cause factory door panels and trim pieces to vibrate. Installing sound-deadening material and tightening loose hardware can greatly reduce unwanted rattles.
- • Do these speakers require a break-in period?
Yes. Playing music at moderate listening levels for several hours allows the speaker suspension to loosen naturally and improves overall sound quality.
- • Why do I hear crackling or popping sounds during playback?
Crackling noises are commonly caused by damaged wiring, amplifier clipping, or a faulty audio source. Check your wiring, amplifier settings, and source device to locate the issue.
- • Are these good for different types of music?
Yes. Their full-range design delivers balanced performance for rock, pop, hip-hop, country, jazz, podcasts, and everyday listening.
- Diameter : 5.25 Inch
- Sensitivity : 89 dB
- Impedance : 4 Ohm
- Frequency Response : 44-52000 Hz
- Peak Power Handling : 300 Watts
- Design : 3 Way
- Woofer Composition : Carbon and Mica reinforced IMPP
- Tweeter Composition : Polyethylene Terephthalate (PET)
- RMS Power Handling : 50 Watts
Features:
- 300 Watts Max Power (50 Watts Nominal)
- 11mm Tweeter
- 1-5/8" cellulose fiber cone midrange
- 5-1/4" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
Specifications:
- System Type: Coaxial 3-Way
- Sound Pressure Level (Sensitivity): 89 dB (+- 1.5dB)
- Frequency Range: 44 Hz to 52 kHz
- Continuous Power Handling (RMS): 50 Watts
- Maximum Peak Power Handling: 300 Watts
- Nominal Impedance: 4 ohms
- Diameter: 5-1/4"

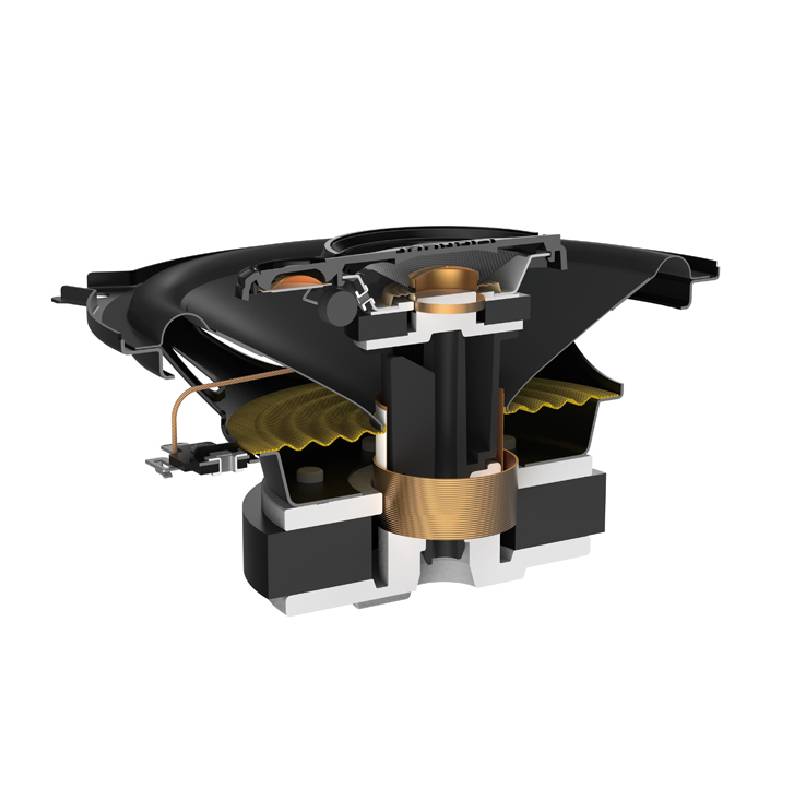

- Woofer Cone Material: Carbon and mica reinforced IMPP
- Woofer Surround Material: Elastic Polymer
- Woofer Basket Material: Iron Plate Press
- Woofer Magnet Material: Ferrite
- Woofer Magnet Weight: 7.14 oz
- Woofer Voice Coil Bobbin: Glass Imide
- Woofer Voice Coil Wire: Copper
- Woofer Mounting Depth: 2-1/8" (Deep basket)
- Tweeter Type: Polyethylene terephthalate (PET) hard dome
- Tweeter Diameter: 11 mm
- Tweeter Diaphragm Material: Film (PET)
- Tweeter Magnet Material: Neodymium
- Warranty (must be purchased from an Authorized Pioneer Dealer): 1 year
- UPC: 884938509268
- Weight: 2
