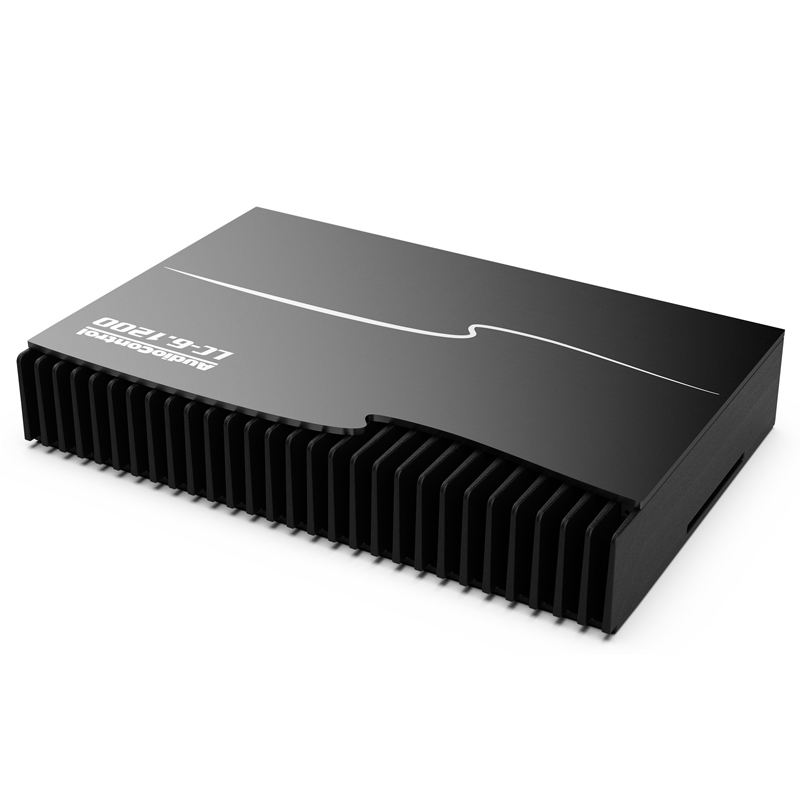

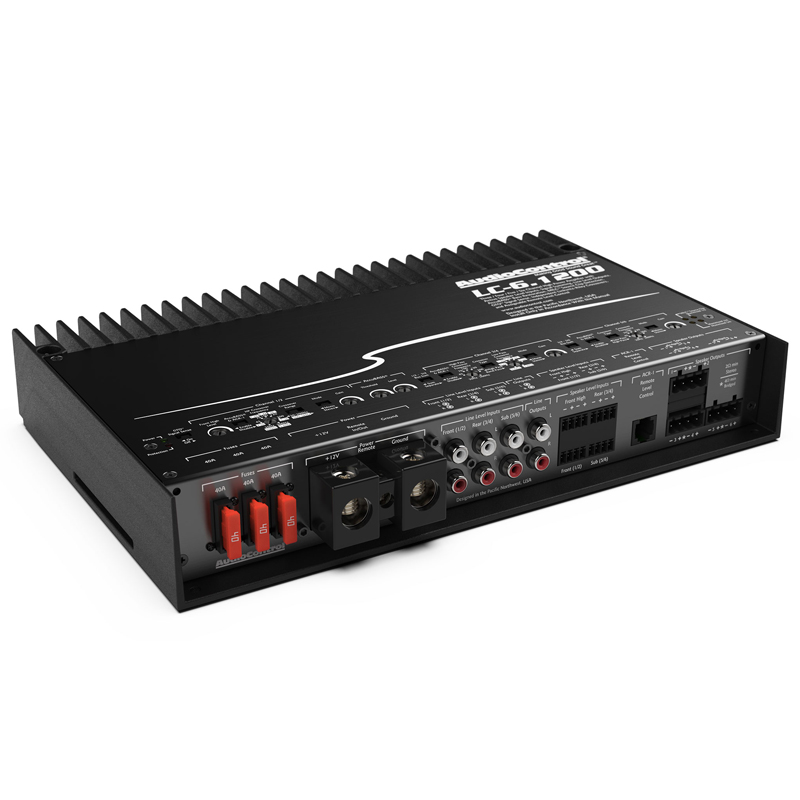

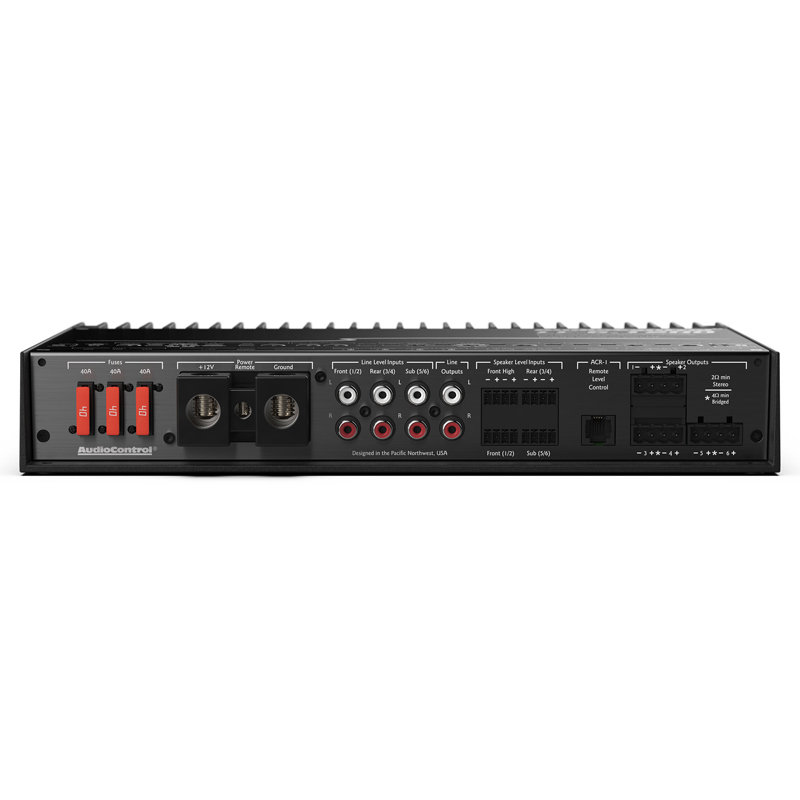

AudioControl LC-6.1200 High Power Class 200W x 6 RMS @2Ohms, 1200W Max Power Class D 6-Channel Amplifier
We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •LC-6.1200
- •Speaker Connectors
- • Fuses
- •Manual
- •Owner's manual
Performance and Advanced Signal Processing
The AudioControl LC-6.1200 is a 6-channel car audio amplifier with high-quality sound performance and advanced signal processing capabilities. With a power output of 125 watts RMS per channel at 4 ohms, this amplifier delivers clean and powerful audio for your car's speakers.
Enhance Low-frequency Audio Signals
The LC-6.1200 features AudioControl's patented AccuBASS technology, which helps restore and enhance low-frequency audio signals, providing a full and rich bass response. It also incorporates GTO (Great Turn-On) signal-sensing technology, which allows the amplifier to automatically turn on and off with your vehicle's ignition, simplifying the installation process.
Active Speaker-level Inputs
This amplifier is equipped with active speaker-level inputs, allowing you to directly connect it to your vehicle's factory stereo system without additional converters or adapters. It also offers a 12-volt remote turn-on output, making it compatible with various aftermarket head units.The LC-6.1200 includes advanced signal processing features such as 3-way Linkwitz-Riley crossovers, independent gain controls for each channel, and selectable high-pass and low-pass filters.
Allowing Seamless Integration With Your Car Audio System.
These controls give you precise control over the audio output, allowing seamless integration with your car audio system. The AudioControl LC-6.1200 is a versatile and powerful amplifier with excellent sound quality and advanced signal processing capabilities. Whether upgrading your factory system or building a custom car audio setup, this amplifier delivers exceptional performance and flexibility.
- Maximum Power : 1200 Watts
- Low Frequency Response : 30-300 Hz
- High Frequency Response : 500-5000 Hz
- Number of Channels : 6
- Frequency Response : 10-30000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 125x6 Watts
- Channel Separation : Yes
- Amplifier Class : D
- Fuse Rating : 120 A
- XP750-SE OFFER : Yes
Features:
- Configurable as 6/5/4/3/2 channel amplifier
- 6 x 200 watts @ 2 ohms
- 6 x 125 watts @ 4 ohms
- 400 watts @ 4 ohms bridged
- AccuBASS® Processing
- MILCTM Maximum Input Level Control (Patent Pending)
- GTOTM Signal Sense
- 3-way Independent Linkwitz-Riley Alignment crossovers
- Summable active speaker-level inputs (8 channels) for OEM integration
- 6 preamp inputs
- 2 assignable preamp outputs
- PFM Subsonic Filter
- Optional ACR-1 assignable remote control
- Solid One-Piece Aluminum Chassis
Specifications:
- 6 x 200 watts @ 2 ohms
- 6 x 125 watts @ 4 ohms
- 400 watts @ 4 ohms bridged
- Preamp Inputs: 6 balanced
- Preamp Input Voltage Range: 250 mV – 8 Vrms
- Speaker Level Inputs: 8
- Speaker Level Input Voltage Range: 3 V – 40 Vrms
- Preamp Outputs: 2
- Maximum Preamp Output: 8.5 V RMS
- Frequency Response: 10 Hz – 30 kHz
- Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
- THD+N: < 0.1%
- Minimum Power / Ground Wire Gauge: 3 AWG wire
- Fuse Rating: 3 x 40 A
- Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz
- Dimensions: 12″W x 8.0″D x 2.1″H
- Configurable as 6/5/4/3/2 channel amplifier
- AccuBASS® Processing
- MILCTM Maximum Input Level Control (Patent Pending)
- GTOTM Signal Sense
- 3-way Independent Linkwitz-Riley Alignment crossovers
- Summable active speaker-level inputs (8 channels) for OEM integration
- 6 preamp inputs
- 2 assignable preamp outputs
- PFM Subsonic Filter
- Optional ACR-1 assignable remote control
- Solid One-Piece Aluminum Chassis
- UPC: 851523007201
- Weight: 5
