Kicker 46CSS654 CS Series 6.5" 100W RMS (300W Peak Power Handling) 4 Ohms, Component Speaker System
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

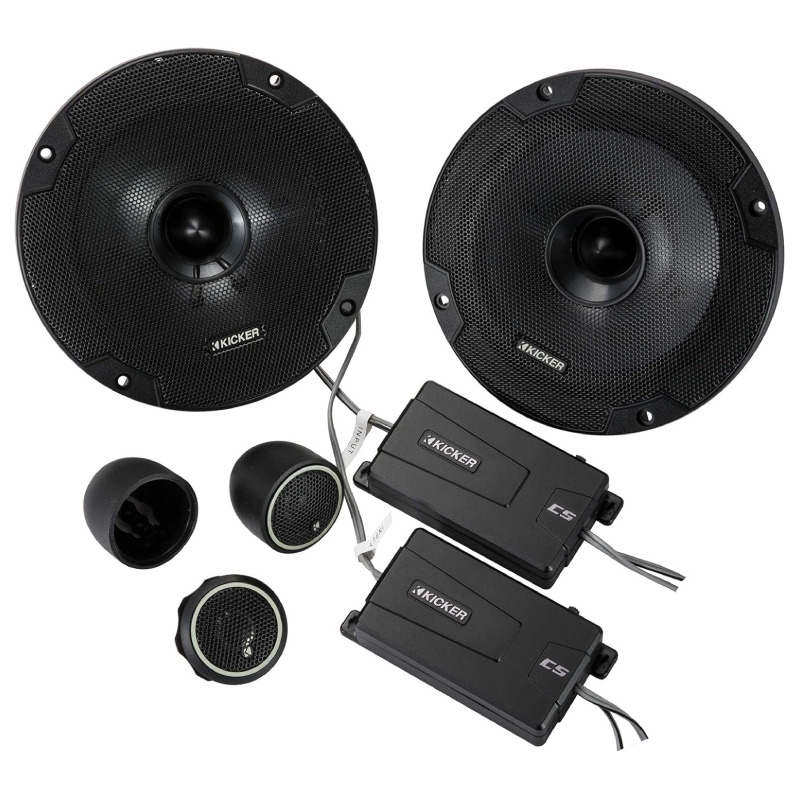

What's Inside?
- • (2) 6.5" CS Series Component Speaker System
- • (2) Woofer grilles
- • (2) Tweeters (each with 36" Wire attached)

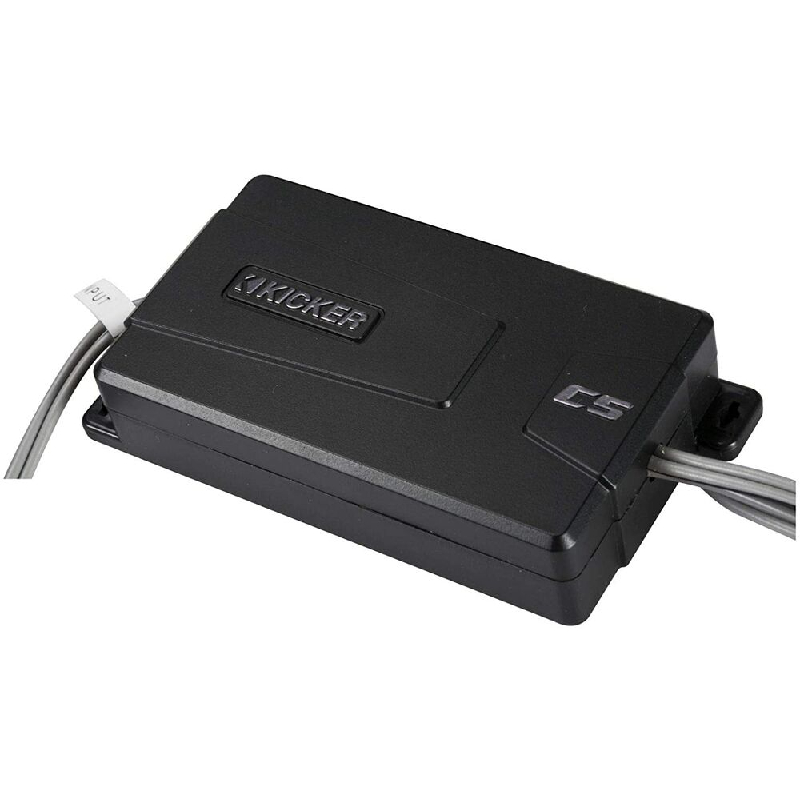

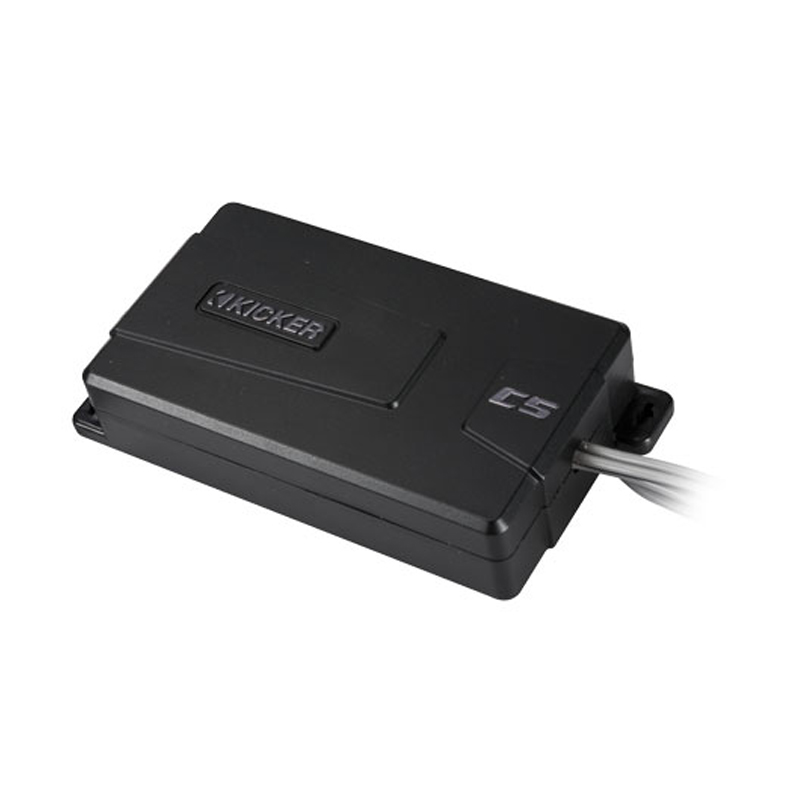

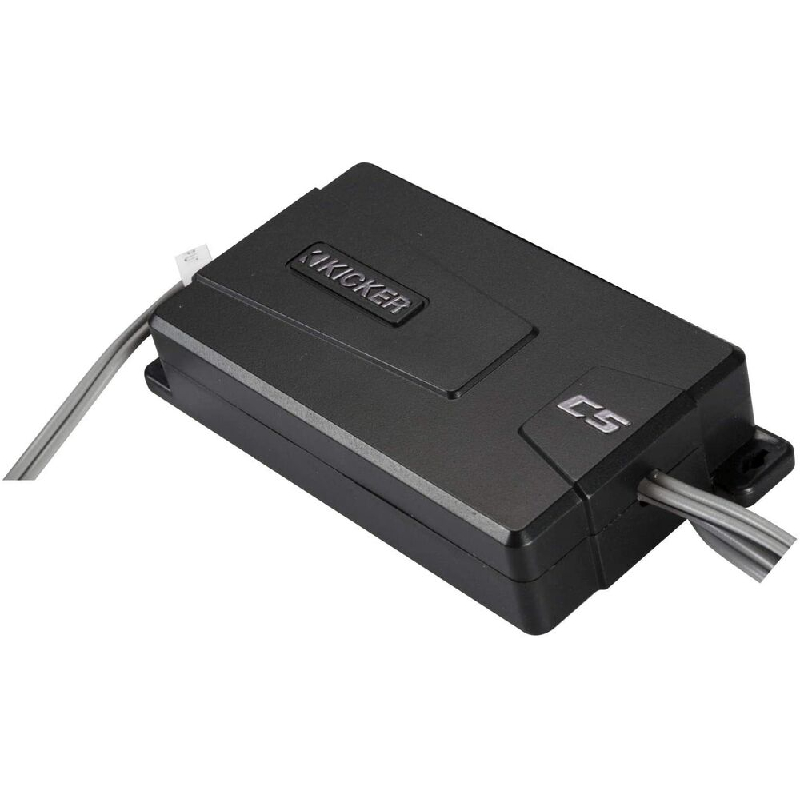

- • (2) Crossovers with 35" input, tweeter & woofer leads
- • (2) Flush mount tweeter rings
- • (2) Short tweeter mounting nuts
- • (2) Long tweeter mounting nuts
- • (2) Back angled tweeter rings
- • (2) Front angled tweeter rings

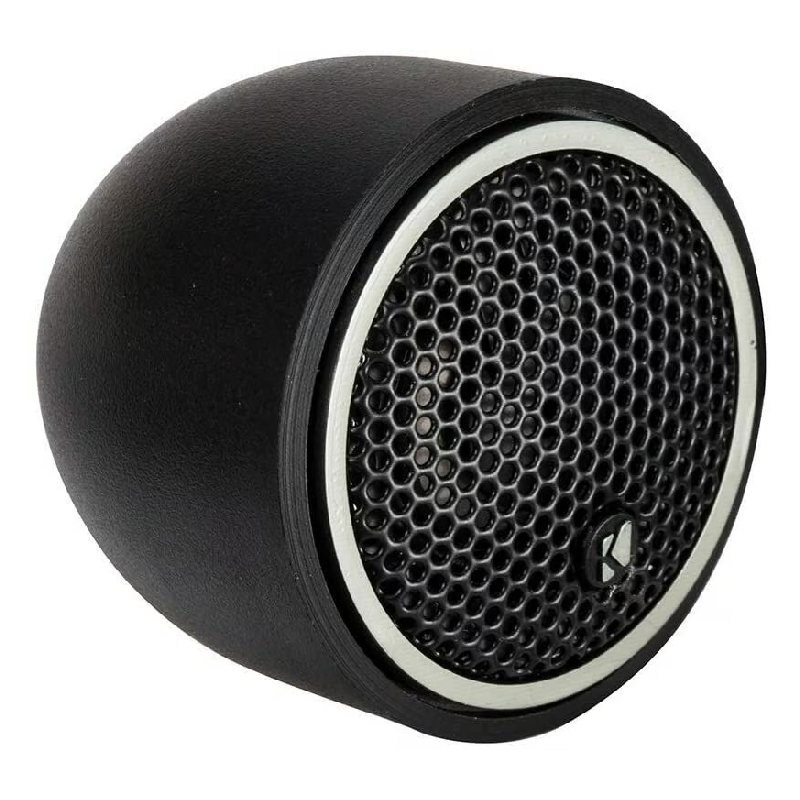

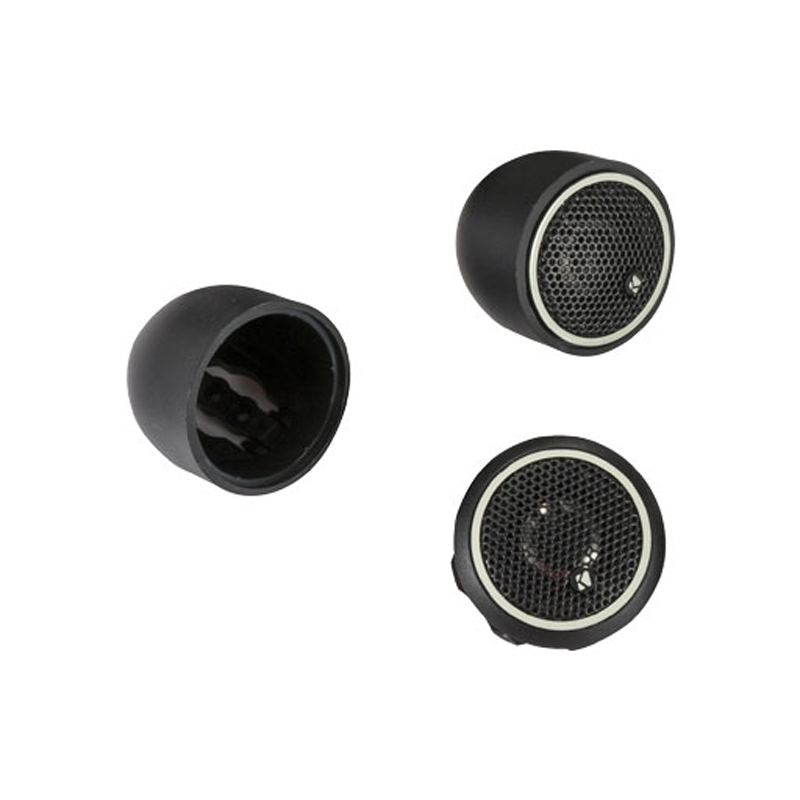

- • (2) Angled surface mount tweeter housings
- • (12) 1" Screws
- • (4) 5/8" Screws
- • (4) 7" Zip-ties
- • (4) Red plastic wire caps
- • Owner's Manual
Why Choose Kicker 46CSS654 Component System??
Component System That Delivers High-quality Audio

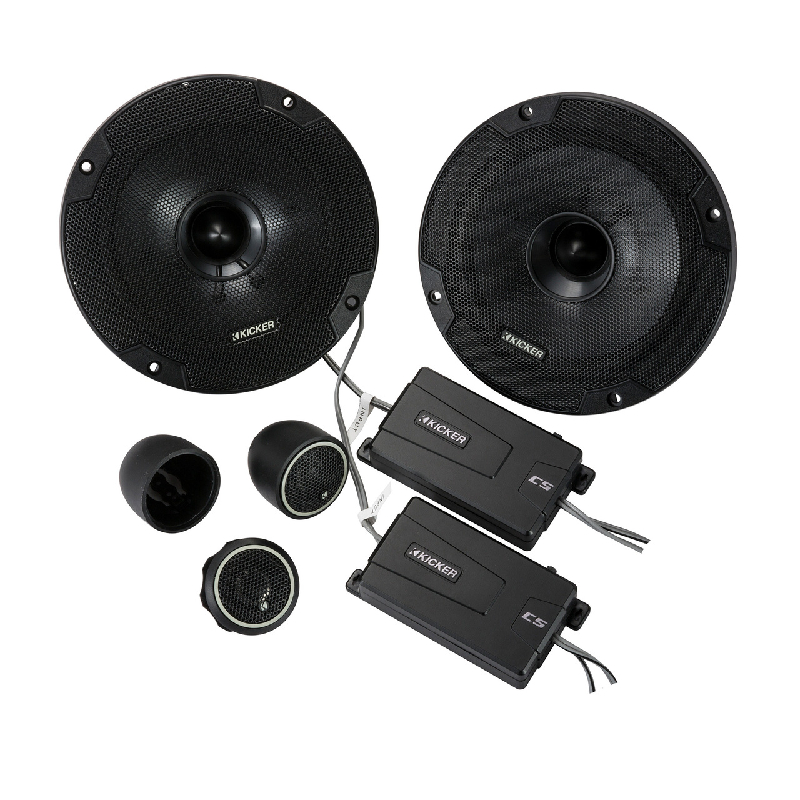

A budget component system that delivers high-quality audio, the Kicker 46CSS654 is designed for car audiophiles who are on a tight budget but still have better audio performance than your stock car audio speakers. Consisting of two woofers, two tweeters, and a pair of crossovers, the Kicker 46CSS654 is ready to give you the full-range frequency performance you deserve.
Composed of a Polypropylene Cone

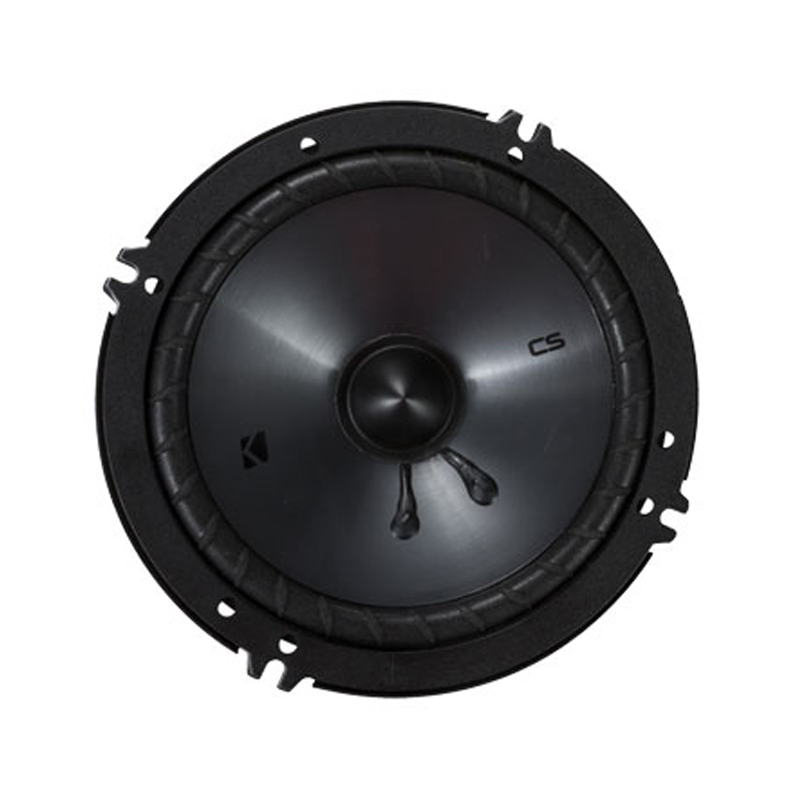

Its 6.5-inch woofer is composed of a polypropylene cone and a polyester foam surround, giving its durability even in the harshest conditions. Thanks to the phase plug in its cones, the Kicker 46CSS654 can give you a heart-pounding but accurate bass production with minimal distortion, even if it is used for extended periods at high volume levels.
Comes With a Pair of Crossovers

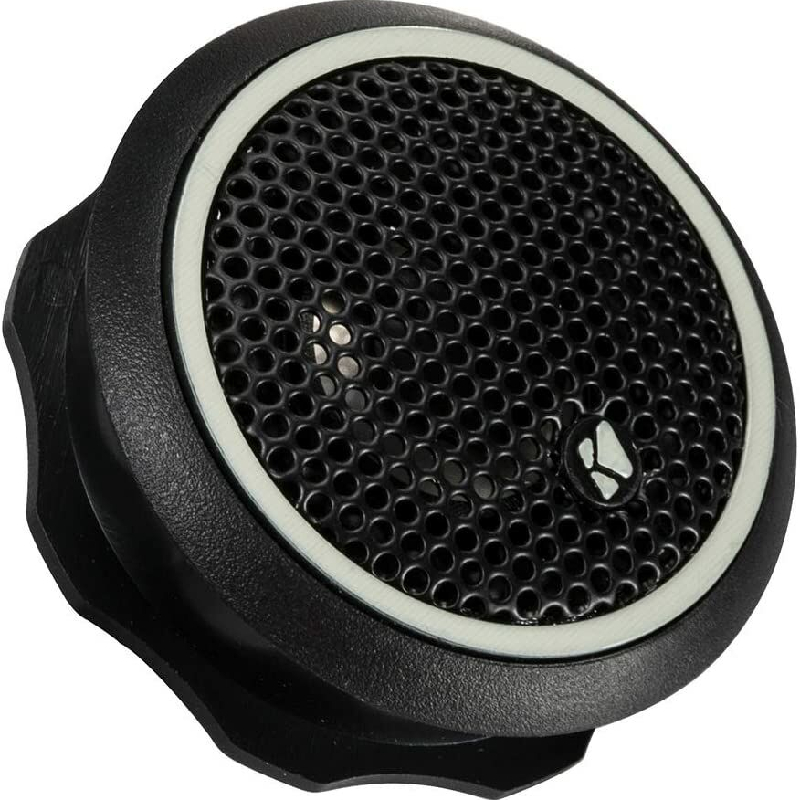

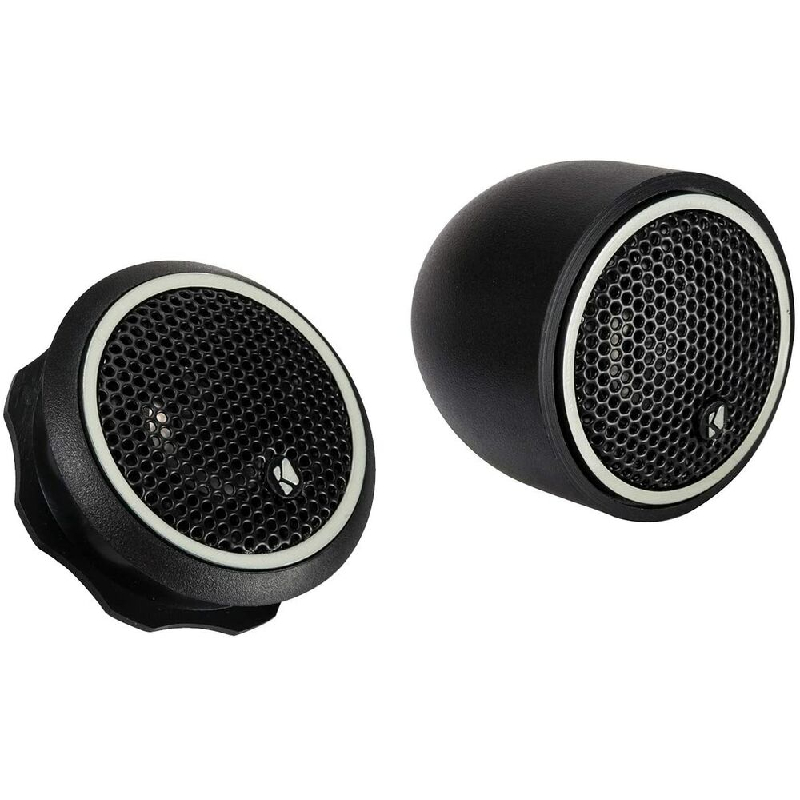

The Kicker 46CSS654 has a pair of 0.75-inch titanium tweeters with a dome design to give you high frequencies that perfectly match the woofer’s bass and mid-frequency output. It also uses neodymium magnets, so you can crank up your audio source's volume with a minimal breakup. It also comes with a pair of crossovers with a three-level tweeter setting for a more defined audio quality production.
Frequently Asked Questions (FAQ)
- • Why are my tweeters not producing any sound after installation?
Verify that the passive crossovers are connected correctly and that the tweeter leads are securely attached. A loose connection or incorrect wiring is the most common cause of silent tweeters.
- • Can I install the tweeters using the angled or flush mounting hardware included in the package?
Yes. The included flush-mount rings and angled surface-mount housings allow you to choose the mounting style that best fits your vehicle and listening preferences.
- • Why do the door speakers produce very little midbass?
Poor door sealing or reversed speaker polarity can greatly reduce midbass performance. Properly sealing the speaker to the door and confirming correct wiring usually improves bass response.
- • Do I have to use the included passive crossovers?
Yes. The crossovers are designed to split frequencies correctly between the woofers and tweeters while helping protect both drivers from unwanted frequencies.
- • Why do my speakers distort when I increase the volume?
Distortion is commonly caused by amplifier clipping or sending too much bass to the component speakers. Setting a proper high-pass crossover and correctly adjusting amplifier gain will improve sound quality.
- • Can I run this component system directly from my factory stereo?
Yes. It will work with many factory head units, although adding an aftermarket amplifier will provide higher output and cleaner sound.
- • Why does the left speaker sound different from the right one?
Check the crossover wiring, speaker polarity, and balance settings on the head unit. A loose connector or incorrect installation is usually responsible for uneven sound.
- • Can I use the included woofer grilles if my vehicle doesn't have factory speaker covers?
Yes. The included woofer grilles help protect the speakers from accidental contact and debris in custom installations.
- • Why do the tweeters sound too harsh or bright?
Harsh highs are often caused by tweeter placement or excessive treble boost on the head unit. Repositioning the tweeters and reducing the high-frequency EQ usually creates a smoother sound.
- • Does this package include everything needed for a basic component speaker installation?
Yes. The package includes two woofers, two tweeters, passive crossovers, multiple tweeter mounting options, grilles, mounting hardware, zip ties, wire caps, and an owner's manual for installation.
- Diameter : 6.5 Inch
- Sensitivity : 90 dB
- Frequency Response : 35-21000 Hz
- Peak Power Handling : 300 Watts
- RMS Power Handling : 100 Watts
Features:
- Factory Upgrade Performance: The CS-Series 6-1/2" component speakers deliver outstanding sound quality.
- Easy Installation: Designed to fit nearly any vehicle.
- Titanium Tweeters & Two-Way Crossovers: Separate tweeters and crossovers with a three-position tweeter switch for customized highs.
- 12dB Crossovers with Compact Design: Smaller footprint allows for easier installation.
- EVC™ (Extended Voice Coil) Technology: Enhances bass response for a richer sound.
- Neodymium Magnets & Titanium Tweeter Construction: Reveals subtle audio details with precision.
- UV-Treated Poly-Foam Surround: Ensures precise linear excursion for better sound quality.
- Phase Plugs in Woofer Cones: Eliminates distortion for a cleaner audio experience.
- Steel Mesh Grilles: Provides protection for long-lasting durability.

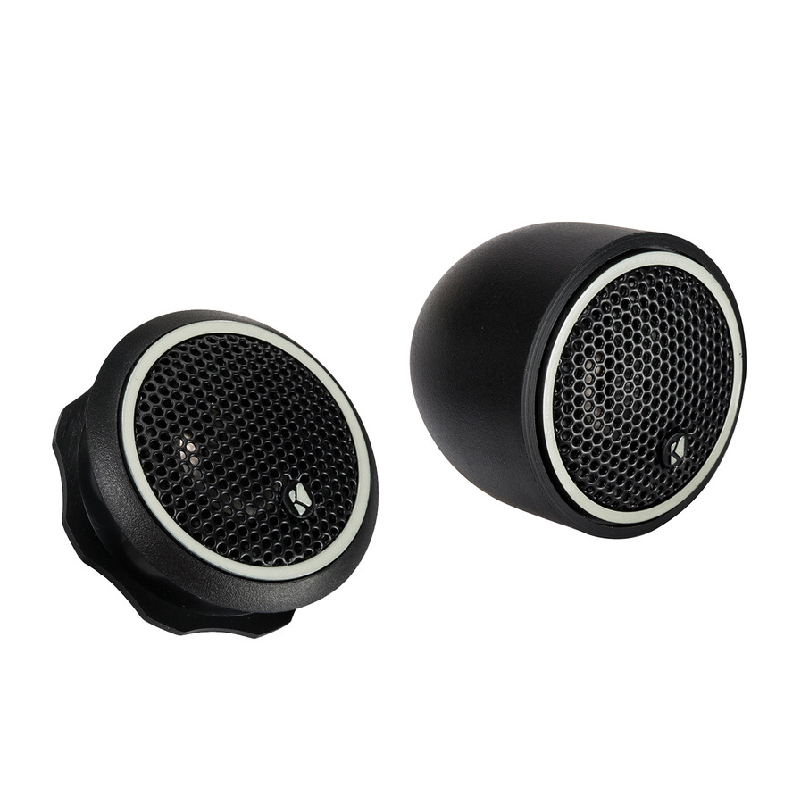

- Three Tweeter Mounting Options: Choose from flush, angled, or surface-mount pods for a custom look.
- Recommended Power Handling: Works best with 100 watts of power.
Specifications:
- Woofer Size | in [mm]: 6 1/2 [160]
- Tweeter Size | in [mm]: 3/4 [20]
- Dome Material: Titanium
- Peak Power | [watts]: 300
- Continuous Power | [watts RMS]: 100
- Effective Frequency Range | Hz: 35-21k
- Woofer Mounting Hole Diameter | in [mm]: 4 13/16 [123]
- Woofer Bottom Mount Depth | in [mm]: 1 11/16 [43]
- Flush Mounting Tweeter Hole Diameter | in [mm]: 1 9/16 [40]
- Flush Mount Tweeter Depth | in [mm]: 9/16 [14.5]
- High Pass | dB, at Frequency | Hz: 12, 4000
- Low Pass | dB, at Frequency | Hz: 12, 4000
- High Frequency Output Attenuation | dB: 0, 3, & 6
- Bolt-Thru Grilles: Yes
- UPC: 713034088400
- Weight: 3.8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
