Big Power, Small Size
Pioneer’s new extra-efficient Class-D digital amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.
Improved Circuit Design
To prevent circuit shutdown, Pioneer's new digital amplifier circuit "Protection Control System" senses its internal temperature and automatically moderates input level accordingly. Stable, durable circuitry lessens the risk of high input power for the unit to achieve 1 Ω connection. This design enhances the flexibility to connect multiple subwoofers to a system.
Variable Low-Pass and High-Pass Filter
For extra flexibility, variable LPF and HPF make audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The GM-DX874 LPF and HPF are adjustable from 40 Hz to 500 Hz.
Highlights:
- 1,200 Watts Max Power
- High Quality Textured Aluminum Panel and Tough Frame
- Gold RCA Terminals
- Hi-Res Audio capable

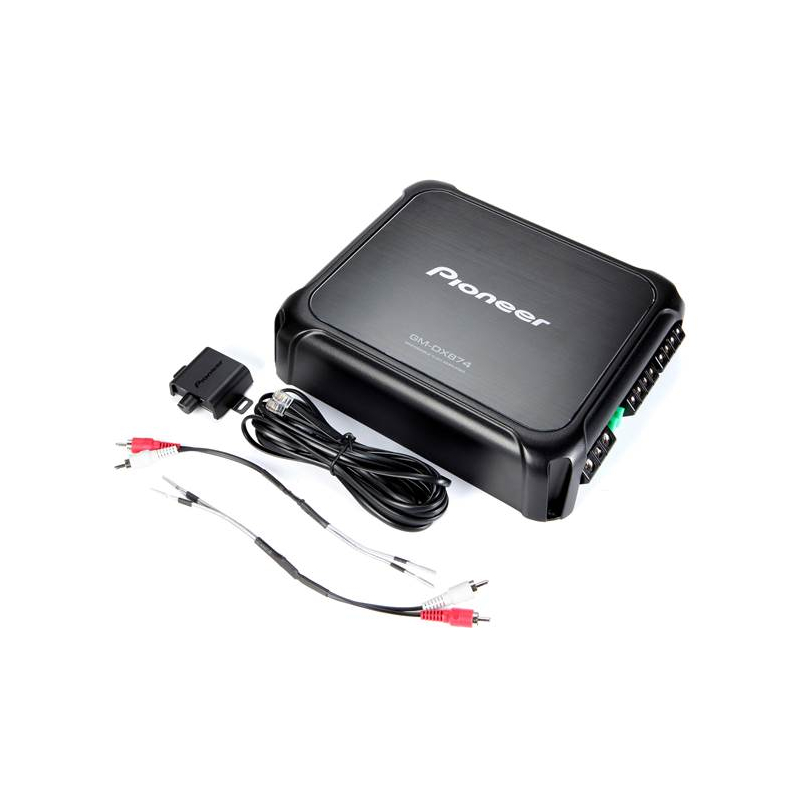

- Bass Boost Remote Included

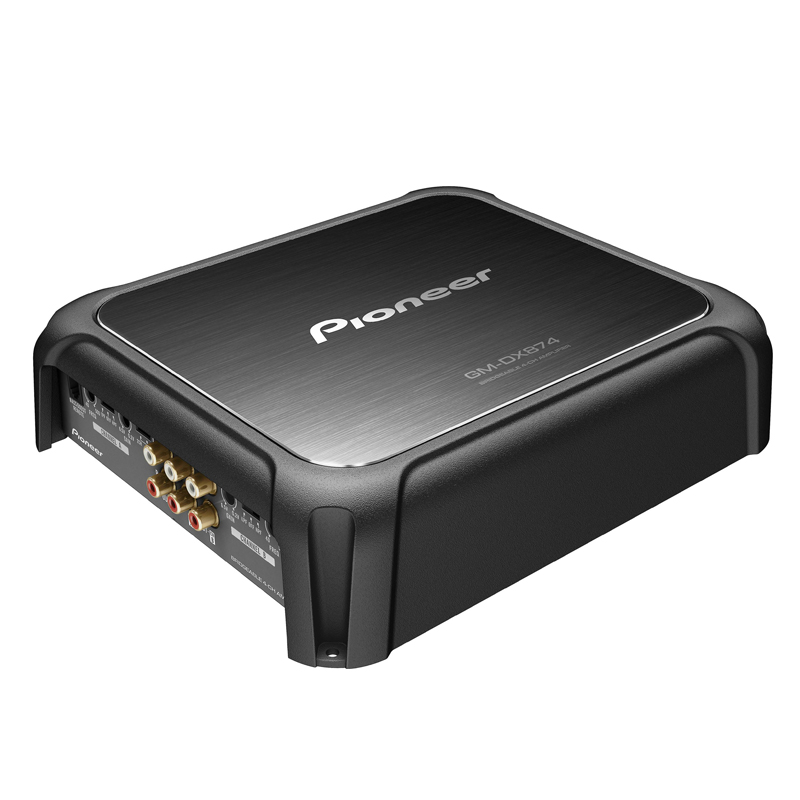

GM-DX874 4-Channel Amplifier
GENERAL

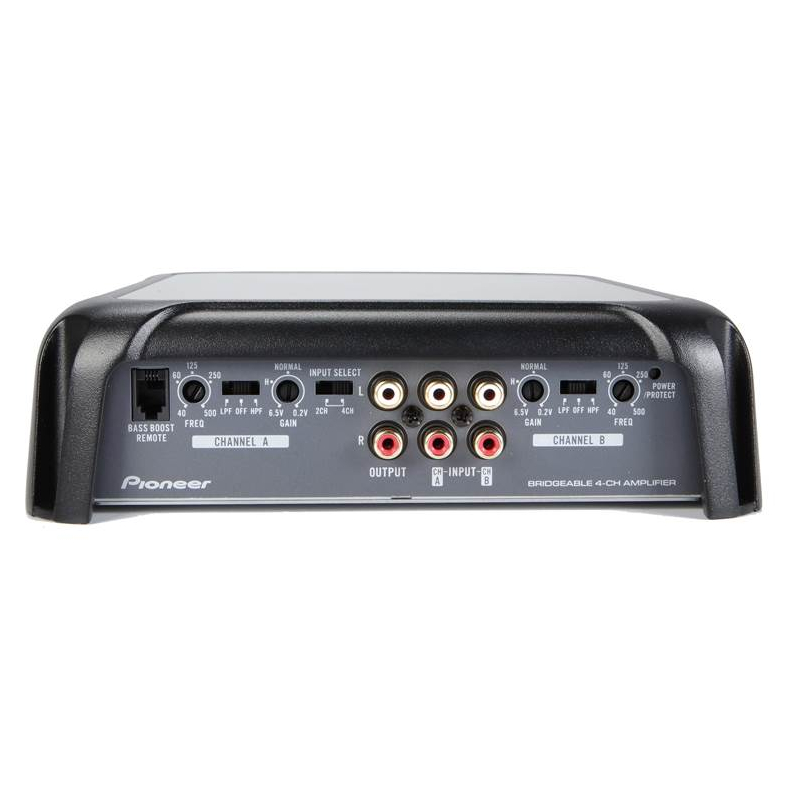

- RCA Inputs: 4-CH (Gold Plated)
- Amplifer Class: CLASS-D
- High Quality Sound Parts: Yes
- Hi-Res Certified: Yes
- Crossover Type: Variable HPF/LPF
- Bridgeable: Yes
- Warranty: 1 Year
SPECIFICATIONS
- Continuous Power (RMS) Output at 1 Ohm: 125W RMS x 4
- Continuous Power (RMS) Output at 2 Ohms: 150W RMS x 4
- Continuous Power (RMS) Output at 4 Ohms: 100W RMS x 4
- Continuous Power (RMS) Output - Bridged at 4 Ohms: 300W RMS x 2
- Frequency Response: 10 Hz to 50 kHz
- Total Harmonic Distortion (THD): < 0.05% (1 kHz)
- Signal-to-Noise (SN) Ratio: > 95 dB
- Low-Pass Crossover Frequency: 40 Hz
- Low Pass Slope (dB/octave): -12dB
- High-Pass Crossover Frequency: 500 Hz
- Bass Boost Frequency: 50 Hz
- Bass Boost Level: 0 dB to 18 dB

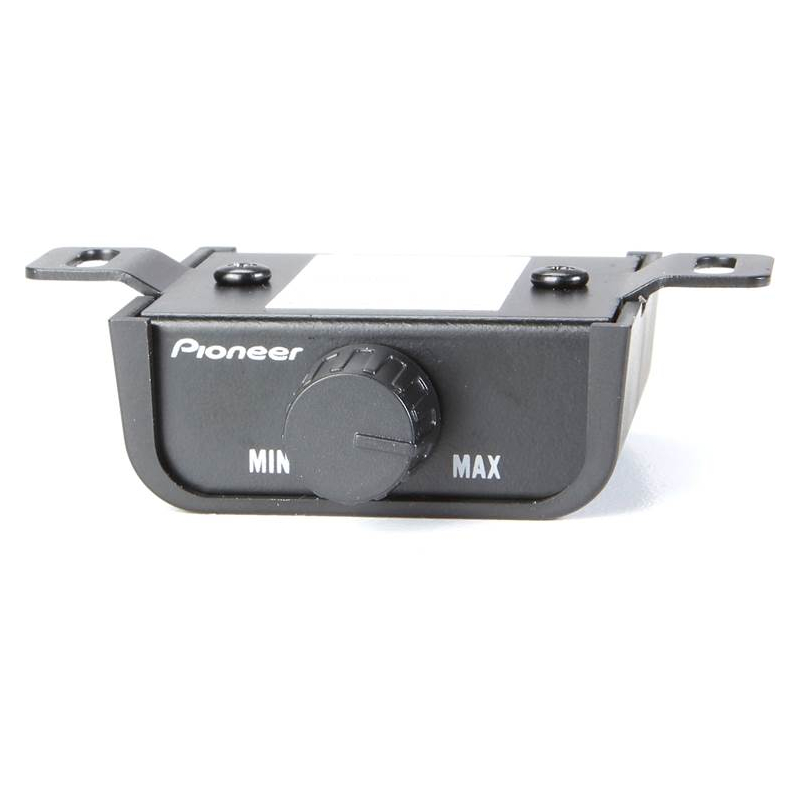

- Bass Boost Remote: Yes
- Hi-Volt Input Level Control: 200 mV to 6.5 V

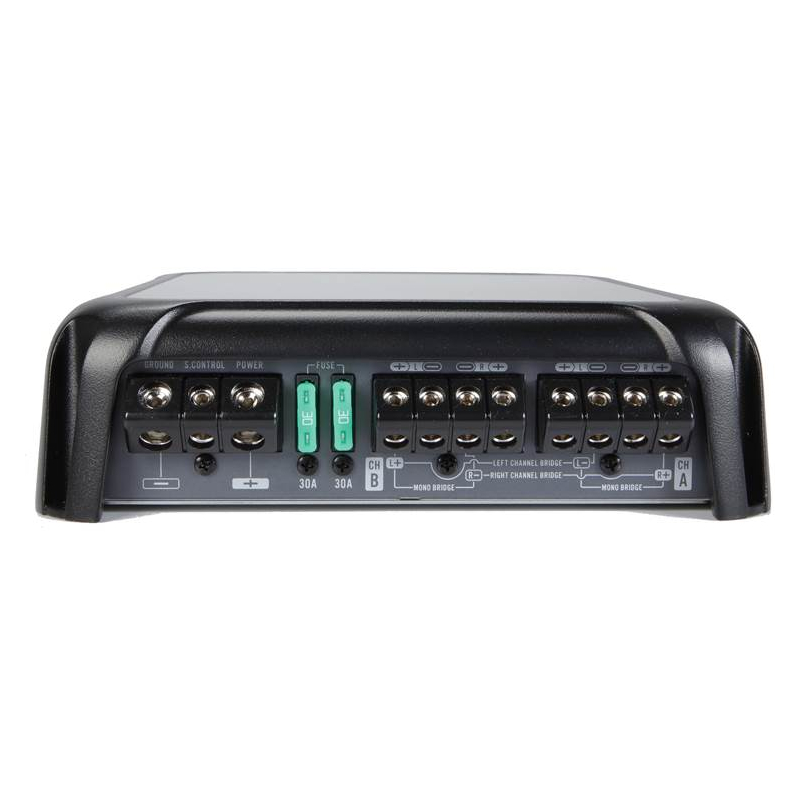

- Terminal Type: Block
- Load Impedance Allowance (Ohms): 1 to 8
- Protection Control System: Yes
- Dimensions: 10-3/8" x 2-3/8" x 7-7/8"
- UPC: 884938421843
- Weight: 10
