MB Quart  FKB168

Formula Series 5x7/6x8"100W Peak Power Handling, 4-Ohms, 2-way Coaxial Car Speakers

Item #52863

Product Highlights

  • Formula Series 5x7/6x8" coaxial speakers
  • 100W peak power, 4 ohms
  • 2-way design

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


MB Quart Banner

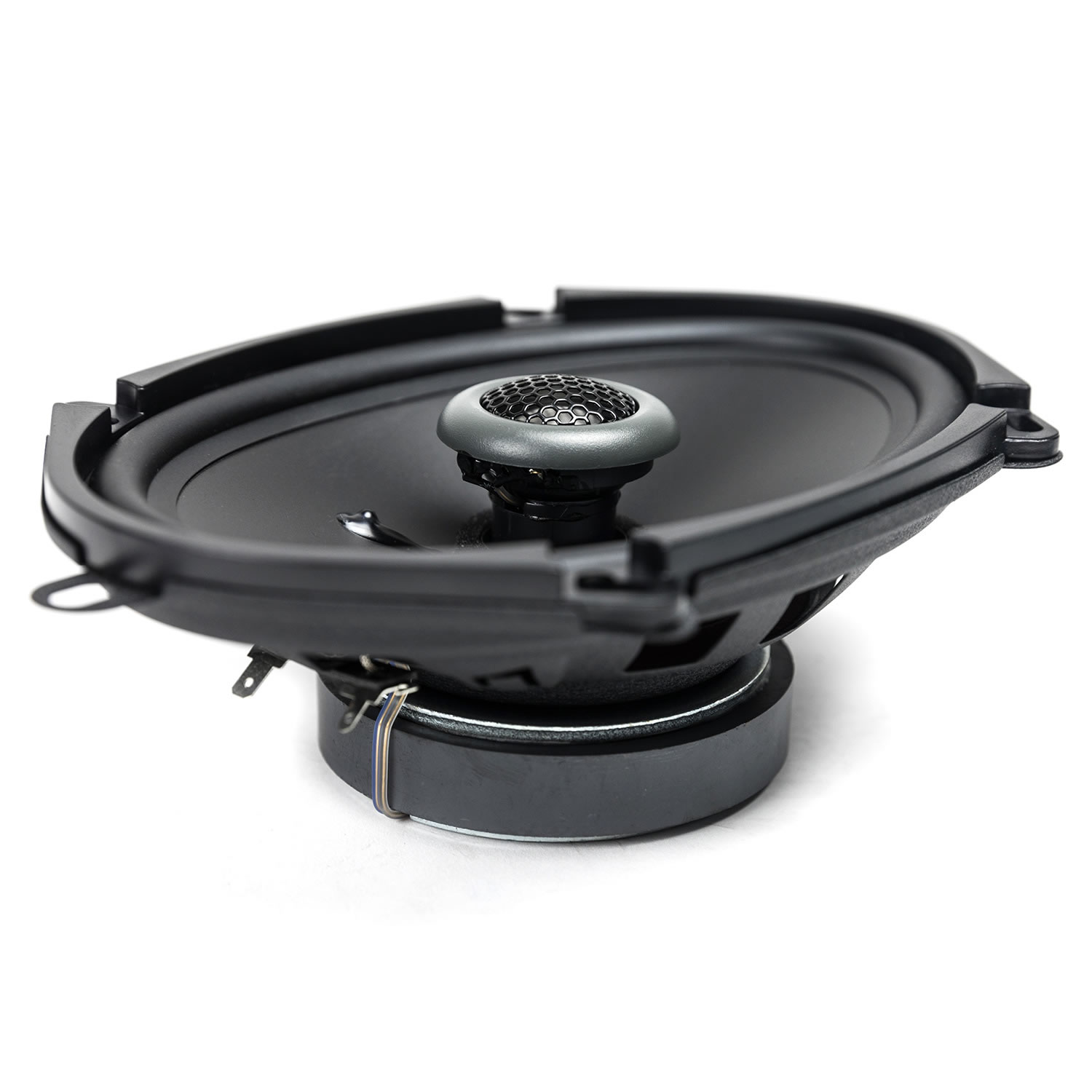

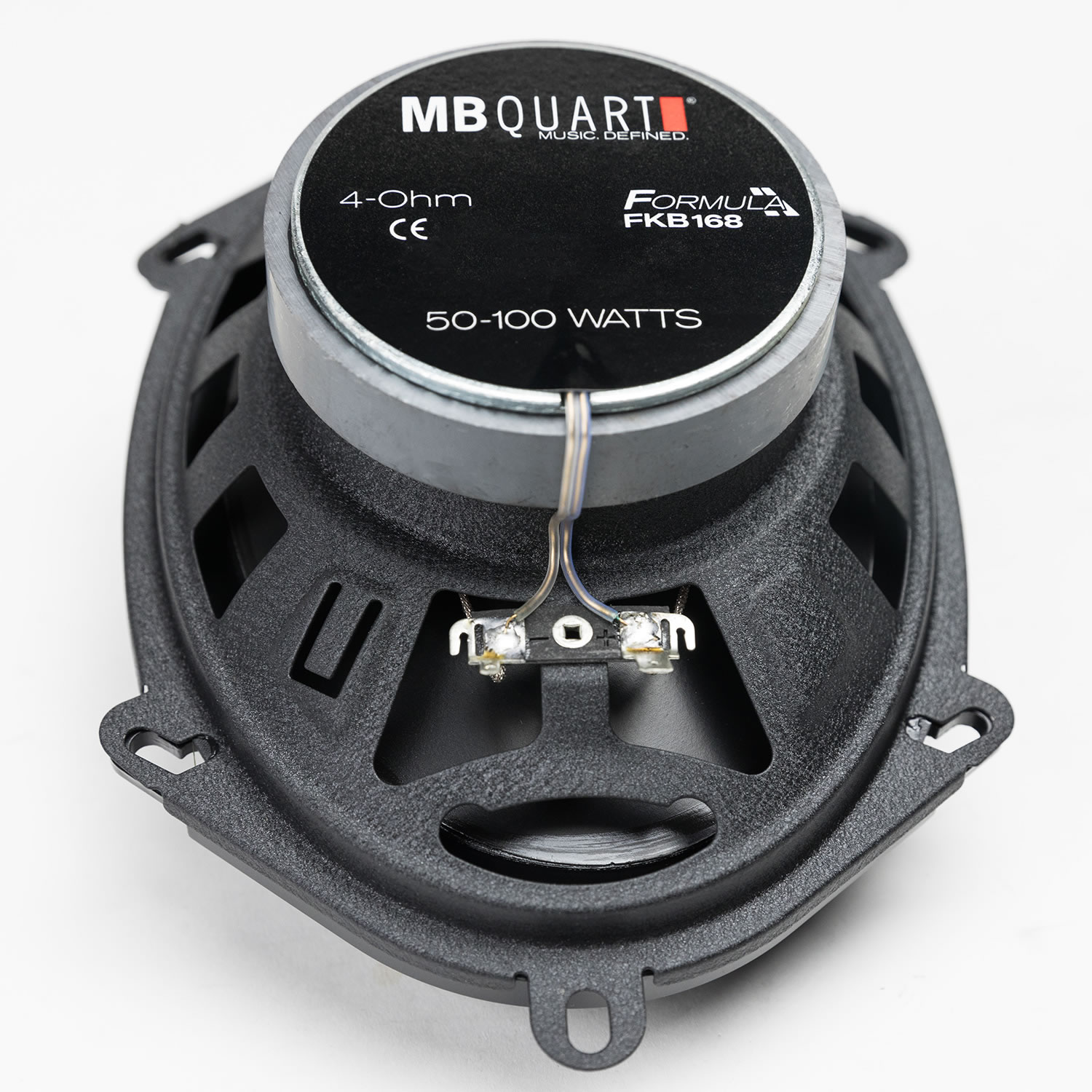

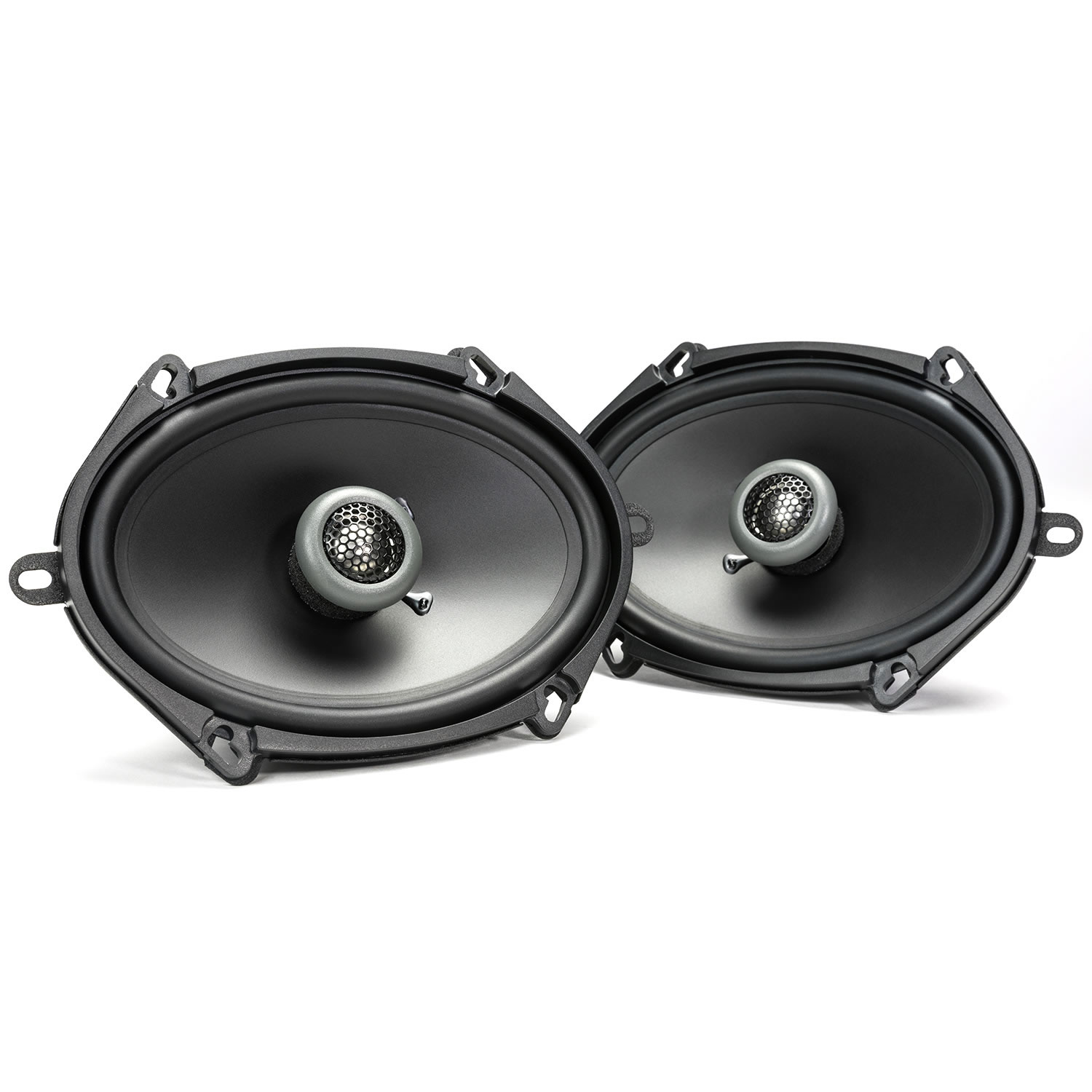

MB Quart FKB168 Formula Series 5x7/6x8"100W Peak Power Handling, 4-Ohms, 2-way Coaxial Car Speakers


We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
Great Sound With Increased Reliability

Over-coil cooling system allows air exchange over the voice coil through the spider, Heavy gauge progressive-die stamped steel frames for ultimate rigidity, Use spade connectors or solder direct for the best connection. Tinsel Leads: Highly conductive while remaining flexible during high power applications, Aluminum dome tweeters deliver great sound with increased reliability.








SPECIFICATIONS


  • Diameter : 5x7/6x8 Inch
  • Sensitivity : 88 dB
  • Impedance : 4 Ohm
  • Frequency Response : 46-20000 Hz
  • Peak Power Handling : 100 Watts
  • Design : 2 Way
  • RMS Power Handling : 50 Watts

FEATURES


Features:

  • Tweeters: Aluminum dome tweeters for superior sound quality and reliability.
  • Cone Material: Lightweight thermal-formed polypropylene cones for faster midrange response.
  • Surround / Cone Coupling: Butyl rubber surrounds ensure durability and deeper mid-bass impact, with a high-temperature adhesive securing the cone/surround connection.
  • Gasket: Textured ABS gasket provides a rigid linear seal to the mounting surface.
  • Voice Coil / Former Assembly: Pure Copper voice coil and Kapton voice coil former for a strong magnetic field and efficient heat dissipation.
  • Spider: Natural fiber with infused epoxy for flexibility and strength.
  • Cooling System: Over-coil cooling system facilitates air exchange over the voice coil through the spider.
  • Crossover: 6dB internal crossover integrated for smooth midrange to tweeter frequency transitions.
  • Frame: Heavy gauge progressive-die stamped steel frames ensure ultimate rigidity.
  • Motor: Ferrite magnet motor generates a strong magnetic field while remaining compact.
  • Connectors: Supports spade connectors or direct soldering, with highly conductive and flexible tinsel leads for high-power applications.



Specifications:

  • Weight: 3.4 lbs
  • Type: Speaker
  • Brand: MB Quart
  • Series: Formula
  • Category: Mobile
  • Condition: New
  • Color: Black
  • RMS Power Handling: 50 watts
  • Peak Power Handling: 100 watts
  • Impedance: 4 Ohms
  • Sensitivity: 88 dB
  • Crossover Slope: 6kHz 12dB
  • Mounting Diameter / Cut Out: 5.67 inches
  • Outside Diameter: 8.60 x 5.56 inches (No Grill)
  • Mounting Depth / Chassis Depth: 2.13 inches
  • Speaker Size: 5 x 7 / 6 x 8 inches
  • UPC: 806576228356
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
