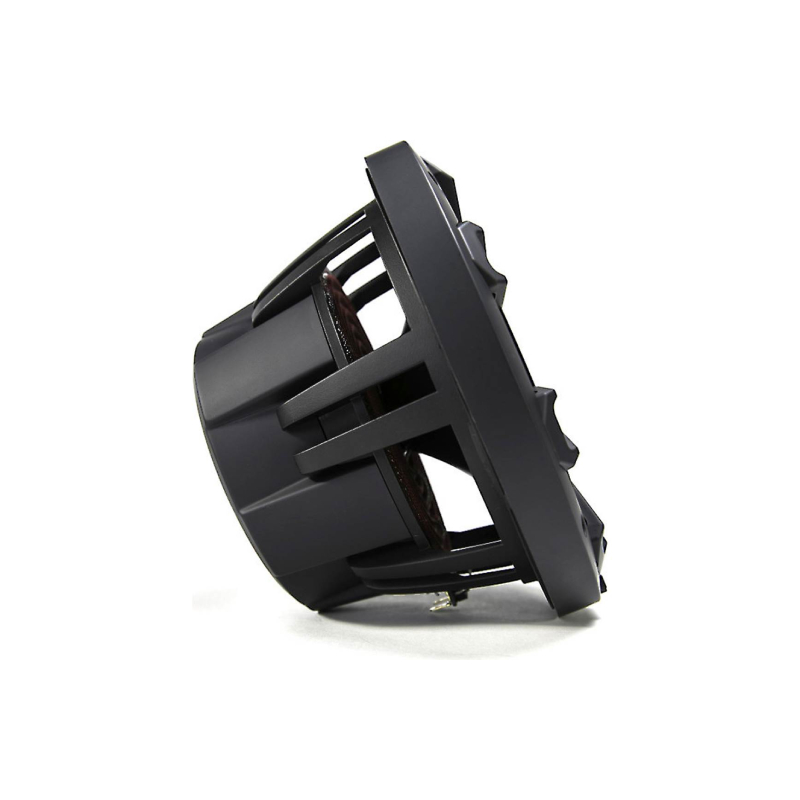

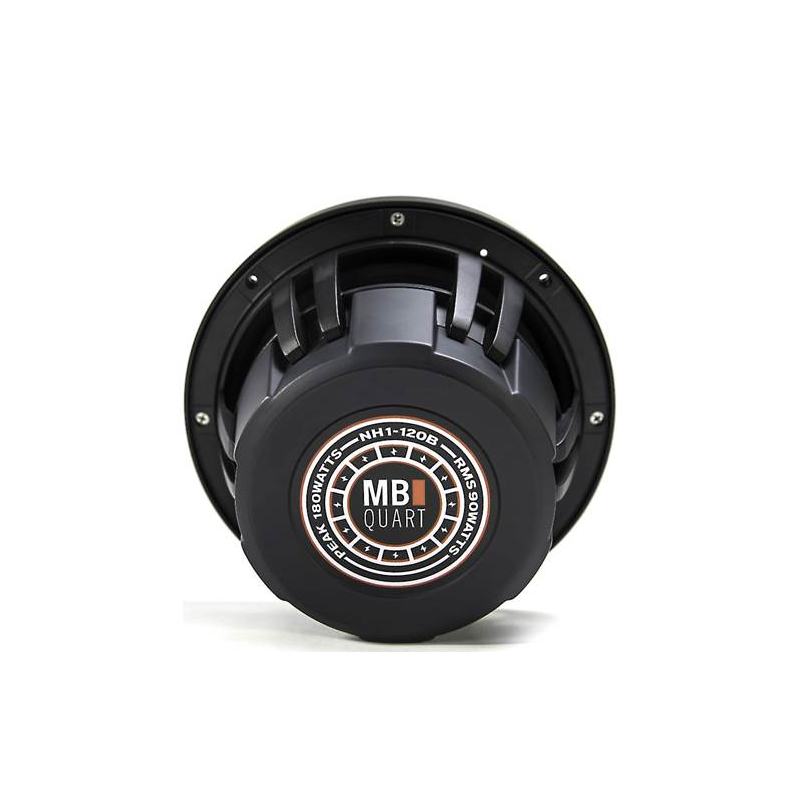

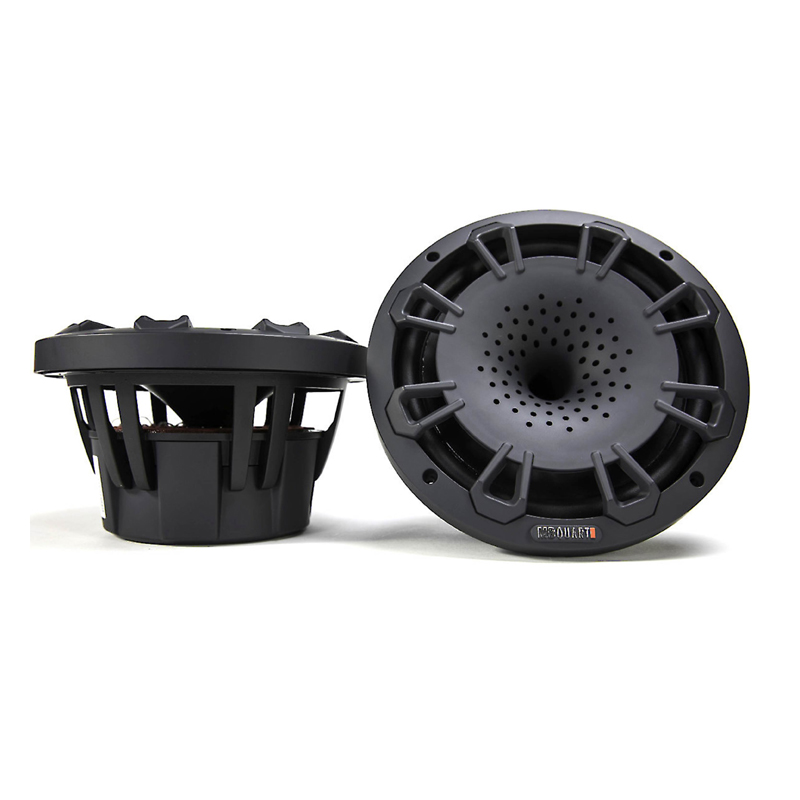

MB Quart marine and powersports certified high end 8 inch Coincident Mounted Compression Horns featuring UHS (ultra-high sensitivity) Technology and Wavelength Transparent Acoustic Lenses with a polypropylene cone. Packaged in pairs (Black)
- Diameter : 8 Inch
- Sensitivity : 92 dB
- Impedance : 4 Ohm
- Frequency Response : 20-24000 Hz
- Peak Power Handling : 180 Watts
- Color : Black
- RMS Power Handling : 90 Watts
Features:
- MARINE GRADE PROTECTION: LIFE SHIELD
- Protectect for water and dirt. UV protected against sun fade.
- TWEETER DOME MATERIAL: 1 Inch Pure Titanium Compression Diaphram
- Very smooth musical response, with very high output with minimal required amplifier power
- COMPRESSION HORN: Coincident Mounted Compression Horn
- Overall volume is improved as much as +5dB over conventional speakers, Wavelength Transparent Acoustic Lens improves midrange frequencies through the cone
- SURROUND: Natural Butyl Rubber
- Remains musical in all weather. Does not stiffen in cold.
- CONE:8 inch Composite Poly Cone
- Water resistant composite polypropylene cone with temperature stable Butyl rubber surround mounted on a lightweight composite frame
- VOICE COIL FORMER: High Temperature Voice Coil and Former
- Voice coil is high temperature copper, wound on a Kapton former which allows the voice coil to handle more power while remaining light in weight.
- SPIDER: Water resistant spider
- Woven fiber composite spider to stabilize the cone and voice coil in all musical situations.
- COOLING SYSTEM: Front and Rear Venting
- Air passes through the spider and back plate to exchange air over the voice coil.
- CROSSOVER TYPE: 12dB Butterworth
- Smooth transition from high to lower frequencies remain musicial and not harsh or distorted
- FRAME:Composite ABS and glass fiber frame
- Composites add strenth to the frame without adding distortions or harmonics that can affect the tonal quality of the speaker
- MOTOR: High Energy Y30 Motor assembly
- High energy strontium ferrite magnet for higher output with minimal amplifier power
- GRILLS: Composite
- UV treated against sun fade and waterproof
- MARINE CERTIFIED: YES
- Longer life against harsh conditions. Protected against sun fade with UVA paint coating. Conformal coated crossover components protect against fresh and salt water spray as well as dust and sand.
- IPX67: YES
- Tested to the highest Marine and Motorsports standards for resisting the elements
- TWEETER MATERIAL: Titanium Dome Tweeter
- Very smooth musical response, high output with minimal required amplifier power
- MARINE CERTIFIED CROSSOVER: Marine Certified Crossover
- Conformal Coated, Butterworth 12dB per octave crossover with PTC (Positive Thermal Coefficient) tweeter protection
Specifications:
- CERTIFICATIONS
- IPX67, Conformal Coated, UVA Certified, CEA426B
- RMS POWER HANDLING (CEA426B)
- PEAK POWER HANDLING (CEA426B)
- IMPEDANCE
- FREQUENCY RESPONSE +/- 10DB
- SENSITIVITY (1 WATT/1 METER)
- MOUNTING DIAMETER / CUT OUT
- OUTSIDE DIAMETER
- MOUNTING DEPTH/CHASSIS DEPTH
- MOUNTING HEIGHT WITH GRILL & GASKET
- WEIGHT (W/ GRILLS)
- PRODUCT DIMENSIONS
- 22.5 X 10.13 X 6.13 in (57.1 X 25.7 X 15.4 cm)
- PRODUCT WEIGHT
- UPC: 806576226871
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
