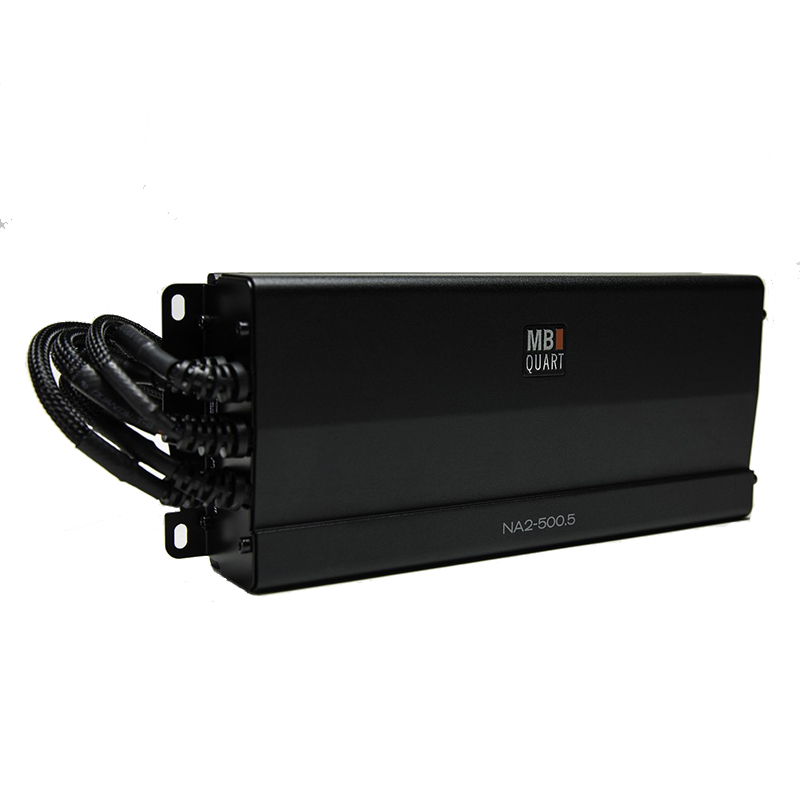

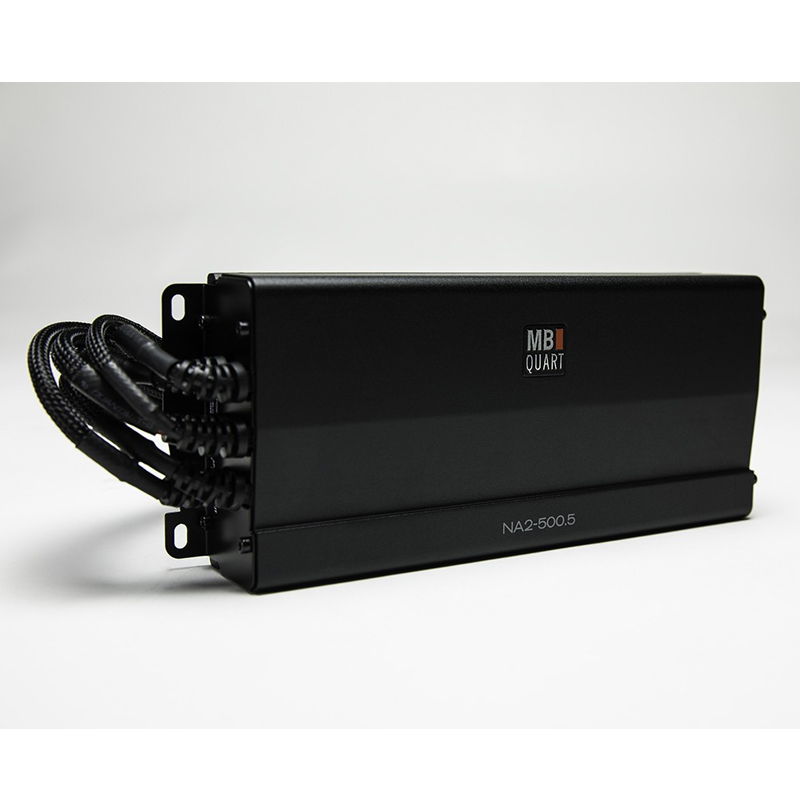

MB Quart NA2-500.5
 Item# 52882 / Condition:  Brand New

MB Quart NA2-500.5

NA2-500.5
5-Channel 500 Watts Full Range Class D Compact Powersports Amplifier with On-board Equalization and Simple Installation with Quick Release Connectors. Bass Remote Included Review this product
$126.28

FREE Shipping in US 48!

MSRP:$249.99
Savings Of:$123.71
Availability :  SPECIAL ORDER ITEM
Add Extended Warranty
Order Now, Pay Later with affirm financing logo
  • Authorized Dealer
  • comments
  • email
  • Facebook
  • Twitter
  • Print

What other people bought after viewing this product.


affirm financing small logo
affirm financing extra small logo

Features:

  • MARINE GRADE PROTECTION: YES
    • Amplifiers are ABYC & ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.
  • PRE-AMP CIRCUITRY: Q-Stasis Pre Amplifier Stage
    • The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality
  • INPUTS: 2 Pair, RCA (Front/Rear) | 1 Pair RCA (Subwoofer) Nickel-Plated
    • High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
  • OPERATION MODE: Four channel and with dedicated subwoofer channel
    • Unique design allows this amplifier to power full range speakers with a dedicated channel for a subwoofer.

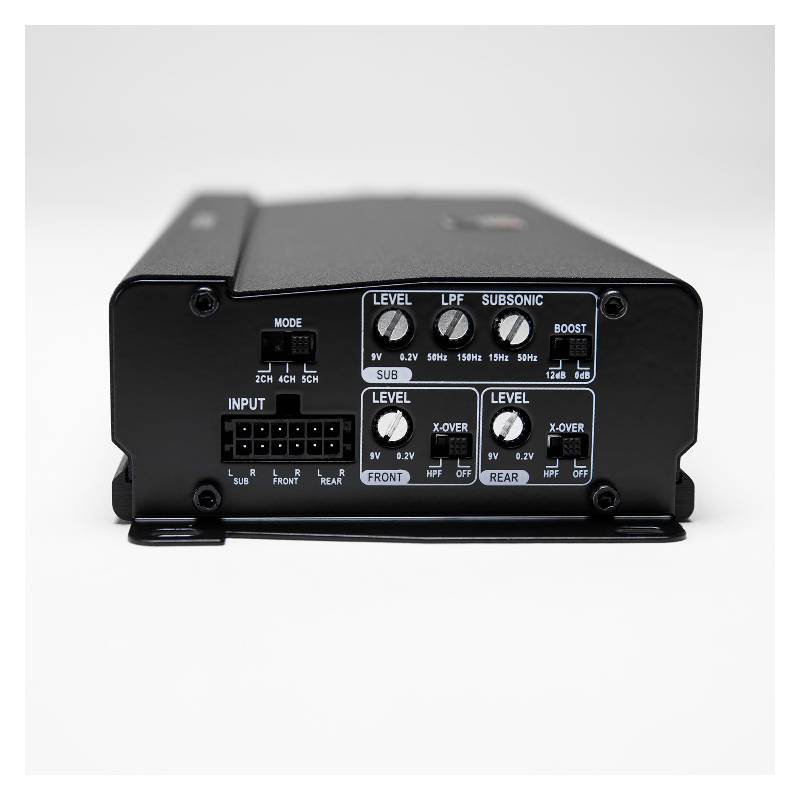

  • CROSSOVER / SIGNAL SHAPING: Switched FULL / LPF / HPF
    • Complete control of amplifier signal, essential when using two or more amplifiers
  • CLASS / TOPOLOGY: Full Range Class D
    • Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
  • OUTPUT DEVICES TECHNOLOGY: PWM MOSFET Power Supply
    • Stable power through the PC board with minimal heat generation
  • HEAT SINK: Aluminum
    • Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration
  • POWER SUPPLY: Simpatico Coil Design
    • The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
  • BASS REMOTE:Included
    • Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.

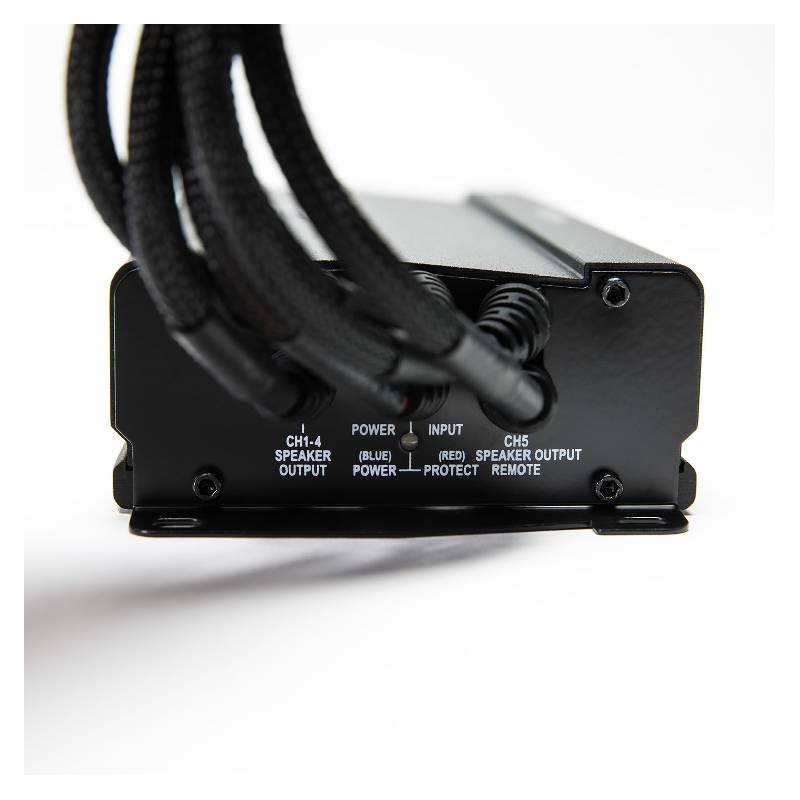

  • OUTPUT CONNECTIONS: Quick Dissconect Wires, RCA Connections
    • Quickly remove amplifer when you are putting machine up for the winter of as a security precaution
  • CONNECTIONS TYPE: Nickel-plated connections
    • Nickel plated corrosion resistant connections
  • DIAGNOSTICS: Three-stage protection circuits
    • Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
  • MARINIZED / WATERPROOF: YES
    • Water resistant for durability in any environment


Specifications:

  • CLASS: Full Range Class D
  • VARIABLE VOLTAGE: 0.2V~9V
  • SIGNAL TO NOISE RATIO: >90dB
  • FREQUENCY RESPONSE: 20Hz-20kHz
  • CROSSOVER TYPE: N/A
  • CROSSOVER FREQUENCY RANGE: CH1 & CH2 | Switched HP/ Full
  • CROSSOVER FREQUENCY RANGE: CH3 & CH4 | Switched HP/ Full
  • CROSSOVER FREQUENCY RANGE: CH5 | LPF 50Hz-150Hz
  • BASS BOOST: [email protected]
  • SUBSONIC FILTER: 60Hz
  • POWER @ 2-OHMS: 4 x 80W + 1 x 200W
  • POWER @ 4-OHMS: 4 x 40W + 1 x 100W
  • TOTAL CHANNELS: 5
  • AUDIO INPUTS: RCA
  • POWER TERMINAL 12V/GND: Molex 10 ga
  • SPEAKER TERMINAL WIRE GAUGE: Molex Plug Connector
  • FUSING: 1 x 40 Amps
  • CERTIFICATIONS: Marine & Powersports
  • DIMENSIONS: 3.70 X 8.46 X 1.77 in | 9.4 X 21.5 X 4.5 cm
  • WEIGHT: 3.35 lbs (1.52 kg)
  • UPC: 806576227366
  • Weight: 10
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
