Pioneer TS-A6990F A-Series 6"x9" 120W RMS 5-Way Coaxial Speakers
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Two 5-way speakers
- •2 Bottom-mount brackets
- •2 Grilles
- •Two 12" lengths of speaker wire (female quick slides on one end and bare wire on the other)
- •Eight 1-1/8" Screws
- •Owner's /manual
- •Installation Manual
Highly Defined Audio Quality
When looking for a highly defined audio quality for your car audio system, the Pioneer TS-A6990F might be your best bet. As a five-way car speaker, it is designed to deliver a phenomenal full-range frequency performance while featuring Pioneer's Open and Smooth technology, which helps for a smooth transition from mids to highs.

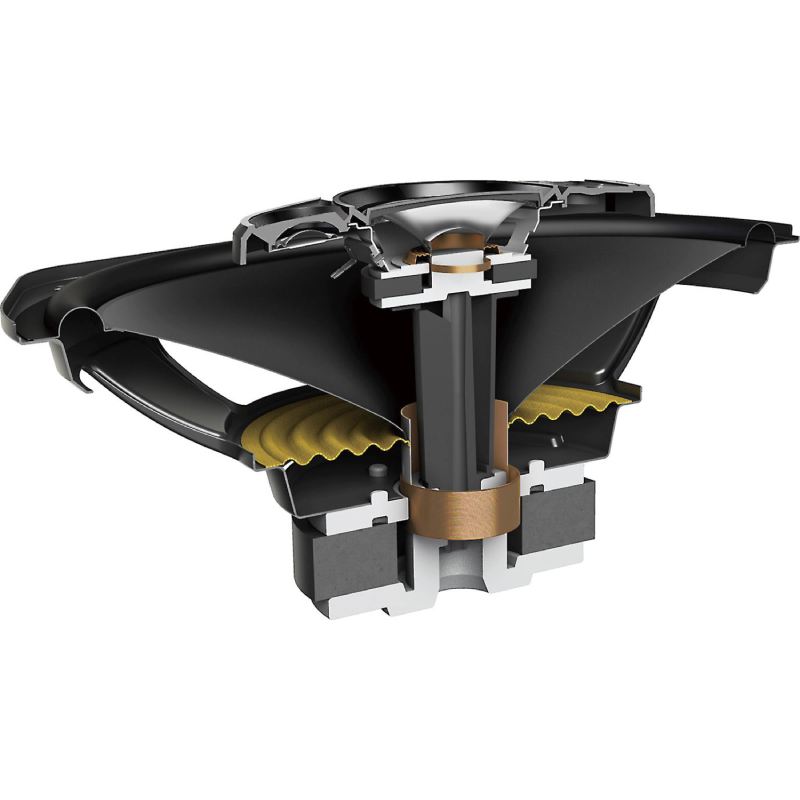

Polypropylene Cone and a Polymer Surround
The Pioneer TS-A6990F comes with a polypropylene cone and a polymer surround, allowing it to produce a precise bass performance while having the durability to withstand the stress that comes from long hours of use. It has a 2.25-inch polyetherimide midrange cone, which is perfect for reproducing many musical instrument sounds, such as guitar, drums, and more.
Rare Five-way Audio Performance
It also comes with a PET tweeter in a hard dome design and two super tweeters to give you natural and bright high frequencies with a minimal breakup, completing the rare five-way audio performance that the Pioneer TS-A6990F is famous for.
Impressive Full-range Frequency Performance
The 6x9-inch Pioneer TS-A6990F speaker can deliver 120 Watts of continuous power output and a peak power of 700 Watts at 4 ohms. With a frequency response of 22 Hz to 25 kHz and a sensitivity rate of 90 dB, the Pioneer TS-A6990F can go loud with minimal distortion and give you an impressive full-range frequency performance.
- Diameter : 6x9 Inch
- Sensitivity : 90 dB
- Impedance : 4 Ohm
- Frequency Response : 22-25000 Hz
- Peak Power Handling : 700 Watts
- Design : 5 Way
- Top Mount Depth : 3-7/16 Inches
- Bottom Mount Depth : 3-7/8 Inches
- RMS Power Handling : 120 Watts
SYSTEM
- System Type: 5-way Coaxial
- Sound Pressure Level (Sensitivity): 90 dB (+- 1.5dB)
- Frequency Range: 22 Hz to 25 kHz
- Continuous Power Handling (RMS): 120 Watts
- Maximum Peak Power Handling: 700 Watts
- Nominal Impedance: 4 ohms
WOOFER
- Diameter: 6 x 9"
- Cone Material: Carbon and mica reinforced IMPP
- Surround Material: Elastic polymer
- Magnet Material: Ferrite
- Magnet Weight: 15.2 oz
- Mounting Depth: 3-3/8" (Deep basket)
TWEETER
- Type: Triple Polyethylene terephthalate (PET) dome tweeter
- Diameter: 9 mm (Super), 11 mm, and 18 mm
CROSSOVER NETWORK
- Crossover Frequency: 3,600 Hz
- UPC: 884938409926
- Weight: 9.01
