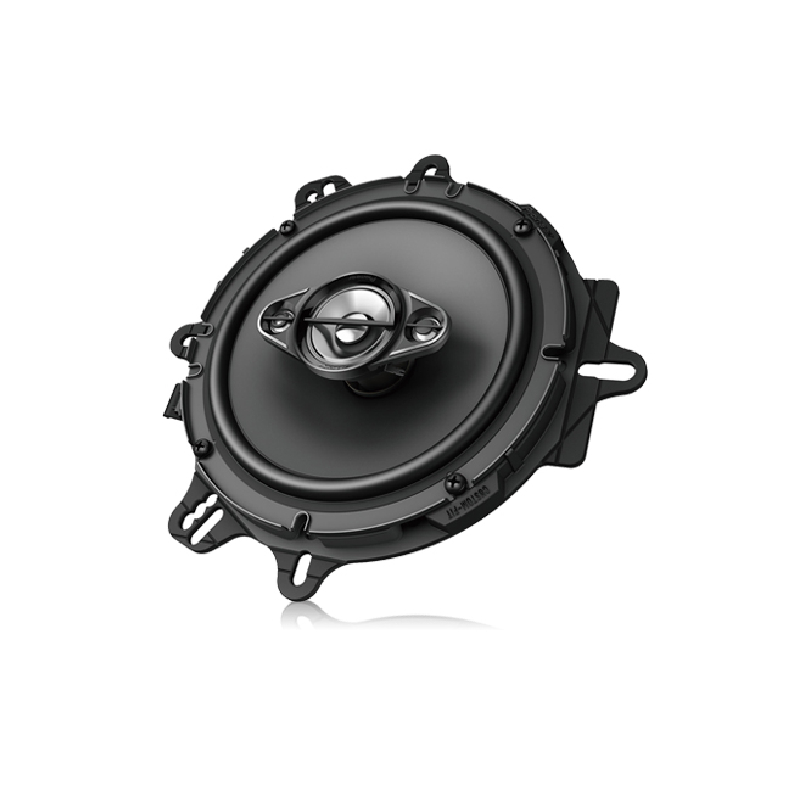

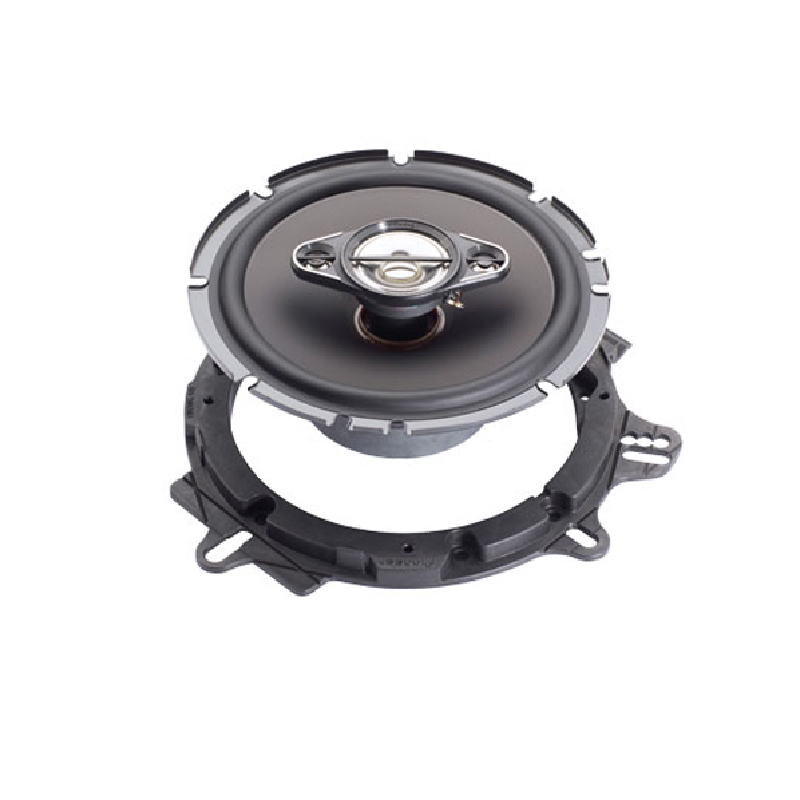

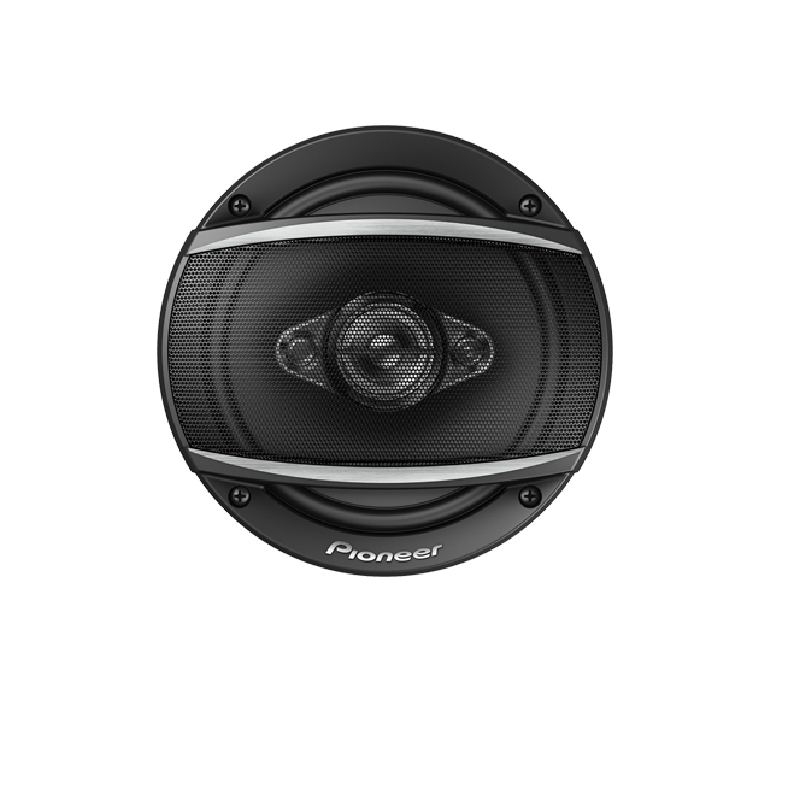

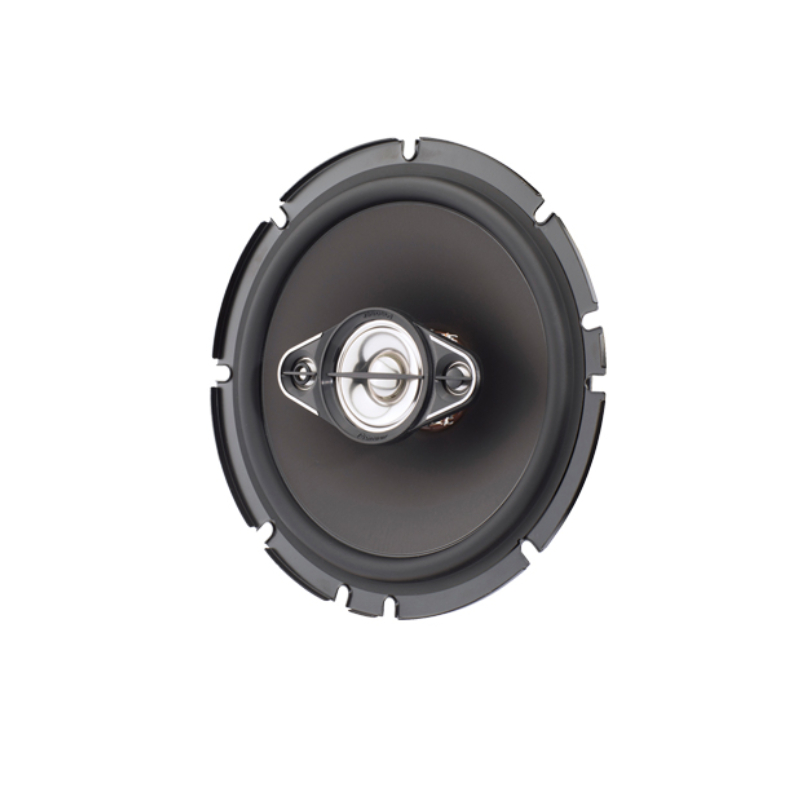

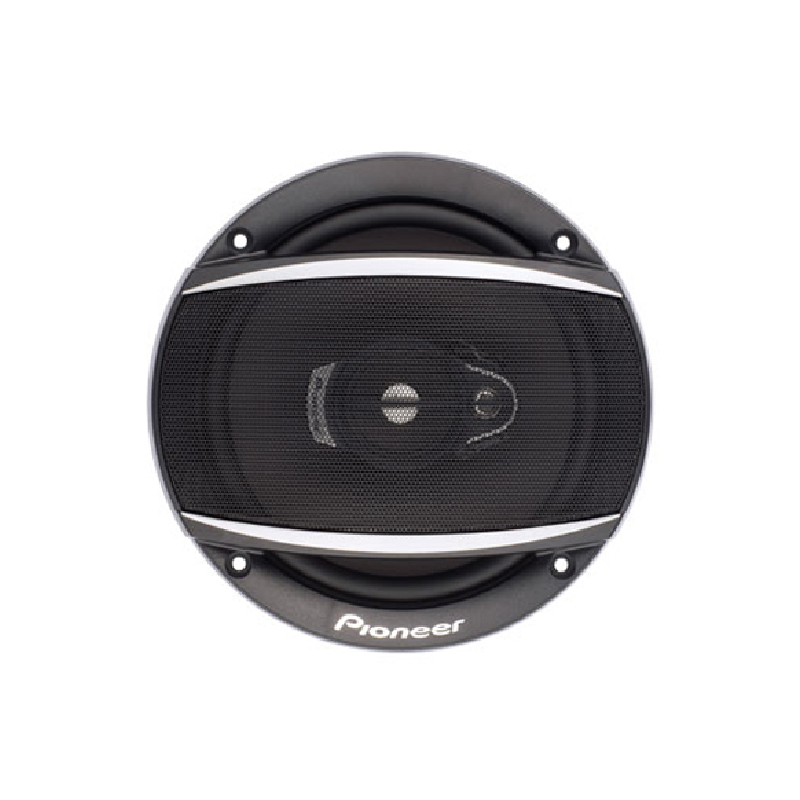

Pioneer TS-A1680F A-Series 4-Way Coaxial Speakers
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

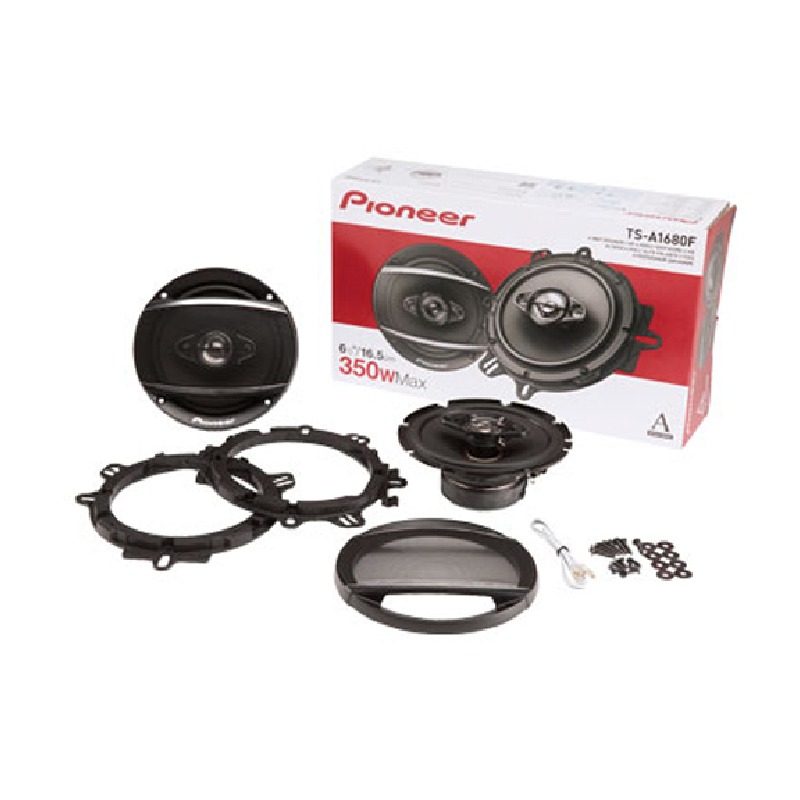

What's Inside?
- •4-Way Coaxial Speakers
- •Owner's Manual
- •Installation Manual

Phenomenal Full-range Frequency Performance
When looking for a highly defined audio quality for your car audio system, the Pioneer TS-A1680F might be your best bet. As a four-way car speaker, it is designed to deliver a phenomenal full-range frequency performance while featuring Pioneer's Open and Smooth technology, which helps for a smooth transition from mids to highs.
The Pioneer TS-A1680F comes with a polypropylene cone and an elastic polymer surround, allowing it to produce an accurate low-frequency performance while having the resilience to withstand the adverse effects of long hours of use. It also has a 1.625-inch polyetherimide midrange cone, which is outstanding for reproducing lots of musical instrument sounds, such as guitar, drums, and more.
It comes with a PET hard dome tweeter and a super tweeter as well to give you clear and bright high frequencies with a minimal breakup, completing the unique four-way audio performance that the Pioneer TS-A1680F is known for.
The 6.5-inch Pioneer TS-A1680F speaker can deliver 80 Watts of continuous power output and a maximum power of 350 Watts at 4 ohms. With a frequency response of 36 Hz to 25 kHz and a sensitivity rate of 88 dB, the Pioneer TS-A1680F can go loud with minimal distortion and give you an impressive full-range frequency performance.
- Diameter : 6.5 Inch
- Sensitivity : 88 dB
- Impedance : 4 Ohm
- Frequency Response : 36-25000 Hz
- Peak Power Handling : 350 Watts
- Design : 4 Way
- RMS Power Handling : 80 Watts
System
- System Type: 4-way Coaxial
- Sound Pressure Level (Sensitivity): 88 dB (+- 1.5dB)
- Frequency Range: 36 Hz to 25 kHz
- Continuous Power Handling (RMS): 80 Watts
- Maximum Peak Power Handling: 350 Watts
- Nominal Impedance: 4 ohms
Woofer
- Diameter: 6-1/2"
- Cone Material: Carbon and mica reinforced IMPP
- Surround Material: Elastic polymer
- Magnet Material: Ferrite
- Magnet Weight: 11.2 oz
Tweeter
- Type: Twin polyethylene terephthalate (PET) hard dome
- Diameter: 11 mm
Crossover Network
- Crossover Frequency: 3,600 Hz
- UPC: 884938409735
- Weight: 6.01
