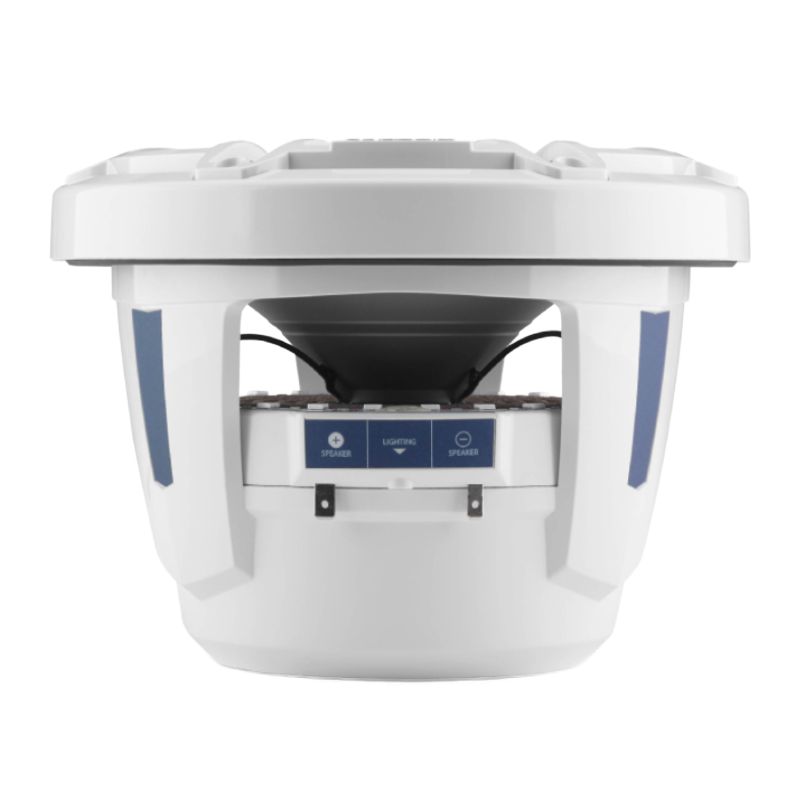

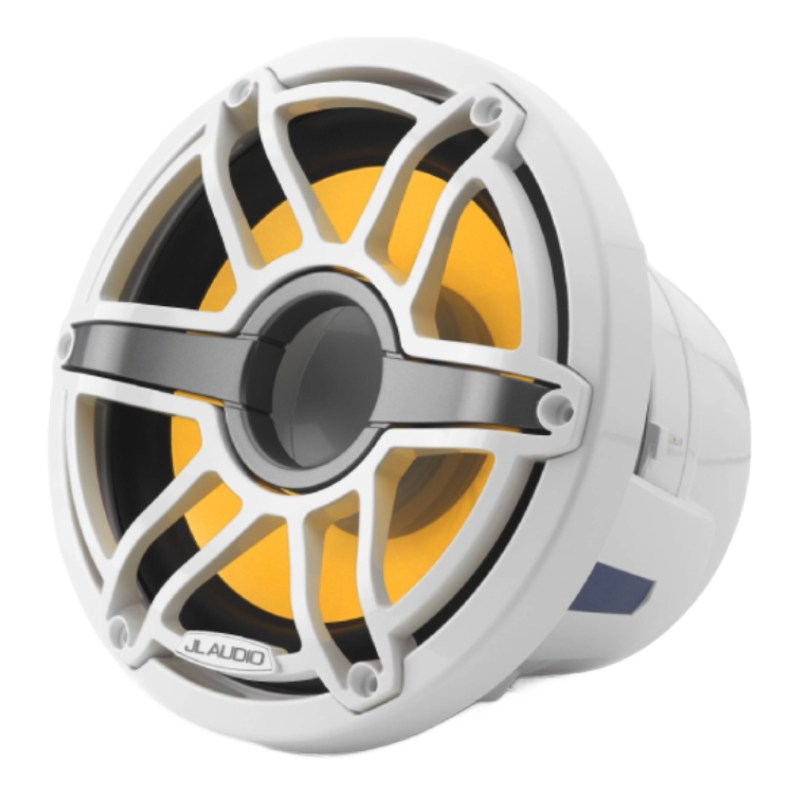

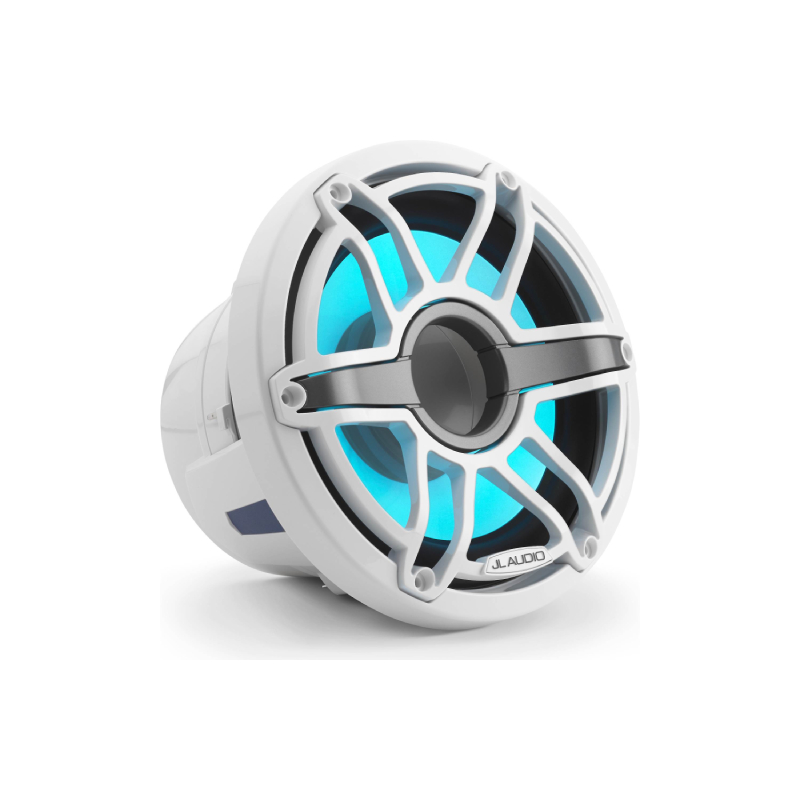

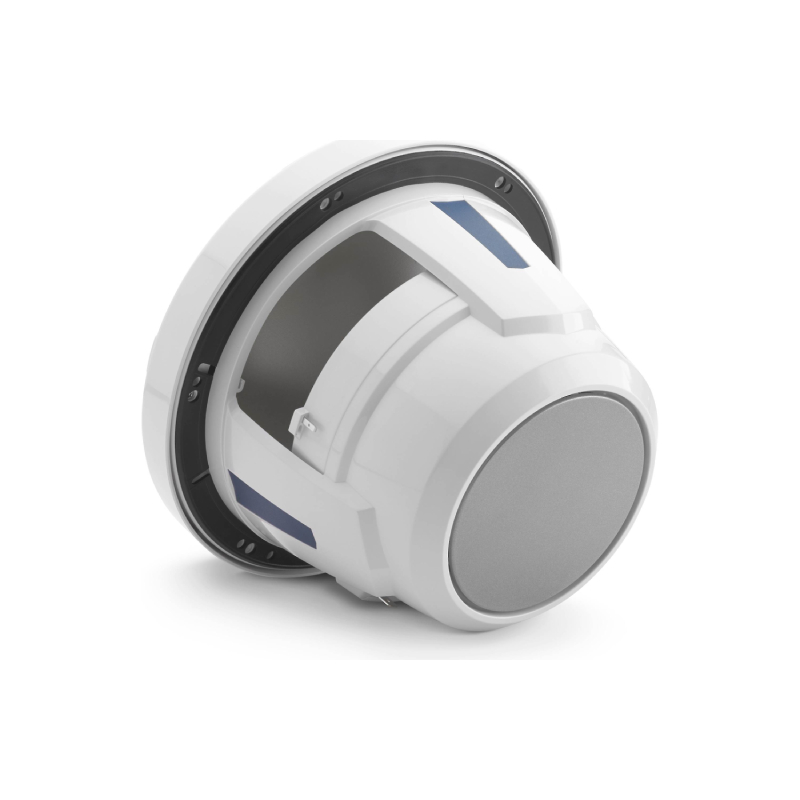

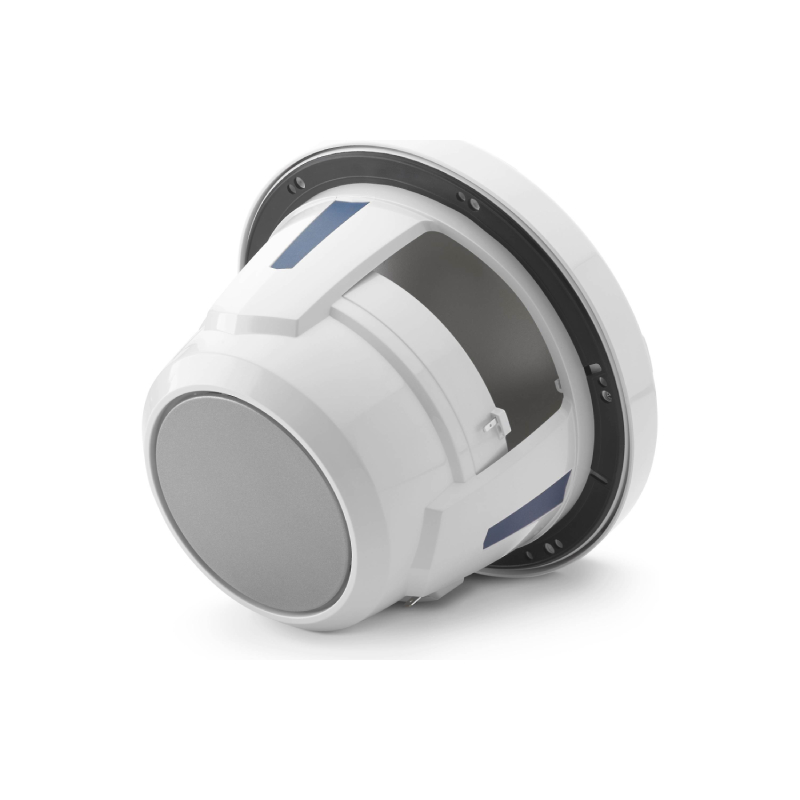

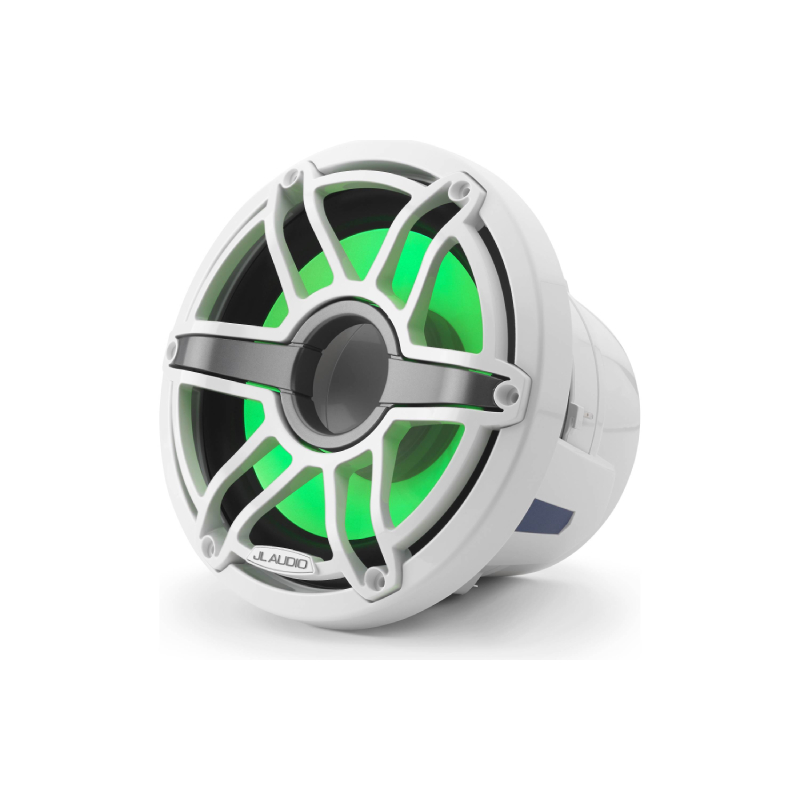

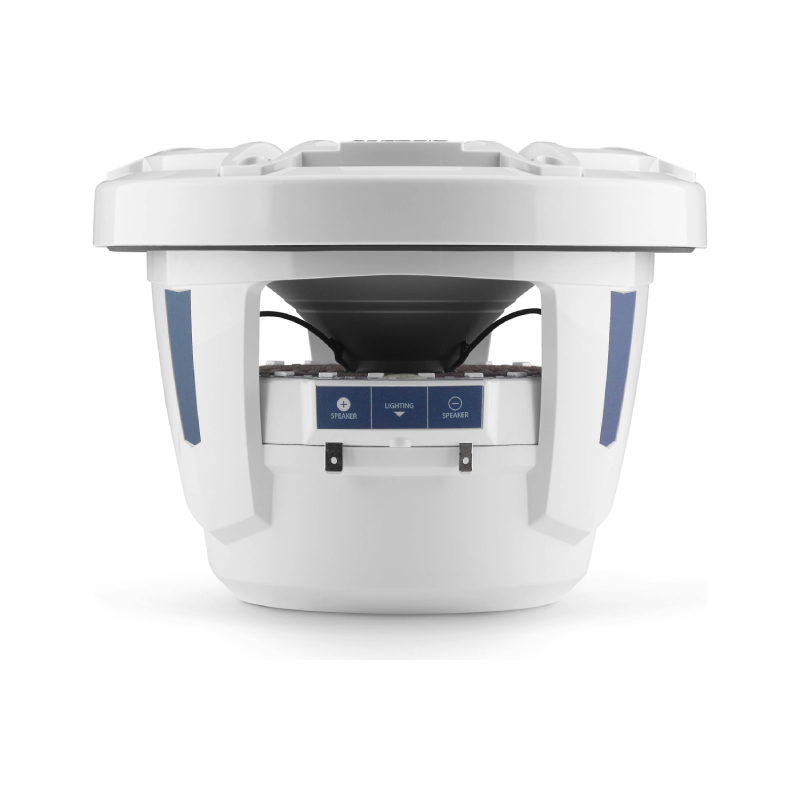

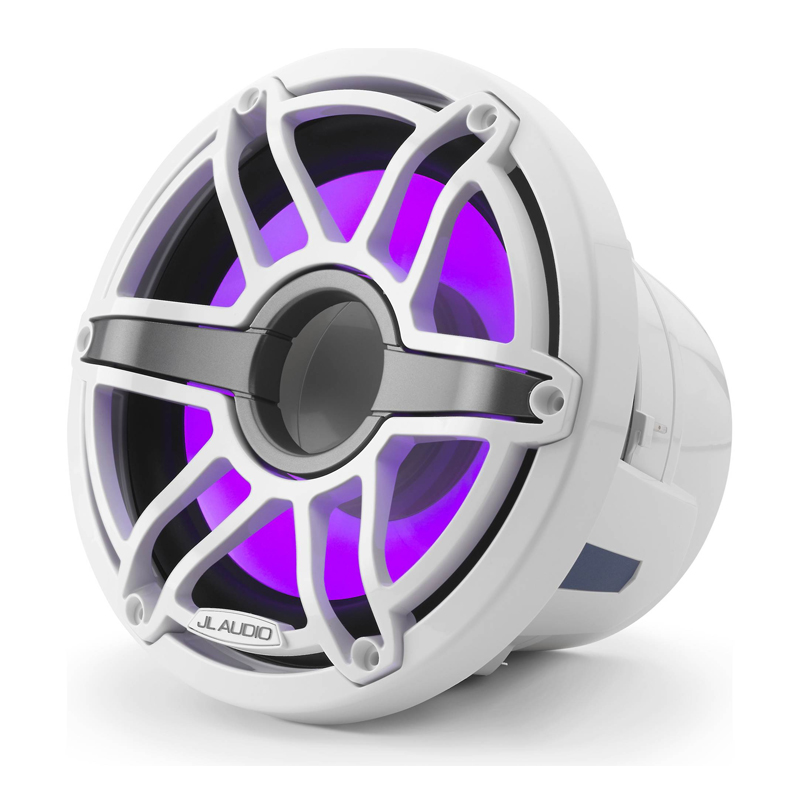

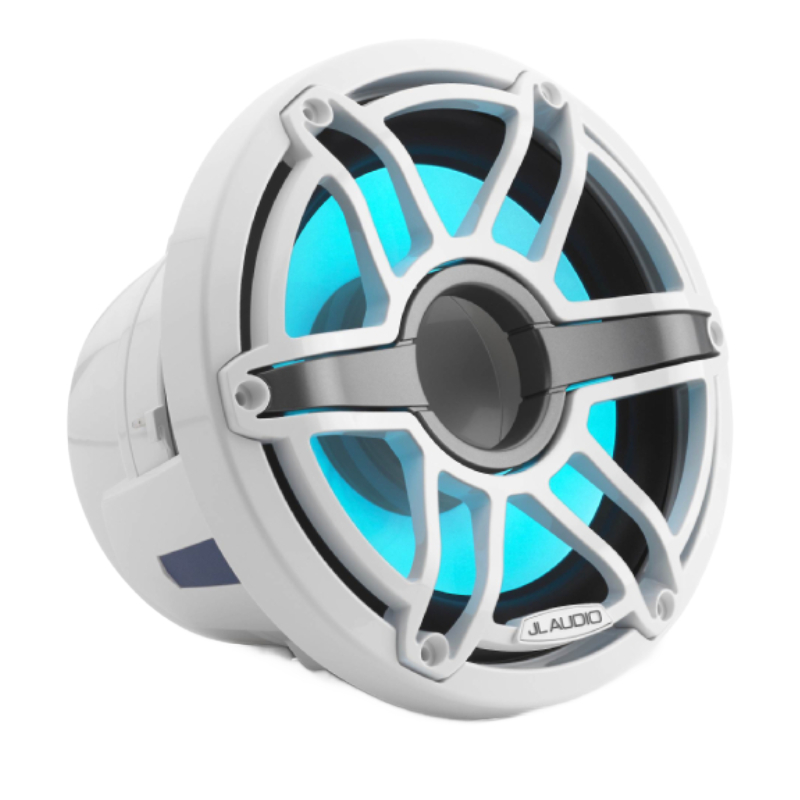

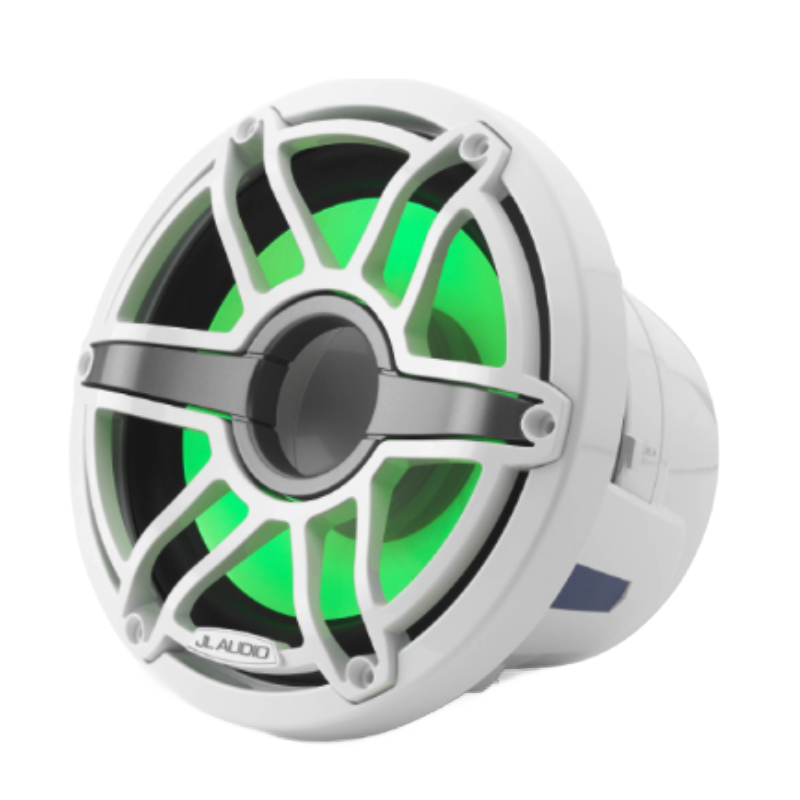

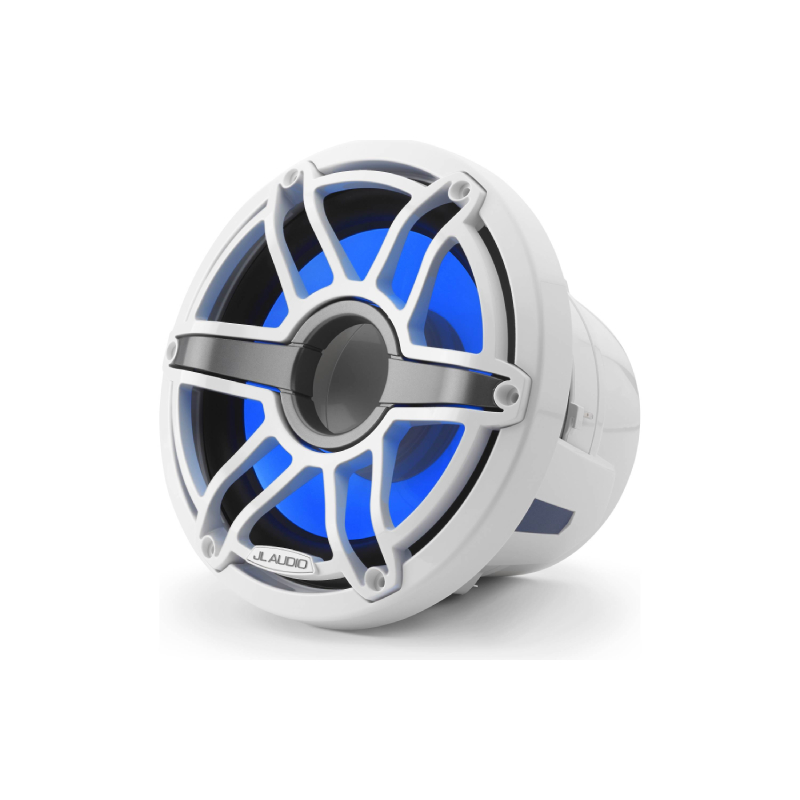

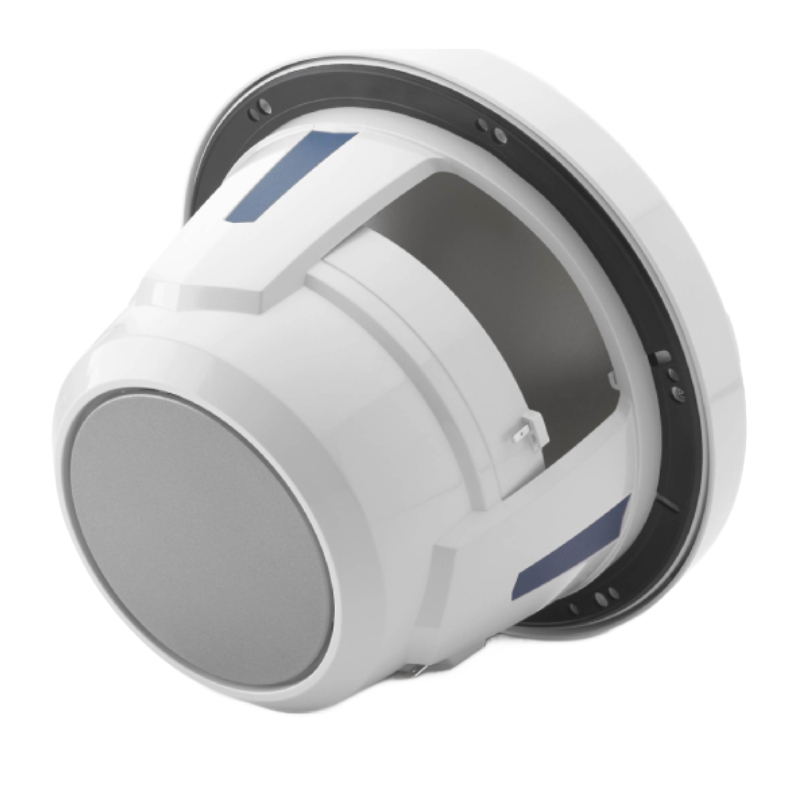

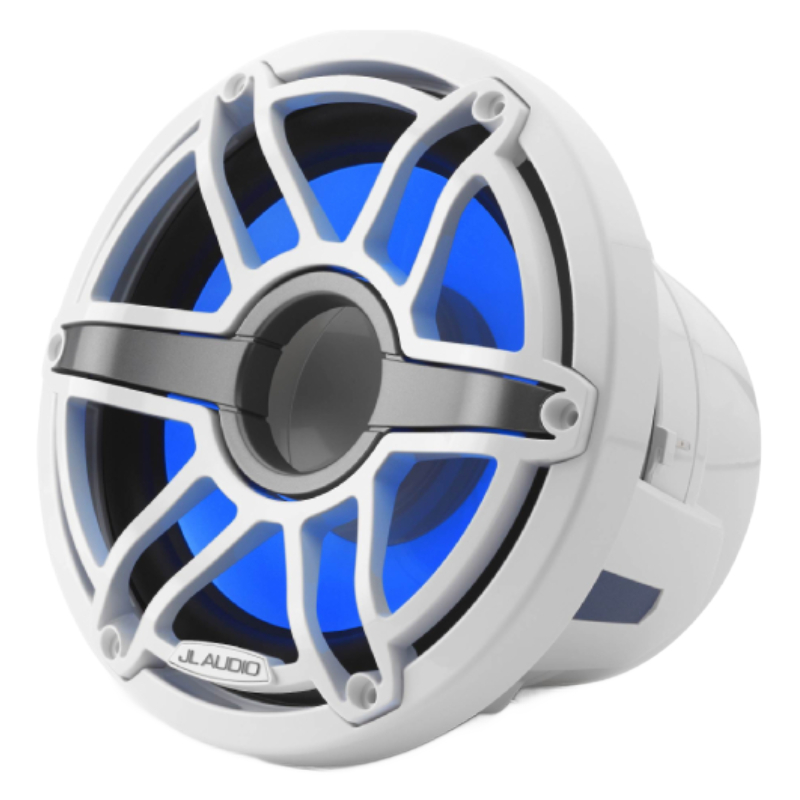

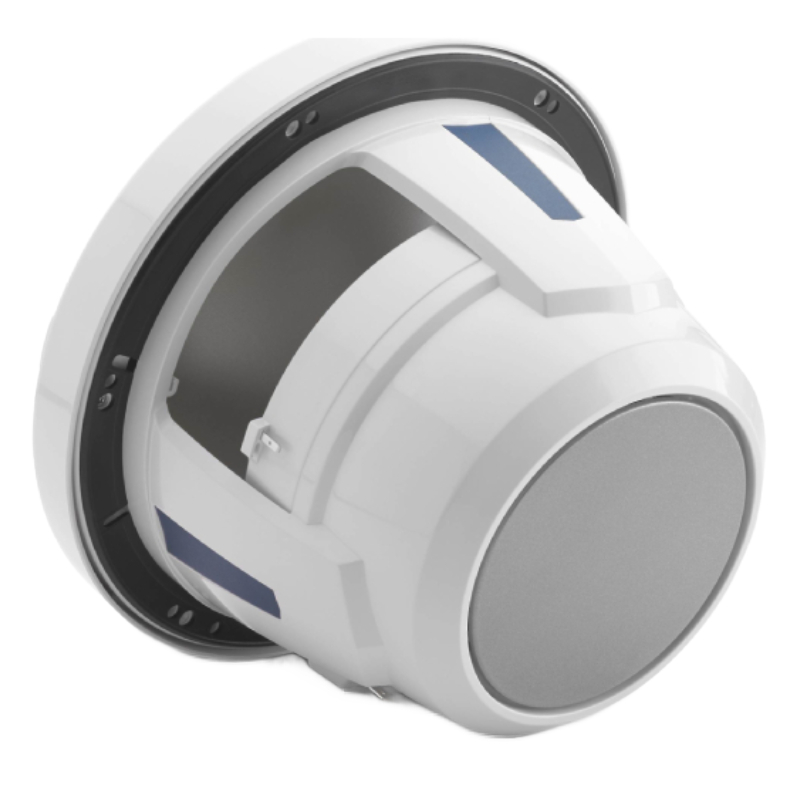

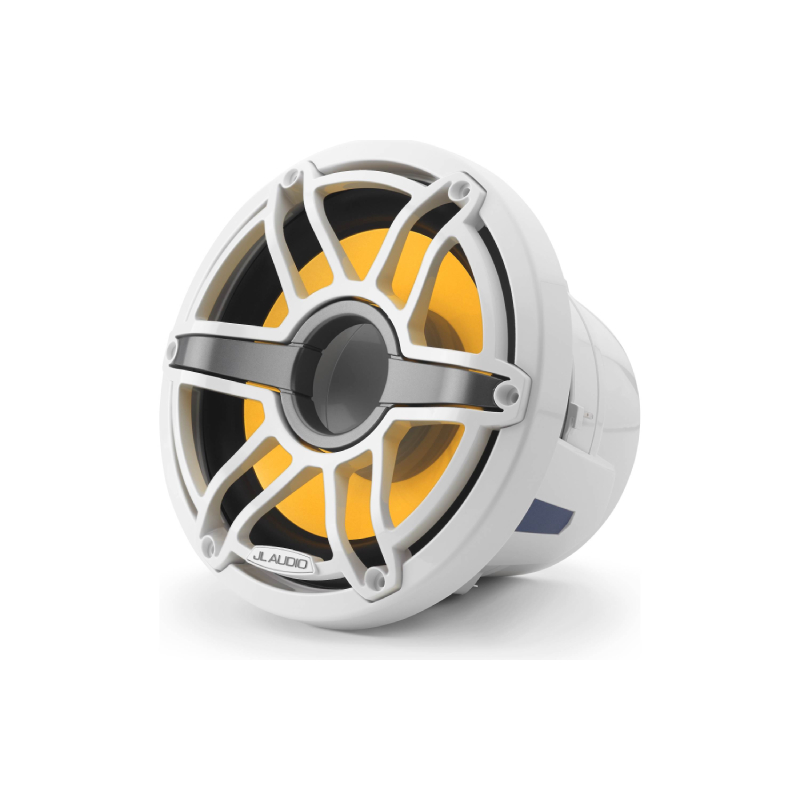

JL Audio M6-8IB-S-GwGw-i-4 M6 Series 8" 200W RMS (400W Peak Power Handling) 4 Ohm Marine Subwoofer
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •One 8" Marine subwoofer
- •One 8" Marine subwoofer
- •Six 1-1/2" Stainless-steel screws
- •6 Stainless-steel flat washers
- •Owner's manual
Allows Your Whole System to Play Louder
The JL Audio M6-8IB-S-GwGw-i-4 is a premium 8-inch marine subwoofer designed to deliver outstanding bass performance in a marine environment. With meticulous engineering and durable construction, this subwoofer is perfect for enhancing the audio experience on your boat.
Built for Real Marine Duty
Featuring a peak power handling of 400 watts and an RMS power handling of 200 watts, the M6-8IB-S-GwGw-i-4 provides deep and impactful bass reproduction. Its long-excursion woofer cone ensures an accurate and powerful low-frequency response, adding depth to your music. The subwoofer's single 4-ohm voice coil configuration offers versatile wiring options, allowing for easy integration with various amplifiers and systems. Its grille is made of marine-grade synthetic fiber, ensuring durability and protecting the subwoofer from external elements.
Optimized to Operate With a Large Volume
Designed for the marine environment, the M6-8IB-S-GwGw-i-4 features a UV-resistant polymer basket and a synthetic fiber spider that can withstand harsh conditions. Its IP66-rated construction provides excellent water and dust resistance for reliable performance on the water.
Deliver Years of Listening Enjoyment
The JL Audio M6-8IB-S-GwGw-i-4 is a top-of-the-line marine subwoofer that combines power, precision, and durability. Whether cruising or anchored, this subwoofer delivers exceptional bass response and enhances your boat's audio system, allowing you to enjoy your favorite music with depth and clarity.
- Diameter : 8 Inch
- Sensitivity : 86.7 dB
- Impedance : 4 Ohm
- RMS Power Range : 200 Watts
- Peak Power Handling : 400 Watts
- Color : White
- Mounting Depth : 5 Inches
- Free Air : Yes
Features:
- Subwoofer Size: 8"
- Peak Power Handling: 400 watts
- RMS Power Handling: 200 watts
- Voice Coil(s): Single
- Impedance (Per Voice Coil): 4 ohms
- Woofer Surround: Synthetic Rubber
- Woofer Composition: Polypropylene-Mica
- Minimum Sealed Box Volume 2 cubic feet
- Minimum Ported Box Volume 1.5 cubic feet
- Sensitivity 86.7 dB
- Top-Mount Depth 5"
- Recommended Enclosure Type: Ported / Vented Sealed
- Subwoofer Grilles Included
Physical Specifications:
- Nominal Diameter: 8.0 in / 200 mm
- Overall Diameter: 8.80 in / 224 mm
- Bolt Hole Circle Diameter: 7.97 in / 202 mm
- Frontal Grilles Protrusion*: 1.45 in / 37 mm
- Mounting Hole Diameter: 7.375 in / 187 mm
- Mounting Depth: 5.00 in / 127 mm
- Driver Displacement: 0.033 cu ft / 0.93 L
- Net Weight: 8.70 lbs / 3.90 kg
*Frontal grille protrusion measured from mounting surface
Parameters:
- Free Air Resonance (Fs): 54.92 Hz
- Electrical “Q” (Qes): 0.852
- Mechanical “Q” (Qms): 10.314
- Total Speaker “Q” (Qts): 0.787
- Equivalent Compliance (Vas): 0.54 cu ft / 15.29 L
- One-Way Linear Excursion (Xmax)*: 0.53 in / 14 mm
- Reference Efficiency (no): 0.28%
- Efficiency (1 W / 1 m)**: 86.7 dB SPL
- Effective Piston Area (Sd): 35.15 sq in / 0.0227 sq m
- DC Resistance (Re): 2.993-ohm
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
- UPC: 699440936187
- Weight: 10
