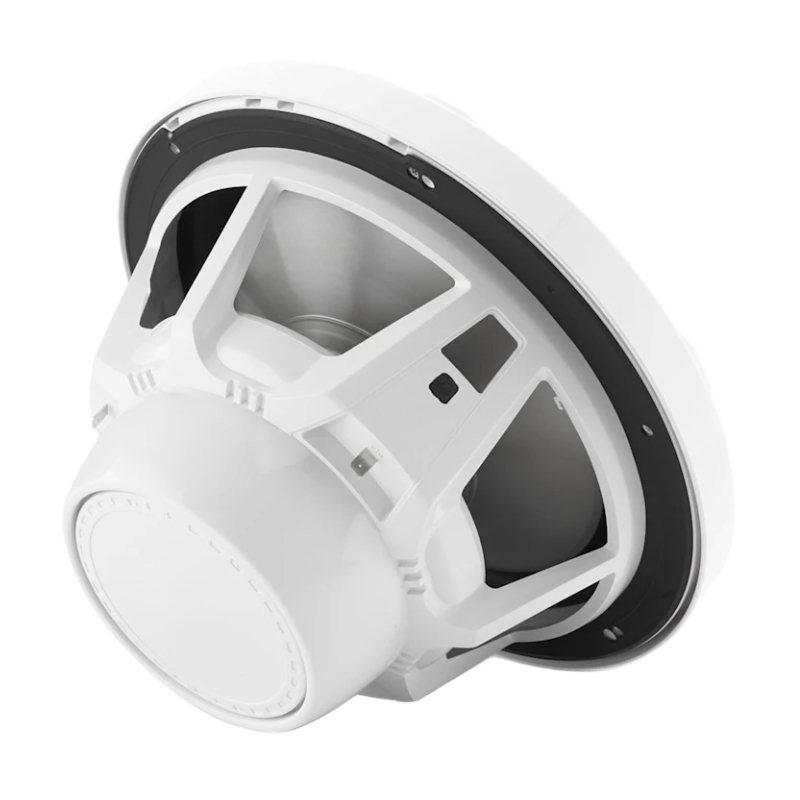

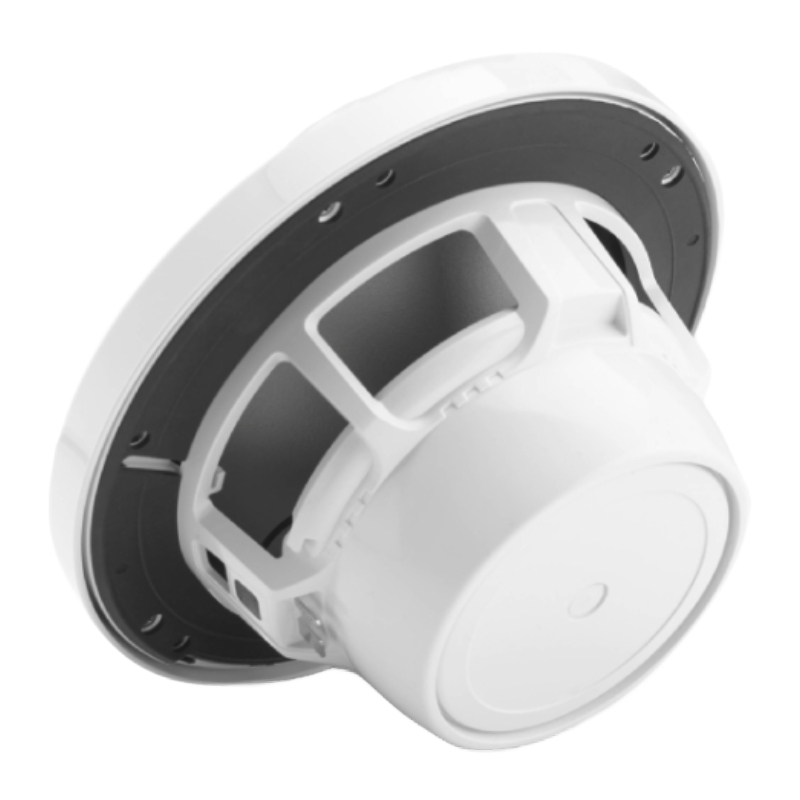

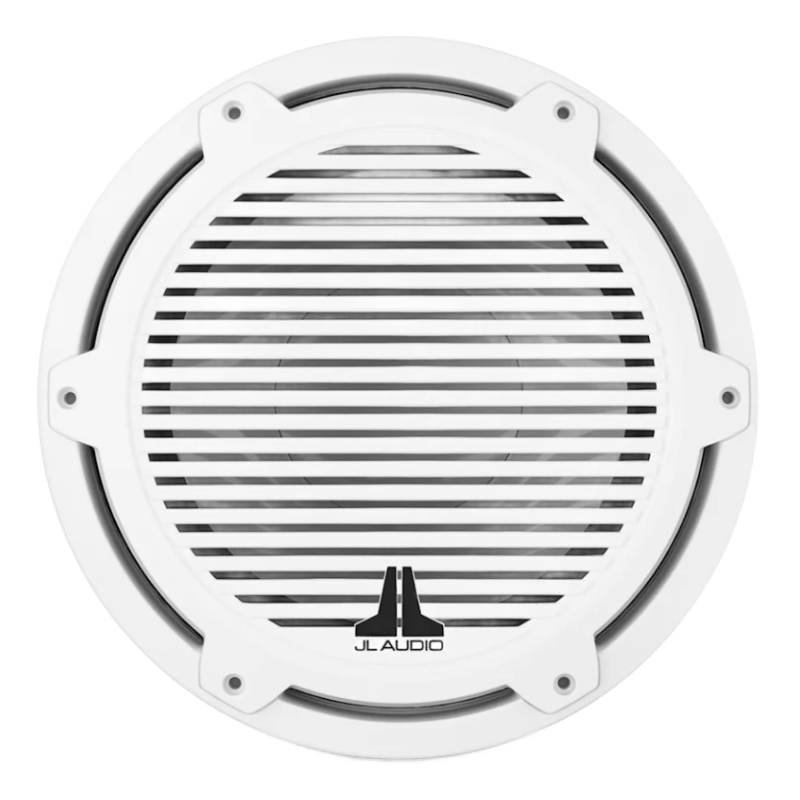

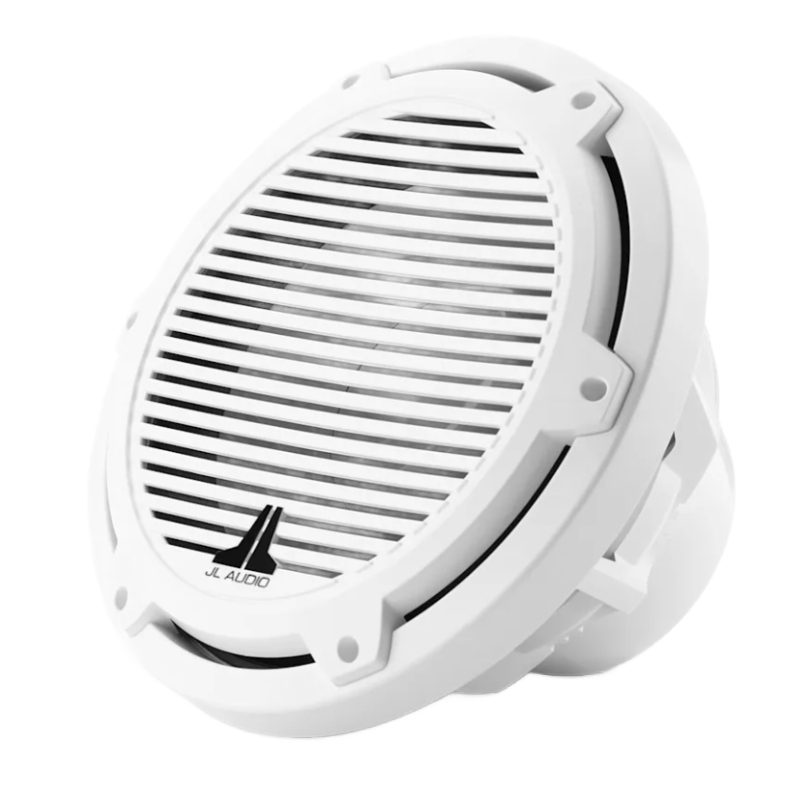

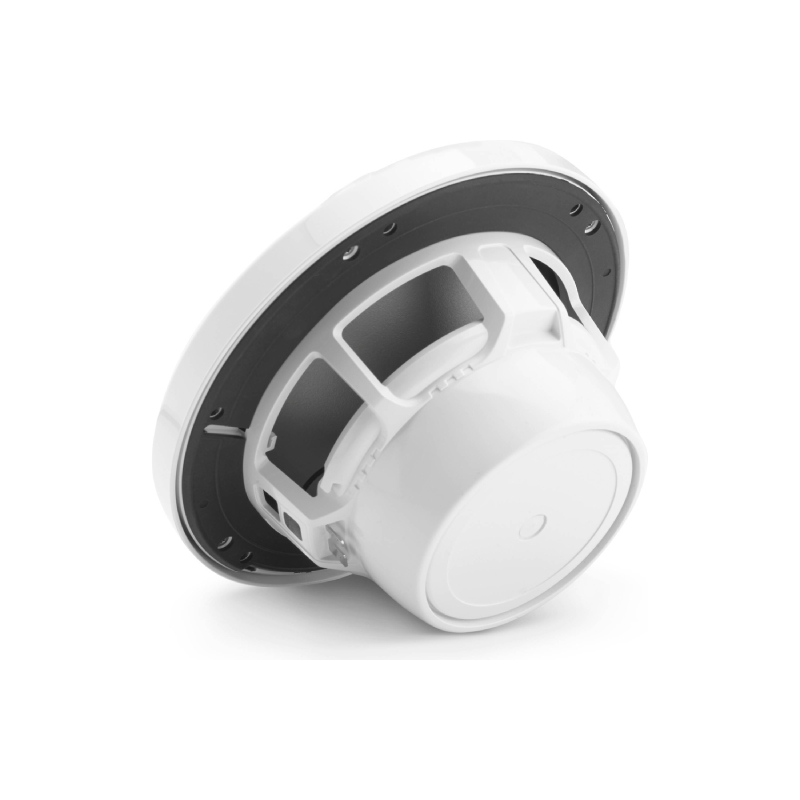

JL Audio M3-10IB-C-Gw-4 Marine Subwoofer with Gloss White Classic Grille
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•One 10" Marine subwoofer with fixed grille
•Six 1-1/2" Stainless-steel screws
•6 Stainless-steel flat washers
Built for Real Marine Duty
With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels. Purpose-engineered and built for real marine duty, the M3 infinite-baffle subwoofers are designed to operate without a dedicated enclosure and are targeted towards moderate power applications.
Operates in a Small Sealed Enclosure
The M3-10 is best used with amplifier power in the 50W - 175W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead. Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Production of this model takes place in JL Audio's Miramar, Florida factory, using global materials and components. Sold individually.
Diameter : 10 Inch
Sensitivity : 87.23 dB
Impedance : 4 Ohm
Frequency Response : 55-25000 Hz
RMS Power Range : 60 Watts
Peak Power Handling : 225 Watts
Color : White
Mounting Depth : 5.12 Inches
Continuous Power Handling (RMS): 175 W
Nominal Impedance (Znom): 4 Ohms
Nominal Diameter: 10.0 in / 250 mm
Overall Diameter (A): 10.75 in / 273 mm
Mounting Hole Diameter (B): 8.875 in / 225 mm
Bolt Hole Circle Diameter (C): 9.706 in / 247 mm
Motor Outer Diameter (D): 5.29 in / 134 mm
Mounting Depth (E): 5.12 in / 130 mm
Driver Displacement: 0.04 cu ft / 1.13 L
Net Weight: 6.5 lb / 2.94 kg
Free Air Resonance (Fs): 41.84 Hz
Electrical “Q” (Qes): 0.806
Mechanical “Q” (Qms): 11.751
Total Speaker “Q” (Qts): 0.754
Equivalent Compliance (Vas): 1.29 cu ft / 36.53 L
One-Way Linear Excursion (Xmax)*: 0.42 in / 11 mm
Efficiency (1 W / 1 m)**: 87.23 dB SPL
Effective Piston Area (Sd): 50.68 sq in / 0.0327 sq m
DC Resistance (Re): 3.957 Ω
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
Infinite Baffle Use: Yes (preferred)
Min. Sealed Enclosure Volume: 2.0 cu ft / 56.6 L (or larger)
Optimum Sealed Enclosure Volume: 2.5 cu ft / 70.8 L
