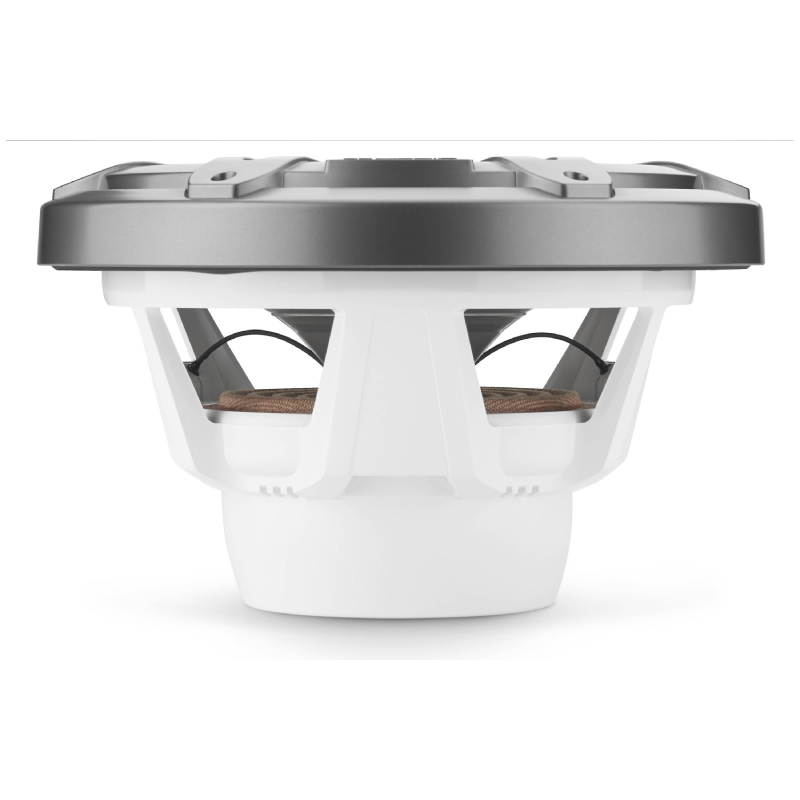

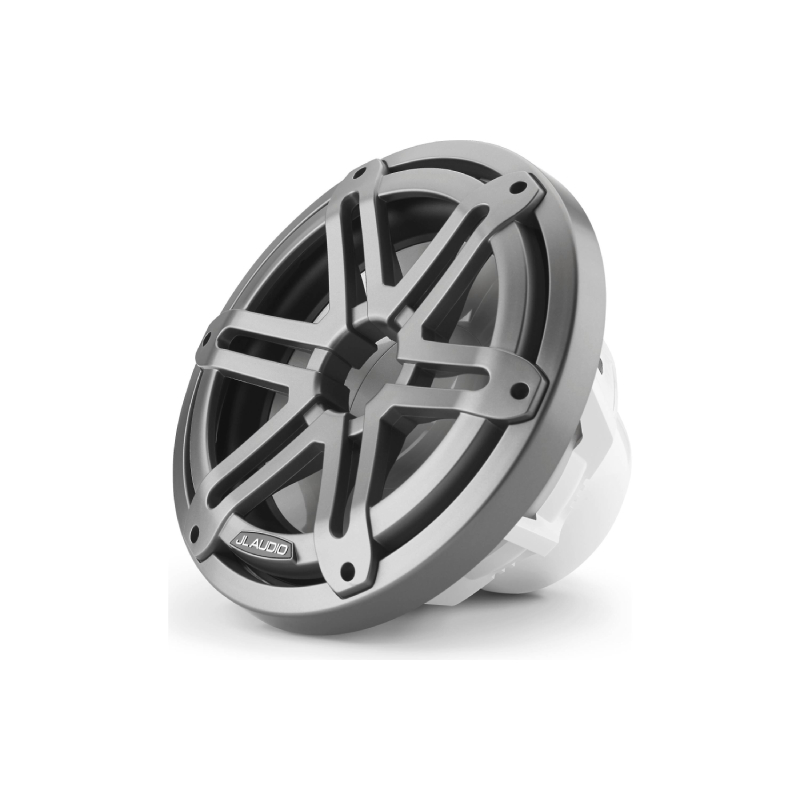

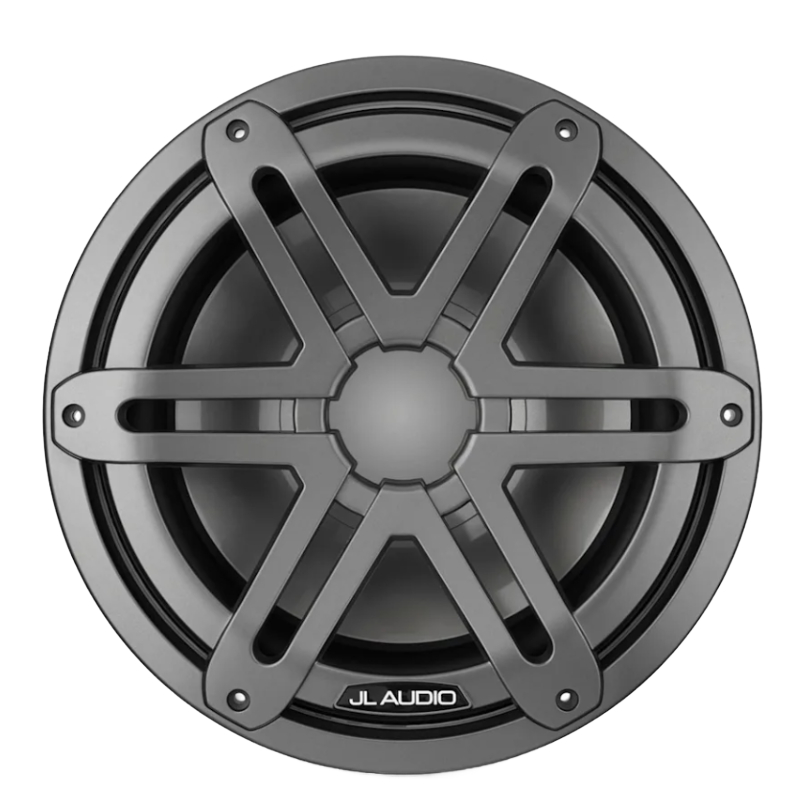

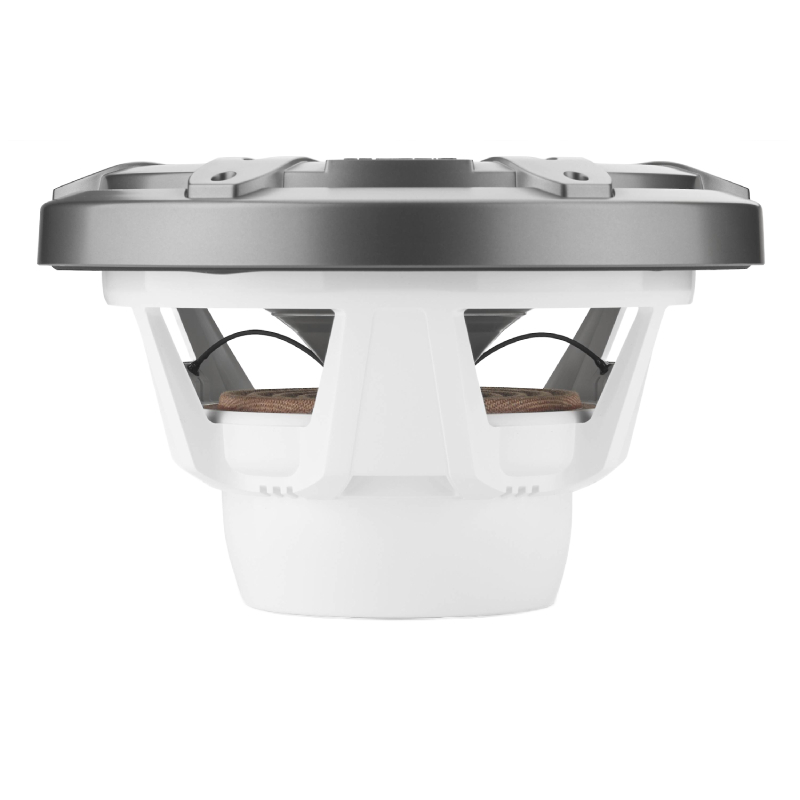

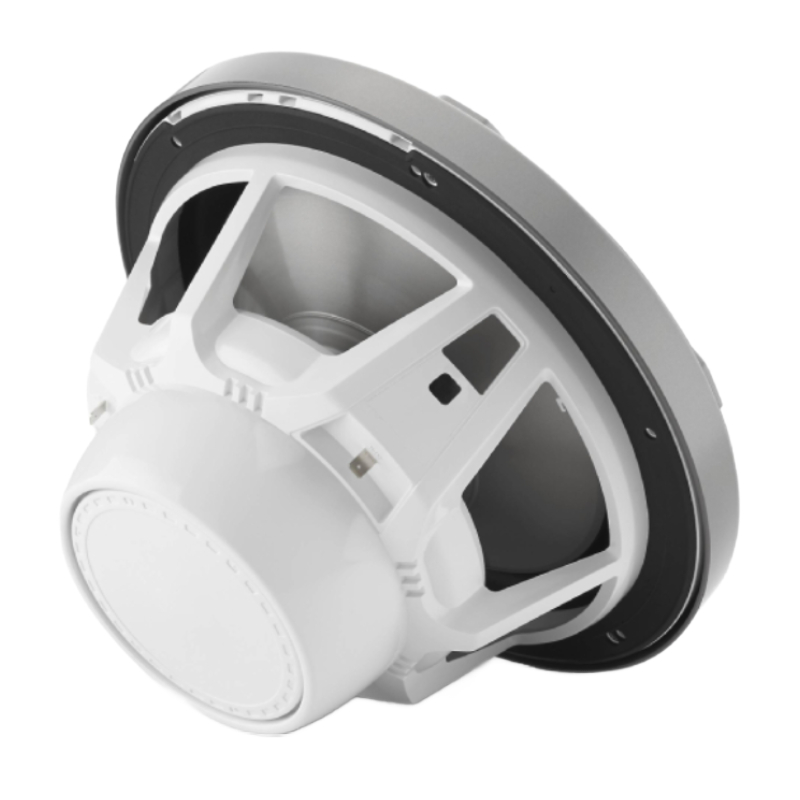

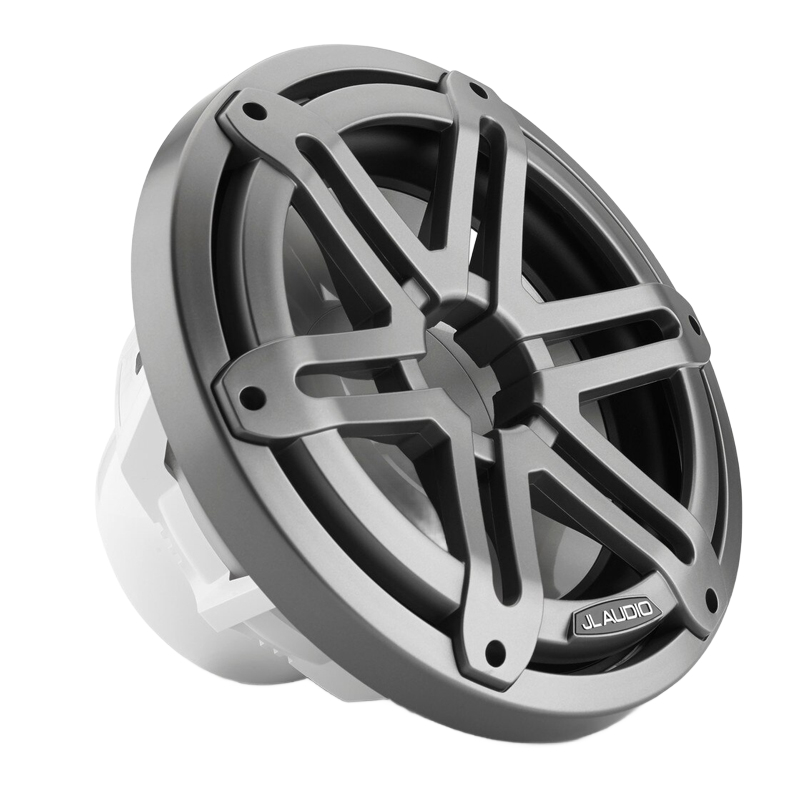

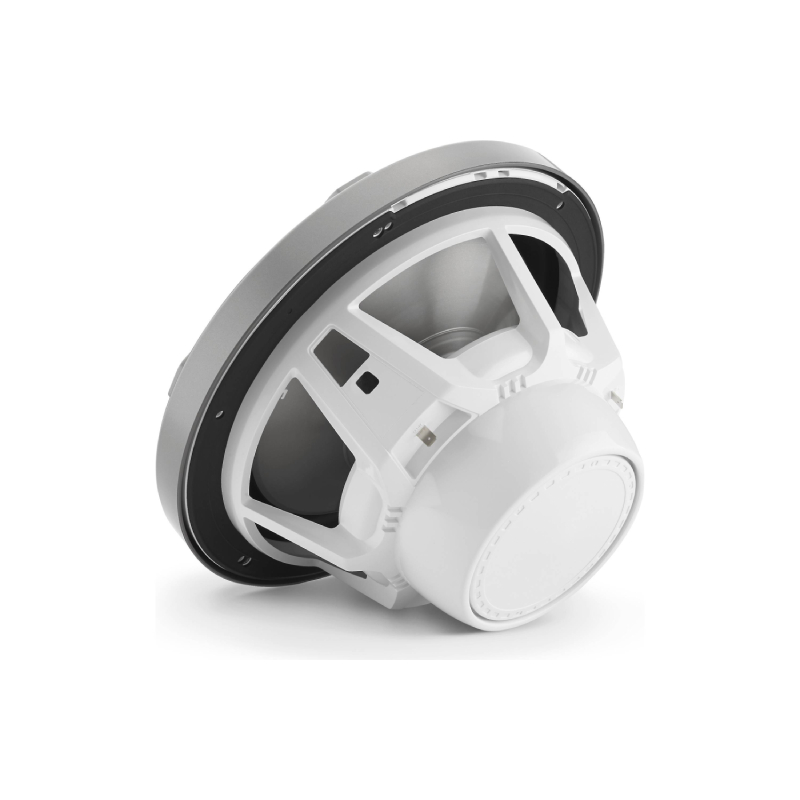

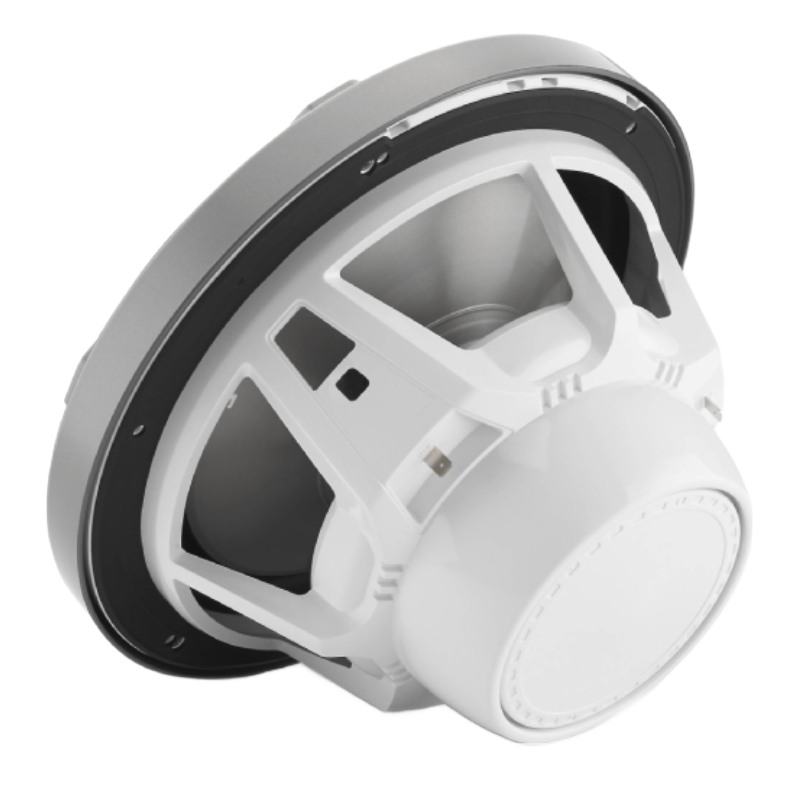

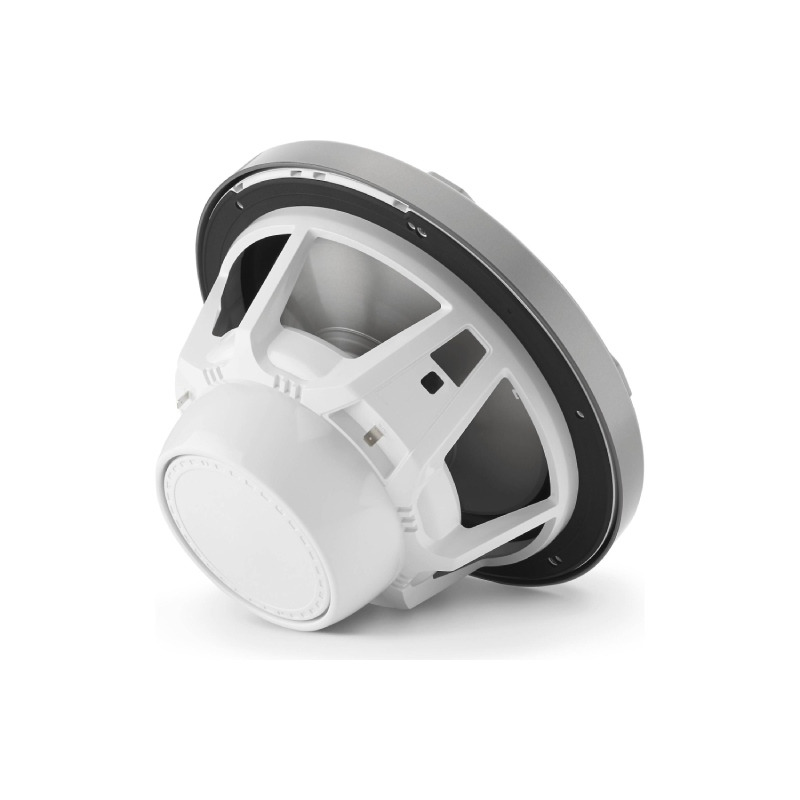

JL Audio M3-10IB-S-Gm-4
 Item# 53724 / Condition:  Brand New

JL Audio M3-10IB-S-Gm-4

M3-10IB-S-Gm-4

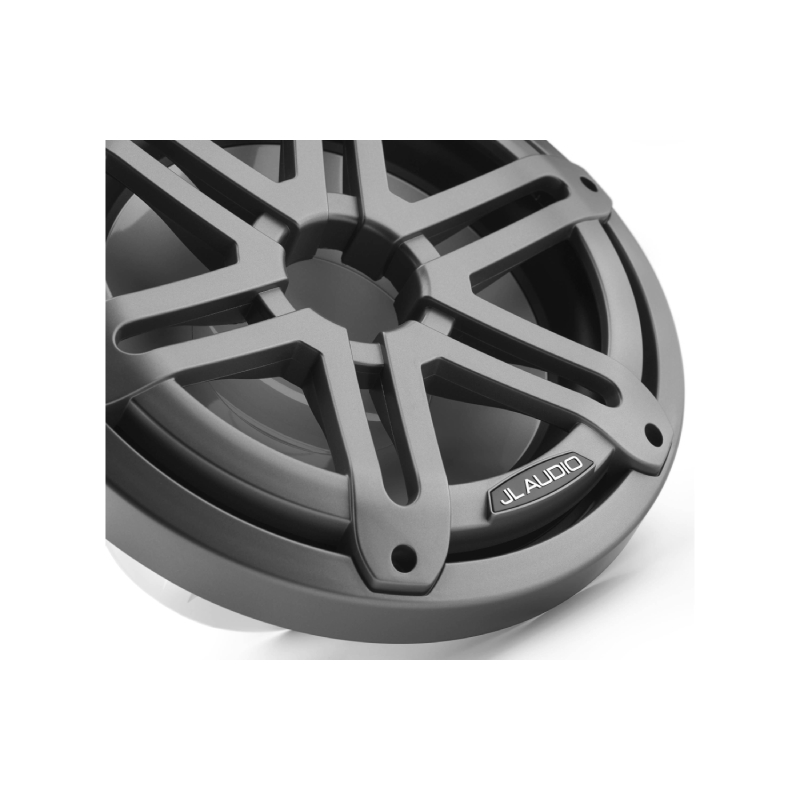

M3 10" 175W RMS 4-Ohms Impedance Marine Subwoofer with Gunmetal Sport Grille Review this product
$239.99

FREE Shipping in US 48!

MSRP:$289.99
Savings Of:17% Discount
Add Extended Warranty
In Stock
Order Now, Pay Later with affirm financing logo
  • Authorized Dealer
  • comments
  • email
  • Facebook
  • Twitter
  • Print

affirm financing small logo
affirm financing extra small logo
JL Audio Banner

Outstanding sound quality

All models are designed to operate in open-air boat environments, delivering powerful, smooth sound that is several steps beyond common marine speakers. These are not car speakers painted white, they are acoustically engineered for boat installations.

Outstanding sound quality

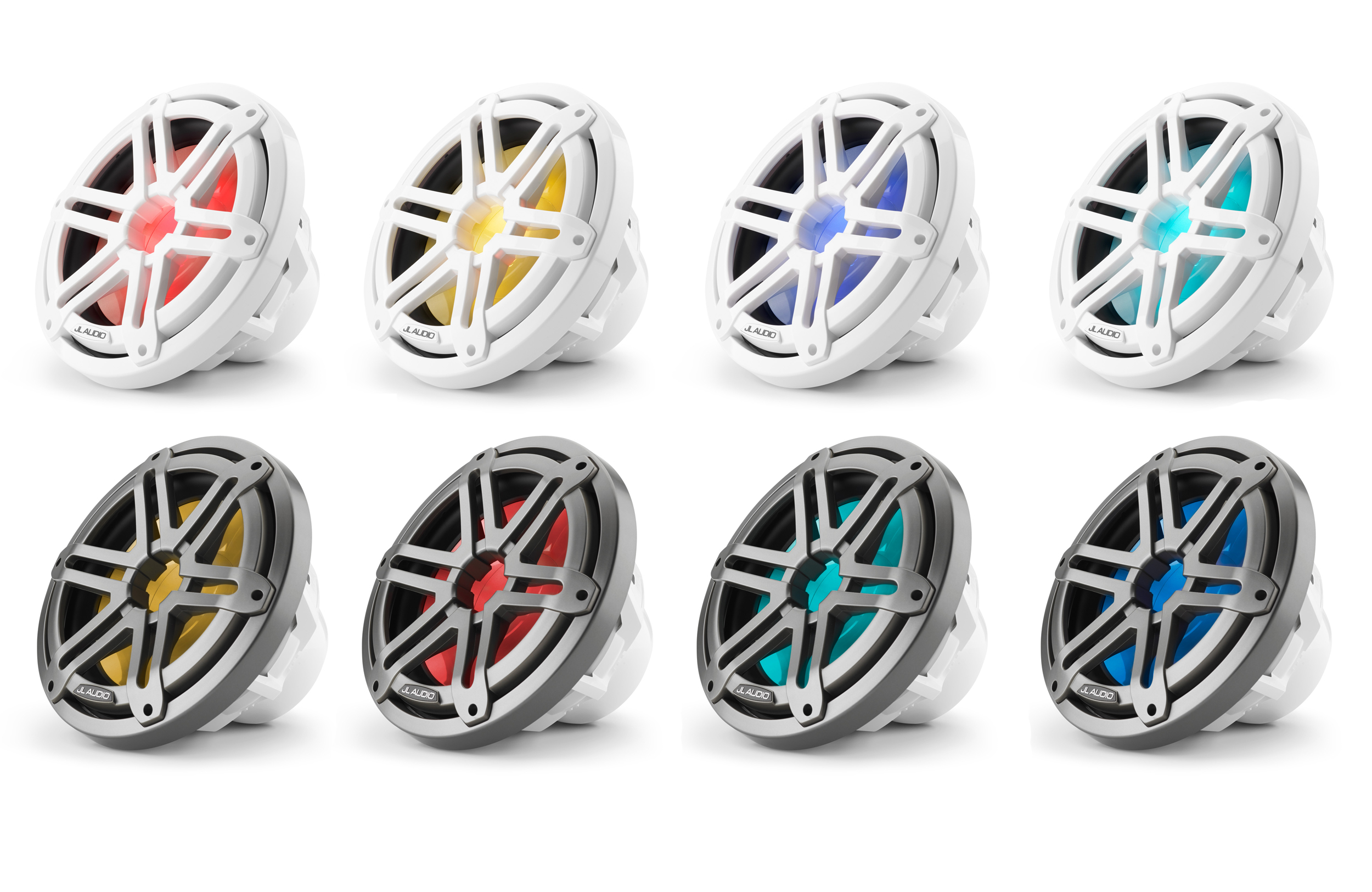

Built-In RGB LED Lighting (Optional Feature)

Available on Sport grille models, multi-color LEDs are embedded within each speaker grille to produce vibrant accent lighting. Choose from seven fixed-wiring lighting colors or connect a lighting controller accessory (sold separately) for adjustable control. (Separate 12V wiring is required to power the illumination.) For optimal performance, we recommend using the JL Audio MLC-RW (Marine Lighting Controller).

Built-In RGB LED Lighting (Optional Feature)


General Specifications

  • Continuous Power Handling (RMS): 175 W
  • Nominal Impedance (Znom): 4 Ohms

Physical Specifications

  • Nominal Diameter: 10.0 in / 250 mm
  • Overall Diameter (A): 10.75 in / 273 mm
  • Mounting Hole Diameter (B): 8.875 in / 225 mm
  • Bolt Hole Circle Diameter (C): 9.706 in / 247 mm
  • Motor Outer Diameter (D): 5.29 in / 134 mm
  • Mounting Depth (E): 5.12 in / 130 mm
  • Driver Displacement: 0.04 cu ft / 1.13 L
  • Net Weight: 6.5 lb / 2.94 kg

Parameters

  • Free Air Resonance (Fs): 41.84 Hz
  • Electrical “Q” (Qes): 0.806
  • Mechanical “Q” (Qms): 11.751
  • Total Speaker “Q” (Qts): 0.754
  • Equivalent Compliance (Vas): 1.29 cu ft / 36.53 L
  • One-Way Linear Excursion (Xmax)*: 0.42 in / 11 mm
  • Efficiency (1 W / 1 m)**: 87.23 dB SPL
  • Effective Piston Area (Sd): 50.68 sq in / 0.0327 sq m
  • DC Resistance (Re): 3.957 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.

** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Enclosure Specifications

  • Infinite Baffle Use: Yes (preferred)
  • Min. Sealed Enclosure Volume: 2.0 cu ft / 56.6 L (or larger)
  • Optimum Sealed Enclosure Volume: 2.5 cu ft / 70.8 L
  • Subwoofers are usually sold as a single unit unless otherwise noted.
  • UPC: 699440935289
  • Weight: 15
  • Authorized Internet Dealer
*Warranty: 2 Years Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
