Pioneer 100W x 4 RMS @2Ohms, 1200W Max Power Class D 4-Channel Bridgeable Marine Amplifier
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 4-Channel marine amplifier
- • (2) 30-amp ATO fuses (installed)
- • Control panel cover
- • Fuse cover
- • (6) Cover for RCA Terminal
- • (2) Speaker Level to RCA Input Adapters
- • Wire Terminal Tool
- • (4) Installation Screws
- • (3) M3x8mm Machine screws
- • Owner's Manual
Designed for Marine Use

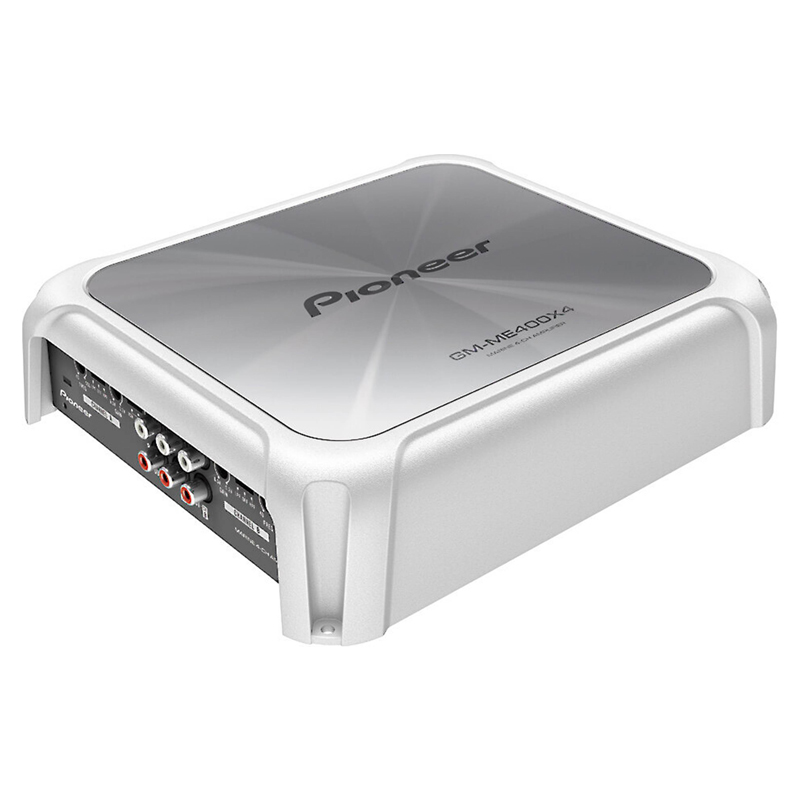

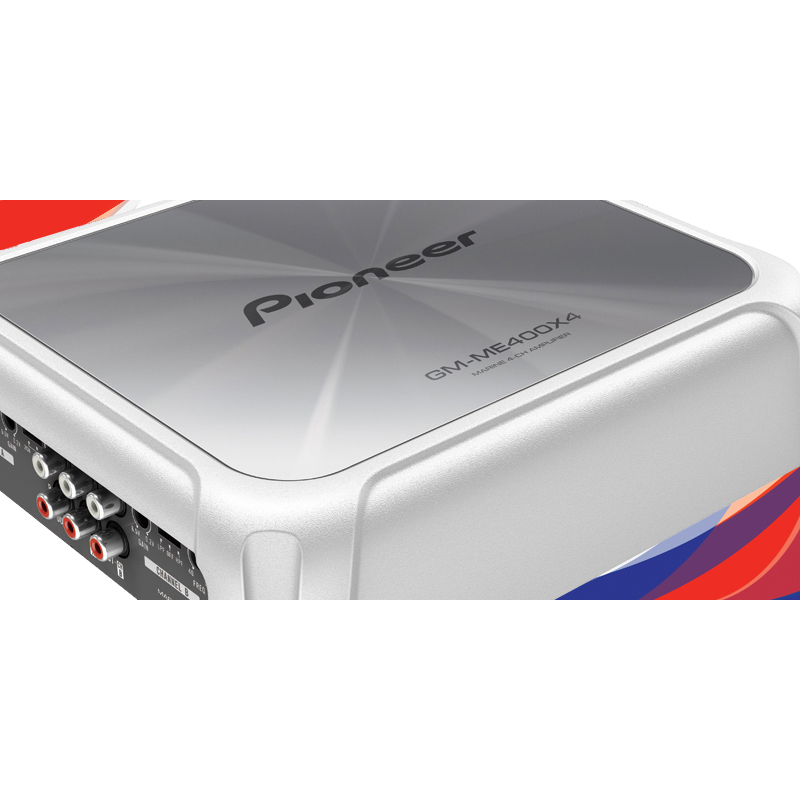

Pioneer's GM-ME400X4 is a Marine grade Class-D digital amplifier specifically designed for the marine environment, including features such as special painting, protective covers for the side panels and RCA terminal covers.
Protection Control System
To prevent circuit shutdown, Pioneer's GM-ME400X4 digital amplifier circuit includes a "Protection Control System" senses its internal temperature and automatically moderates input level accordingly. This design enhances the flexibility to connect multiple subwoofers to a system.
- Maximum Power : 1200 Watts
- Low Frequency Response : 10 Hz
- High Frequency Response : 35000 Hz
- Number of Channels : 4
- Built In Crossovers : Yes
- RMS Power Output : 75x4 Watts
- Channel Separation : Yes
- Amplifier Class : D
GENERAL
- RCA Inputs: 4-CH
- Amplifer Class: CLASS-D
- High Quality Sound Parts: Yes
- Hi-Res Certified Yes
- Speaker Level Inputs Yes
- Crossover Type: Variable HPF/LPF
- Bridgeable Yes
- Warranty (must be purchased from an Authorized Pioneer Dealer): 1 Year
SPECIFICATIONS
- Continuous Power (RMS) Output at 1 Ohm: 150W RMS x 4
- Continuous Power (RMS) Output at 2 Ohms: 120W RMS x 4
- Continuous Power (RMS) Output at 4 Ohms: 75W RMS x 4
- Continuous Power (RMS) Output - Bridged at 4 Ohms: 240W RMS x 2
- Frequency Response: 10 Hz to 35 kHz
- Total Harmonic Distortion (THD): < 0.05% (1 kHz)
- Signal-to-Noise (SN) Ratio: 95 dB (IHF-A Network)
- Fuse Rating: 30 A x 2
- Low-Pass Crossover Frequency: 40 Hz to 500 Hz
- Low Pass Slope (dB/octave): -12 dB/oct.
- High-Pass Crossover Frequency: 40 Hz to 500 Hz
- Hi-Volt Input Level Control: 200 mV to 6.5 V

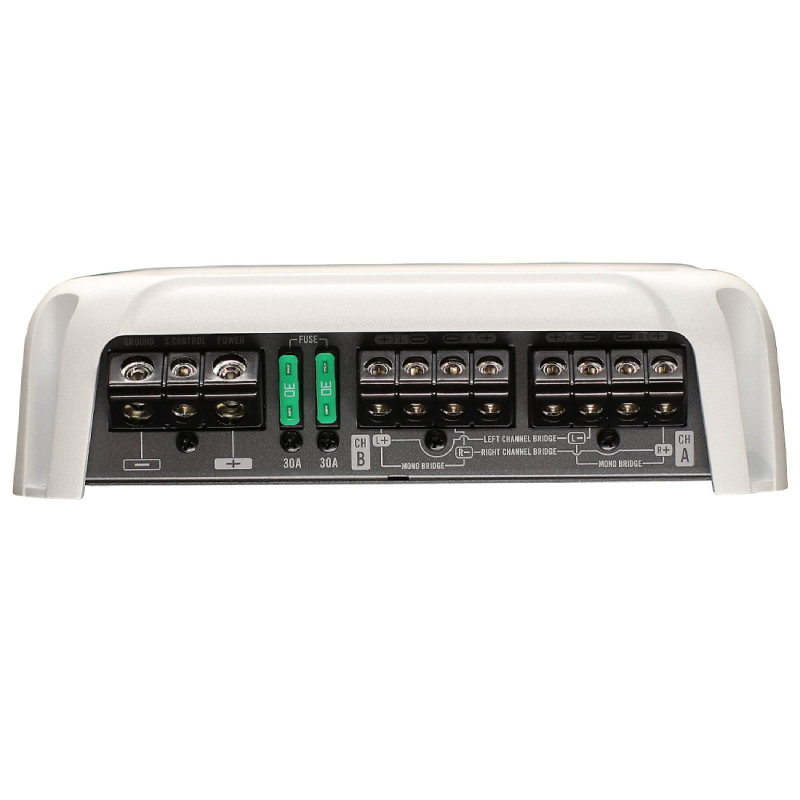

- Terminal Type: Block
- Load Impedance Allowance (Ohms): 1 to 8
- Protection Control System: Yes
- Dimensions: 10-38" x 2-3/8" x 7-7/8"
MARINE
- Rubber Covers Included: Side Panel Cover, RCA Terminal Cover, FUSE Cover
- UPC: 884938432115
- Weight: 15
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
