Pioneer GM-ME500X1 500W x 1 RMS @2Ohms, 1600W Max Power Class D Mono Block Marine Amplifier
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •1-Channel Marine Subwoofer Amplifier
- •(2) 40-amp ATO fuses (installed)
- •Control panel cover
- •Fuse cover
- • (4) Cover for RCA Terminal
- •Speaker Level to RCA Input Adapters
- •Wire Terminal Tool
- •(4) Installation Screws
- • (3) M3x8mm Machine screws
- •Owner's Manual

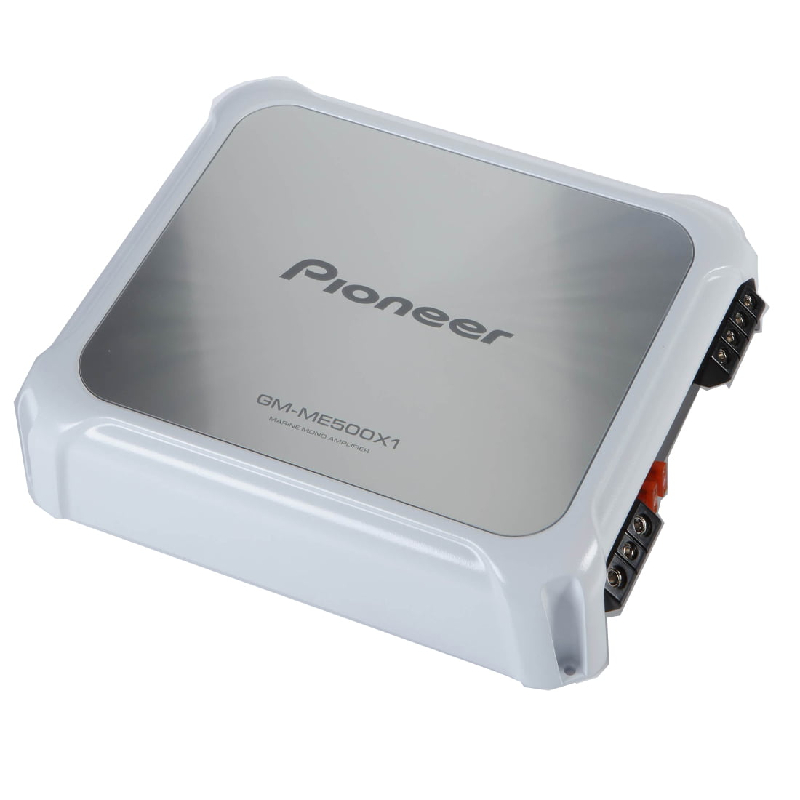

Compact Monoblock Amplifier
The Pioneer GM-ME500X1 is a compact monoblock amplifier designed to deliver powerful and efficient performance for your marine vehicle’s audio system. With a nominal power output of 800 watts at 1 ohm, this amplifier provides plenty of power to drive your subwoofer and deliver impactful bass.
High Efficiency and Low Heat Generation
Equipped with Pioneer's Class D amplifier technology, the GM-ME500X1 ensures high efficiency and low heat generation, allowing for reliable and consistent performance. It features variable low-pass and subsonic filters, allowing you to fine-tune the sound and tailor it to your preferences. It offers both high-level and RCA inputs, providing versatile connectivity options for integration with various car audio setups.
Incorporates Advanced Protection Circuitry
The GM-ME500X1 incorporates advanced protection circuitry, including thermal, overload, and short circuit protection, ensuring the safety and longevity of the amplifier and your audio system. It also features a compact design that allows for easy installation, even in limited space.With its sleek chassis and minimalist design, the GM-ME500X1 will blend seamlessly into your boat's interior.
- Maximum Power : 1600 Watts
- Low Frequency Response : 10 Hz
- High Frequency Response : 240 Hz
- Number of Channels : 1
- Built In Crossovers : Yes
- RMS Power Output : 800 Watts
- Channel Separation : No
- Amplifier Class : D
- XP750-SE OFFER : Yes
Features:
- CTA-2006 Compliant: CTA-2006 is a system of testing and measurement for mobile audio amplifiers. This voluntary standard advocates a uniform method for measuring an amplifier's RMS power output and signal-to-noise ratio. The criteria for measuring amplifier power uses a DC input voltage of 14.4 volts and the RMS power output is measured over a frequency range of 20 Hz to 20 kHz (for full range amplifiers), with 1% or less Total Harmonic Distortion plus noise (THD+N). Signal-to-Noise ratio is measured in weighted absolute decibels (dBA) at a reference of 1 watt into 4 ohms. CTA-2006 standards allow consumers to compare amplifiers and receivers under the same conditions (apples to apples).
- Speaker Level Input: The RCA input jacks can be used for preamp level or speaker level input signals. If connecting the source unit's speaker wire to the input jacks, use the included Speaker-to-RCA adapter. When using a speaker level input signal, it may not be necessary to connect a remote turn-on lead because of the amplifier's signal sensing function.
- Pre-Output: An additional pair of RCA jacks provides a line level output for sending a signal to another amplifier. The output matches the signal at input, and is not affected by the amplifier's crossover.
- Gain: rotary control; adjustment range depends on the input type; automatically selected between 200mV to 6.5V (preamp level) and 800mV to 16V (speaker level)
- Frequency: rotary control for crossover point; variable from 40 Hz to 240 Hz
- Subsonic Filter: 2-position switch; on/off; 30 Hz crossover point, 24 dB/octave slope
- RCA Inputs: one pair of stereo RCA inputs; used for both speaker level and preamp level signals
- RCA Outputs: one pair of stereo RCA outputs; outputs the signal at the input

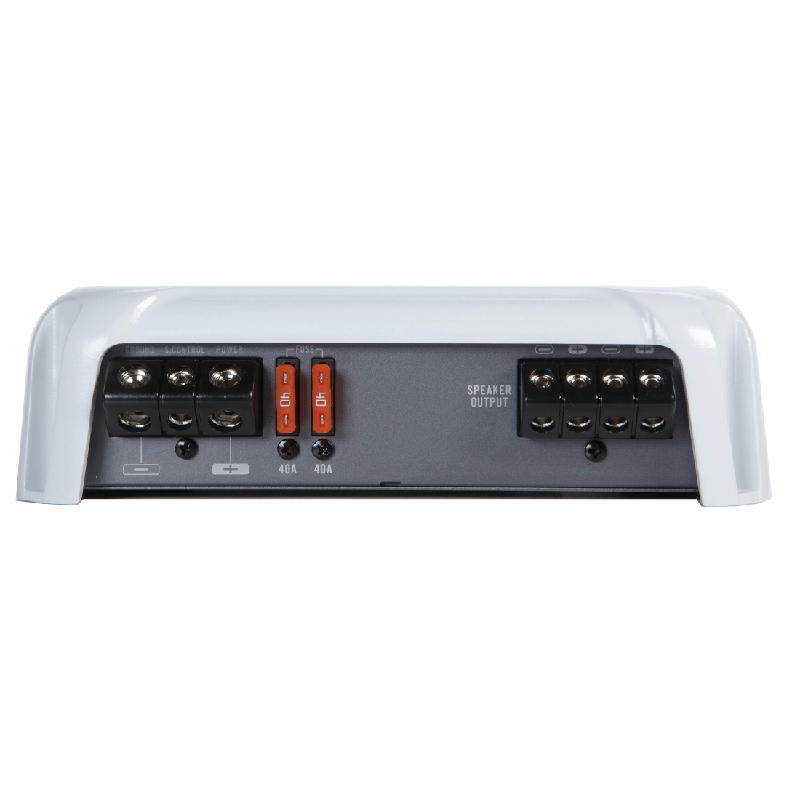

- Speaker Outputs: two pair of set-screw terminals; internally shorted together, making is easy to connect two subwoofers in parallel; the terminals will accept up to 8-gauge wire; the included 3mm Allen wrench is used to tighten/loosen the set screws
- Power: set-screw terminal; accepts up to 4-gauge wire; the included 3mm Allen wrench is used to tighten/loosen the set screw
- Ground: set-screw terminal; accepts up to 4-gauge wire; the included 3mm Allen wrench is used to tighten/loosen the set screw
- Remote Turn-on: set-screw terminal; accepts up to 8-gauge wire; the included 3mm Allen wrench is used to tighten/loosen the set screw
- Fuses: two 40-amp ATO fuses are mounted on the side of the amp
Specifications:
- Continuous Power (RMS) Output at 1 Ohm: 800W RMS x 1
- Continuous Power (RMS) Output at 2 Ohms: 500W RMS x 1
- Continuous Power (RMS) Output at 4 Ohms: 300W RMS x 1
- Frequency Response: 10 Hz to 240 Hz
- Total Harmonic Distortion (THD): < 0.5% (100 Hz)
- Signal-to-Noise (SN) Ratio: > 100 dB
- Fuse Rating: 40 A x 2
- Low-Pass Crossover Frequency: 40 Hz to 240 Hz
- Low Pass Slope (dB/octave): -12 dB/oct.
- High-Pass Crossover Frequency: 40 Hz to 240 Hz
- Bass Boost Frequency: 50 Hz
- Bass Boost Level: 0 dB to 18 dB
- Bass Boost Remote: Yes
- Hi-Volt Input Level Control: 200 mV to 6.5 V
- Terminal Type: Block
- Load Impedance Allowance (Ohms): 1 to 8
- Protection Control System: Yes
- Dimensions: 10-38" x 2-3/8" x 7-7/8" Marine
- Rubber Covers Included: Side Panel Cover, RCA Terminal Cover, FUSE Cover
- UPC: 884938432139
- Weight: 7
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
