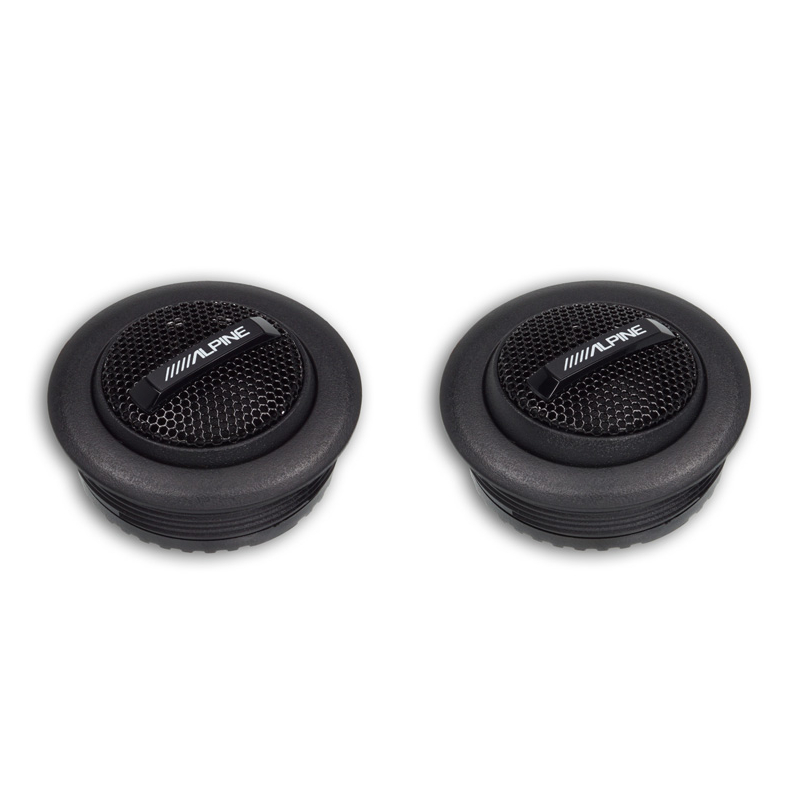

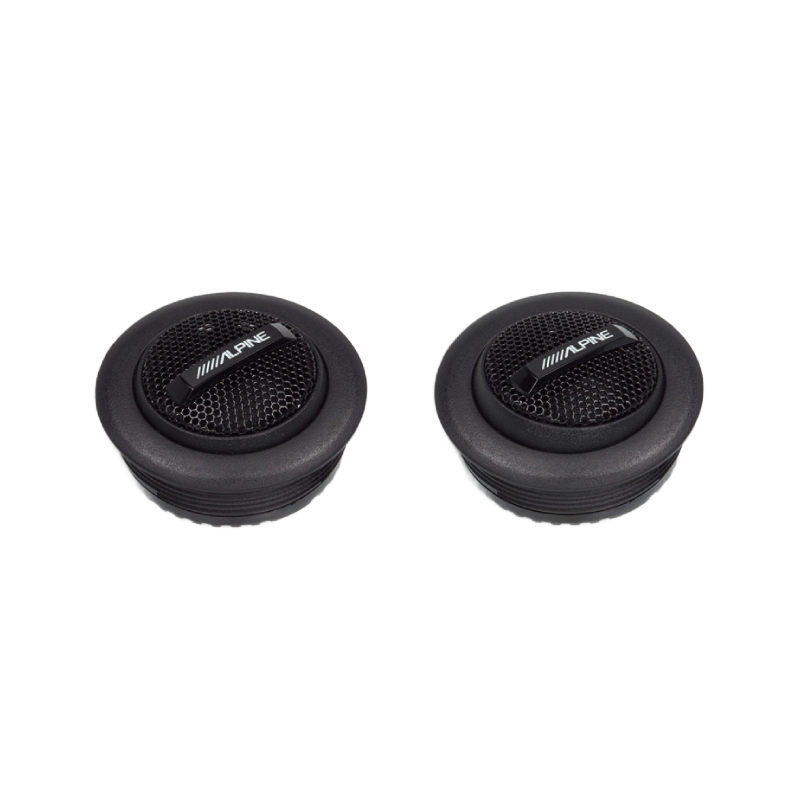

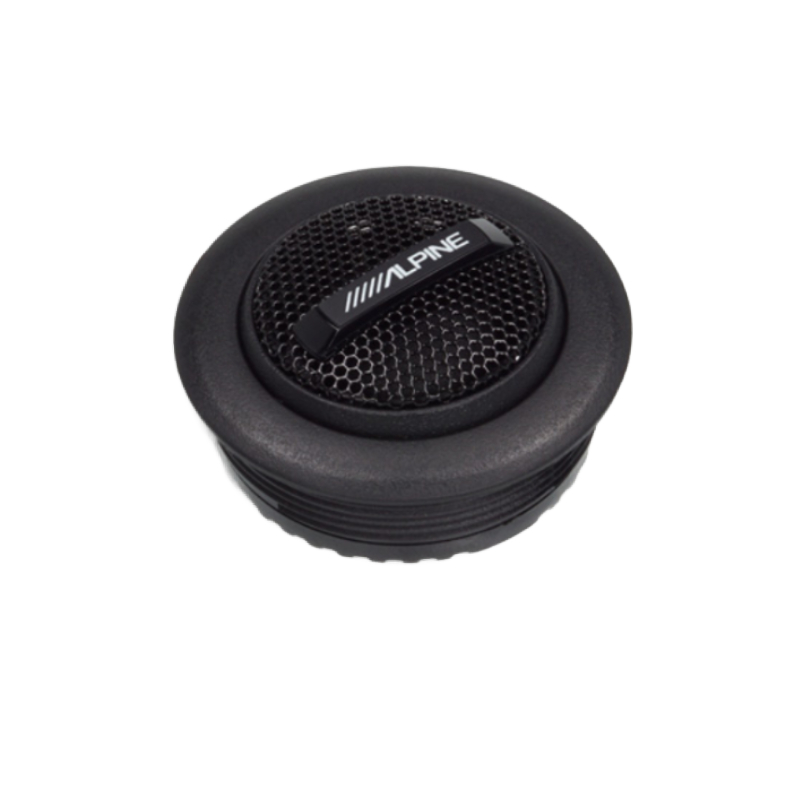

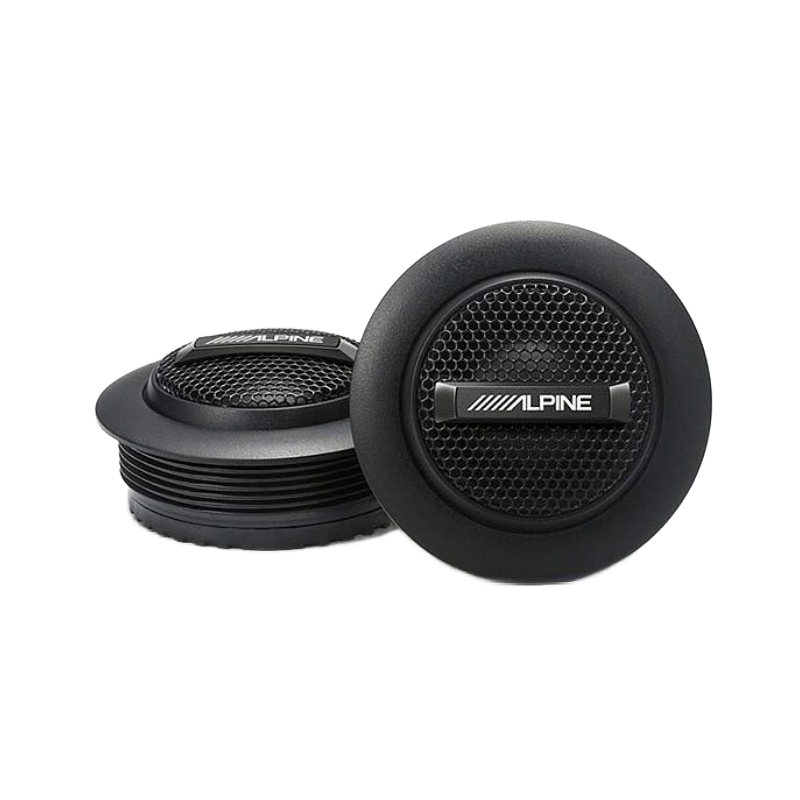

Alpine S-S10TW S-Series 1" 80W RMS (240W Peak Power Handling) 1-way Silk Dome Tweeters (Pair)
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

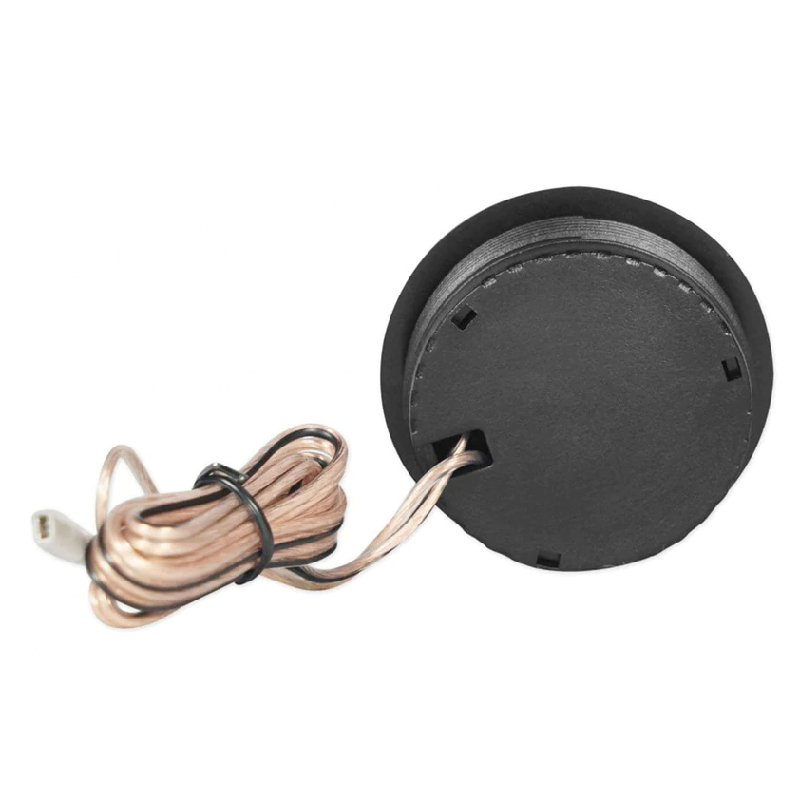

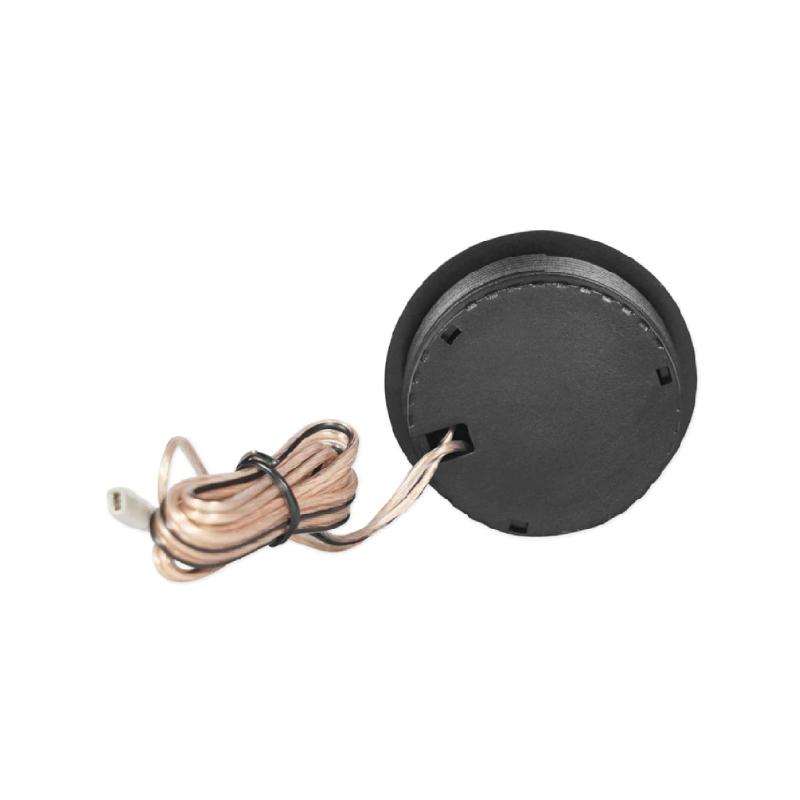

- • (2) Tweeters (each has a 30" length of wire attached)
- • (2) Flush mount housings (with tweeters installed)
- • (2) Tweeter grilles (installed)
- • (2) 38" Wires with in-line crossovers (each has quick slides on the output end and bare wire on the other)
- • (2) Flush mount retention rings
- • (2) Stealth brackets
- • (2) Foam self-adhesive pads
- • (2) Foam self-adhesive rings
- • (2) Alpine logo badges
- • Logo placement bracket
- • Warranty information
- • On-line product registration information
- • Important notice sheet
- • Template and specs on box
- • Owner's Manual
Why Choose Alpine S-S10TW Car Tweeters?
Powerful, Clear, and Smooth Sound
Delivering high power handling of up to 80W RMS (240W peak), these speakers provide clear, distortion-free audio even at high volumes. The silk dome design ensures smooth, warm highs, enhancing clarity and creating a rich, immersive soundstage.
Compact Tweeters with Versatile Installation Options
These 1” tweeters feature a 17.6mm flush-mount depth, an adjustable 15° swivel cup housing, and a height-adjustable stealth OEM mount, offering compact size and flexible installation for a seamless fit in any vehicle.
Premium Tweeters with Superior Durability and Sound
Built with high-grade neodymium motor structures and copper-clad aluminum voice coils, these tweeters deliver precise audio reproduction while ensuring long-lasting durability and reliable performance.
Seamless Integration with OEM and Alpine Systems
These tweeters are OEM system compatible, featuring a removable Alpine logo and full compatibility with Alpine S-Series systems for a clean, professional, and seamless installation.
Frequently Asked Questions (FAQ)
- • Will these work with my factory car stereo?
Yes, they can work with many factory stereos, but pairing them with an external amplifier typically provides better clarity and output. Using the proper crossover also helps protect the tweeters from unwanted low frequencies.
- • Why do the tweeters sound too bright or harsh?
This is often caused by incorrect equalizer settings, improper mounting angles, or crossover adjustments. Fine-tuning the system and aiming the tweeters correctly usually results in a smoother sound.
- • Can I install these in my factory tweeter locations?
Many vehicles can accommodate these tweeters using the factory mounting locations or included mounting hardware. Checking your vehicle's dimensions before installation helps ensure a proper fit.
- • Why isn't one of the tweeters producing any sound?
A loose connection, wiring issue, or improperly installed crossover is usually the cause of this problem. Inspecting the wiring and verifying all connections typically restores normal operation.
- • Do I need a crossover when installing these?
Yes, a crossover is recommended to block damaging low-frequency signals from reaching the tweeters. This improves sound quality while helping extend the life of the speakers.
- • Can these be used with aftermarket component speakers?
Yes, they are commonly paired with compatible component speaker systems for improved high-frequency performance. Matching them with the appropriate crossover ensures balanced sound throughout the system.
- • Why do the tweeters distort when I turn the volume up?
Distortion is usually caused by amplifier clipping, excessive equalizer boost, or overpowering the tweeters. Proper gain adjustment and crossover settings generally eliminate the problem.
- • Can I adjust the direction of the tweeters after installation?
Yes, depending on the mounting method, they can often be aimed toward the listening position for improved stereo imaging. Proper positioning can noticeably enhance vocal clarity and overall soundstage.
- • How long does it take for the tweeters to sound their best?
Like many speakers, they may benefit from a short break-in period before reaching their optimal performance. Regular listening over several hours typically results in smoother and more natural high frequencies.
- • Are these worth upgrading over factory speakers?
Most users notice significantly clearer vocals, sharper instrument detail, and a wider soundstage after upgrading. They are an excellent choice for drivers looking to improve overall audio clarity without replacing the entire sound system.
- Diameter : 1 Inch
- Sensitivity : 88 dB
- Frequency Response : 1000-22000 Hz
- Peak Power Handling : 240 Watts
- RMS Power Handling : 80 Watts
Features
- High Power Handling: Designed to handle up to 80W RMS (240W peak) with reduced distortion for clear, high-volume performance.
- Silk Dome Design: Produces smooth, warm highs without harshness, enhancing clarity and overall soundstage.
- Compact and Flexible Installation: 1” tweeters with 17.6mm flush-mount depth, including adjustable 15° swivel cup housing and height-adjustable stealth OEM mount.
- Premium Components: High-grade neodymium motor structure and copper-clad aluminum voice coil ensure durability and precise audio reproduction.
- OEM System Compatible: Removable Alpine logo and compatibility with Alpine S-Series systems for seamless integration.
Specifications:
- Tweeter Design: Silk Dome
- Max RMS Power: 80 W
- Peak Power: 240 W
- Material: Silk
- Magnet Type: Neodymium
- Voice Coil Type: Copper-Clad Aluminum
- Crossover: Passive 12dB/Octave High-Pass Filter
- Frequency Response: 1kHz – 22kHz
- Sensitivity: 88 dB (1W / 1m)
- Impedance: 6 Ohms
- Flush Mount Depth: 17.6 mm (0.70")
- Cutout Diameter: 51 mm
- Included Components: 2 Tweeters, Swivel Flush Cup Housing, Adjustable OEM Mount
- UPC: 793276242853
- Weight: 1
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
