CX Series amps reach massive power levels thanks to an optimized circuit layout and the highest-grade internal components available. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash.

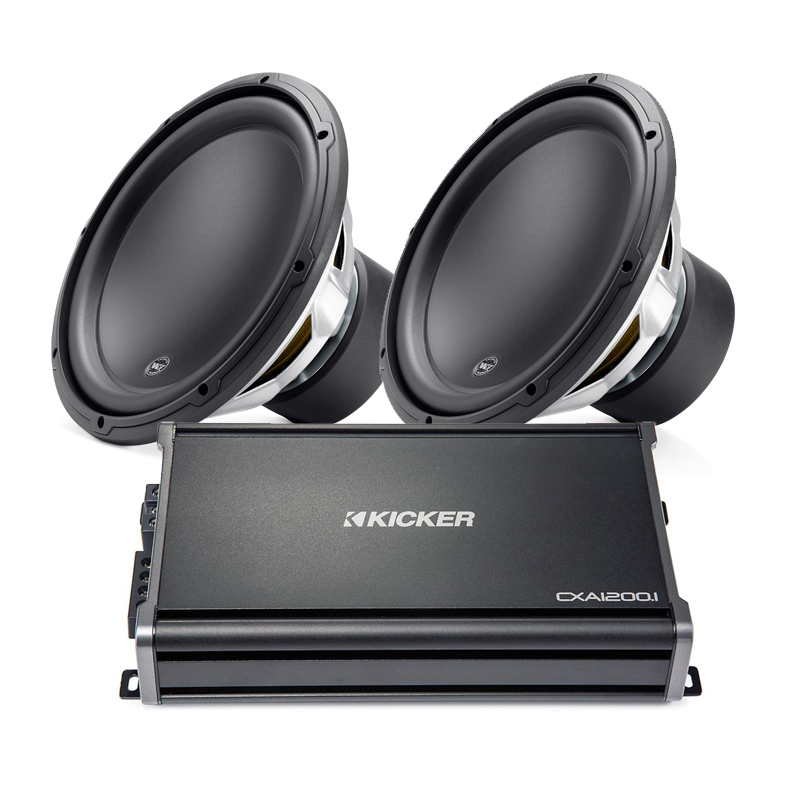

JL Audio 12W3v3-4
This powerhouse 12-inch driver delivers potent performance and world-class sound quality in medium power applications. Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 12W3v3 to enhance linearity and reliability.
The 12W3v3-4 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a compact 1.125 cu. ft. (31.8 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
12W3v3-4 W3v3 Series 12" 1000W Peak Power 4-ohm Subwoofer
- 12" 4-ohm subwoofer
- mineral-filled polypropylene cone with nitrile-butylene rubber surround
- power range: 100-500 watts RMS
- peak power handling: 1,000 watts
- frequency response: 22-200 Hz
- sensitivity: 87.15 dB
- top-mount depth: 6-5/8"
- sealed box volume: 1.125 cubic feet
- ported box volume: 1.75 cubic feet
43CXA12001 CX Series 2400 Watts Peak Class D Monoblock Subwoofer Car Amplifier
- RMS Power Output (Watts x Channels): 600 x 1
- Speaker Level Inputs: RCA
- Low-Pass Crossover Frequency: 50-200 Hz
- Signal to Noise Ratio: 95 dB
- Minimum Impedance Unbridged: 2
- Bridged Power (Watts x Channels): N/A
- Height (inches): 2-3/8
- Width (inches): 12-1/8
- Preamp Outputs: 1 pair
- High-Pass Crossover Frequency: N/A
- Minimum Impedance Bridged: N/A
- Amplifier Class: D
- THD at Rated RMS Power: 1%
- Bass Boost: 0-12 dB
- Peak Power Output (Watts x Channels): 2400 x 1
- Power at 2 Ohms (Watts x Channels): 1200 x 1
- Best Frequency Response: 25-200 Hz
- Input Voltage: 14.4v
- Low-Pass Slope (dB/octave): 12 dB/octave
- High-Pass Slope (dB/octave): N/A
- Bass Boost Frequency: 40 Hz
- Fan Cooled: No
- Fuse Rating: 150
- Depth (inches): 6-3/4
- Weight: 30
- Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
